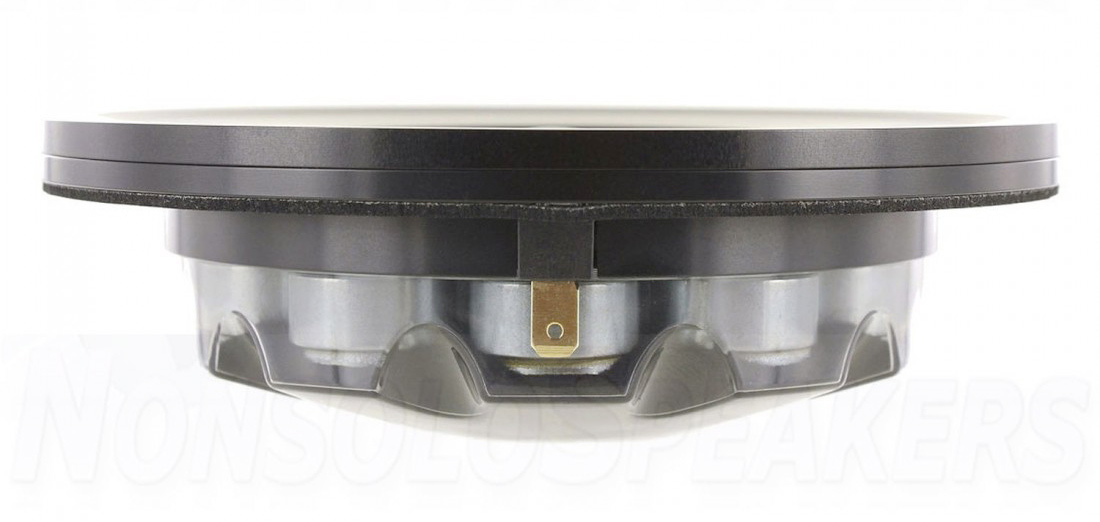

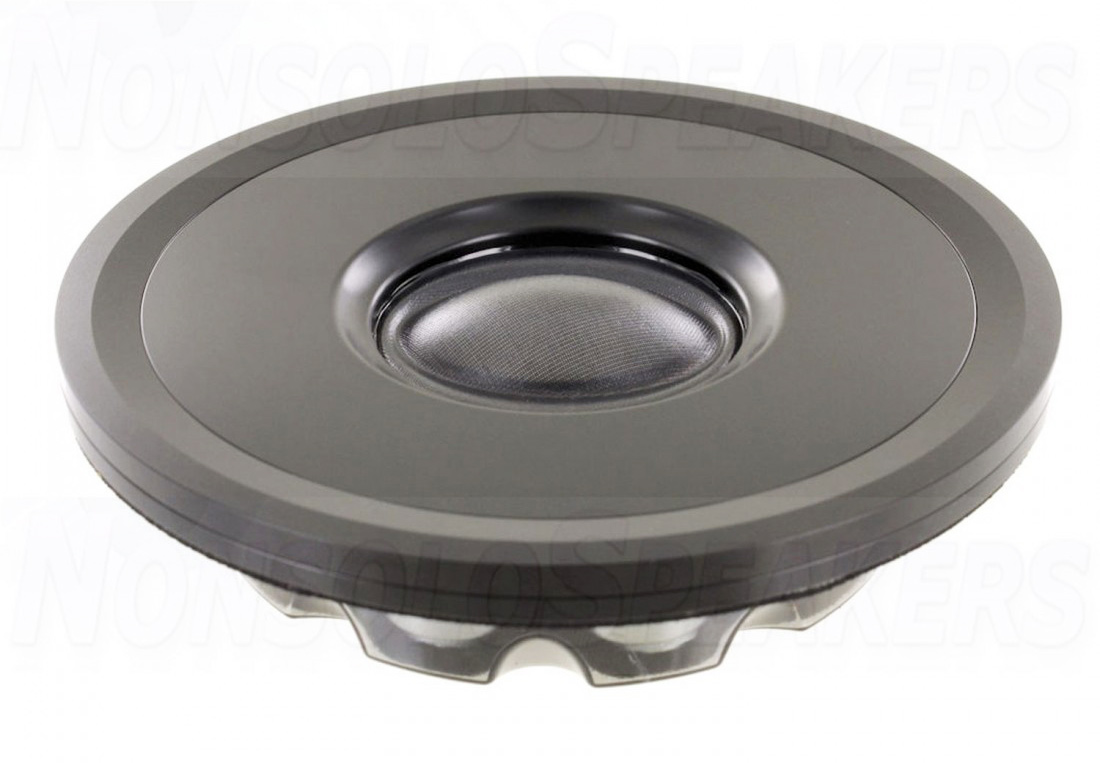

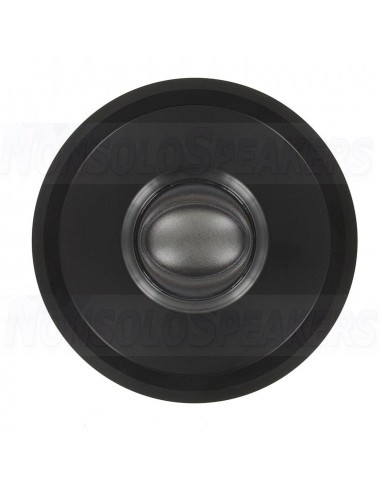

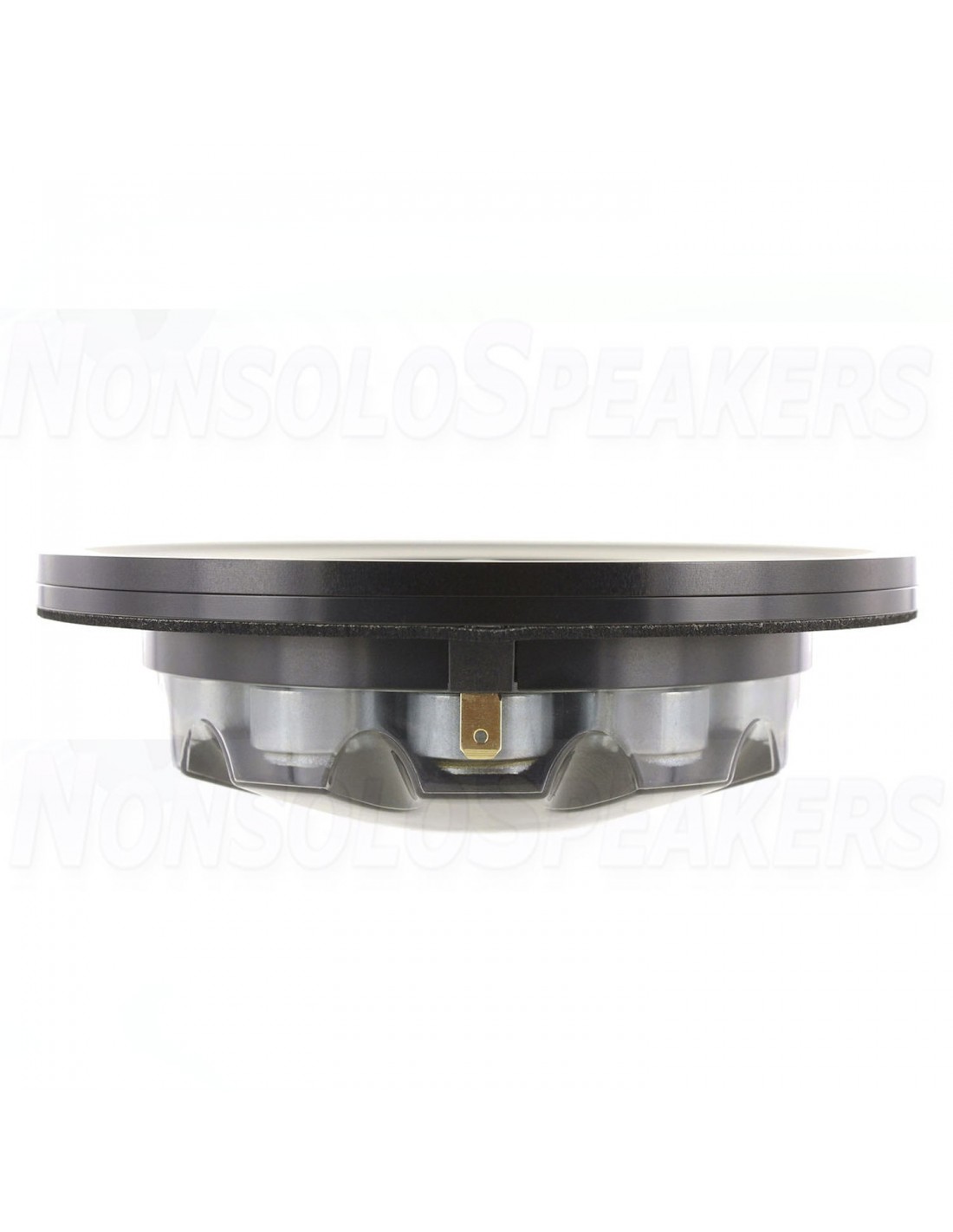

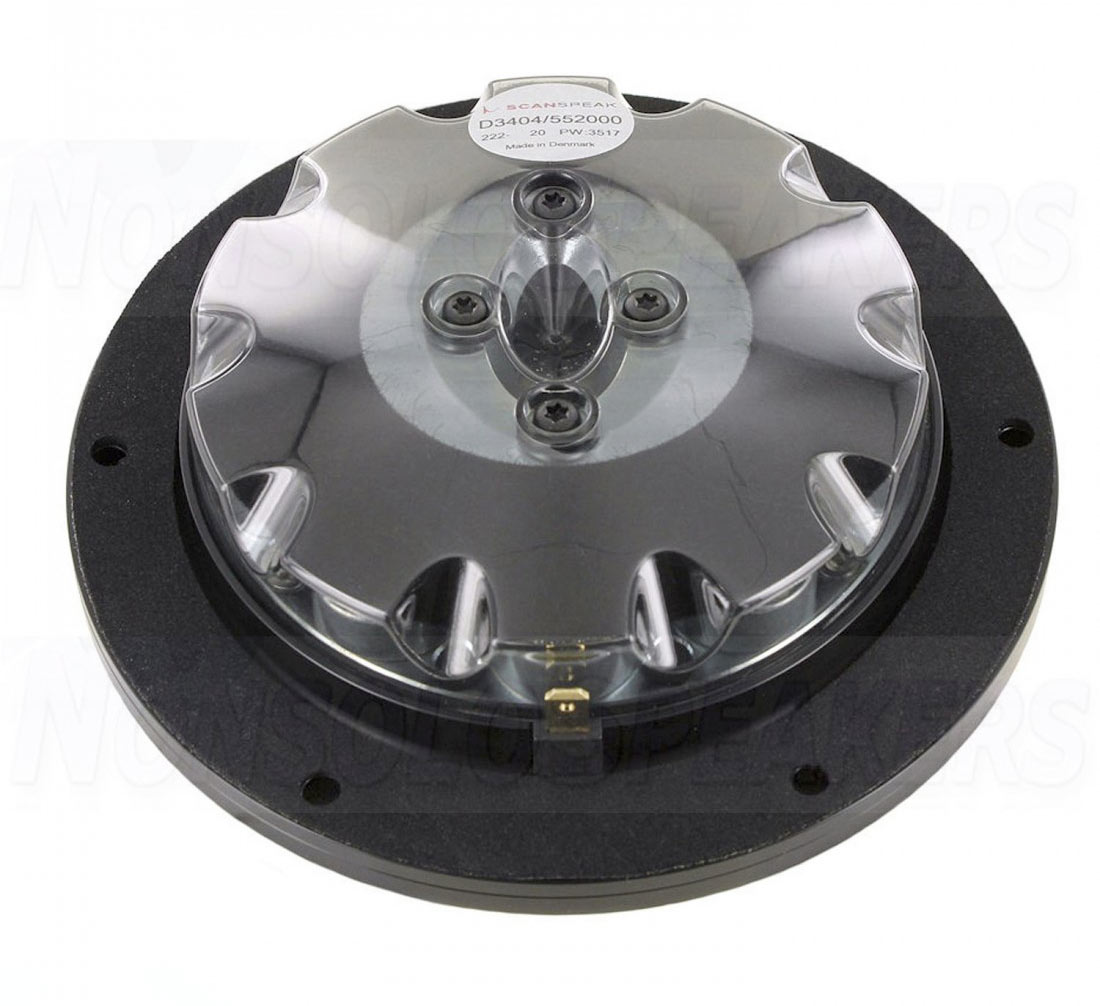

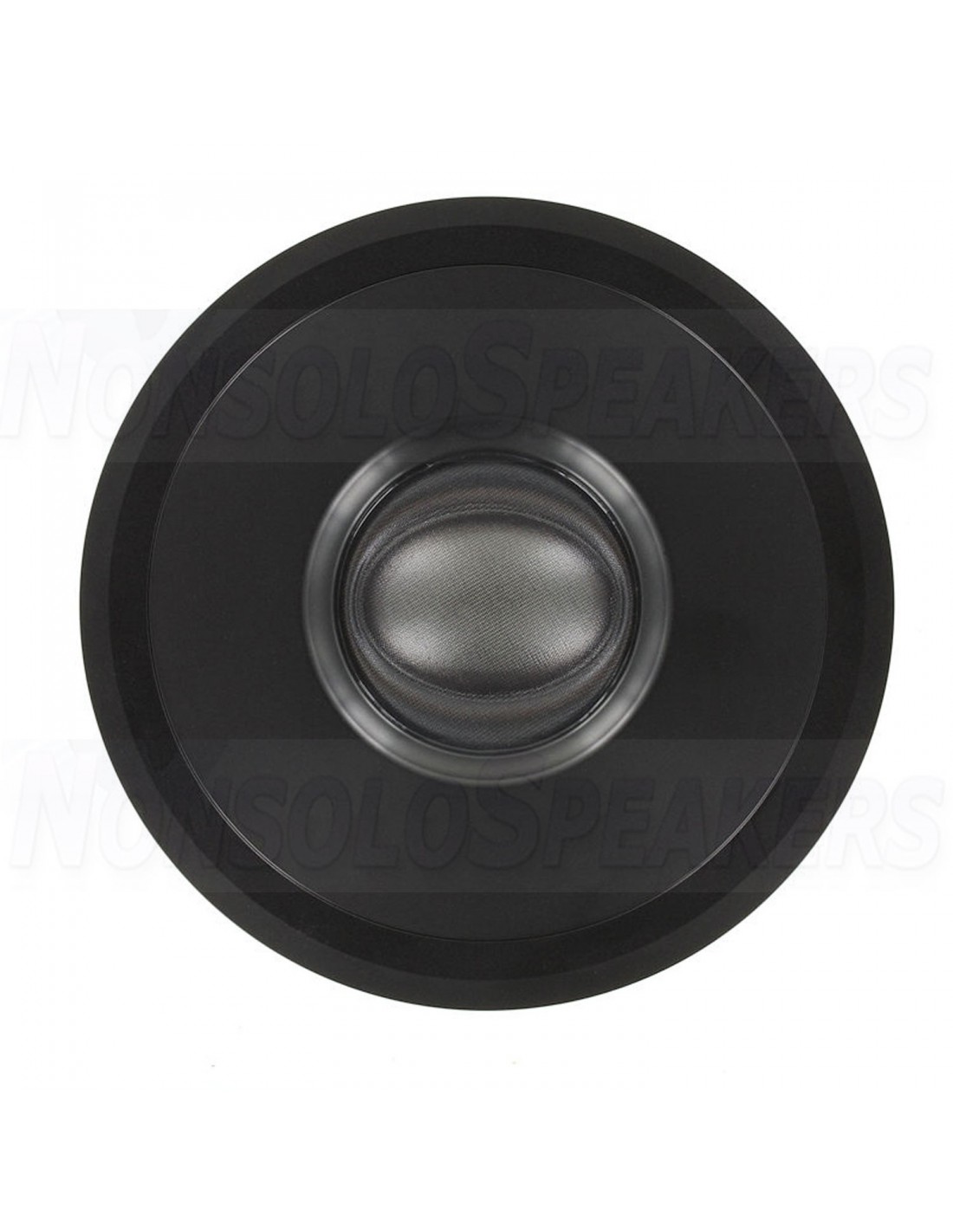

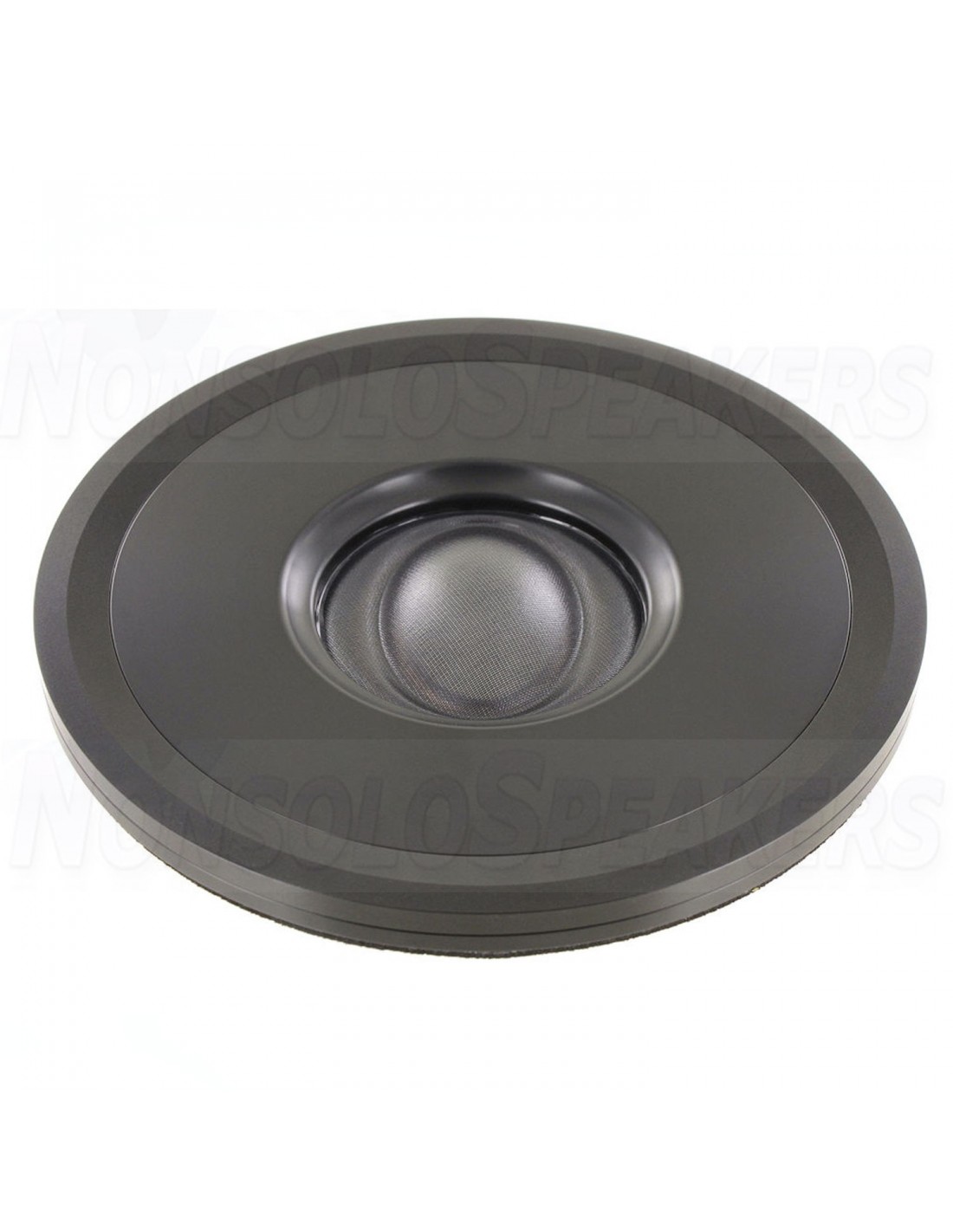

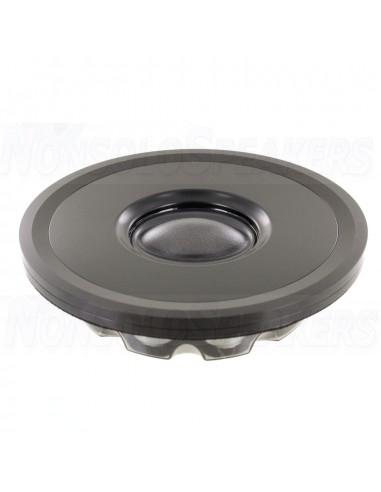

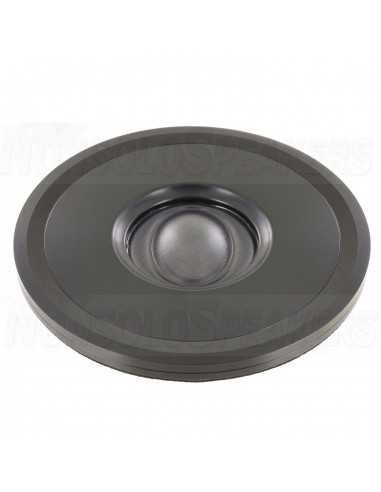

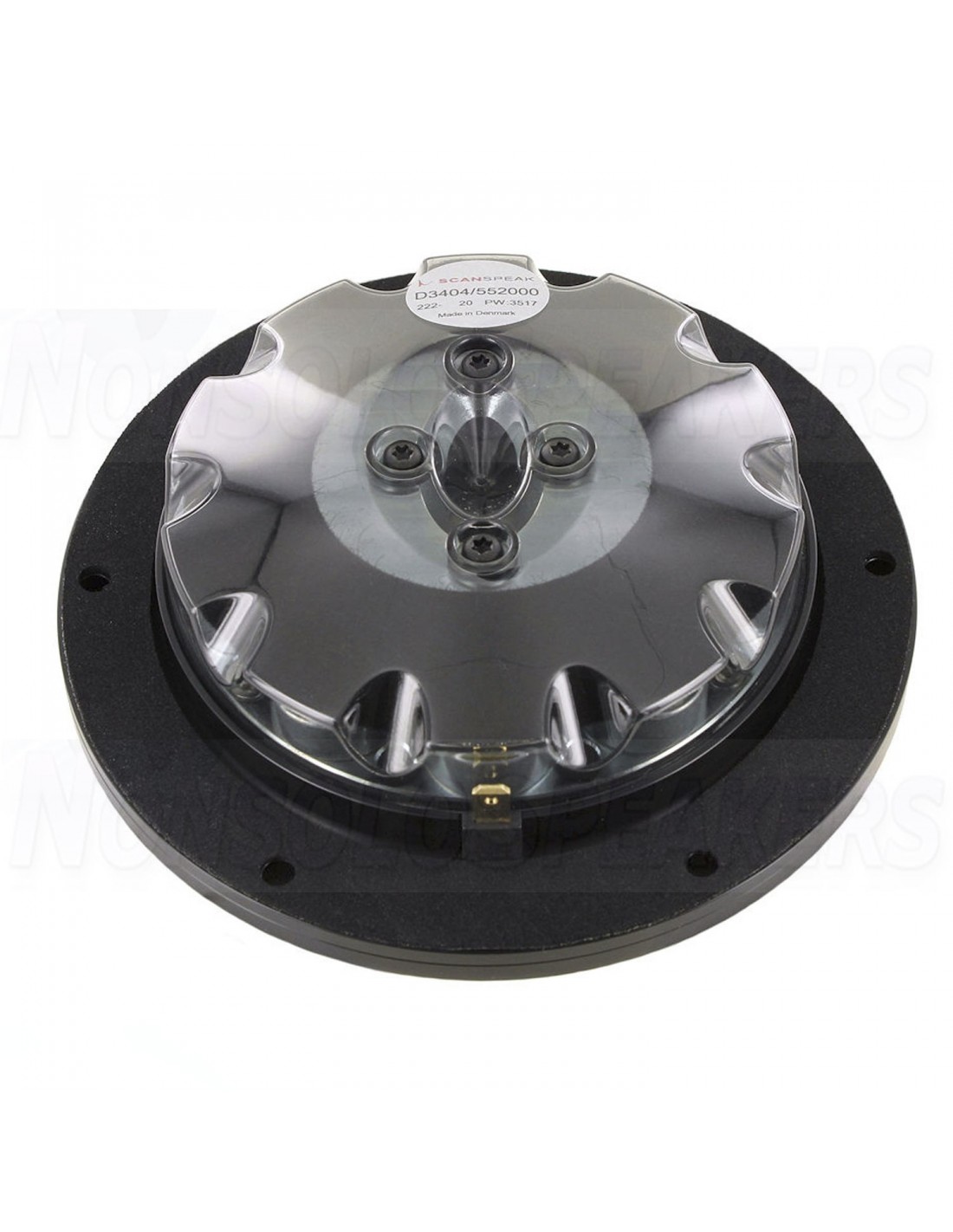

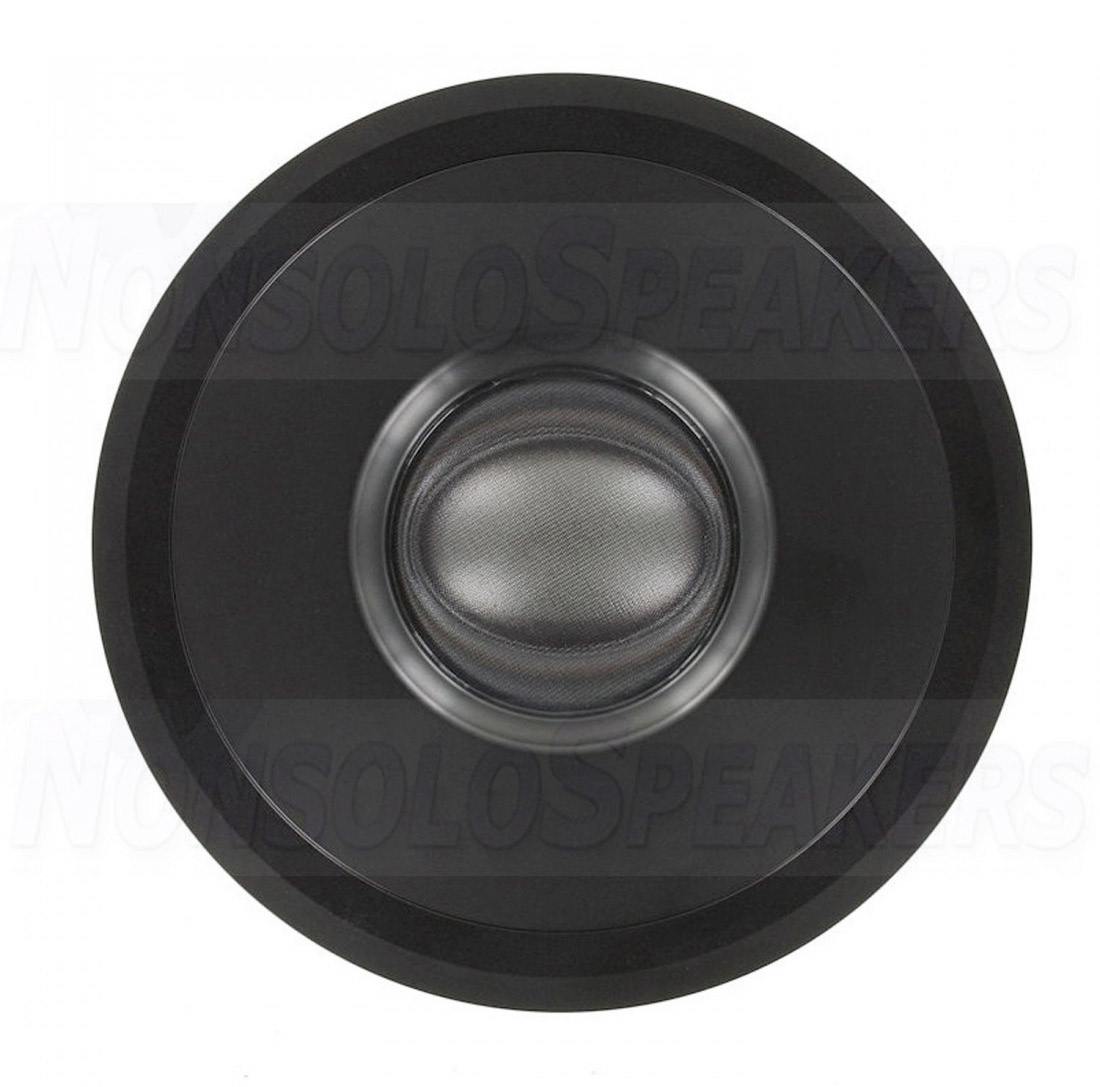

Scan Speak Ellipticor D3404/552000  Tweeter 38mm 4ohm

.

Product description

Elliptic voice coil

Low mechanical losses

High sensitivity (SPL)

AirCirc optimized magnet system

Unusually low distortion

Flexible optics with replaceable decor ring

.

Product details

Scan-Speak Ellipticor D3404/552000 1.5" Dome Tweeter

With the Ellipticor family a long tradition of circular motor structures and their inherent breakup behavior has been broken since one of its key features is an elliptical voice coil and magnet gap. In combination with the powerful SD AirCirc magnet system the D3404 has high sensitivity, very low distortion, and has an extremely fast response to transients.

Above all a TRUE TO LIVE sound which makes D3404/552000 one of the very best tweeters on the market!

Specifications: Compliance Equivalent Volume (Vas): 0.001 ft.³ • BL Product (BL): 2.8 Tm • Mechanical Compliance of Suspension (Cms): 0.20 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.57g • Maximum Linear Excursion (Xmax): 0.25 mm • Surface Area of Cone (Sd): 11.4 cm2
