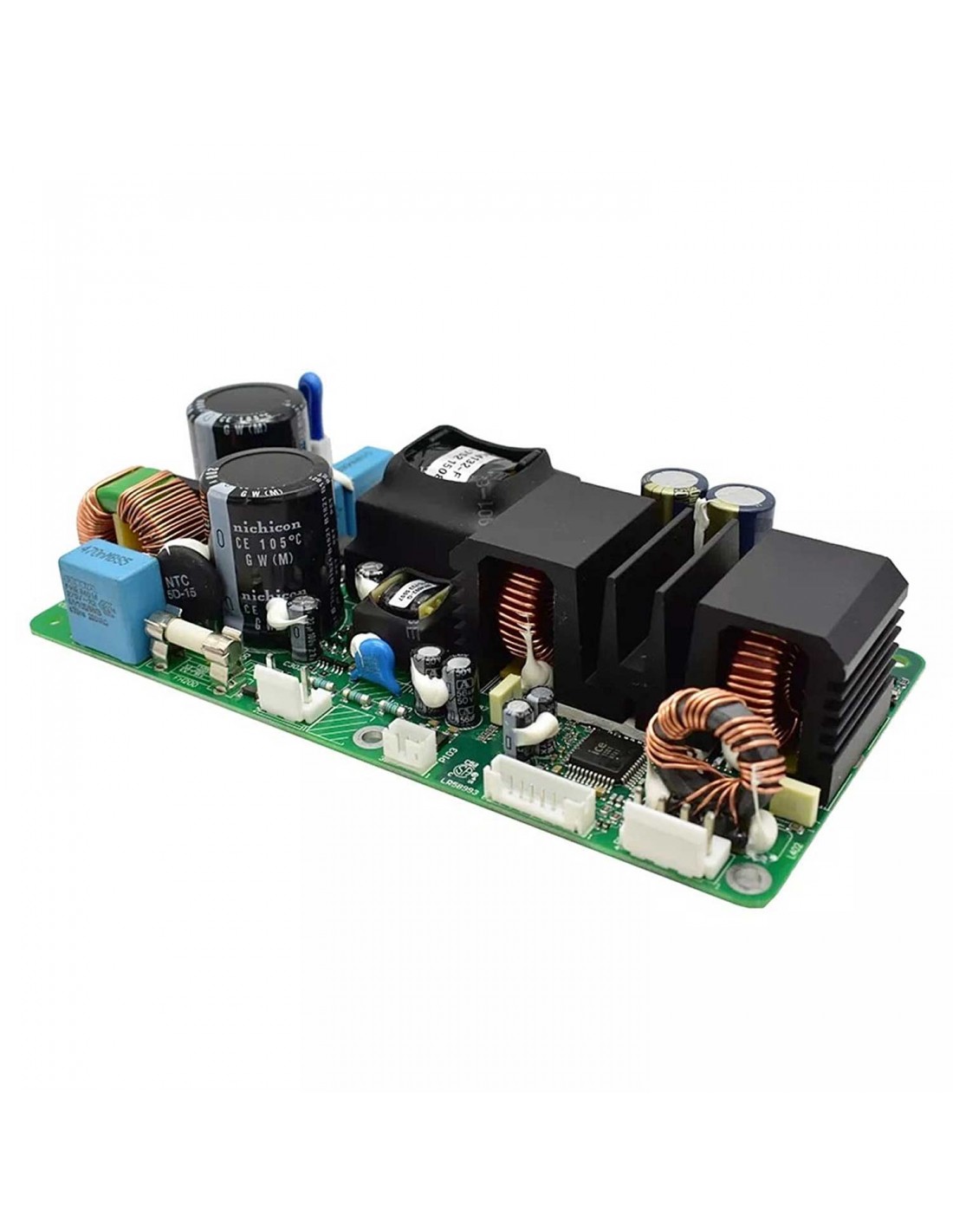

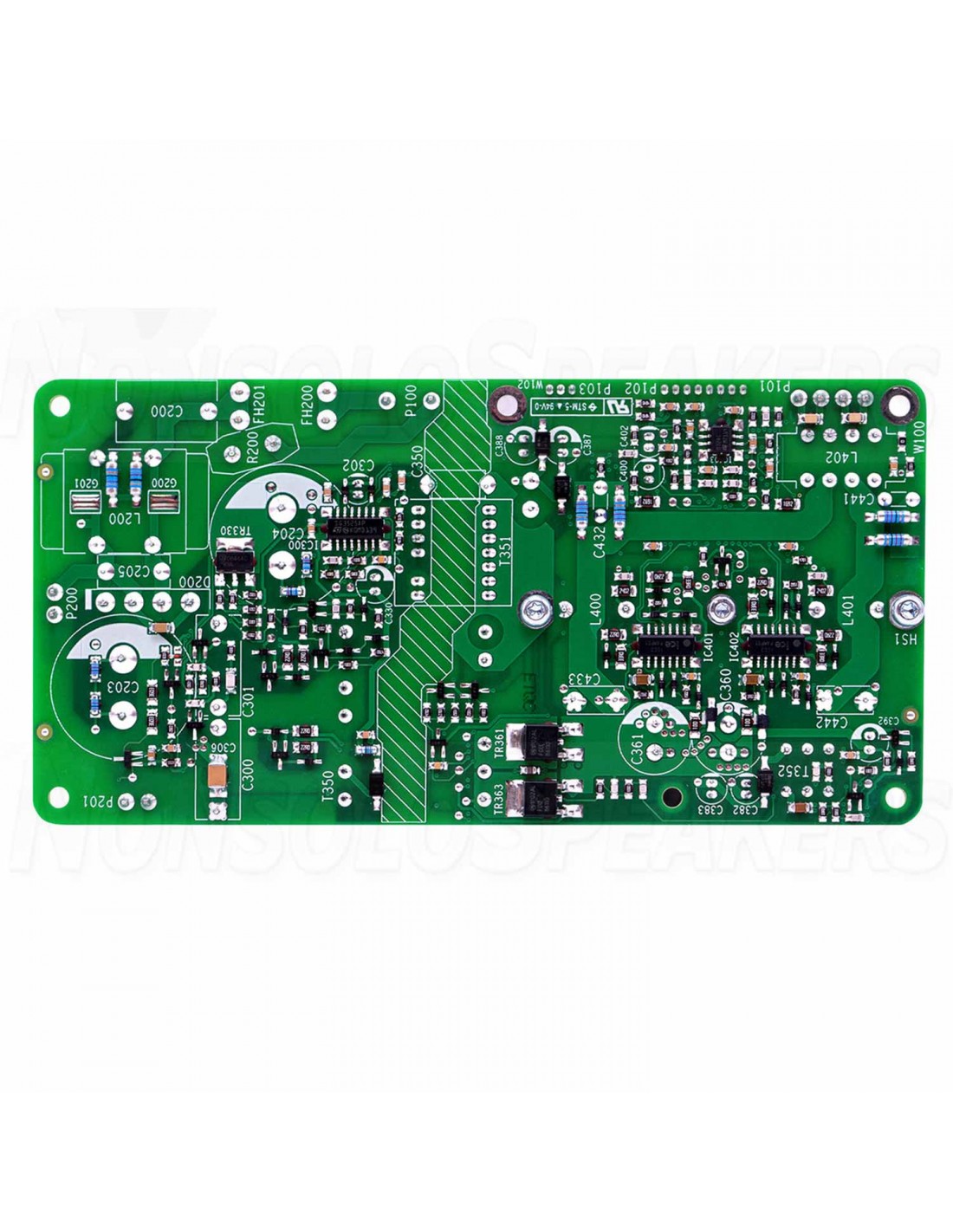

ICEpower 125ASX2 2 x 125 W Amplifier Module with Integrated Power Supply

The 125ASX2 is a fully integrated, intelligent amplification solution designed particularly for consumer and professional audio applications. This compact amplifier module has an integrated high efficient resonant power supply. It stands out in the amplifier modules category as it offers audiophile quality, is very powerful but also compact and has a nice feature set. The 125ASX2 can be configured to either stereo or mono output. In the bridged configuration, it outputs up to 450 watts into 4Ω! The auxiliary supply for powering external circuitry, elimination of heat sinks and EMI shields allow for easy implementation in your project. This module is EMC and safety approved. It is protected against short-circuit, overload and over-heating and includes onboard fuses and EMI filtering to provide a CE and FCC pre-approved design. Do you like the 125ASX2, but are you in need of more power? Check out the 250ASX2 for the 2x 250-watt version. The smaller 50ASX2 is available in two variants. The 50ASX2(SE) is the stereo single-ended version. For the single-channel BTL version, check out the 50ASX2(BTL). Did you know this is the very module that is used in combination with a DSP front-end in the miniDSP PWR-ICE125 plate amplifier?

.

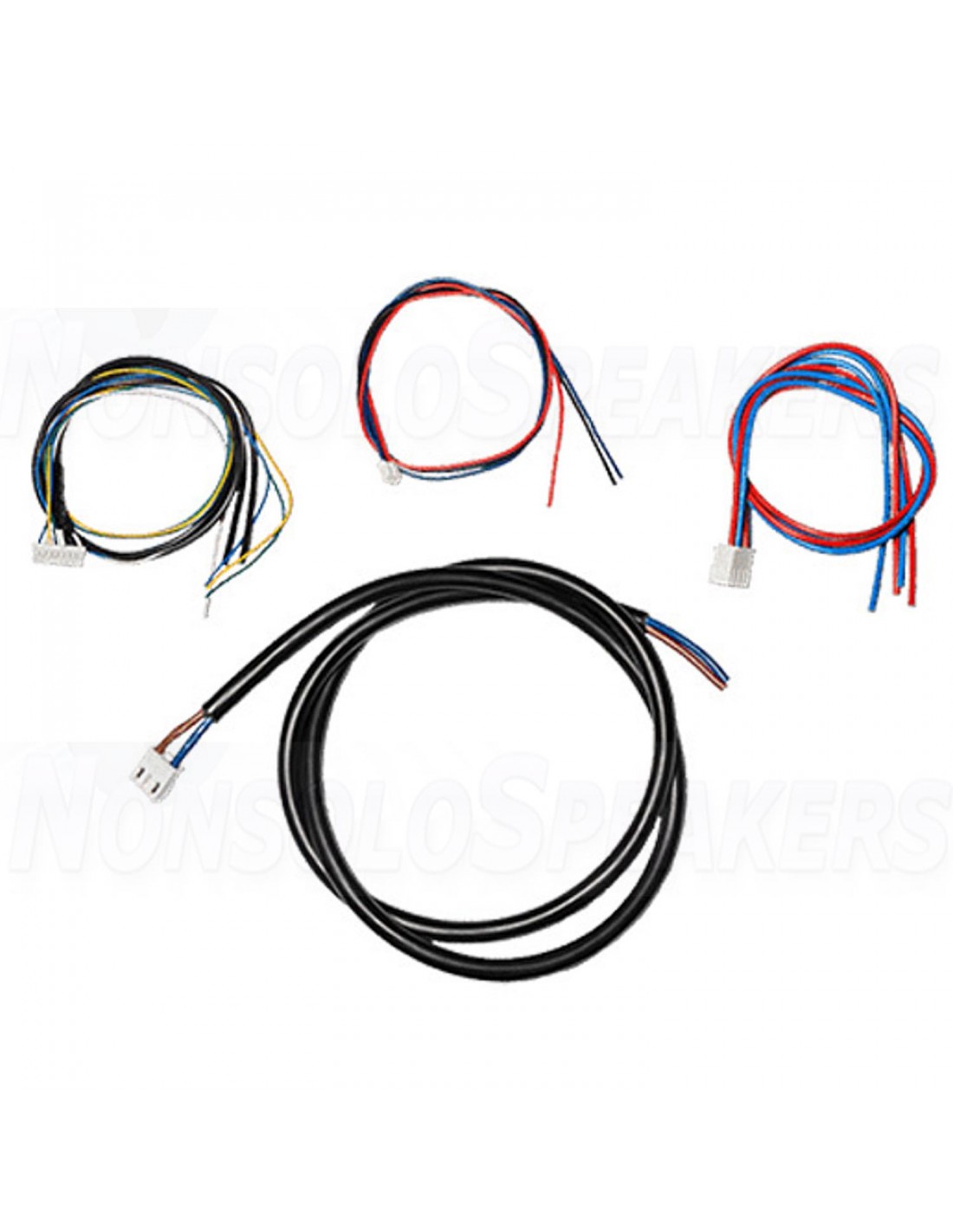

Cable Set

The included cable set allows access to all features of the 125ASX2. The kit contains cables with all the right connectors on one end. The other ends are left unterminated so you can terminate the wires with the connections of your choice.

.

Product description

Fully self-contained audio amplifier solution

Configurable for stereo or mono output

Rugged construction

Thermal protection

Over-current protection

Sound optimized soft clipping

Suitable for CE approved designs

.

Specifications

Article number 125ASX2

Rated power output 125 watts at 4 ohms 150 watts at 8 ohms

Minimum load 3 Ohm

Efficiency 86%

Distortion 0.003 %

THD+N Gain 24.3 dB

Input impedance 8 kOhm

Amplifier Classification Class D

Speaker output channels 2

Power Requirements 85-264 VAC

Current limit 20 A

Under/over voltage protection

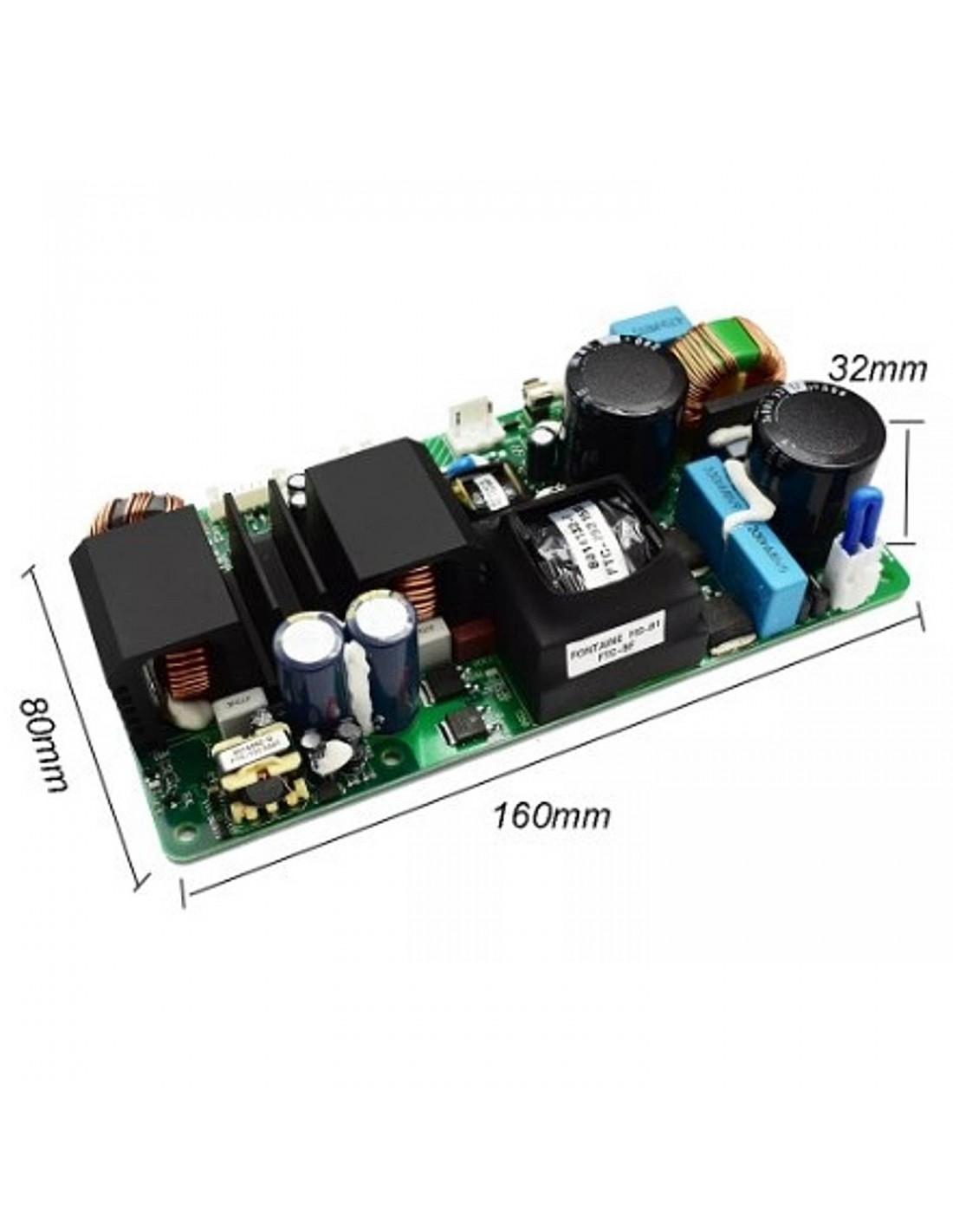

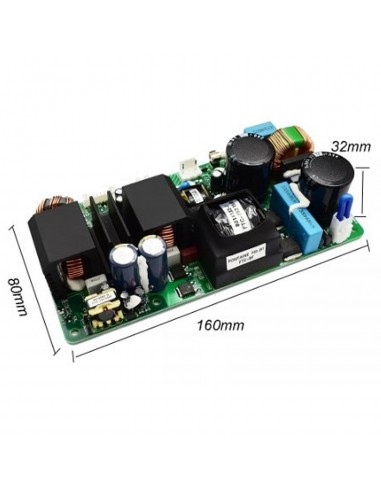

Dimensions (L x W x H) 160 x 80 x 32.6

Mounting hole diameter 3.5 mm

.

What’s In The Box?

1 x 125ASX2 Amplifier Module with Integrated Power Supply

Cable set:

1 x (K) Mains without Earth

1 x (R) Supply ASX2series AUX

1 x (A) Signal

1 x (T) Speaker
