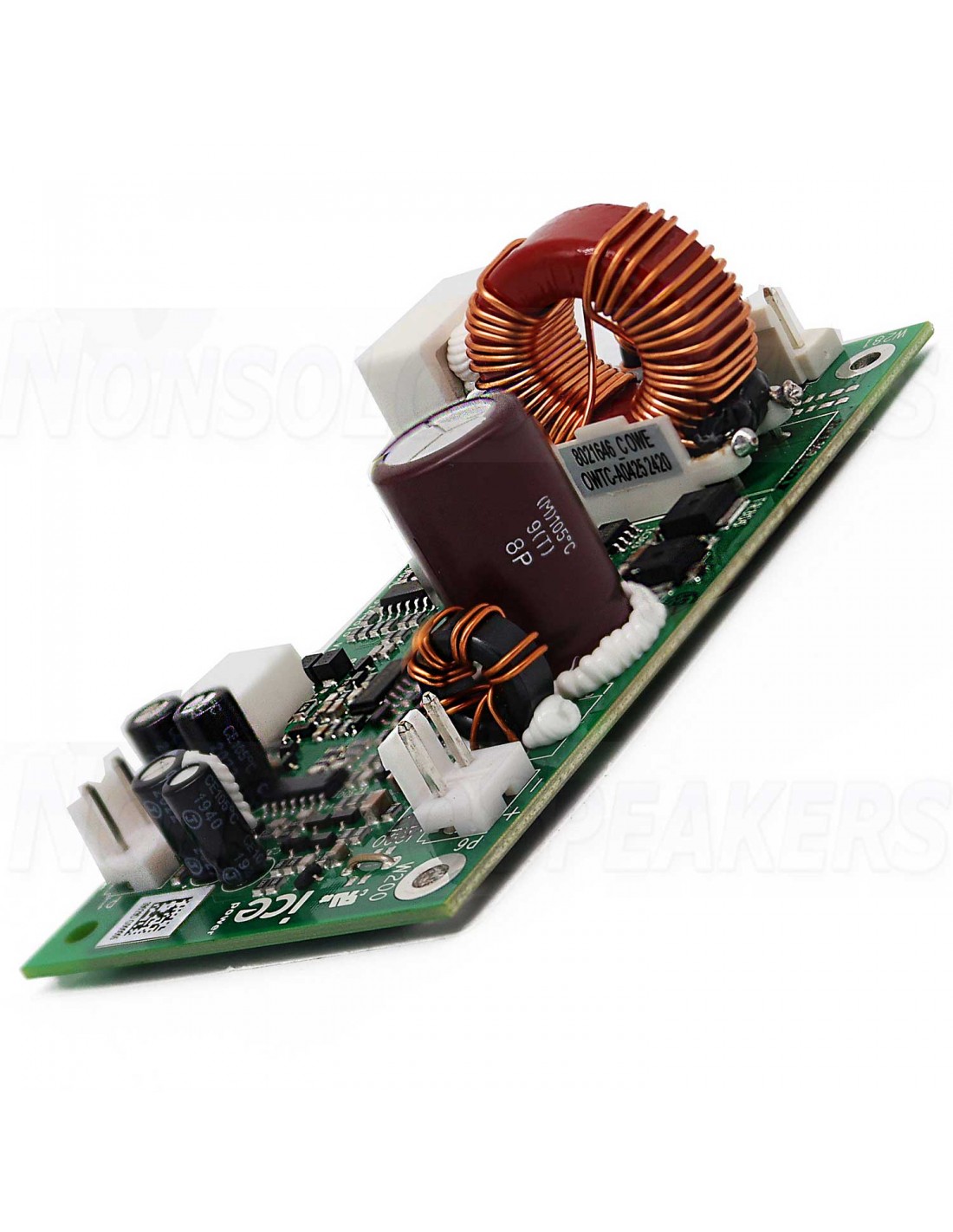

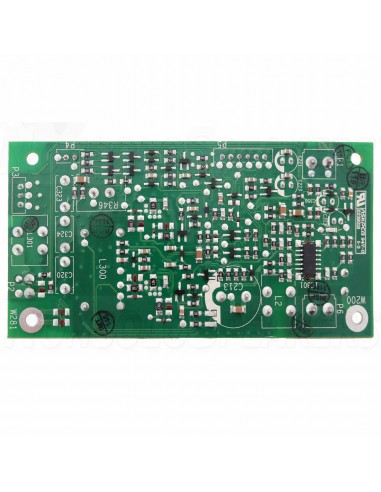

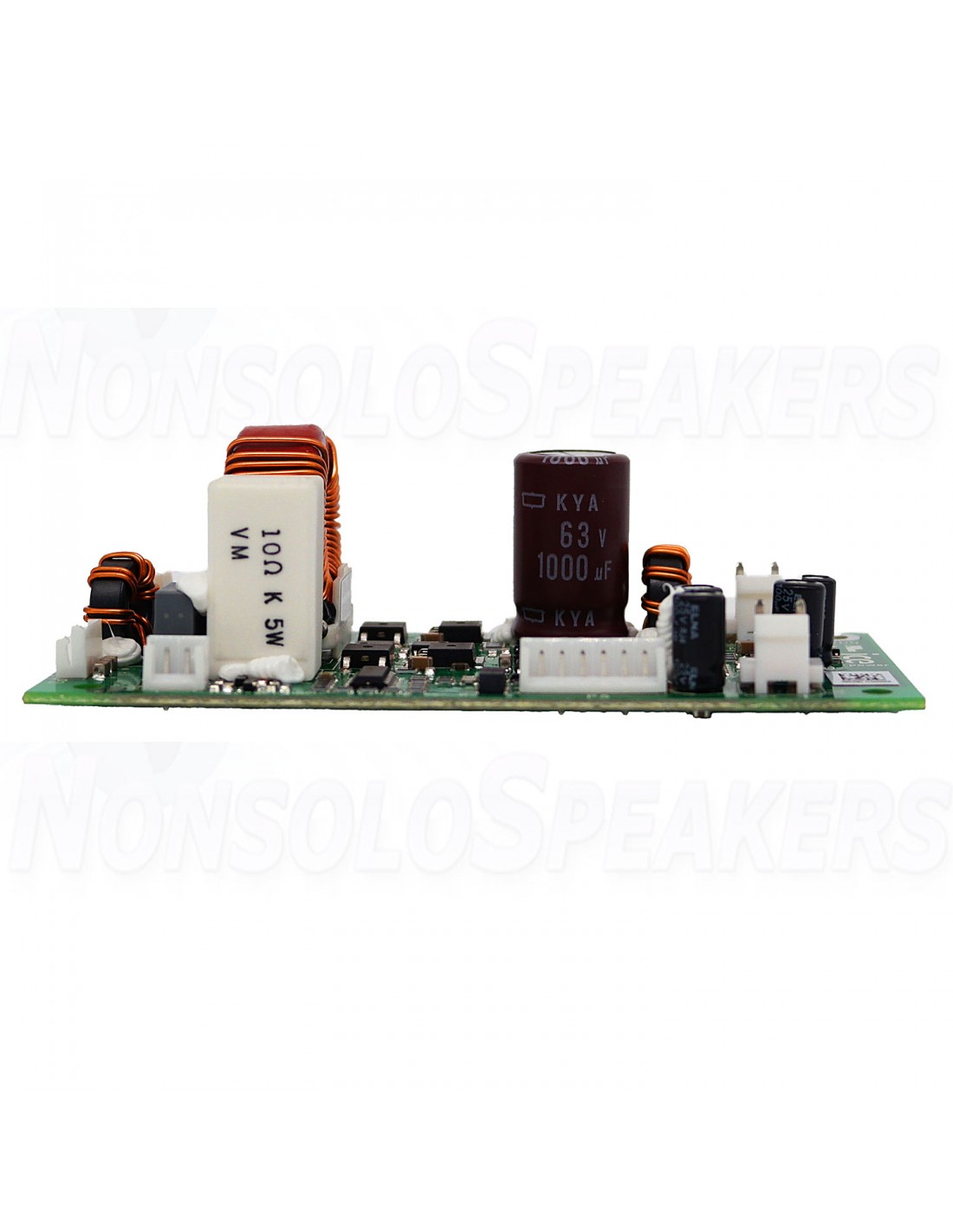

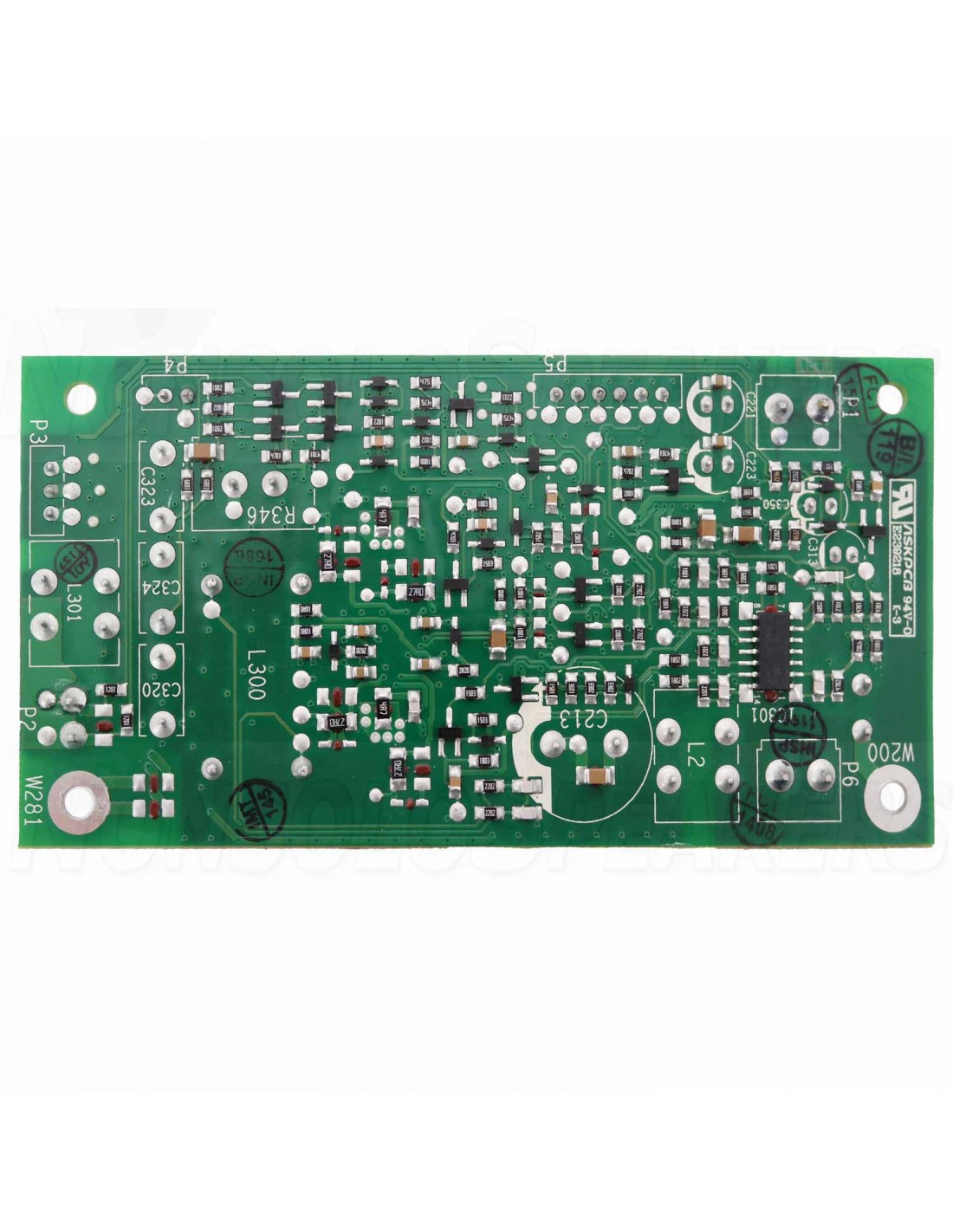

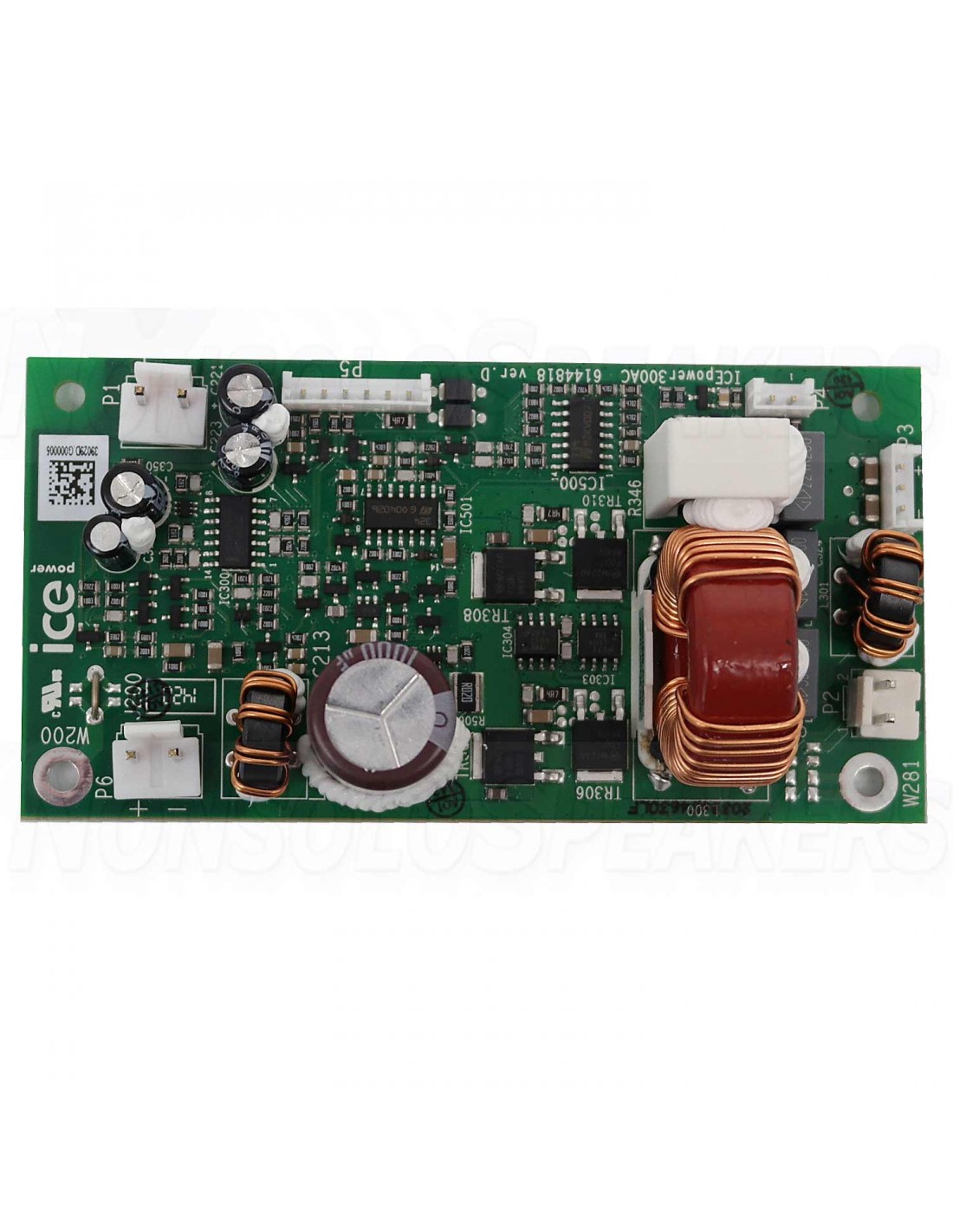

ICEpower 300A1 Amplifier Module

The 300A1 is the 300-watt amplifier section from the 300AS1 amplifier and power supply module. This unit is compact, powerful and offers great audio quality thanks to ICEpower’s patented HCOM techniques. A unique amplifier module, as this unit is specifically designed to receive its power supply from the DC hanger bus of the 300AS1, 700AS1 and 700AS2 modules. This makes a great way to create your own two- or three-way amplifier in an easy and modular approach.

.

Cable set

The included cable set, together with the cable set of the AS-modules supply all the leads that are left unterminated so that it is possible to terminate the wires with the connections of your choice.

.

Highlights

Adds an extra 300-watt channel to your 300AS1 or 700AS1/2 modules

Great output power, without the need for heatsinks

Over-current, short circuit and thermal protection

DC servo for low DC offset

Minimum load of 2.7 Ω ICEpower’s patented

HCOM modulation and control techniques

.

Specifications

Article number 300A1

Rated power output 1x 300 watts at 4 ohms 1x 150 watts at 8 ohms

Minimum load 2.5 Ohm

Efficiency 90%

Distortion 0.006 %

THD+N Gain 28 dB

Input impedance 47 kOhm

Amplifier Classification Class D

Speaker output channels 1

Current limit 20 A

Mounting hole diameter 3.5 mm

.

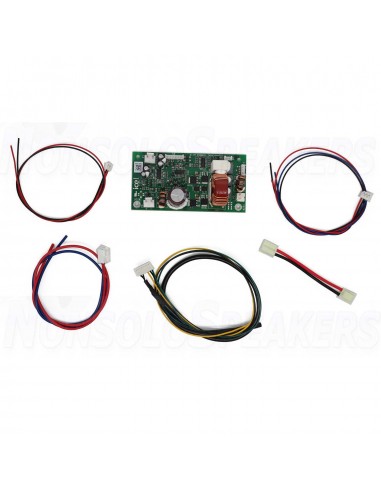

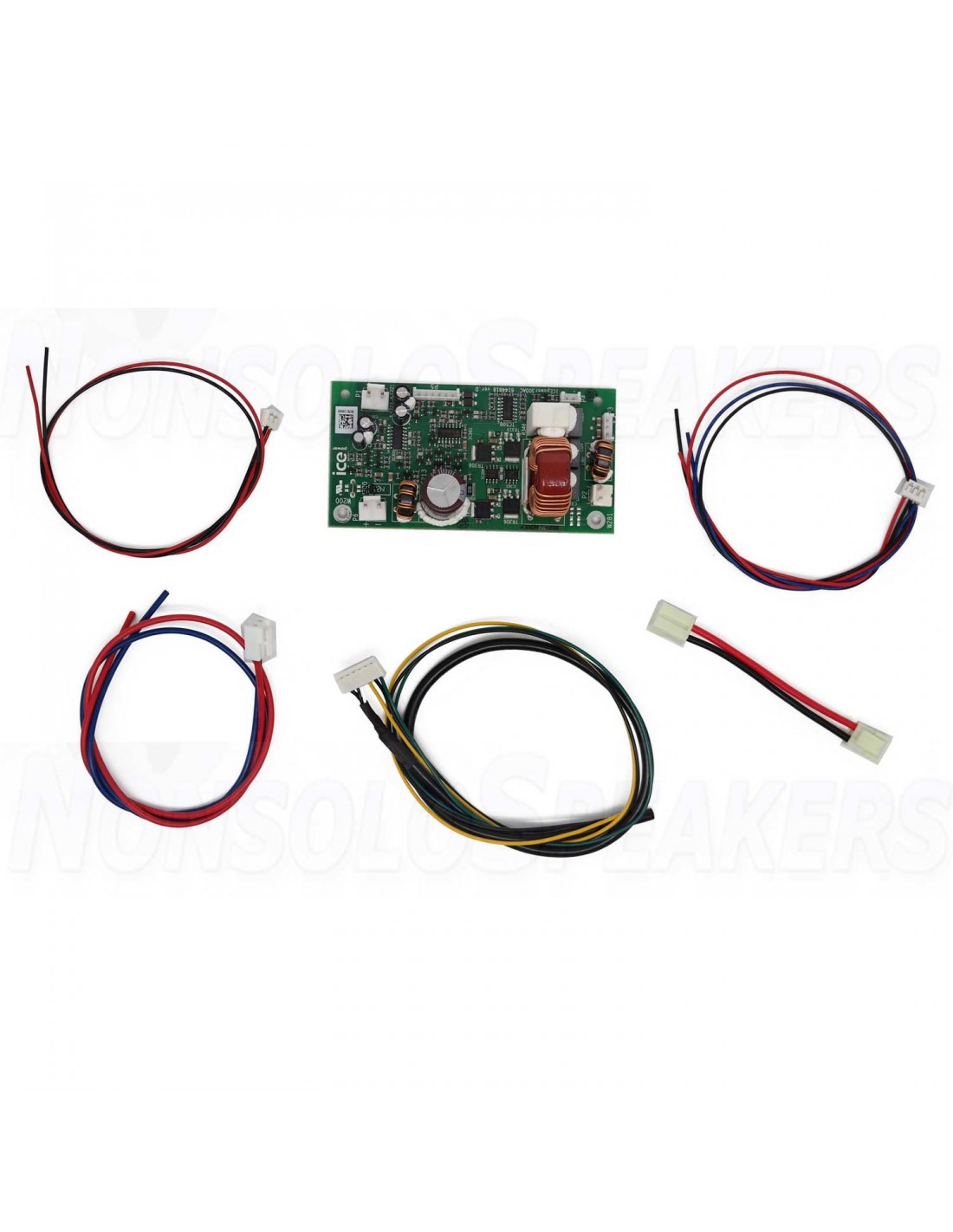

What’s In The Box?

1 x 300A1 amplifier module

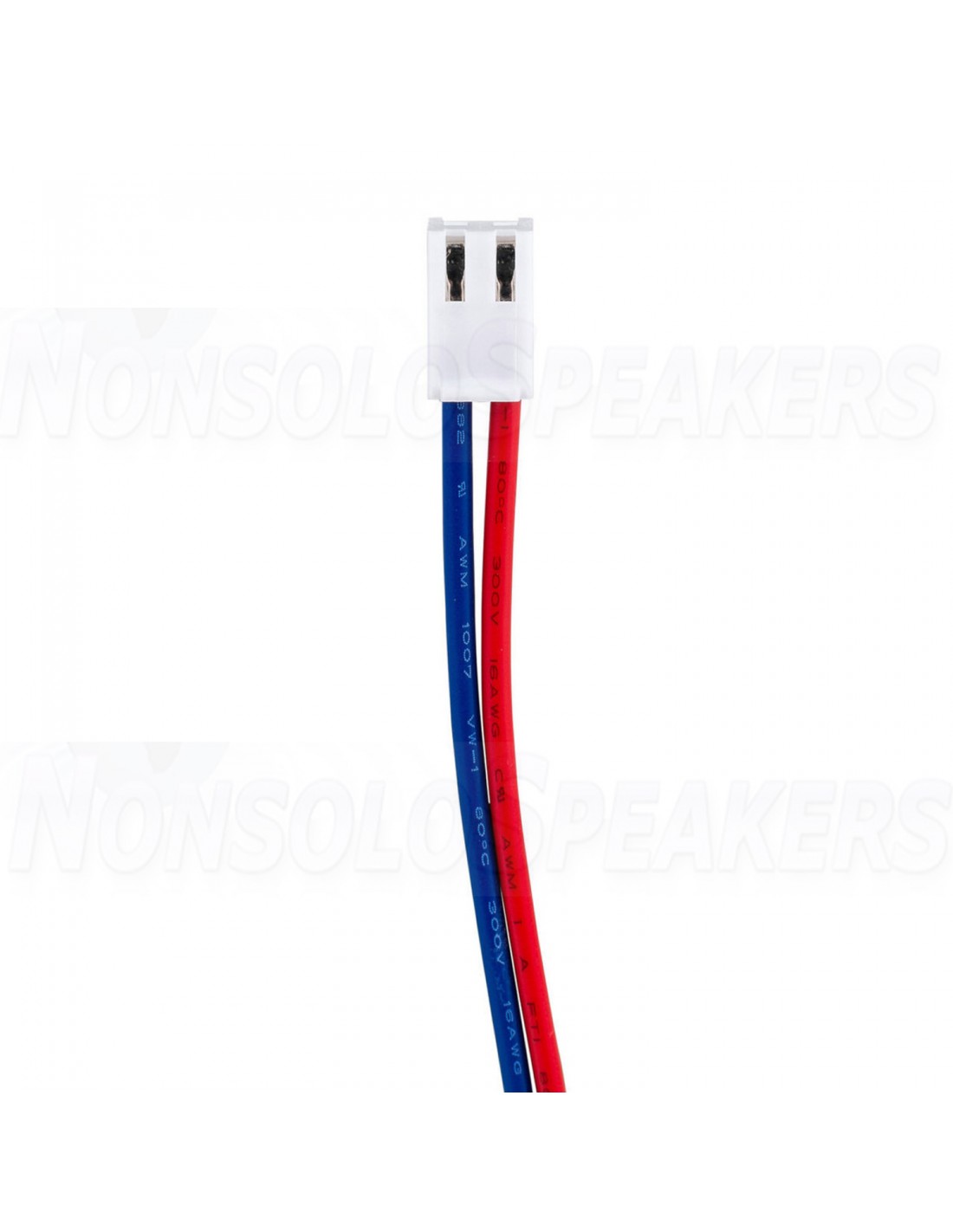

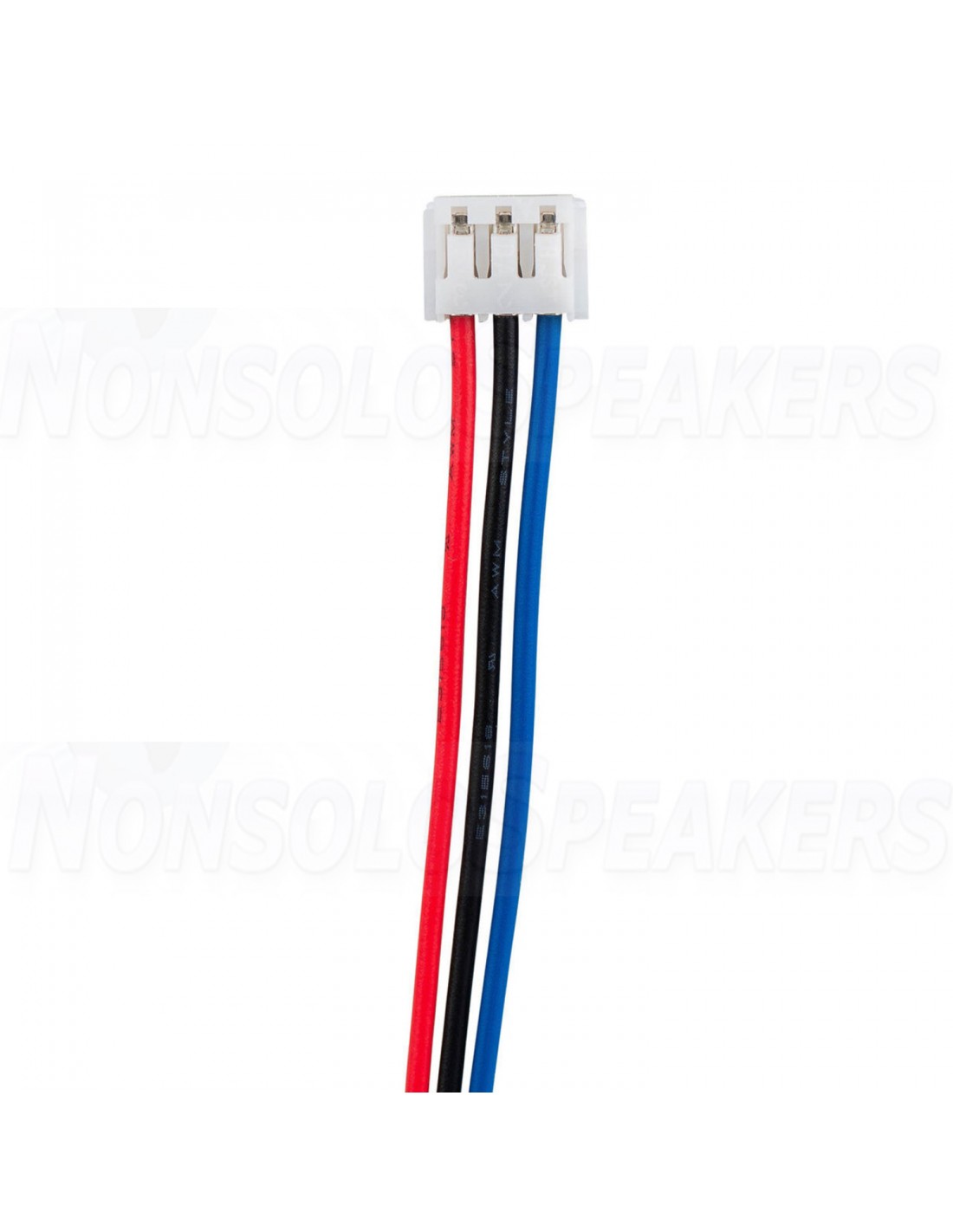

Cable set:

1 x (L) AUX 300A1

1 x (P) DC-hanger 300A to 300AS1 or 700AS1/AS2

1 x (Q) Signal 300A

1 x (F) 2pole Universal Speaker

1 x (MA) DC Protect
