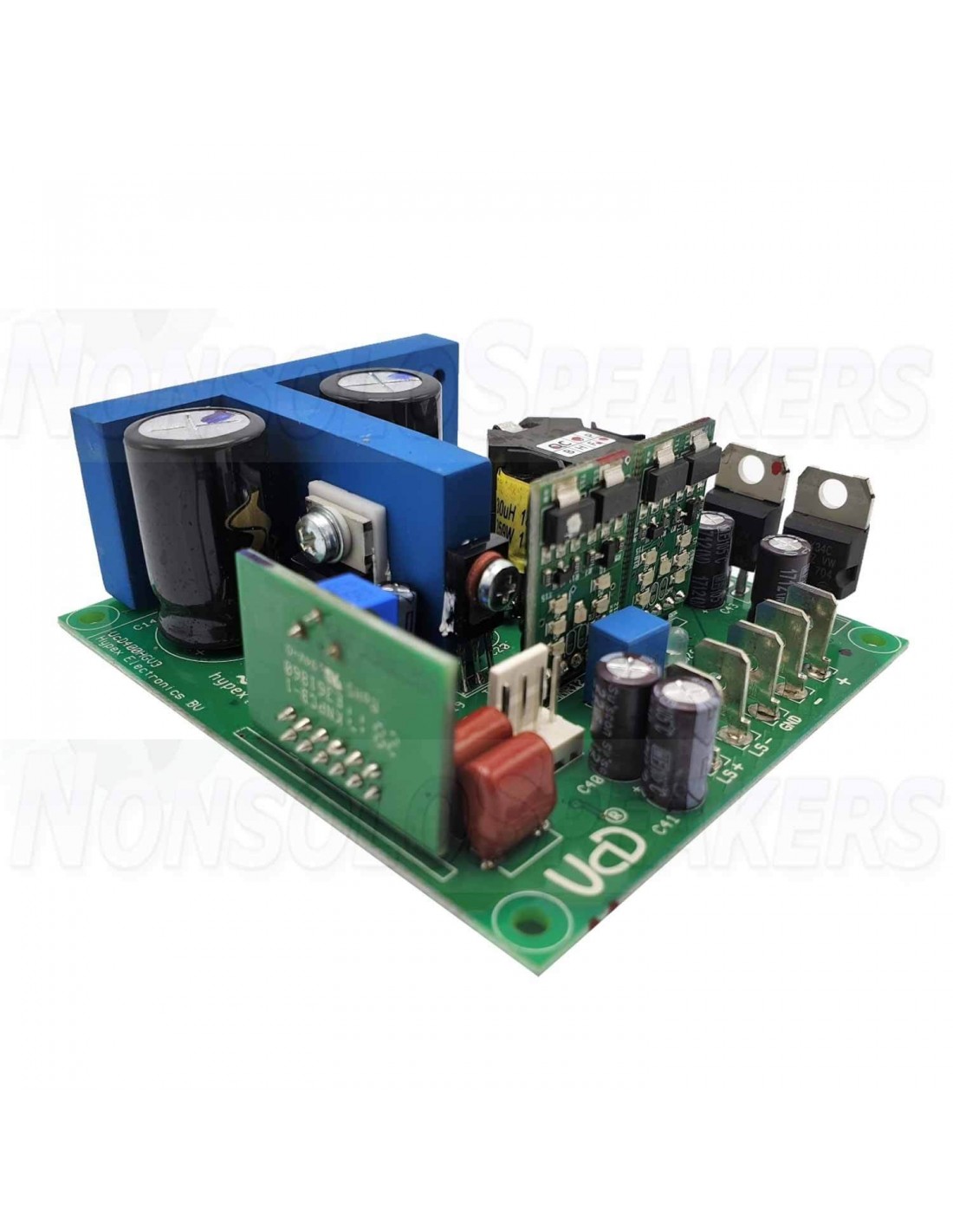

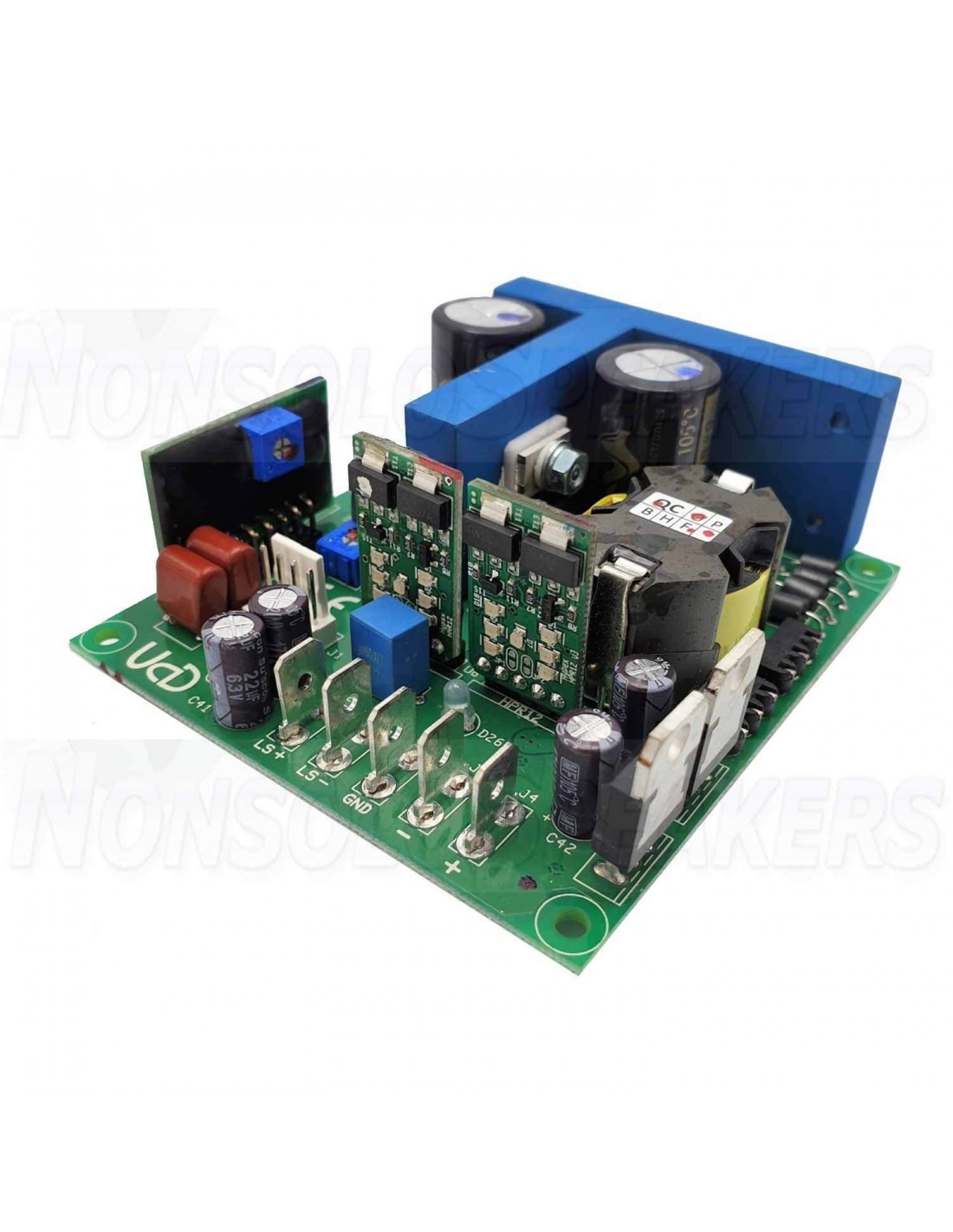

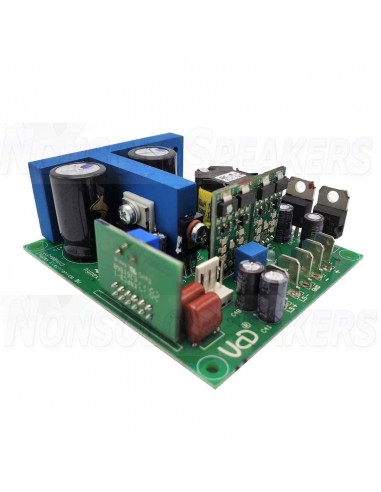

Hypex UcD400HG HxR 1x400W CLASS D AMP

Hypex UcD400HG HxR 1x400W Universal Class D Amplifier Module

The UcD400HG HxR amplifier module is an entry level high-end class D amplifier, with HxR upgrade from Hypex. This amplifier is known for its high performance, reliability and ease of use. The UcD400HG HxR comes with the required UcD Signal Cable.

Highlights

• Flat, fully load-independent frequency
• Low output impedance
• Very low, frequency-independent THD

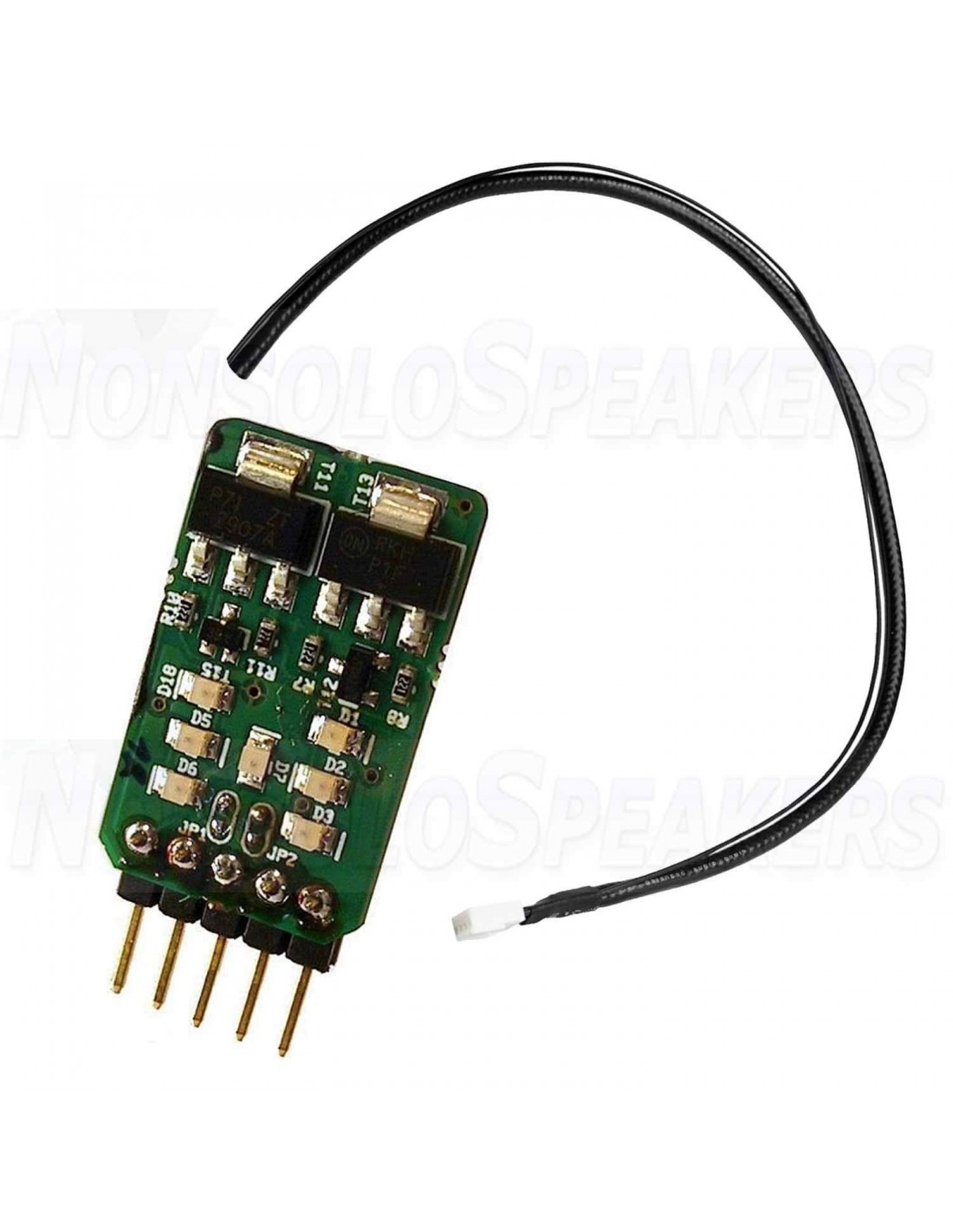

• Ultra low noise due to HxR regulators

Product Details

Hypex UcD400HG HxR 1x400W Universal Class D Amplifier Module

The UcD400HG HxR amplifier is intended for a wide range of audio applications, ranging from Public Address systems to ultrahigh-fidelity replay systems for studio and home use. Hypex distinguishes their amplifiers from other class D designs due a unique circuit topology. This results in flat frequency response irrespective of load impedance, nearly frequency-independent distortion behavior and very low radiated and conducted EMI.

The Hypex UcD modules have established themselves as the new standard, both in terms of measured and subjective performance and therefore very suitable as amplifier in professional audio as well in consumer purposes.

Features

• Pop-free start and stop control
• Differential audio input
• Overcurrent and over voltage protection
• No compromise components
• LM4562 buffer OpAmp

What’s In The Box

• UcD400HG HxR amplifier module
• Mounting set UcD
• UcD Signal Cable
• Manual

The UcD amplifier module only needs the proper power supply to start with their efficient, ultra clean power delivery. We recommend the SMPS400A400 as power supply for the UcD400HG HxR amplifier module.

Spezifikationen für: UcD400HG HxR 1x400W Universal Class D Amplifier Module

• Rated power output (RMS)400 watts at 4 ohms

  240 watts at 8 ohms

• Minimum load1 ohm
• Efficiency92 %
• Signal-to-noise ratio (SNR)Distortion0.01 % THD+N (20-20,000 Hz at 0.5 x rated power output)
• Frequency Response 10 - 50,000 Hz
• Gain 26 dB
• Input sensitivity -
• Input impedance 100k ohms
• Amplifier Classification Class D
• Circuit Topology UcD®
• Speaker output channels 1
• Input connection type 4 pin PCB connector
• Speaker output connection type Crimp/solder connection tabs
• DSP function -
• Bluetooth -
• EQ Adjustment -
• Power Requirements 45 - 67 VDC (symmetric supply +/-)
• Power inlet connector Crimp/solder connection tabs
• Current limit 20 A
• Under/over voltage protection
• Dimensions (L x W x H) 82 x 75 x 25 mm
• Mounting hole spacing
• Mounting hole diameter
