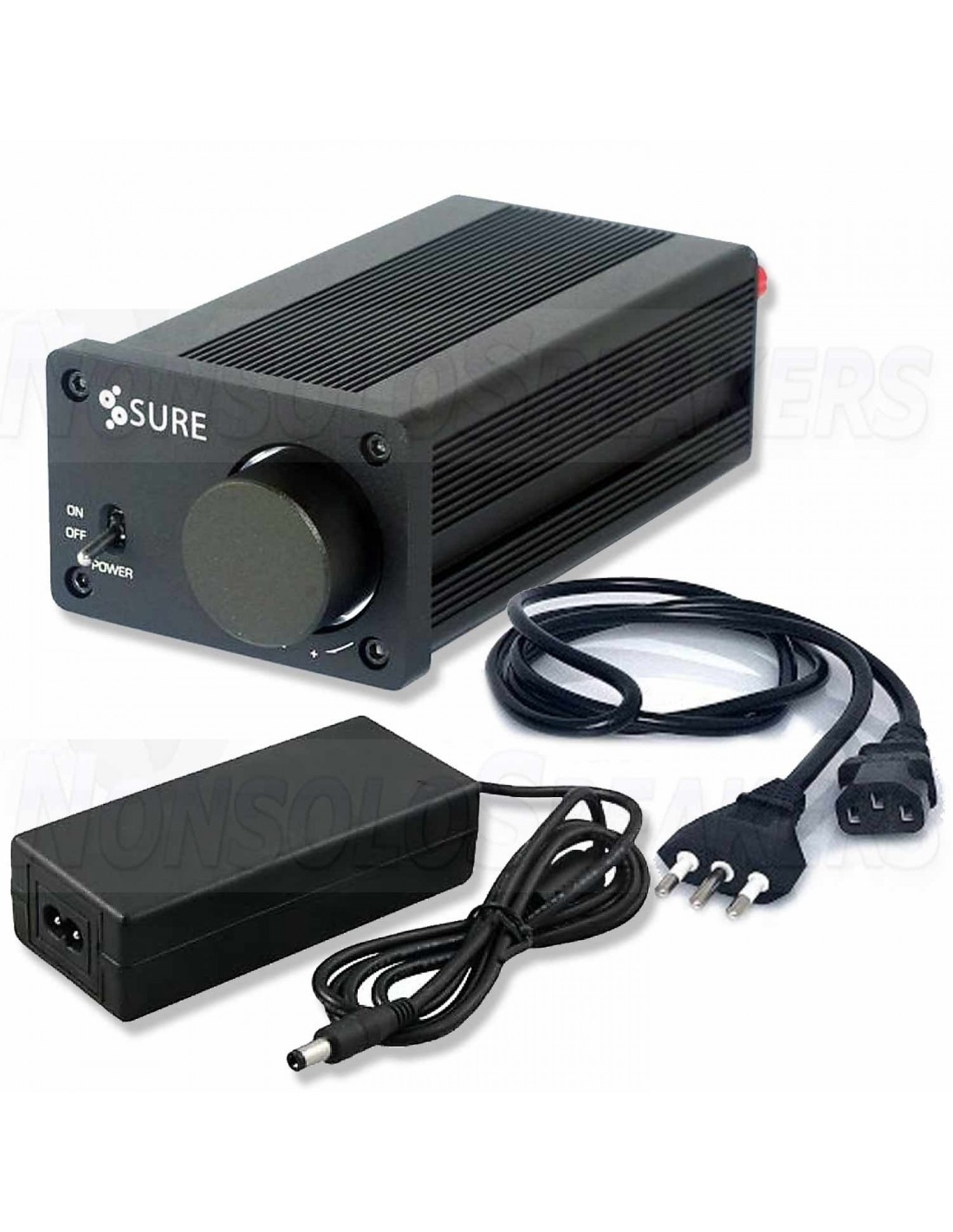

WONDOM AA-AS32157-KIT - 2x15W amplifier class D TA2024 Power Supply and Power Cable
WONDOM AA-AS32157-KIT - 2x15W amplifier class D TA2024 Power Supply and Power Cable
WONDOM AA-AS32157-KIT - 2x15W amplifier class D TA2024 Power Supply and Power Cable
WONDOM AA-AS32157-KIT - 2x15W amplifier class D TA2024 Power Supply and Power Cable
WONDOM AA-AS32157-KIT - 2x15W amplifier class D TA2024 Power Supply and Power Cable
WONDOM AA-AS32157-KIT - 2x15W amplifier class D TA2024 Power Supply and Power Cable

WONDOM AA-AS32157-KIT - 2x15W amplifier class D TA2024 Power Supply and Power Cable

WONDOM AA-AS32157-KIT - 2x15W amplifier class D TA2024 Power Supply and Power Cable

This product integrated with TA2024, currently popular all over the world, not only provides dream sound but also high efficiency, so it can dissipate heat after a long period of work to ensure that the amplifier can operate in stable conditions. for a long time.

SHIPMENT IN 7/10 WORKING DAYS
€55.00

Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



WONDOM AA-AS32157-KIT - 2x15W amplifier class D TA2024 Power Supply and Power Cable

This product integrated with TA2024, currently popular all over the world, not only provides dream sound but also high efficiency, so it can dissipate heat after a long period of work to ensure that the amplifier can operate in stable conditions. for a long time.

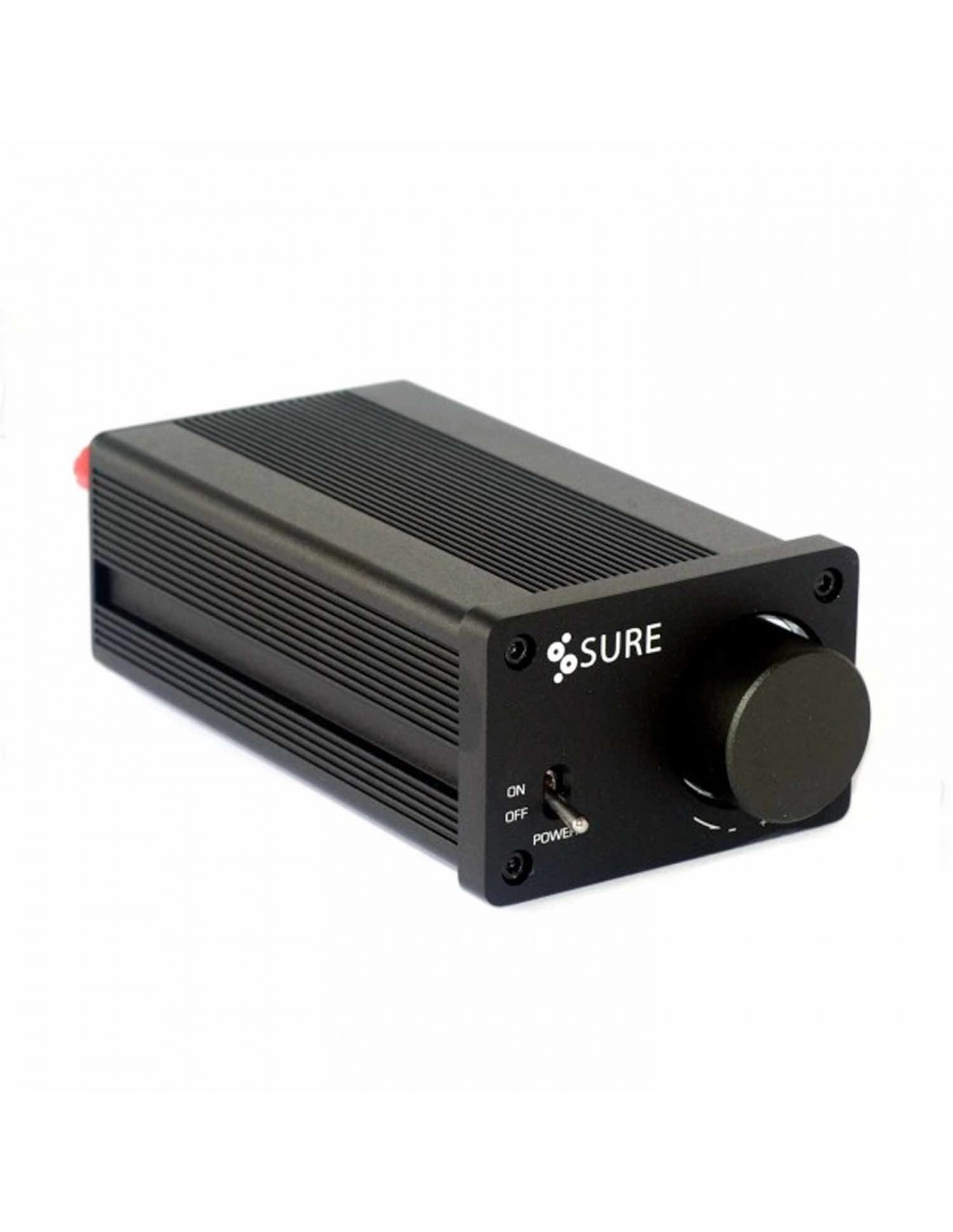

AA-AS32157-KIT integrates a high quality rotary encoder that uses a high quality digital volume control IC that ensures precise shaft rotation and accurate volume adjustment. AA-AS32157-KIT supports dual channel amplification and each channel has a nominal power of 15W. With the integrated MCU, this product is able to provide overvoltage / undervoltage protection, reduced current protection and LED status display.

This product can be powered by any DC power supply between 9 and 14 V. You can use it to drive 4 or 8Ω passive speakers.

Specifiche tecniche AA-AS32157

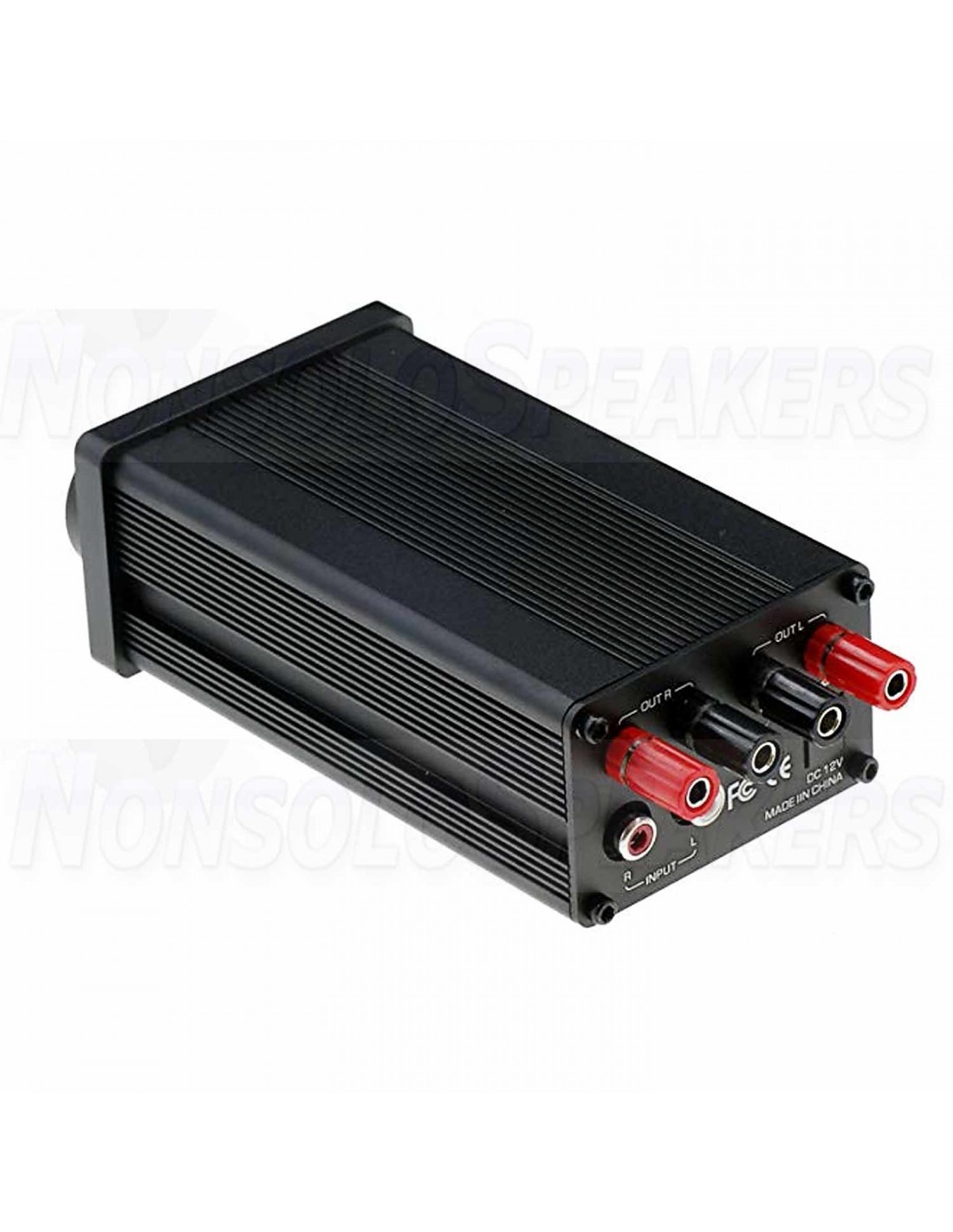

3 - Speaker Output Terminal / 4 - Audio Signal Input Terminal

5 - Serial Number / 6 - Power Input

Features AA-AS32157-KIT

Parametri  Valori Min. Valori Medi. Valori Max.
Tensione di alimentazione (V) 9 12 14
Corrente di riposo (mA) - 100 -
Sensibilità  di ingresso (mV) 642 662 680
Impedenza di ingresso (Kohm) 10 20 -
Guadagno (dB) 25 27.6 -
Potenza in uscita (W rms) - 10W @ 8ohms, THD + N <10% -
(VCC = 12V, RL = 8Ω) - 10W @ 8ohms, THD + N <10% -
Efficienza (%)

-

-

84% @ 15 W, 4Ω

90% a 10 W, 8Ω

-

-
Carico minimo (ohm) 3.2 4 -
Risposta in frequenza (dB) 20 - 22k
Temperatura di esercizio (℃) 0 25 55

Other features AA-AS32157-KIT

Parametri  Specifiche
Alimentazione DC 9V a 14V
Spegnere Sovratensione / Sottotensione
Protezione Sovracorrente
Protezione Sovratemperatura
Dimensioni 6.4" x 2.9" x 1.9"

Power supply 12V 5A

Luxus Audio - ALC12V5AJ

AC-DC industrial desktop adapter with 3-pin IEC320-C14 input socket; 12VDC 5A output with P1M OD 5.5mm tuning fork plug; ID 2.5mm; Length 11mm: Class I - Maximum power 60W.

Features ALC12V5AJ

Parametri  Valori
Produttore Delta Electronics
Potenza di uscita (W) 60
Tensione di uscita (V) 12
Corrente di uscita (A) 5
Tensione di ingresso (V) Universal Input 100/250
Classificazione IP No IP
Tecnologia AC/DC
Oscuramento No Dimming
Formato DESKTOP
Applicazione ITE EN/UL/IEC 60950
Certificazione CE/GS/UL/CB/CCC/TUV

Others ALC12V5AJ

Parametri Specifiche
Larghezza (mm) 50
Altezza (mm) 30
Profondità (mm) 125
Peso (gr.) 270

Power Cable Italia-IEC Nero - 1.5m-3x0.75mm²

Cavo di alimentazione Italia-IEC. Eccellente qualità..

Caratteristiche Tecniche
Tipo di cavo Italia-IEC
Lunghezza 1.5 m
Colore guaina Nero
Cavo tripolare 3x0.75 mm²
WONDOM AA-AS32157-KIT
