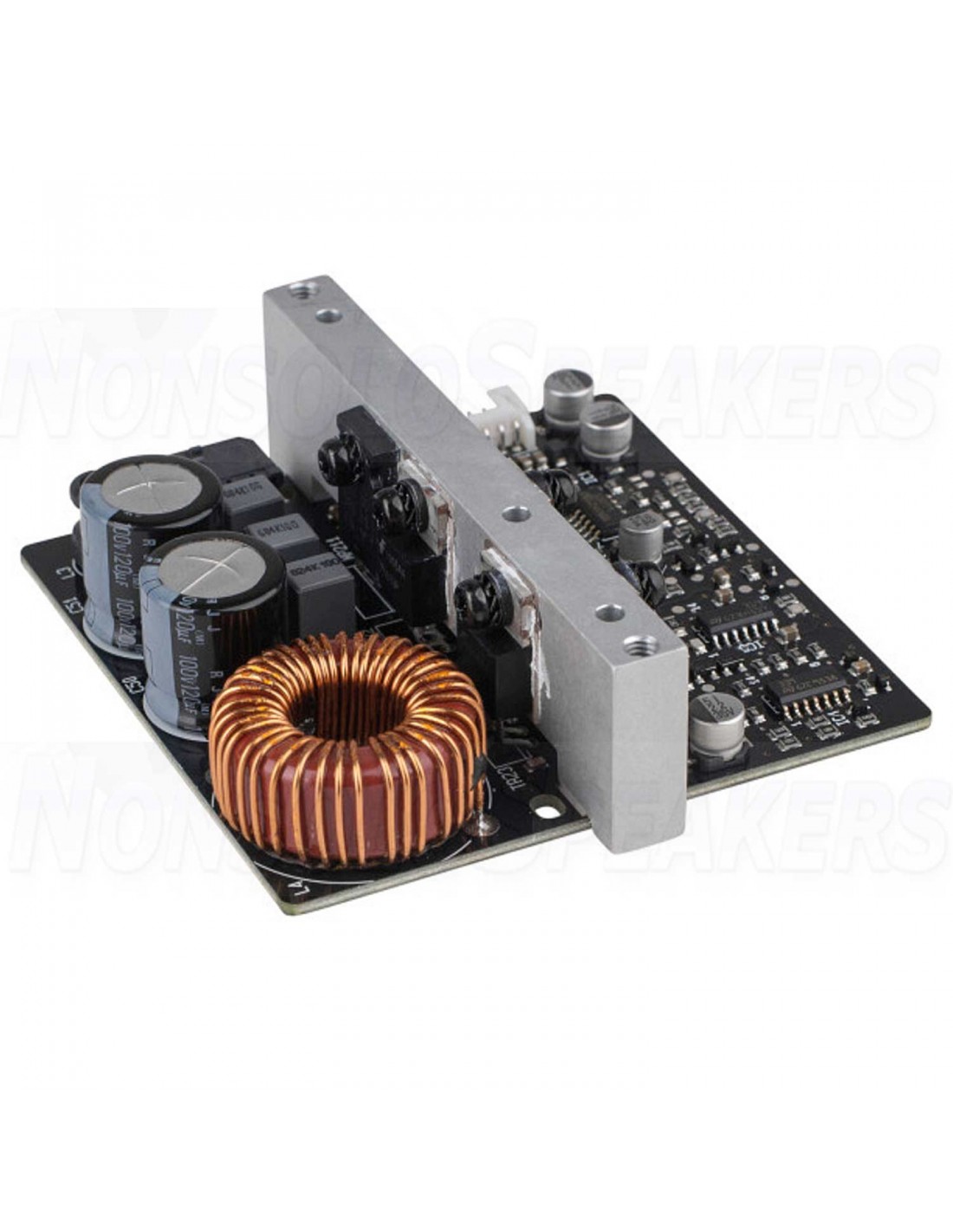

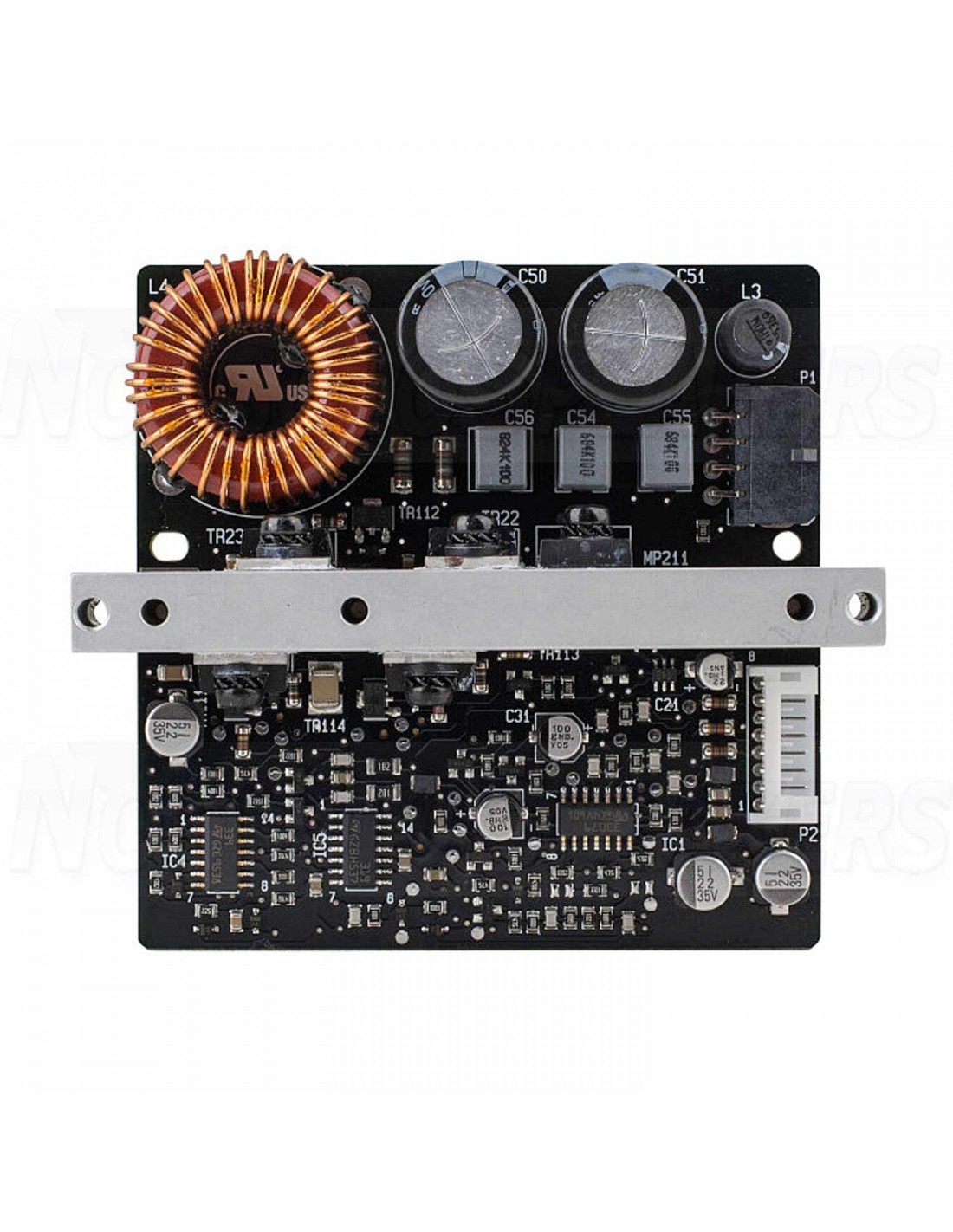

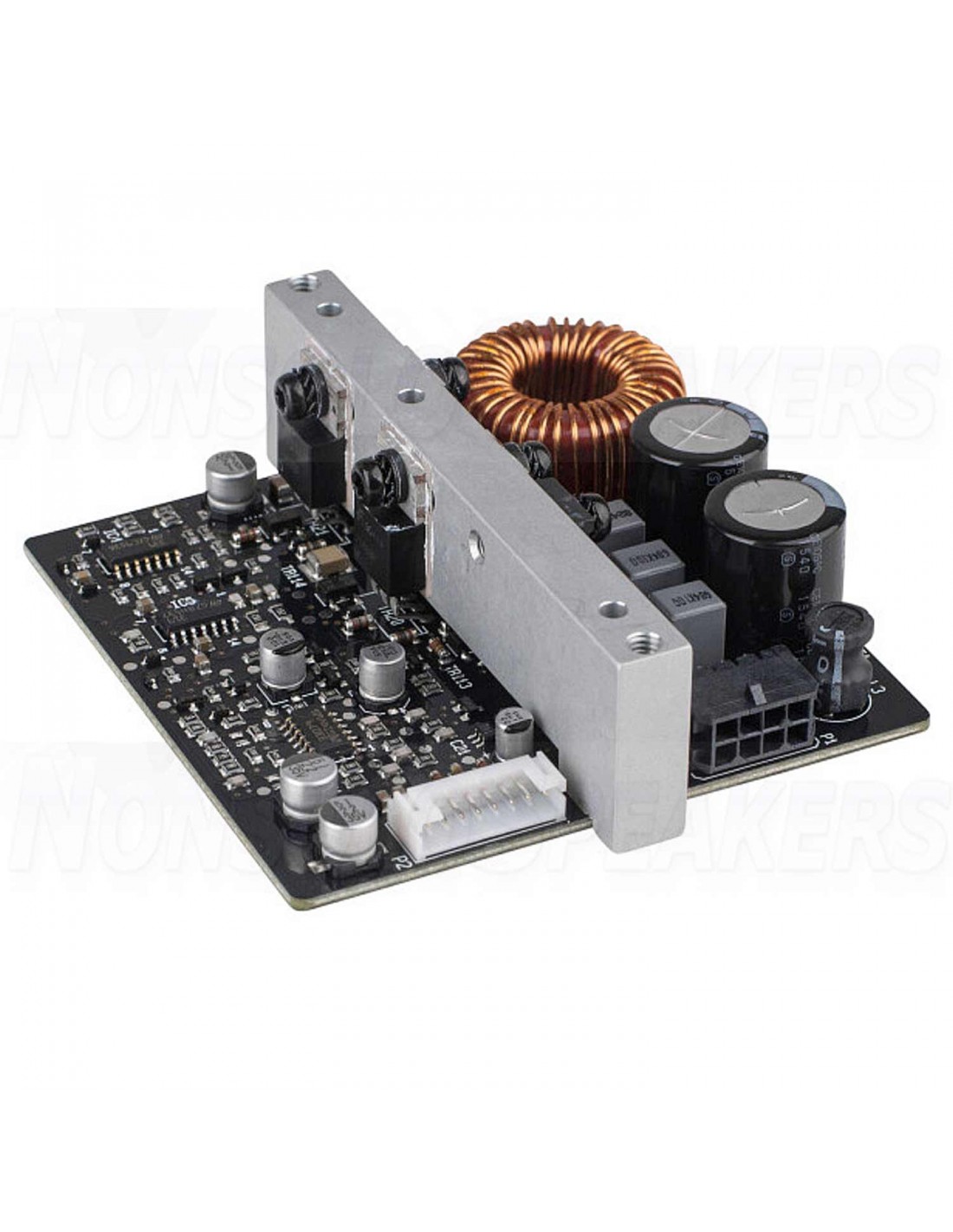

ICEpower 500A Pro Amplifier module

The ICEpower 500A is a high-performance, extremely reliable and versatile amplifier module with a single channel. This is the amplifier from the ICEpower 500ASP module and is capable of 500-watts of output power from just 62 cm². Designed to withstand the demands of professional (live concert) applications, not only in terms of sound quality but also on ruggedness and reliability. The A-series is the answer from our amplifier module category, on the most demanding applications. The ICEpower 500A achieves extremely high fidelity in a compact package, thanks to state-of-the-art ICEpower® analogue technology. True high-end performance is guaranteed by the patented, proprietary COM-modulation and MECC-control techniques. The turn-key design shortens the time to implement amplification in your end product drastically. The connection interface uses industry-standard Molex Micro-Fit and JST PH-series connectors. The ICEpower A-Series consists of three high-performance general-purpose class D amplifiers. Check out the 250A and 1000A for the 250 and 1000 watt versions. The A-series modules are essentially the amplifier sections from the ASP-modules. The ASP modules feature an intergraded power supply and have a DC-hanger output to power the A modules. This 500A may be used on its own, powered by a linear power supply, or can be powered from the 500ASP and the 1000ASP creating stereo amplifiers, 2-way and 3-way active speakers.

.

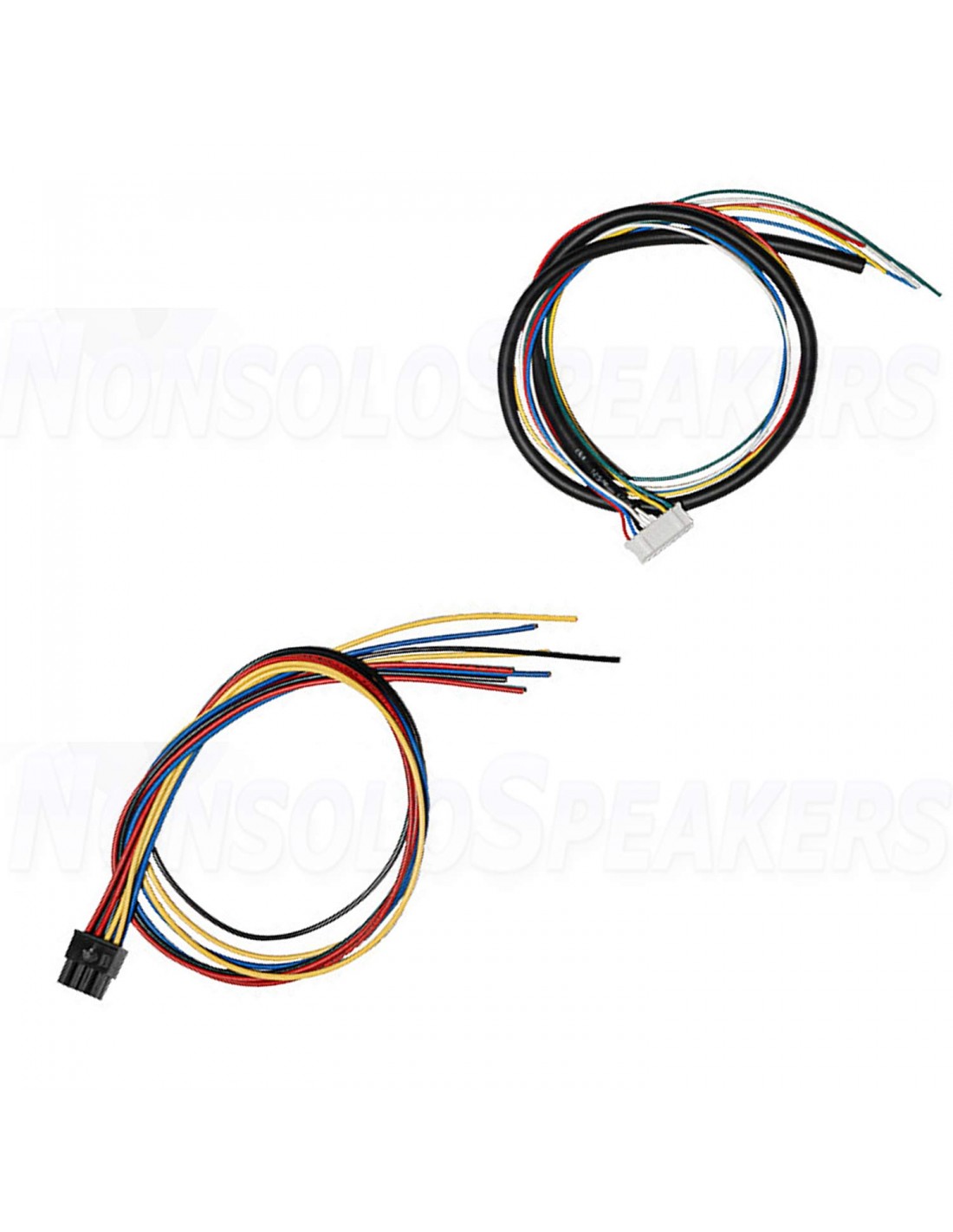

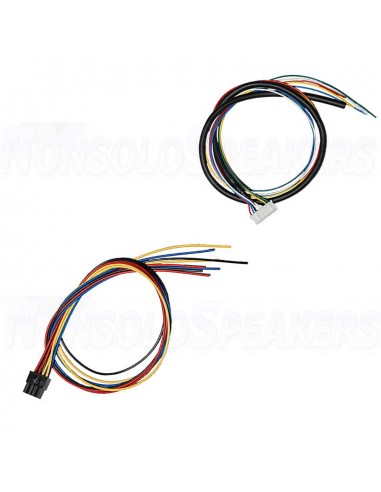

Cable Set

The included cable set allows access to all features of the 500A. The kit contains cables with all the right connectors on one end. The other ends are left unterminated so you can terminate the wires with the connections of your choice.

.

Highlights

Very rugged design for demanding use 500-watts from just 62 cm²

Soft mute/de-mute

Standby mode for low power consumption

Under-voltage protection

Monitor output

Balanced input and output

Excellent EMI performance

No heat sink required

Safety: IEC 60065 ed. 8.

.

Specifications

Article number 500A

Rated power output 600 watts at 4 ohms 300 watts at 8 ohms

Minimum load 2 Ohm

Efficiency 93%

Distortion 0.006 %

THD+N Gain 26.8 dB

Input impedance 8 kOhm

Amplifier Classification Class D

Speaker output channels 1

Power Requirements 115-230 VAC

Current limit >55 A

Dimensions (L x W x H) 90 x 79 x 23.5

Mounting hole diameter 3.5 mm

.

What’s In The Box?

1 x 500A 500W Pro Amplifier Module

Cable set:

1 x (AA) Signal A series

1 x (B) Microfit 8 pol – 4 Power/speaker
