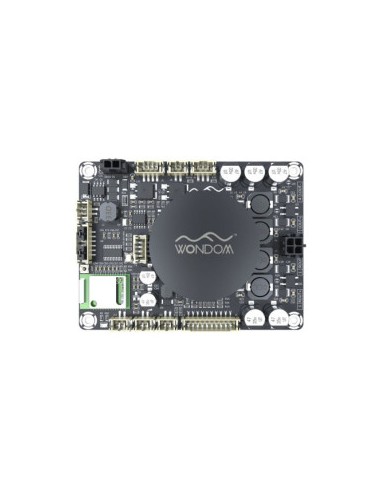

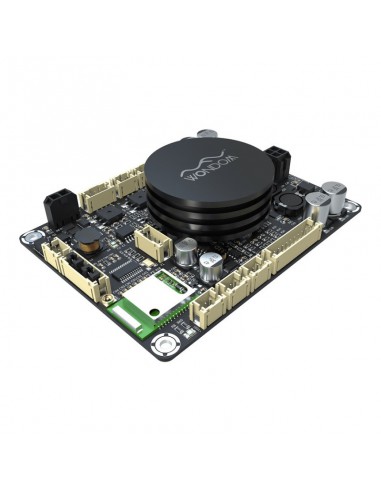

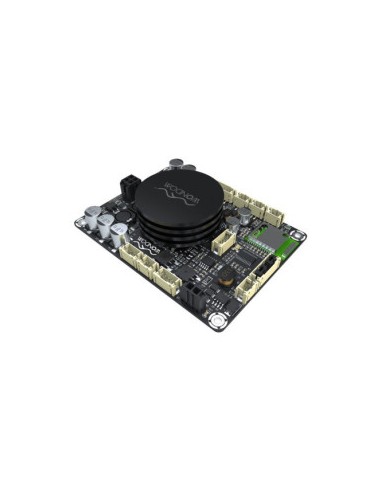

Class D amplifier 1x100W@2ohm with Bluetooth 5.0 and DSP - JAB2v2

Sure Electronics - AA-JA31182

DESCRIPTION

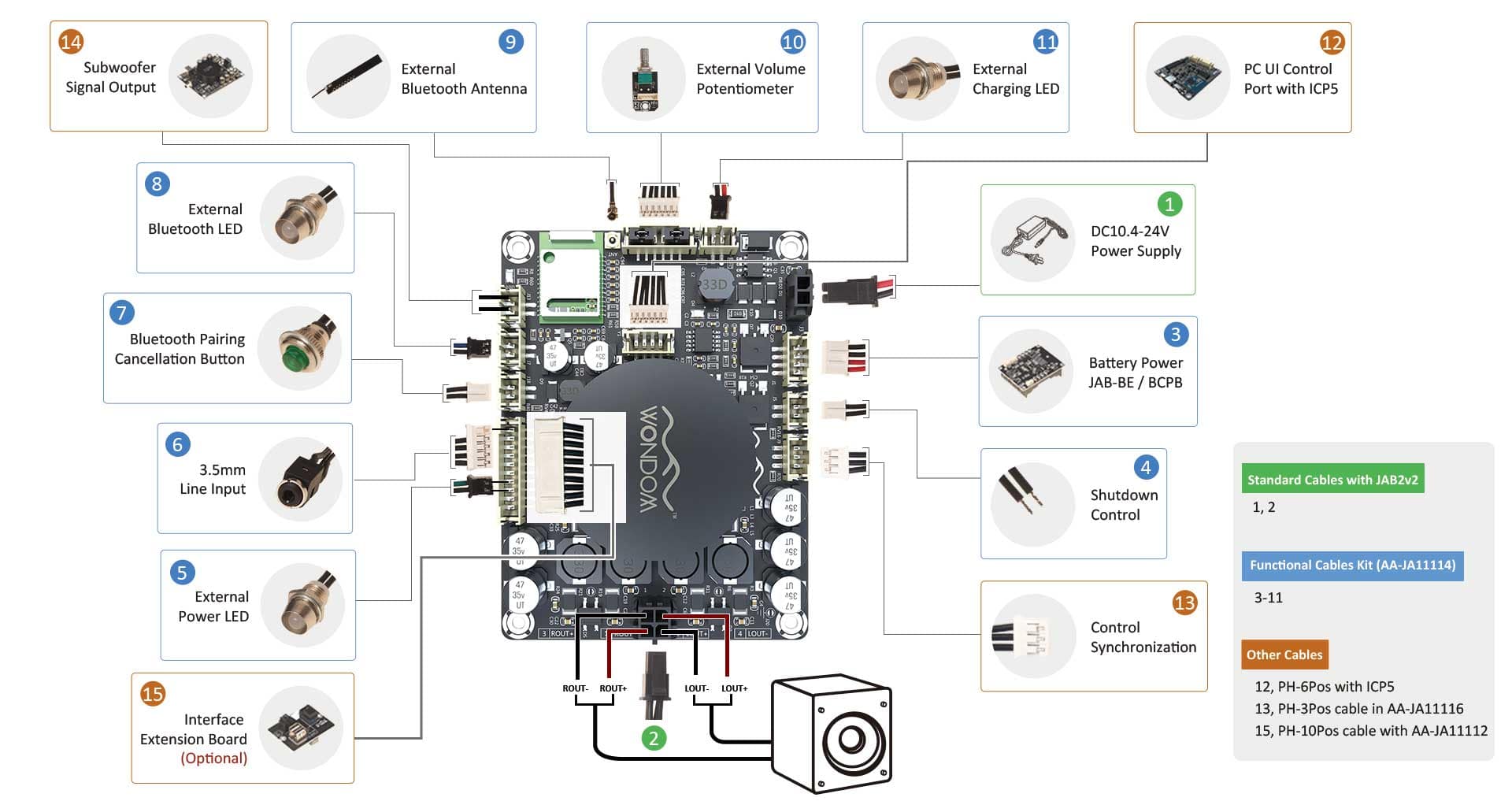

JAB2v2 is audio amplifier board integrated with Bluetooth 5.0 (supporting aptX HD) and DSP, offering a real all-in-one audio solution for customers. JAB2v2 covers 2 x 50W, 2 x 30W, 1 x 60W and 1 x 100W four models. Thanks to the equipped DSP chip, JAB2v2 supports PC UI control after connection with WONDOM ICP5 or higher version(s), through which, you can adjust volume, gain, frequency and EQ setting to customize your own audio. In addition to speaker output, JAB2v2 offers an extra mixed signal output, which can be input to other audio amplifier board to build audio 2.1 / 4.0 system. Customers can configure it into a subwoofer signal by frequency adjustment in PC UI. Besides power supply, JAB2v2 supports battery power, which greatly improves the portability. Wireless audio input, battery power, light weight and high quality audio performance make JAB2v2 perfectly suitable for portable Bluetooth speakers, home audio, garden audio and DIY applications. A DC10.8V-24V power supply is required.

Connection wireless

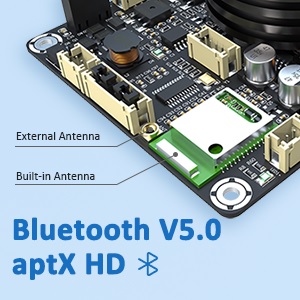

JAB2v2 employs Bluetooth 5.0 module for audio input, which supports various audio formats as aptX, aptX HD, aptX LL, SBC & AAC and high receive sensitivity with RF power up to 9dBm and -90dBm. There is a built-in antenna equipped on this board. So you can directly pair JAB2v2 with the device to play music. An external antenna port is also provided on the board to ensure the stable connection and high audio performance in such applications that JAB2v2 is installed into a speaker or a cabinet.

Supporting Battery Power

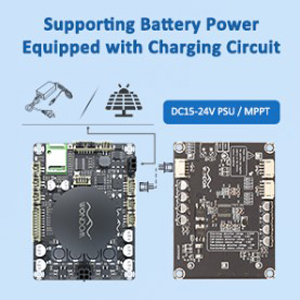

Beside power supply, JAB2v2 supports battery power. What’s more, JAB2v2 is equipped with MPPT charging circuit. So you can use 3S Lithium battery board (AA-JA11113) to power JAB2v2. When you want to charge batteries, connect the battery board (AA-JA11113) with JAB2v2 and connect a power supply with JAB2v2 at the same time. It is suggested to use a power supply whose output voltage is within DC15-24V and current is higher than 1A to charge batteries.

Integrated with DSP, Supporting PC UI

Taking customers’ reviews and feedbacks into account, we integrate DSP chip on JAB2v2. Programming port is provided on JAB2v2. After connection with WONDOM ICP5, you can get PC UI control function. Sure Electronics has developed a PC UI, with which, you can try with gain, high/low-pass filter, noise suppressor, bass, frequency shifter and many other effects.

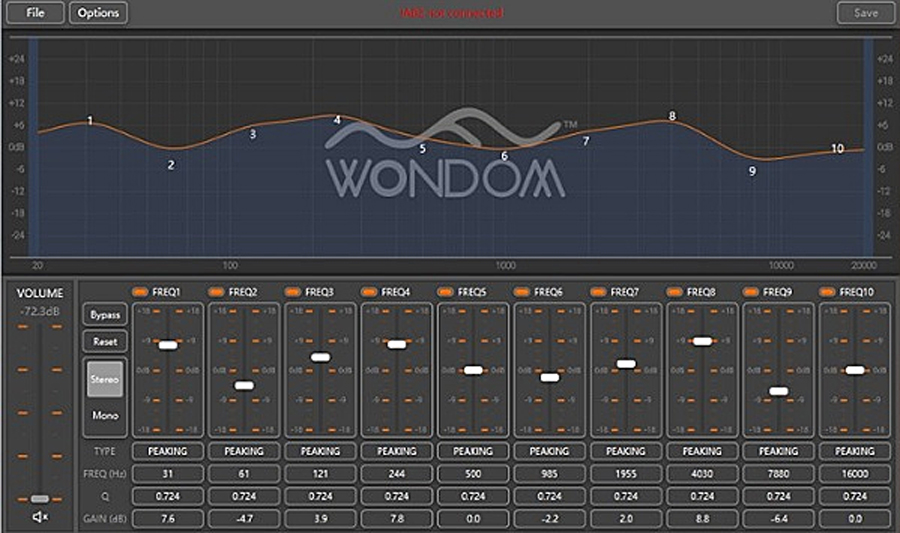

PC UI Miumax

PC UI - Miumax for JAB2v2 Download Link

http://files.sure-electronics.com/download/Miumax_For_JAB2v2_Setup_V1.1.zip

Mixed Line Output Signal, Supporting configuration as subwoofer

JAB2v2 provides a mixed line output signal, which can be transmitted to other WONDOM audio amplifiers to build an audio 2.1 / 4.0 system. You can set the frequency with the PC UI to configure this signal as subwoofer. Please note that it’s audio signal, so an amplifier board is required for connecting with a speaker..
