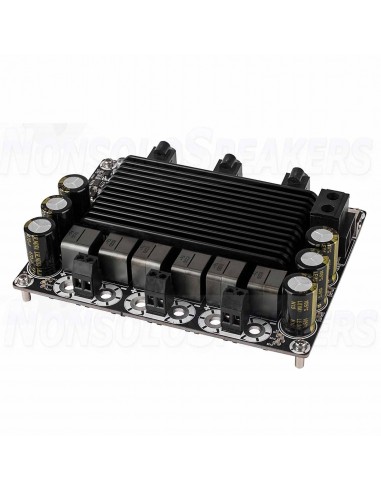

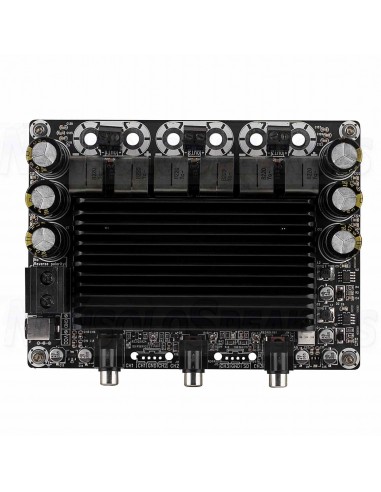

This audio amplifier board uses T-AMP technology, characterized by low distortion and low noise level. The fan works when the heat sink temperature reaches 45 degrees Celsius and stops when the temperature drops to 40 degrees Celsius.

SHIPMENT IN 7/10 WORKING DAYS
€73.00

Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



WONDOM AA-AB35281 - 3x200W amplifier class D

Sure Electronics - AA-AB35281

This audio amplifier board uses T-AMP technology, characterized by low distortion and low noise level. The fan works when the heat sink temperature reaches 45 degrees Celsius and stops when the temperature drops to 40 degrees Celsius.

Therefore the audible noise and the loss of inactive power carried by the fan could be omitted when the output RMS power is moderate.

Dettaglio di connessione amplificatore in classe D

FEATURES AA-AB35281

Parametri  Condizioni di Test Valori
Corrente massima 600 W @ 3 Ohm 18.1 UN
Tensioni di Alimentazione  - 24-40 V
Efficienza 200 W @ 3 Ohm 89-94 %
Potenza Inattiva

SD Floating, FAN ON

SD Floating, FAN OFF

13-16 W

10.2-13 W
Frequenza Swhitching SD Floating 711 kHz
Potenza in Standby SD collegato a GND, FAN OFF 0.68-2 W
Sensibilità  di ingresso (RMS) @ 3 Ω, 200 W, 1 KHz 722 mV
Impedenza di ingresso - 33 KΩ
Guadagno - 28.5-32.5 dB
Impedenza di carico minima - 3 Ω
Potenza in uscita

@ 3 Ω THD + N 1%

@ 3 Ω THD + N 10%

160 W

200 W
Larghezza di banda @ ± 3dB @ 3 Ω 20-20K Hz
THD

@ 3 Ω, 1W, 1KHz

@ 3 Ω, 10W, 1KHz

0.004 %

0.006 %
Livello di rumore in uscita Ponderazione, Ingresso collegato a GND 223 mV
SNR 128 W @ 3 Ω THD + N 1% 93 dB
Temperature
 - 50 °C

OTHERS FEATURES AA-AB35281

Parametri Specifiche
Chip T-AMP
Dimensioni 15,2 x 11,4 x 3,7 cm.
Potenza 3 x 200W
Classe Amplificatore D
Controllo di volume  Opzionale
Protezione da cortocircuiti Si
Protezione da sovratemperatura Si

Performance

Amplificatore Digitale Classe D

Amplificatore Digitale Classe D

Amplificatore Digitale Classe D

Amplificatore Digitale Classe D

AA-AB35281
