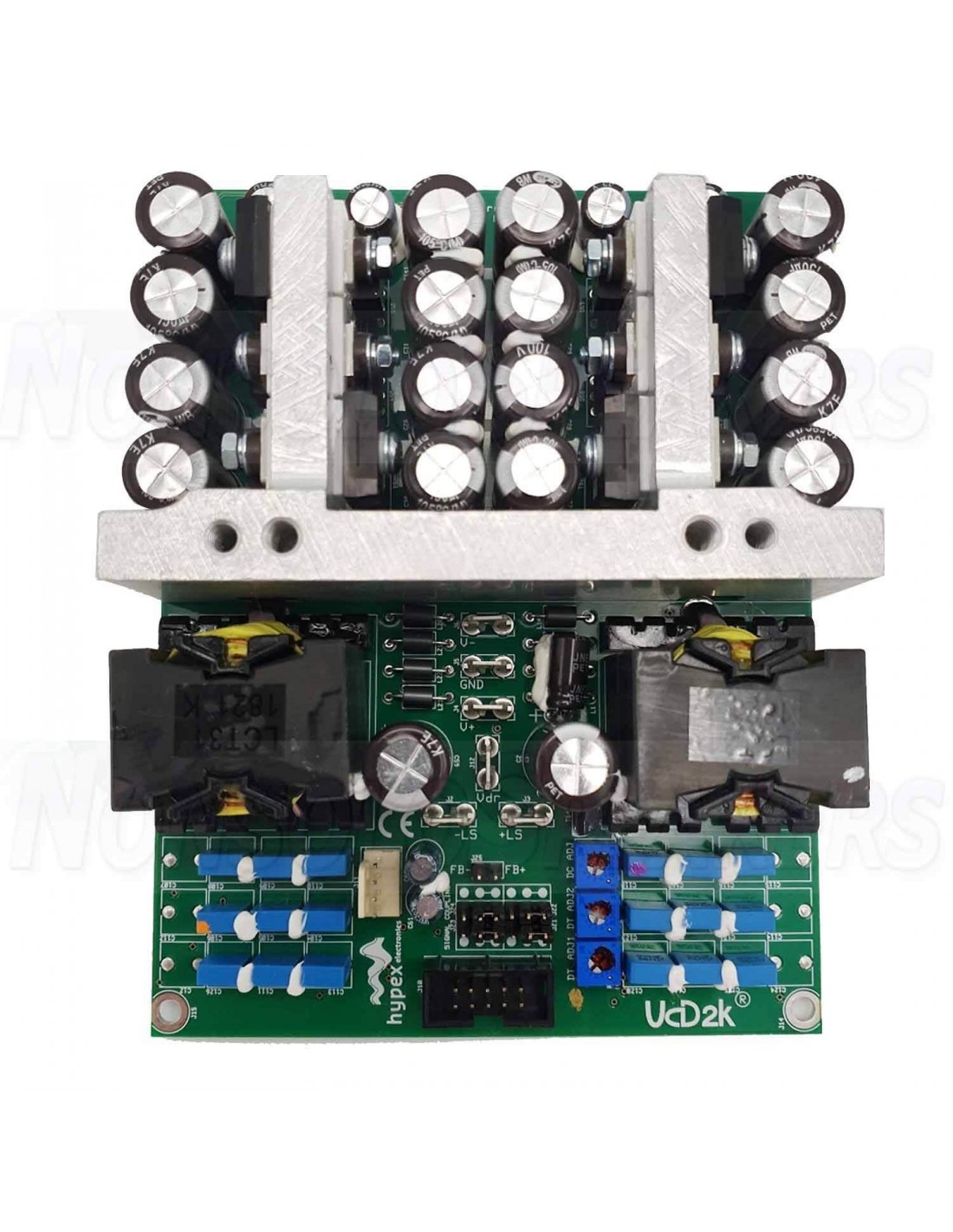

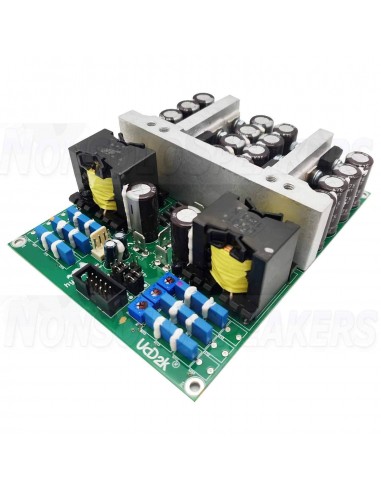

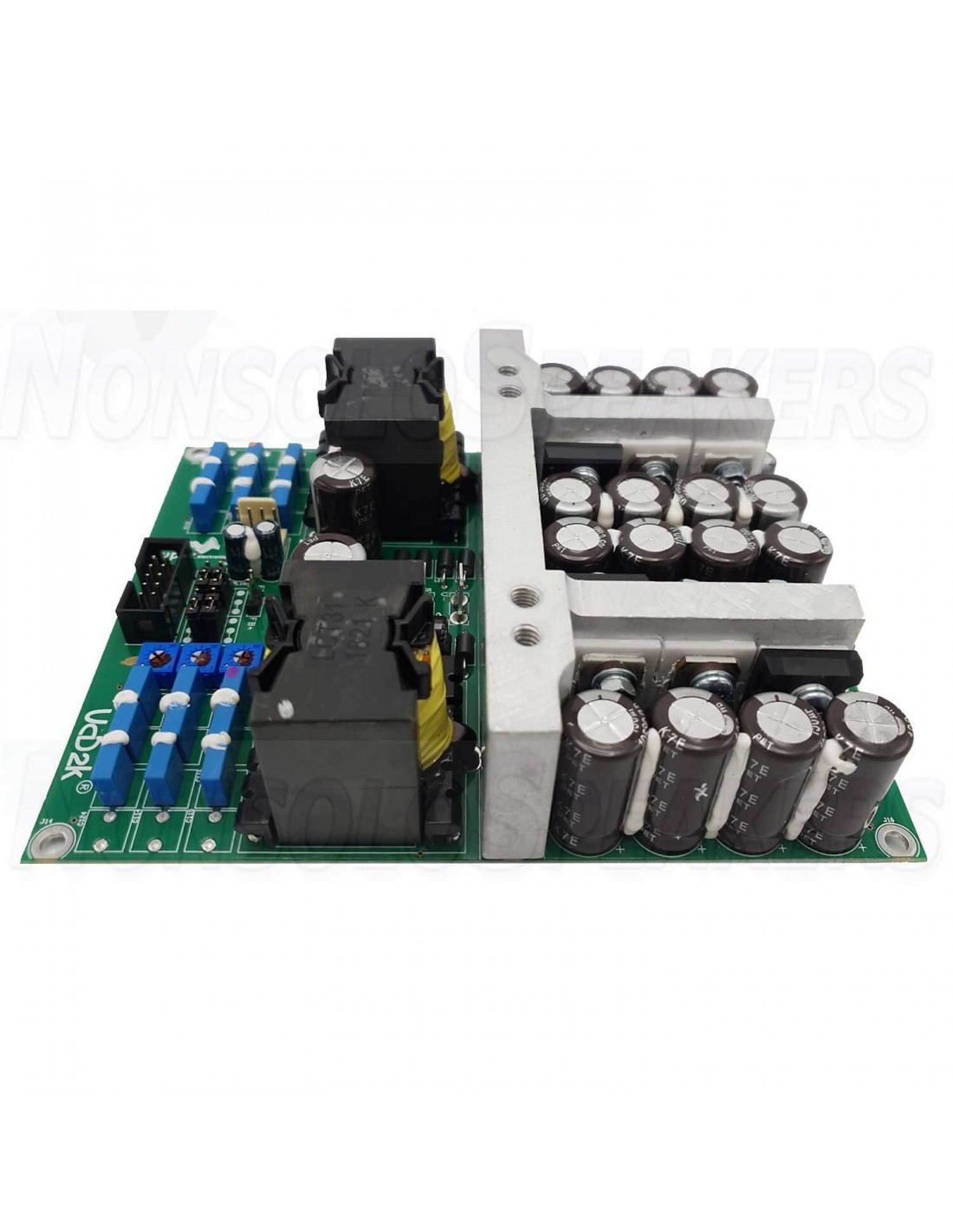

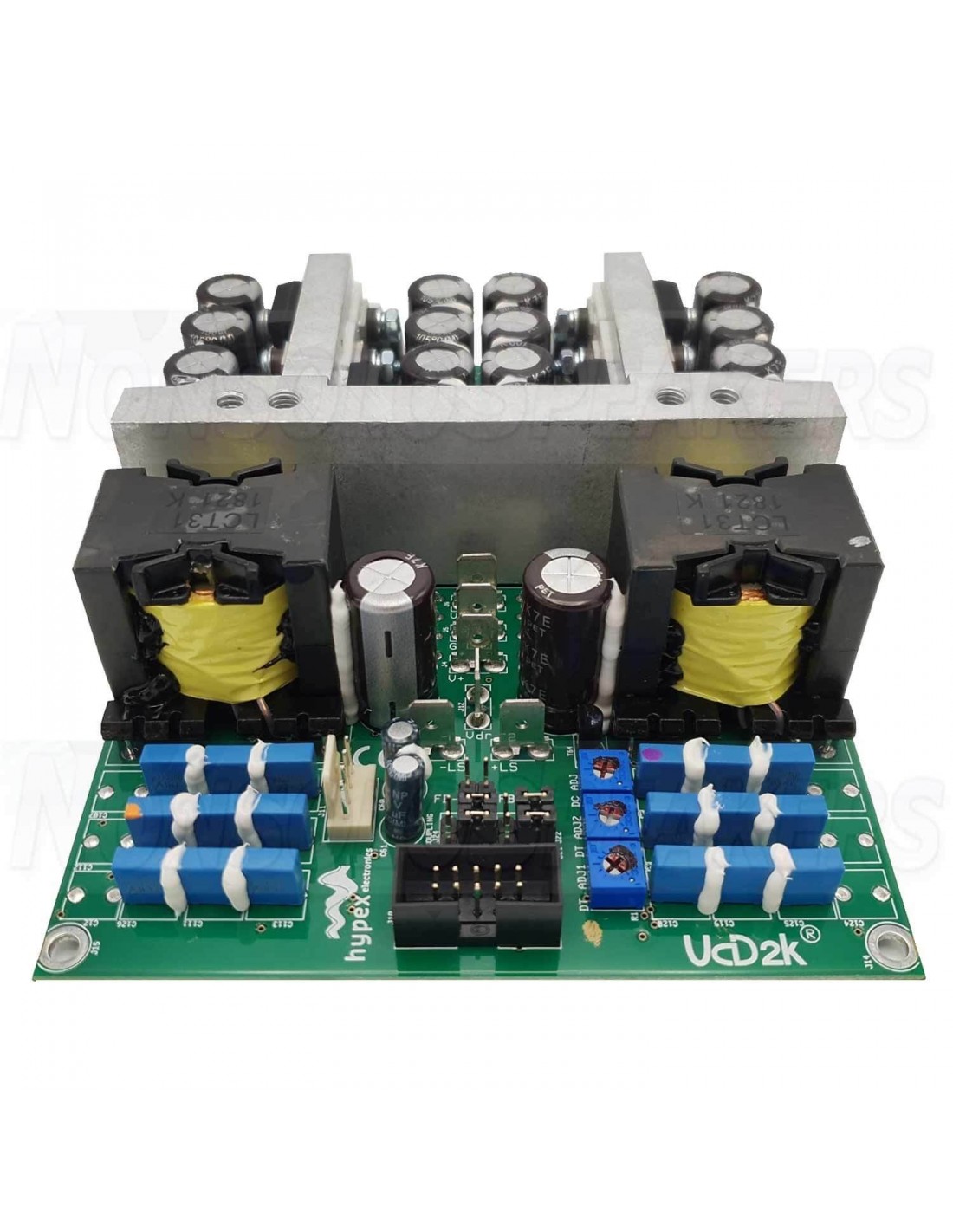

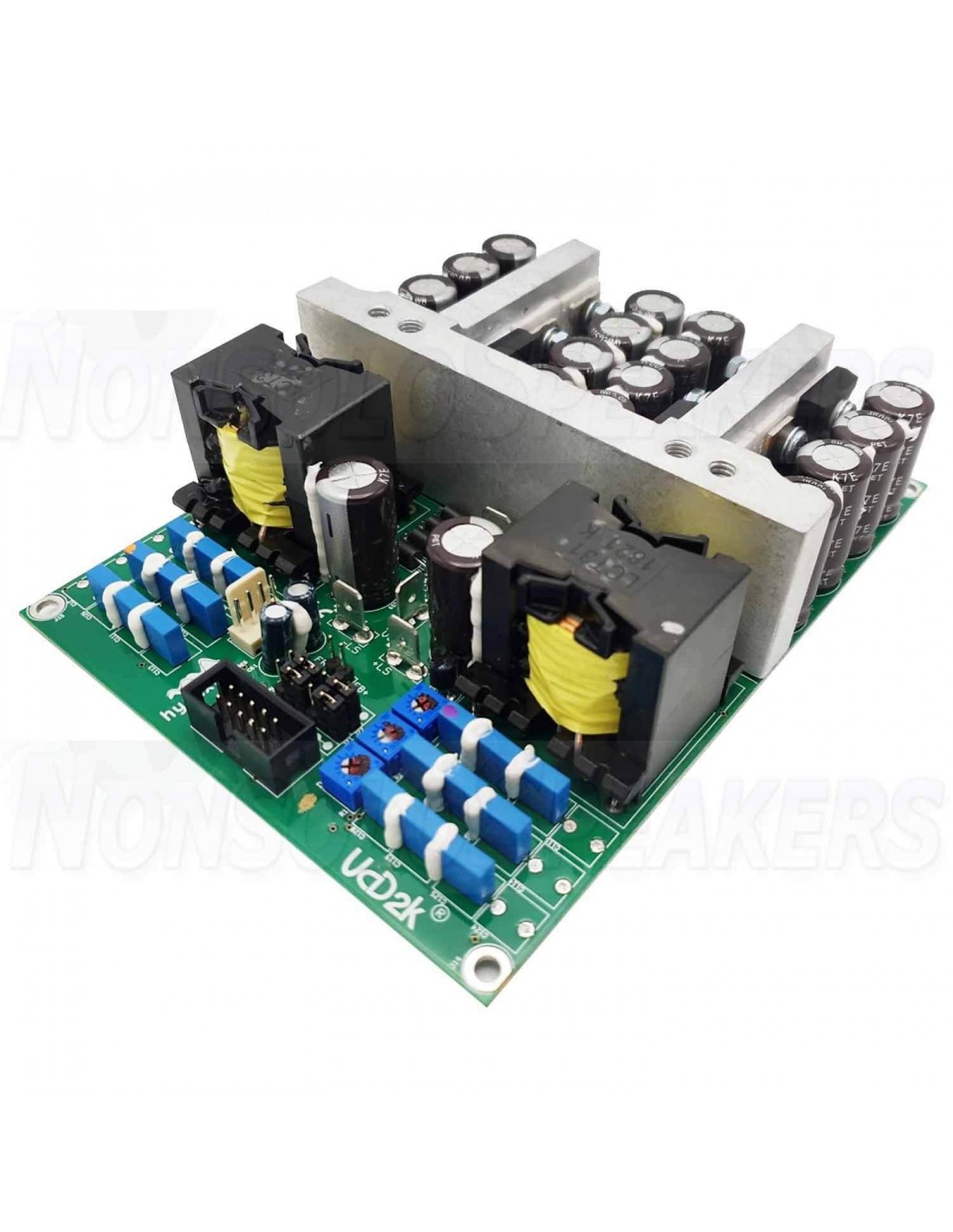

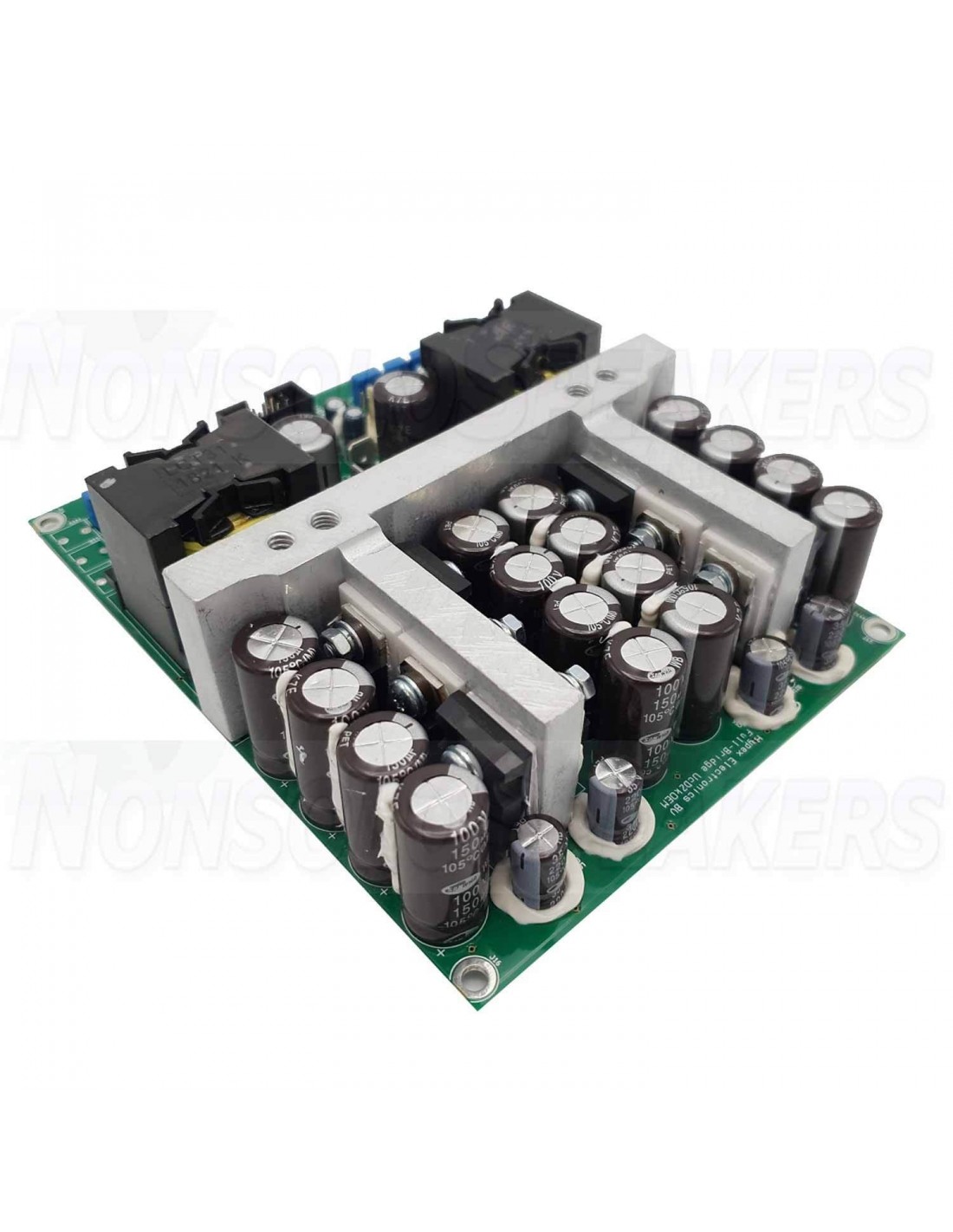

Hypex UcD2k 1x2000W Universal Class D Amplifier Module

The UcD2k amplifier module is an entry level high-end class D amplifier from Hypex. The UcD2k is known for its high performance, reliability and ease of use. The UcD2k comes with the required UcD Signal Cable.

-

Highlights

Flat, fully load-independent frequency

Low output impedance

Very low, frequency-independent THD

Very low noise

.

Product details

Hypex UcD2k 1x2000W Universal Class D Amplifier Module

The UcD2k amplifier is intended for a wide range of audio applications, ranging from Public Address systems to ultrahigh-fidelity replay systems for studio and home use. Hypex distinguishes their amplifiers from other class D designs due a unique circuit topology. This results in flat frequency response irrespective of load impedance, nearly frequency-independent distortion behavior and very low radiated and conducted EMI.

The Hypex UcD modules have established themselves as the new standard, both in terms of measured and subjective performance and therefore very suitable as amplifier in professional audio as well in consumer purposes.

.

Features

Runs on unregulated +/- rails

POP-free start and stop control

Differential audio input

On-board clipping detection

DC-fault detection

Overcurrent and overvoltage protection

 .

What’s In The Box?

• UcD2k amplifier module

• Mounting set UcD

• UcD Signal Cable

• Manual

The UcD amplifier module only needs the proper power supply to start with their efficient, ultra-clean power delivery. We recommend the SMPS3kA700 as power supply for the UcD2k amplifier module.

-

Specifications

• Article number UcD2k

• Rated power output

• 1x 2500 watts at 4 ohms

• 1x 1600 watts at 8 ohms

• 1x 2000 watts at 2 ohms

• Minimum load 1 ohm

• Efficiency 92 %

• Signal-to-noise ratio (SNR)

• Distortion 0.02 % (20-20,000 Hz @ 0.5 x Rated power output)

• Frequency response. 10 - 50,000 Hz

• Gain 34 dB

• Input sensitivity 2.25 Vrms for rated power output

• Input impedance 100k ohms

• Amplifier Classification Class D

• Circuit Topology UcD®

• Speaker output channels 1

• Input connection type

• 4 pin PCB connector

• 10 pin PCB connector (through from power supply)

• Speaker output connection type :Crimp/solder connection tabs

• DSP function

• Bluetooth

• EQ Adjustment

• Power Requirements

• 50 - 98 VDC (symmetric supply +/-)

• 13 - 15 VDC (driver supply voltage)

• Power inlet connector Crimp/solder connection tabs

• Current limit 50 A

• Under/over voltage protection

• Dimensions (L x W x H) 141 x 108 x 38 mm
