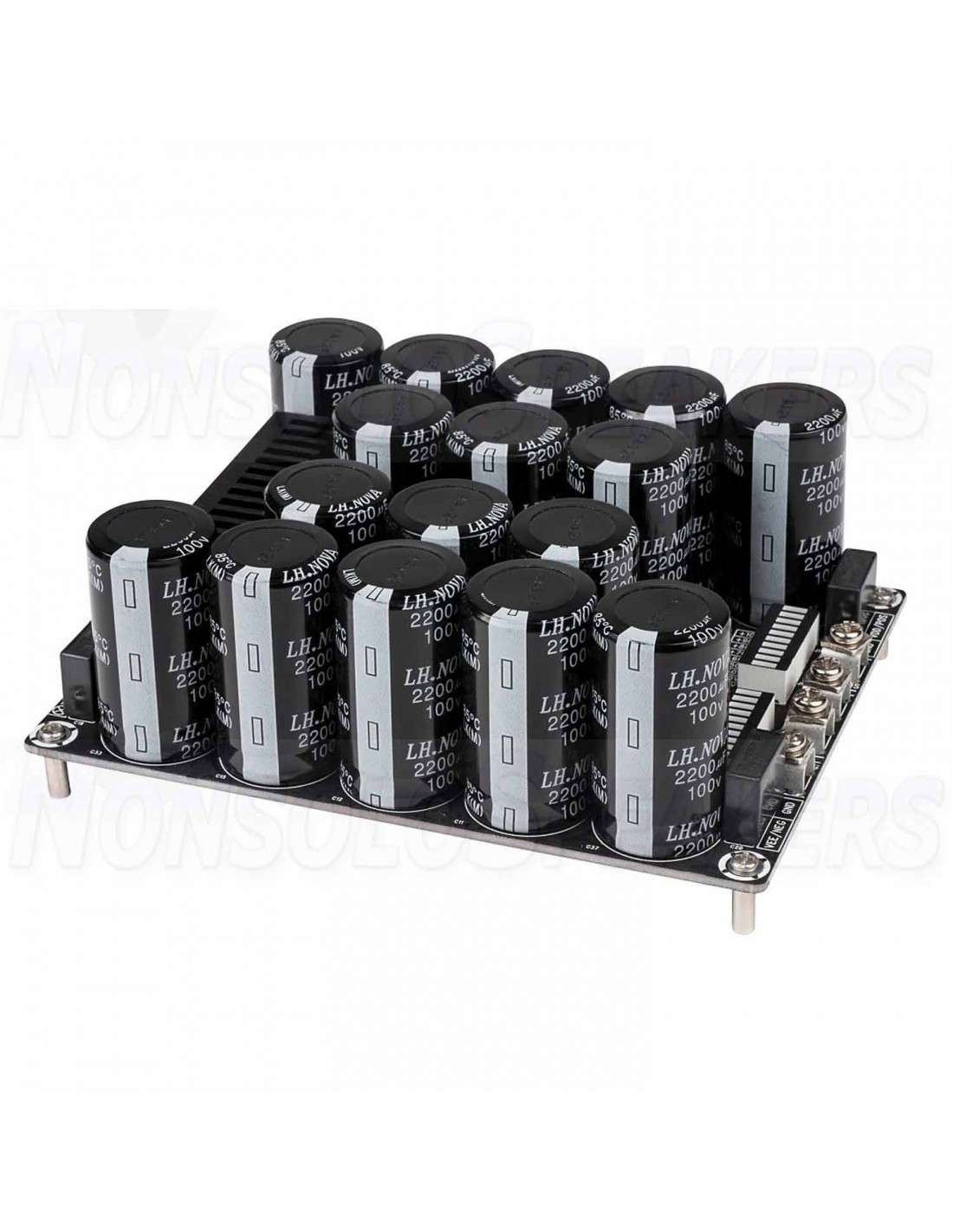

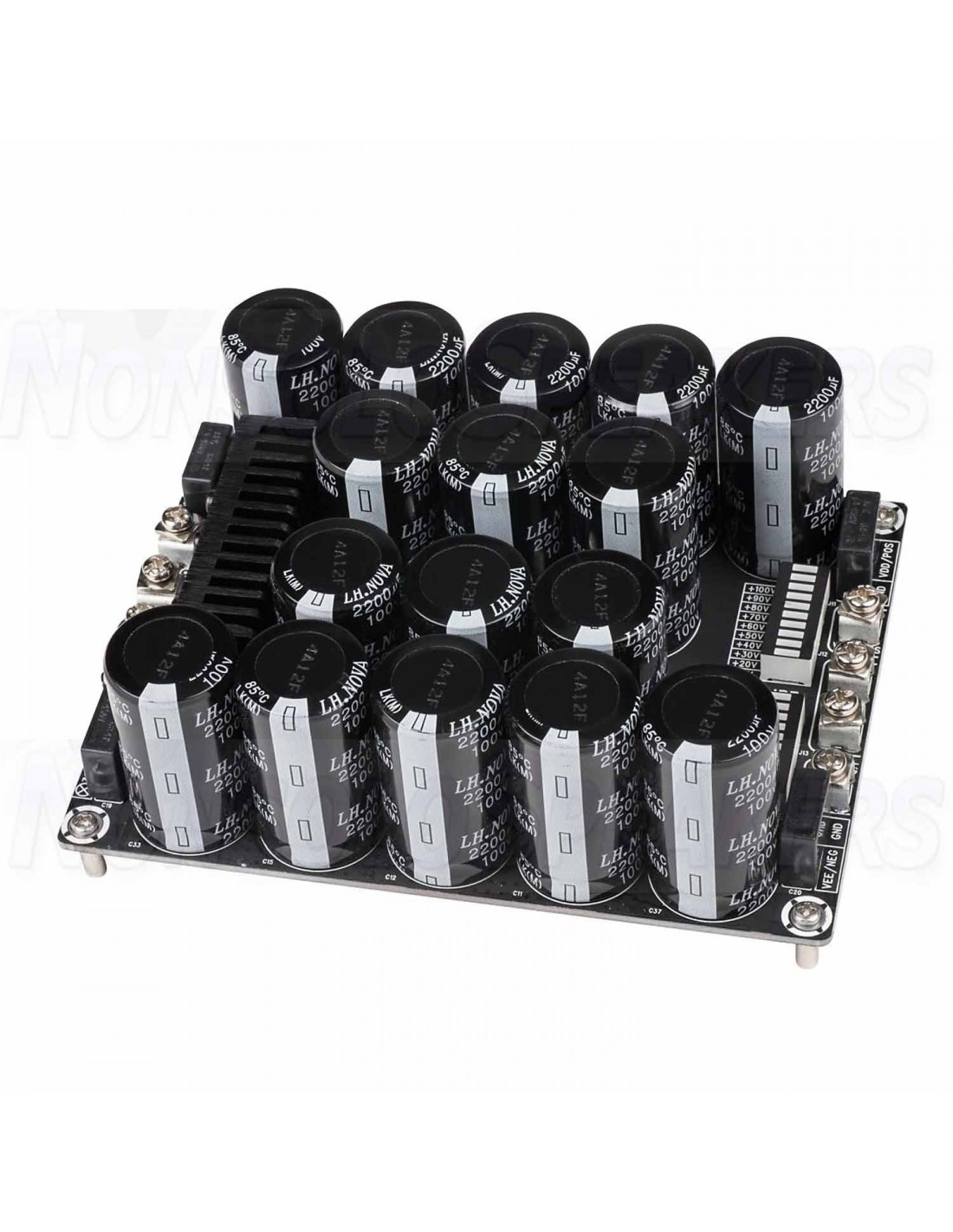

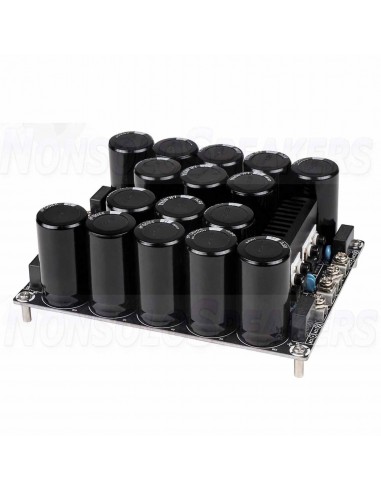

WONDOM AA-AB41122 -100V 30A 35000uF Rectifier card for amplifiers

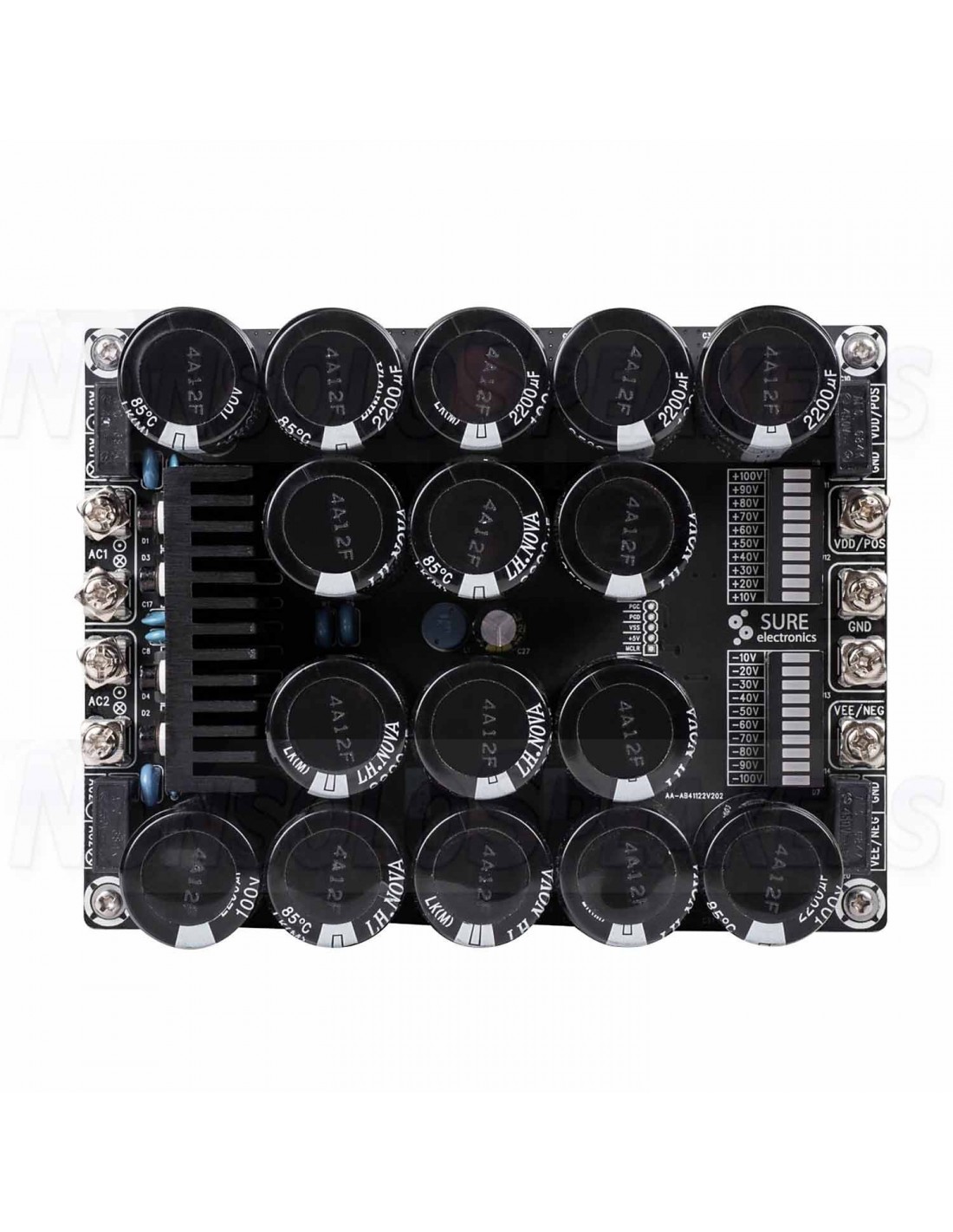

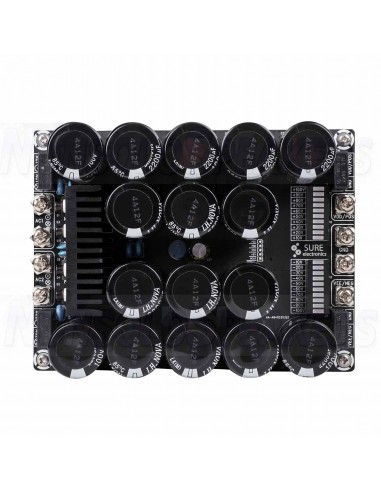

Add stable power to your boards and amplifier designs using this rectifier board that has been used with 35,000 buffering capacity microfarads, ripple reduction capability. The ultra-fast AA-AB41122 diodes from ST Electronics are combined with minimal perarmonic ceramic capacitors. The AC power supply is applied to the input (positive on the AC1 X terminal, negative on the AC2 X terminal, with central sockets connected to the internal AC1 and AC2 terminals if operated), with positive DC output on the VDD / POS terminal and negative symmetrical DC output on the VEE / NEG terminal. An indicator LED shows the voltage output for each channel. Note: to calculate the voltage output, multiply the secondary voltage by 1,414 (the square root of 2). For example, if connected to a primary 220 VAC input at two secondary outputs 75 VAC, sent would be +106 VDC and -106 VDC.

Schema di principio

 Features

Others features
