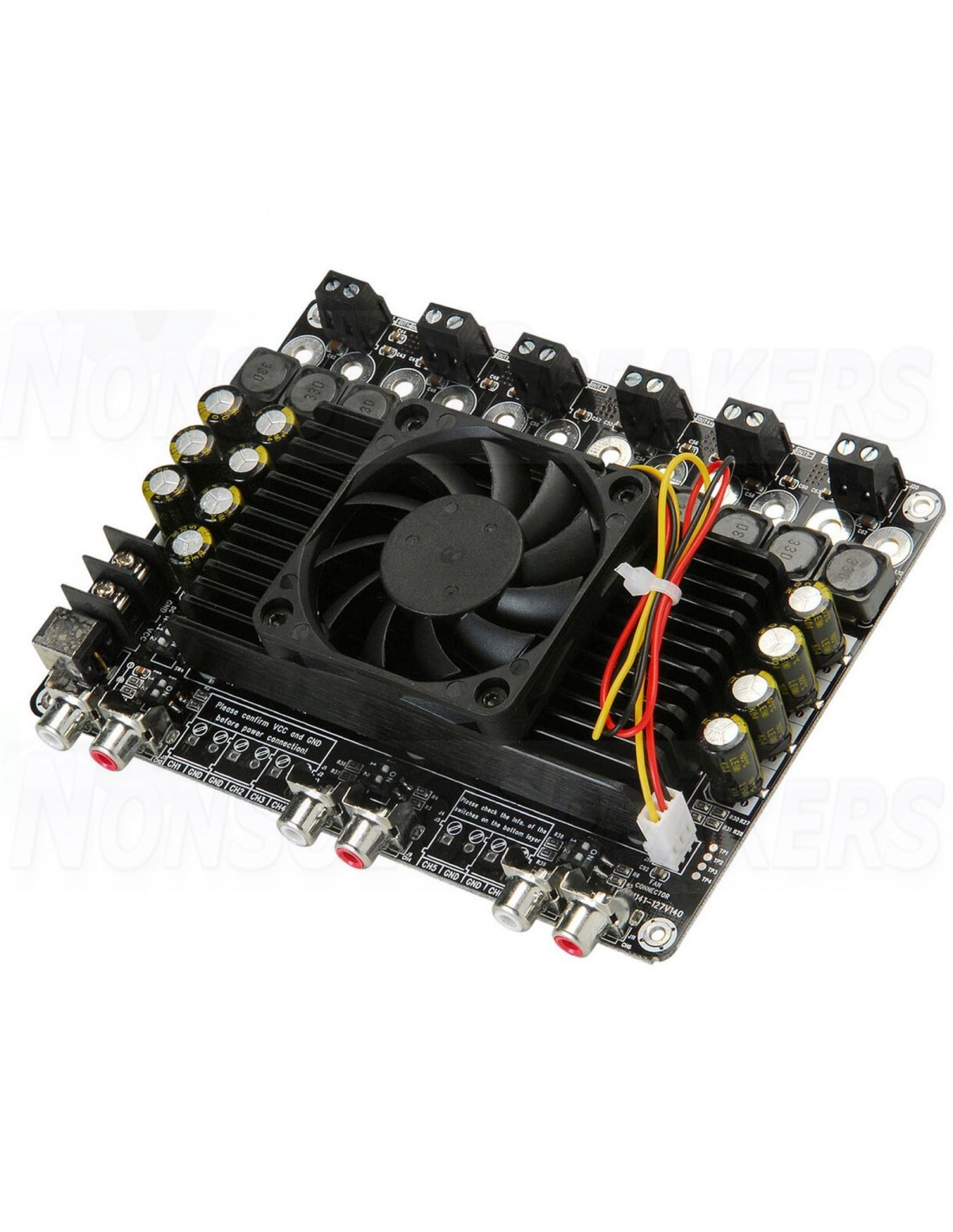

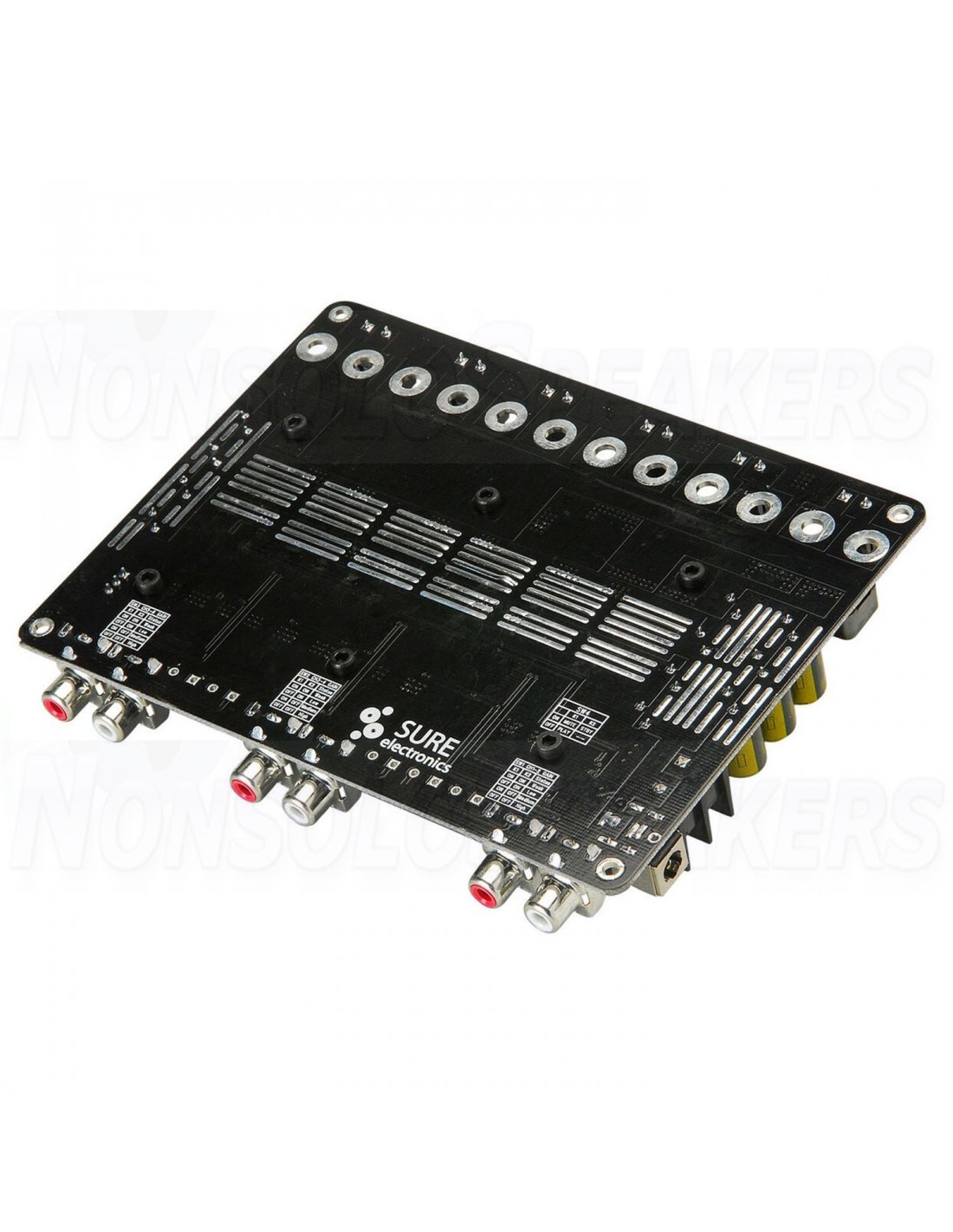

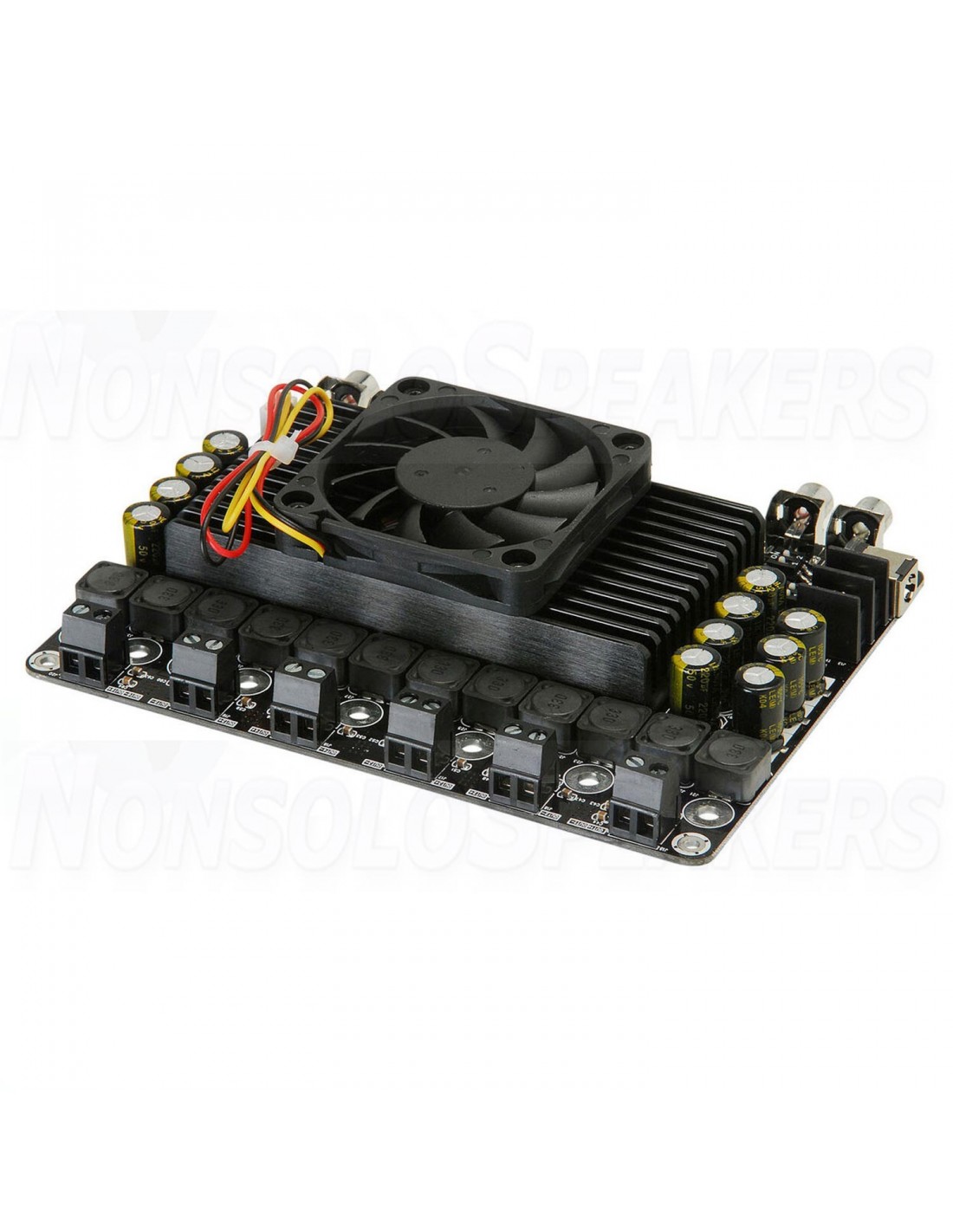

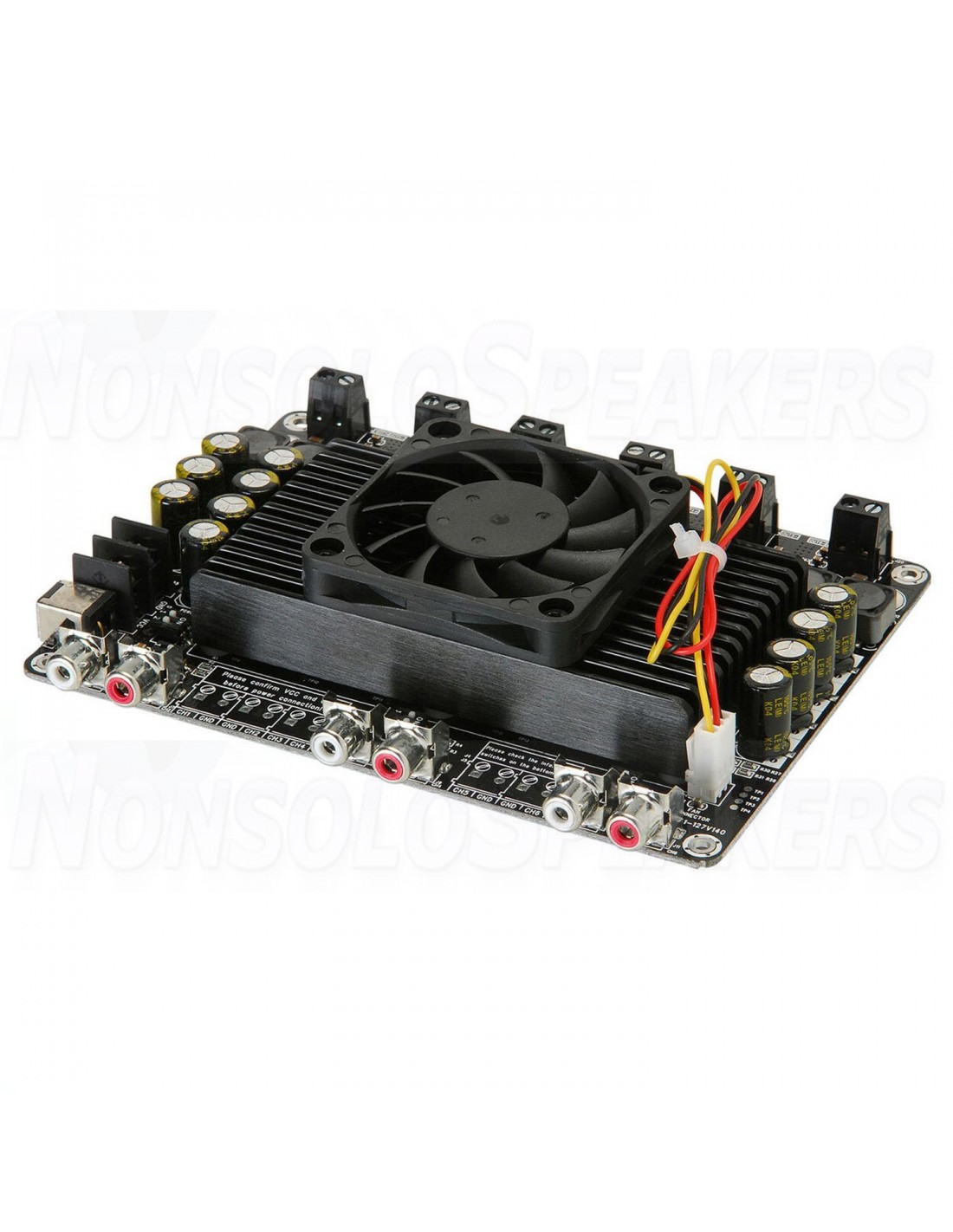

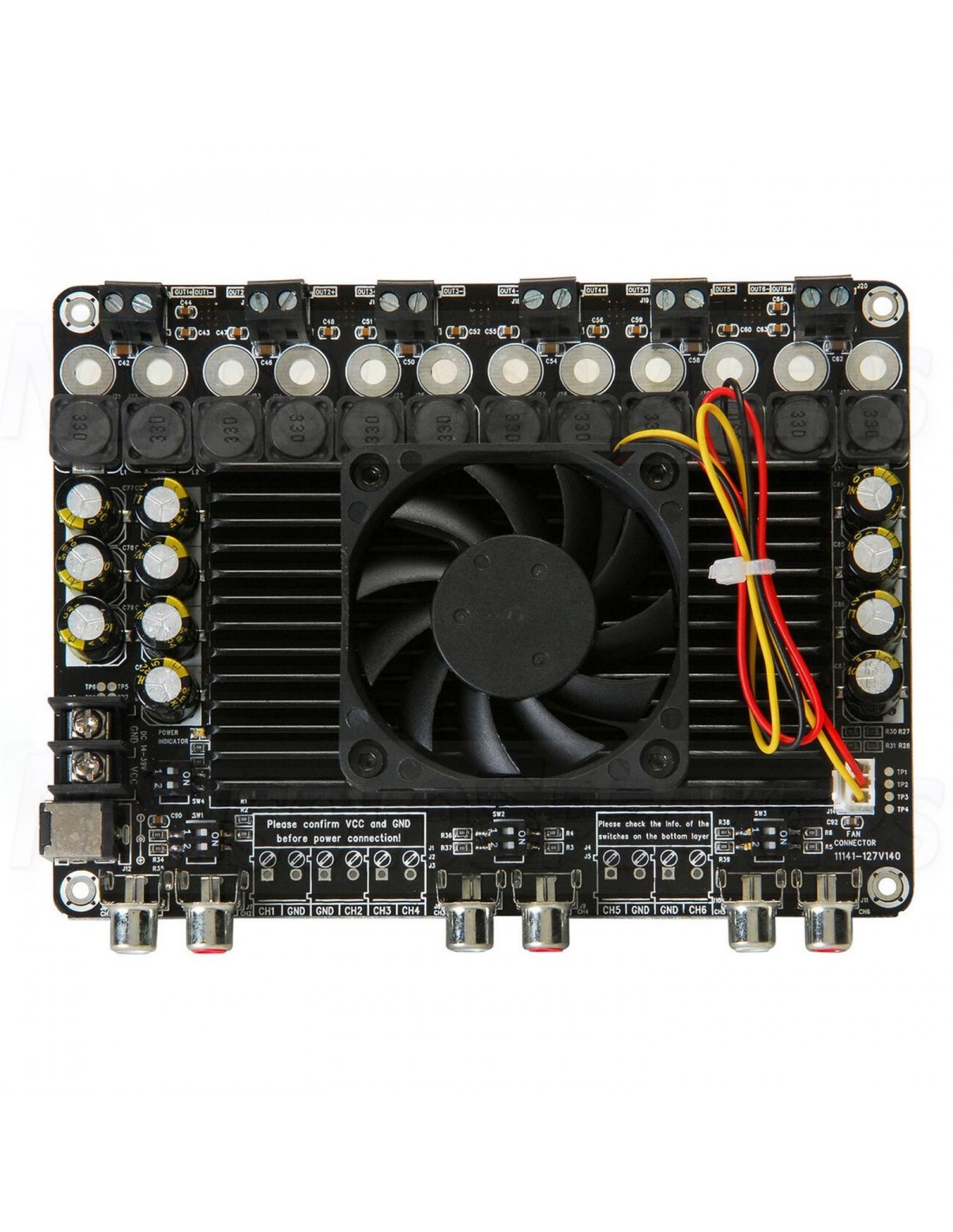

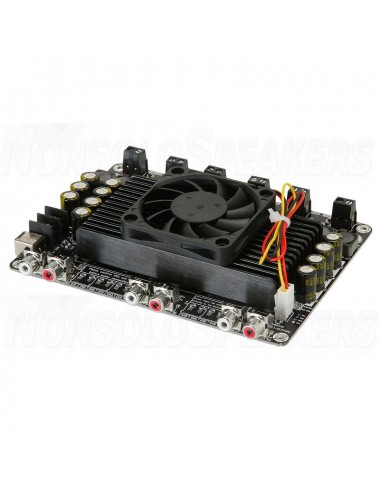

This 6 x 100 W audio amplification card has a perfect Class D architecture and an integrated TDA7498 chip to achieve an output power of 100 W per channel. With high efficiency, it is particularly available for outdoor locations where power is always taken into consideration.

SHIPMENT IN 7/10 WORKING DAYS
€79.44

Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



WONDOM AA-AB34181 - 6x100W@6ohm amplifier class D

This 6 x 100 W audio amplification card has a perfect Class D architecture and an integrated TDA7498 chip to achieve an output power of 100 W per channel. With high efficiency, it is particularly available for outdoor locations where power is always taken into consideration.

High-quality resistive and capacitive components, including X7R ceramic capacitors and lower ESR electrolytic capacitors, are used to obtain the perfect timber, finally we achieve a high S / N ratio, low THD + N, wide frequency response range , etc.

Dettaglio di connessione amplificatore in classe D

FEATURES AA-AB34181

Parametri  Condizioni di Test Valori
Corrente massima 100 W @ 6 Ohm 36 V
Tensioni di Alimentazione  - 14-39 V
Efficienza P = 100W + 100W 90 %
Corrente di riposo

Nessun filtro LC, nessun carico

40-60 mA
Sensibilità  di ingresso

25.6 dB

31.6 dB

35.1 dB

37.6 dB

1356 mV

696 mV

460 mV

341 mV
Impedenza di ingresso - 48-60 KΩ
Guadagno

GAIN0 = L, GAIN1 = L

GAIN0 = L, GAIN1 = H

GAIN0 = H, GAIN1 = L

GAIN0 = H, GAIN1 = H

24.6-26.6 dB

30.6-32.6 dB

34.1-36.1 dB

36.6-38.6 dB
Impedenza di carico minima - 6 Ω
Potenza in uscita

@THD = 10%

100 W rms
Larghezza di banda @ ± 3dB 20-22K Hz
Temperature
 - 20-50 °C

OTHER FEATURES AA-AB34181

Parametri Specifiche
Chip TDA7498
Dimensioni 15,2 x 11,4 x 3,2 cm.
Potenza 6 x 100W
Classe Amplificatore D
Controllo di volume  Opzionale
Protezione da cortocircuiti Si
Protezione da sovratemperatura Si
WONDOM AA-AB34181
