ROSSIWAG KIT 1 - 2x75W @ 4ohm Class D amplifier with APT-X Bluetooth preamplifier
ROSSIWAG KIT 1 - 2x75W @ 4ohm Class D amplifier with APT-X Bluetooth preamplifier
ROSSIWAG KIT 1 - 2x75W @ 4ohm Class D amplifier with APT-X Bluetooth preamplifier
ROSSIWAG KIT 1 - 2x75W @ 4ohm Class D amplifier with APT-X Bluetooth preamplifier
ROSSIWAG KIT 1 - 2x75W @ 4ohm Class D amplifier with APT-X Bluetooth preamplifier
ROSSIWAG KIT 1 - 2x75W @ 4ohm Class D amplifier with APT-X Bluetooth preamplifier
ROSSIWAG KIT 1 - 2x75W @ 4ohm Class D amplifier with APT-X Bluetooth preamplifier
ROSSIWAG KIT 1 - 2x75W @ 4ohm Class D amplifier with APT-X Bluetooth preamplifier
ROSSIWAG KIT 1 - 2x75W @ 4ohm Class D amplifier with APT-X Bluetooth preamplifier
ROSSIWAG KIT 1 - 2x75W @ 4ohm Class D amplifier with APT-X Bluetooth preamplifier
ROSSIWAG KIT 1 - 2x75W @ 4ohm Class D amplifier with APT-X Bluetooth preamplifier
ROSSIWAG KIT 1 - 2x75W @ 4ohm Class D amplifier with APT-X Bluetooth preamplifier

ROSSIWAG KIT 1 - 2x75W @ 4ohm Class D amplifier with APT-X Bluetooth preamplifier

ROSSIWAG KIT 1 - 2x75W @ 4ohm Class D amplifier with APT-X Bluetooth preamplifier

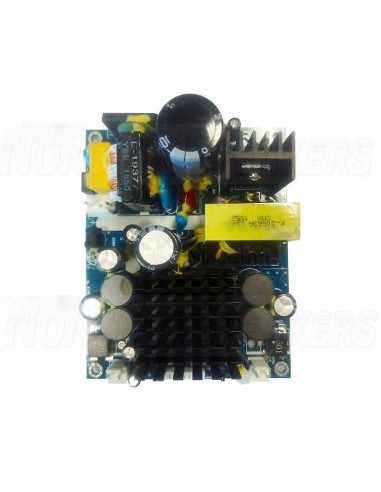

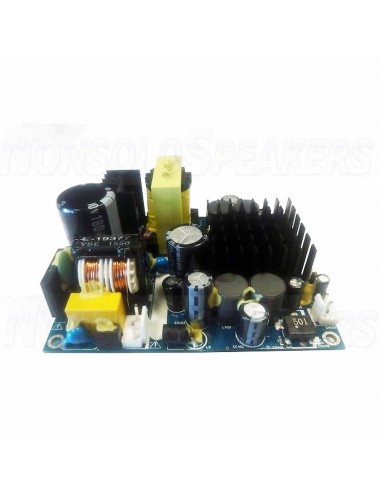

WAGNER is a 2 x 50W @ 8ohm, Class-D amplifier and switching power design for high efficiency, high stability and low weight. An output power of 50W x 2CH (8ohm) and easy to apply.

SHIPMENT IN 7/10 WORKING DAYS
€125.79
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



ROSSIWAG KIT 1 - 2x75W @ 4ohm Class D amplifier with APT-X Bluetooth preamplifier

WAGNER is a 2 x 50W @ 8ohm, Class-D amplifier and switching power design for high efficiency, high stability and low weight. An output power of 50W x 2CH (8ohm) and easy to apply.

Parameters Test conditions Values

Output power 2 ch x 8 ohm 50 W

S / N ratio at nominal power - 100 dB / A-Weighted

THD @ -3dB rated power <0.1%

Input sensitivity with jumper 0.6 Volt.

Input sensitivity without jumper - 1.2 Volts.

Input impedance - 22 kΩ

Frequency response 20Hz ~ 20K Hz +/- 1.5dB

Crosstalk @ 1KHz 80 dB

-

Specific Parameters

TAS5611 chip

Dimensions 10.5 x 8.5 x 4.1 cm.

Power 2 x 75W

Amplifier Class D

Volume Control (Optional)

Short circuit protection Yes

Overtemperature protection Yes

Connection diagram APT-X Rossini preamplifier + 2x75W Wagner amplifier

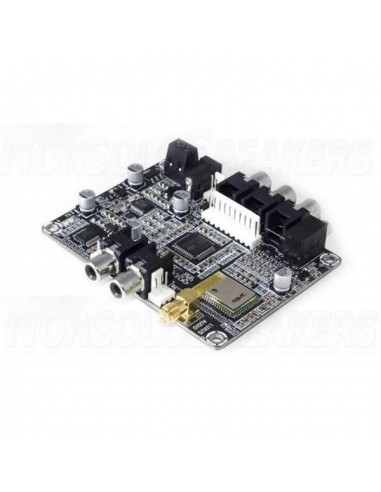

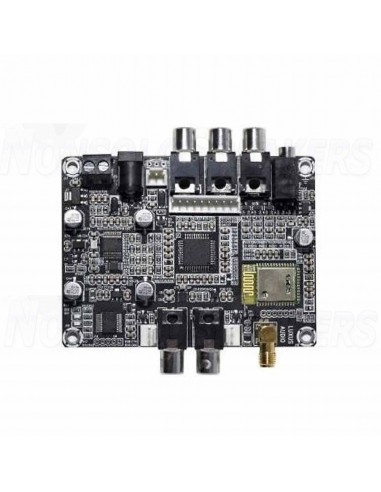

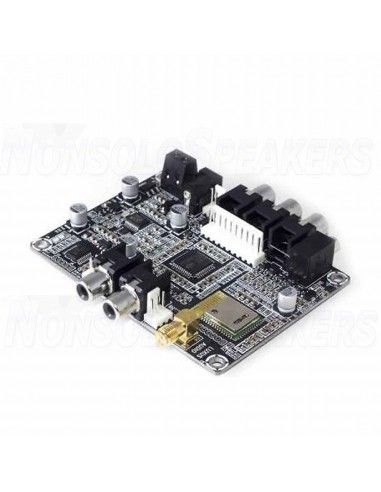

ROSSINI is a Preamplifier with integrated PT2037 high performance audio processor. It features RCA analog input, 3.5mm Jack analog input, S / PDIF input and Bluetooth 4.0 input with APT-X support. All functions can be managed using the supplied remote control. The preamplifier can be powered at 12 volts.
