This product integrated with TDA7492, currently popular all over the world, not only provides dream sound but also has high efficiency, so it can dissipate the heat after a long time working to ensure that the amplifier can work in stable condition for a long time .

Out-of-Stock
€54.00

Tax included
rating No review at the moment


Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



WONDOM AA-AS32171 - 2x50W amplifier class D with container

This product integrated with TDA7492, currently popular all over the world, not only provides dream sound but also has high efficiency, so it can dissipate the heat after a long time working to ensure that the amplifier can work in stable condition for a long time .

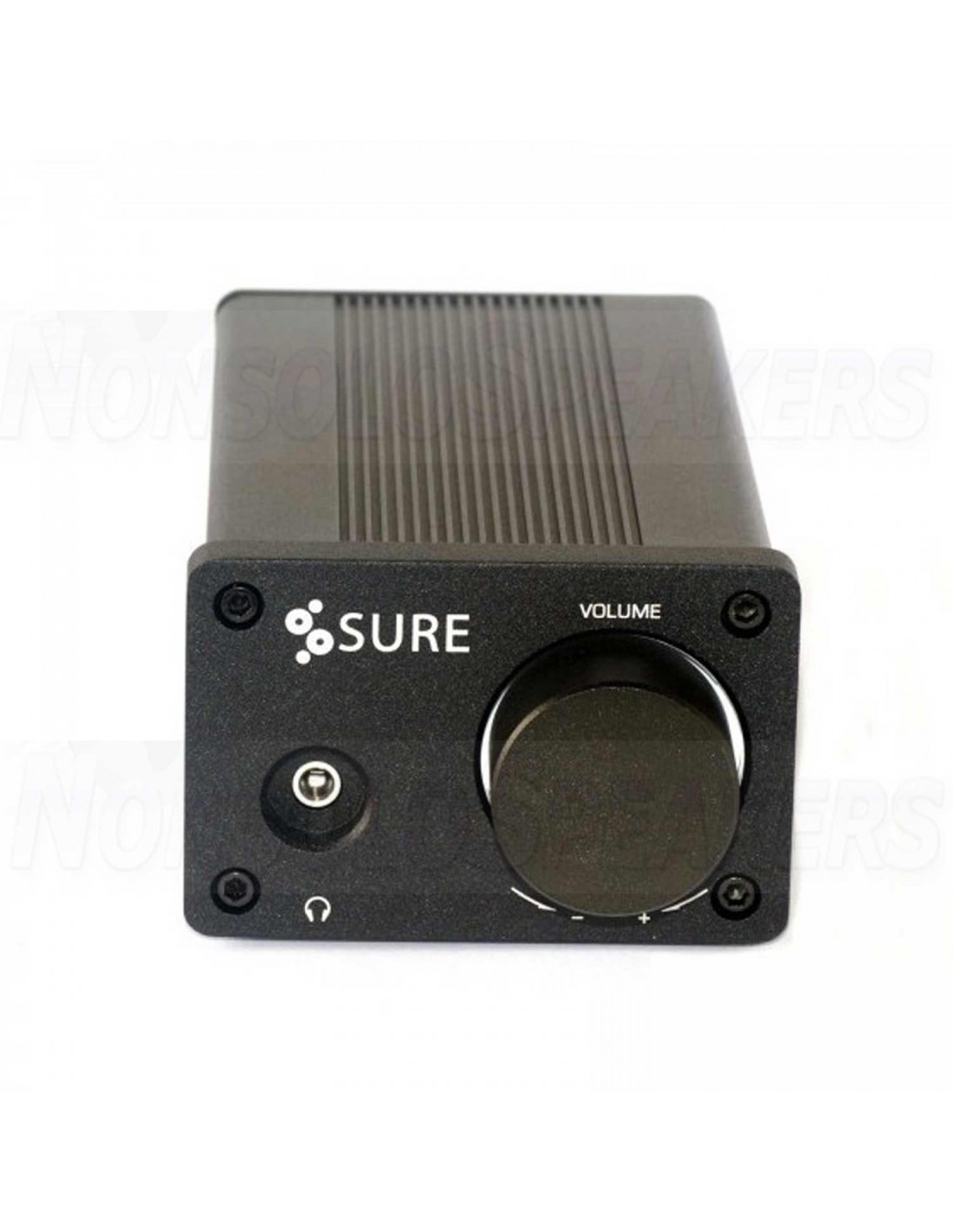

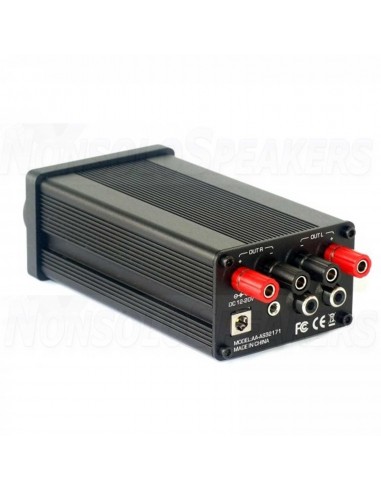

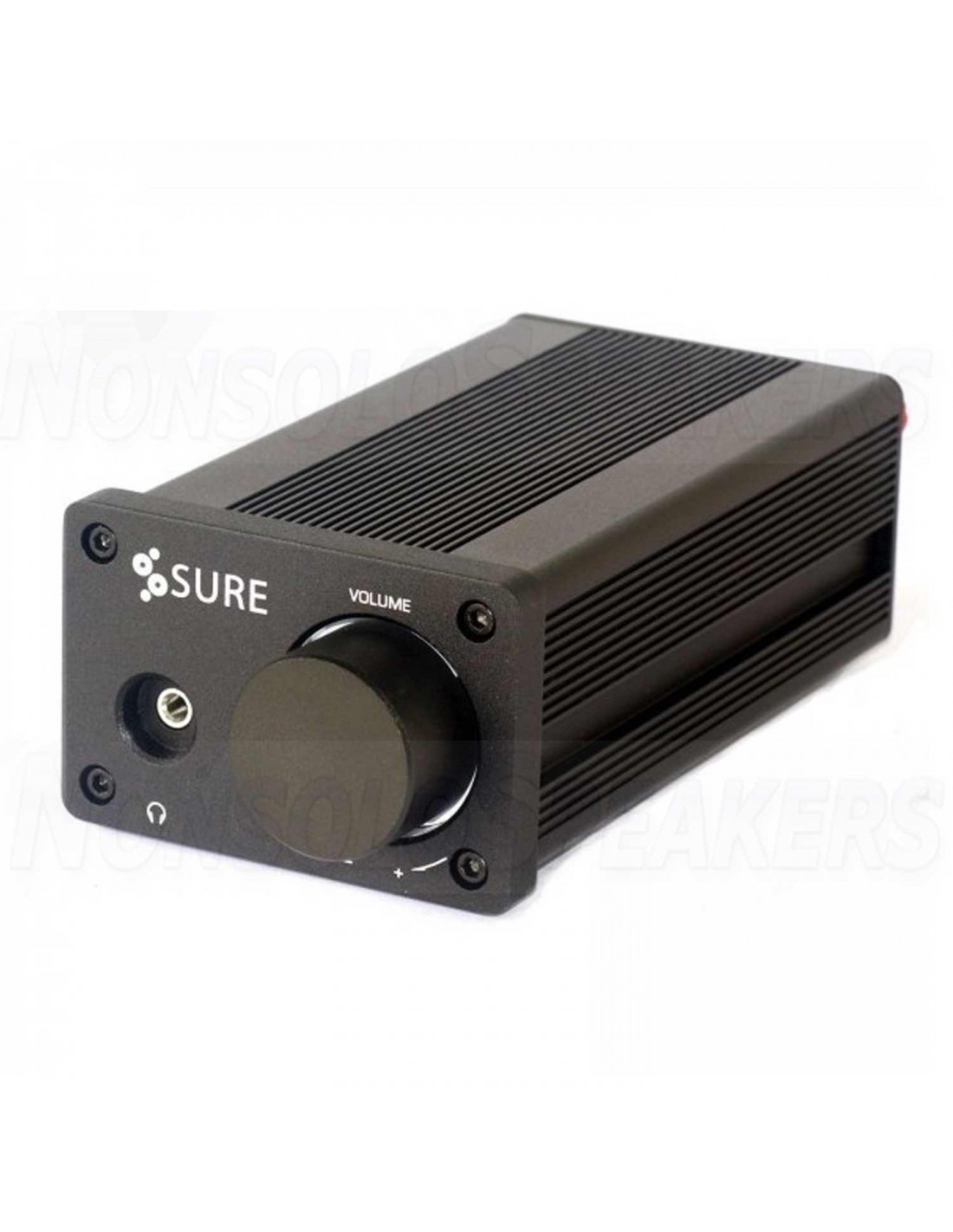

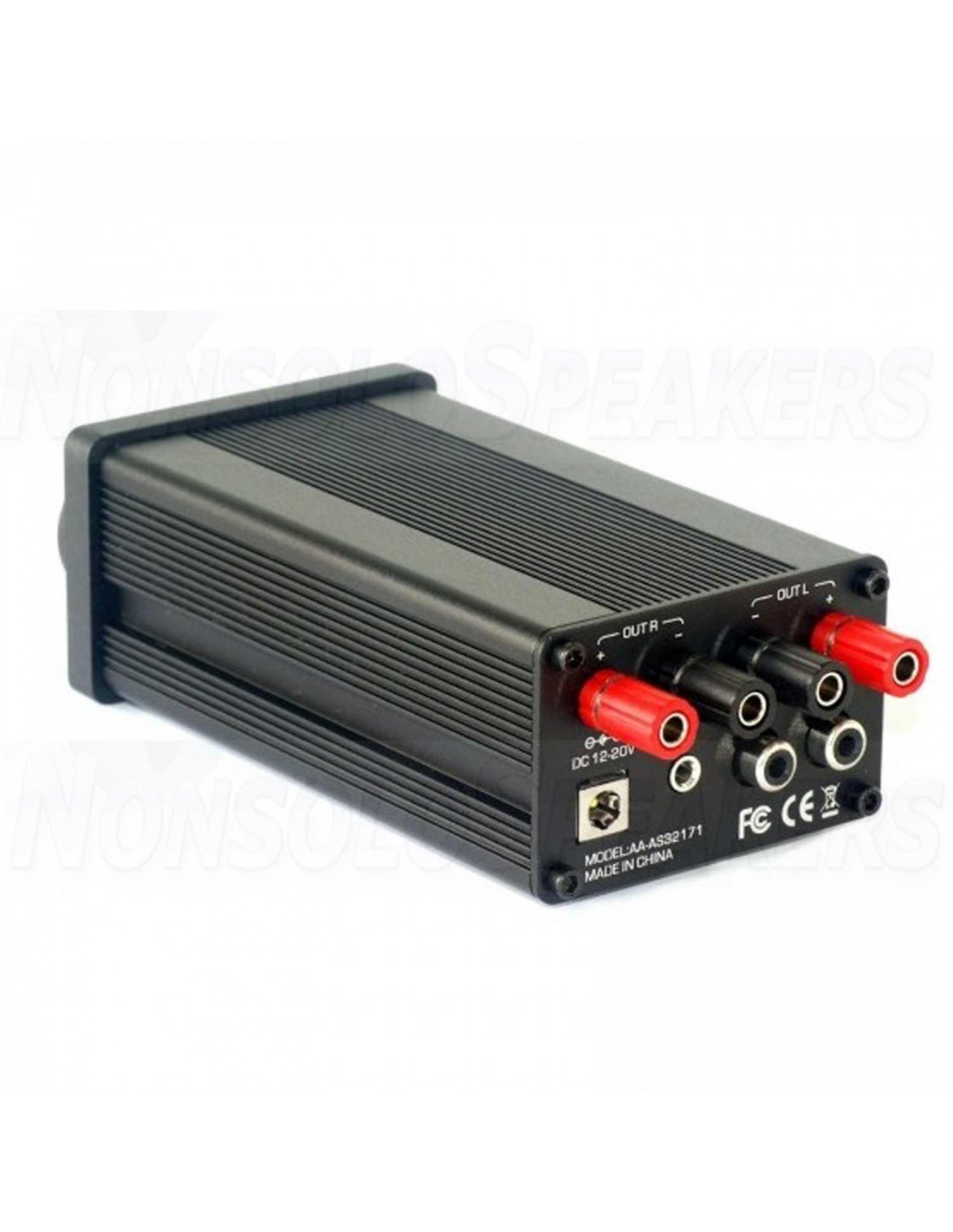

In addition to the traditional RCA input jacks, a stereo jack is provided to make it much easier to use with your second device, such as cell phones or portable players. A high quality headphone amplifier is also provided on the front panel.

AA-AS32171 integrates a high quality rotary encoder employing a high performance audio processor processor that ensures precise shaft rotation and accurate volume adjustment. AA-AS32171 supports dual channel amplification and each channel is rated at 50W. With built-in MCU, this product can provide input / output auto-overwrite, over / under voltage protection, low current protection and LED display status.

This product can be powered by any DC power supply between 9 and 24V. You can use it to drive 4 or 8Ω passive speakers.Specifiche tecniche amplificatore 2x50w

 Thiele & Small

Parametri  Valori Min. Valori Medi. Valori Max.
Tensione di alimentazione (V) 9 19 24
Corrente di riposo (mA) - 40 -
Input Sensitivity (mV) - 3500 -
Impedenza di ingresso (Kohm) - 60 -
Guadagno (dB) 20.6 21.6 22.6
Potenza in uscita (W rms) - 40 W, THD + N <1% -
(VCC = 24V, RL = 6Ω) - 50 W, THD + N <10% -
Efficienza (%) - > 80% @ 2 x 40 W -
Carico minimo (ohm) 4 6 -
Risposta in frequenza (dB) 20 - 22k
Temperatura di esercizio (℃) 0 25 55

Others features

Parametri  Specifiche
Alimentazione DC 9V a 24V
Spegnere Sovratensione / Sottotensione
Protezione Sovracorrente
Protezione Sovratemperatura
Dimensioni 6.4" x 2.9" x 1.9"

WONDOM AA-AS32171
