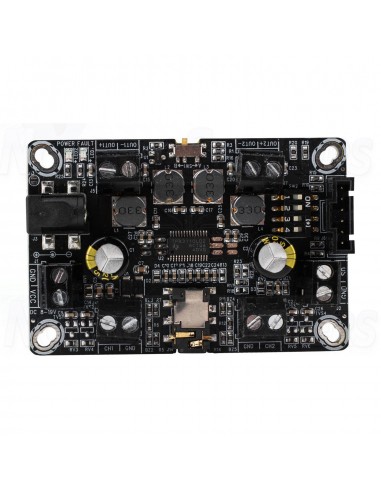

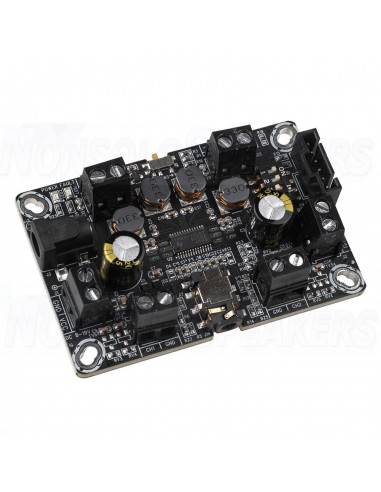

    WONDOM AA-AB32231 - 2x8W@4ohm amplifier class D - TPA3110

    This 2 x 8 W audio amplification card has a perfect Class D architecture and an integrated TPA3110D2 chip to achieve an output power of 8 W per channel. This card can be powered by any DC power supply between +8 and 19V, which can be used to drive passive 4 or 8Ω speakers.

    Estimated Shipping Costs
    Shipping Costs
    €59.00
    Shipping Time
    .
    Want to check another country or courier?

    You might also like



    WONDOM AA-AB32231 - 2x8W@4ohm amplifier class D - TPA3110

    This 2 x 8 W audio amplification card has a perfect Class D architecture and an integrated TPA3110D2 chip to achieve an output power of 8 W per channel. This card can be powered by any DC power supply between +8 and 19V, which can be used to drive passive 4 or 8Ω speakers.

    High quality components, high efficiency chips and self-dissipation make this product perfect for hi-fi applications. Recommended power supply: ALC15V5AJ.

    Dettaglio di connessione amplificatore in classe D

    Features AA-AB32231

    Parametri Condizioni di TestValori
    Tensioni di Alimentazione -8-19 V
    Efficienza8 W @ 8 Ohm90 %
    Potenza Inattiva

    SD Floating

    0.3 W

    Frequenza SwhitchingSD Floating310 kHz
    Potenza in StandbySD collegato a GND, FAN OFF030 mW
    Sensibilità  di ingresso (RMS)@ 4 Ω, 16 W, 1 KHz400 mV
    Impedenza di ingresso-30-45 KΩ
    Guadagno-12-26 dB
    Impedenza di carico minima-3.2-4 Ω
    Potenza in uscita

    1 kHz, THD + N 1%

    16 W

    Larghezza di banda @ ± 3dB@ 4 Ω20-20K Hz
    THD

    @ 4 Ω, 1W, 1KHz

    @ 8 Ω, 10W, 1KHz

    0.06 %

    0.08 %

    Livello di rumore in uscitaPonderazione, Ingresso collegato a GND80 mV
    SNR8 W @ 8 Ω THD + N 1%100 dB
    Temperature
    		-50 °C

     Others features AA-AB32231

    ParametriSpecifiche
    ChipTPA3110
    Dimensioni9,1 x 6.8 x 2,5 cm.
    Potenza2 x 8W
    Classe AmplificatoreD
    Controllo di volume Opzionale
    Protezione da cortocircuitiSi
    Protezione da sovratemperaturaSi

    WONDOM AA-AB32231
