Luxus Audio AMB4100NR - 4x100W Bluetooth Class D amplifier

Data sheet

Brand Luxus Audio
Output Power [Watt] 100
Channel 4
Power Supply (Volt) 36

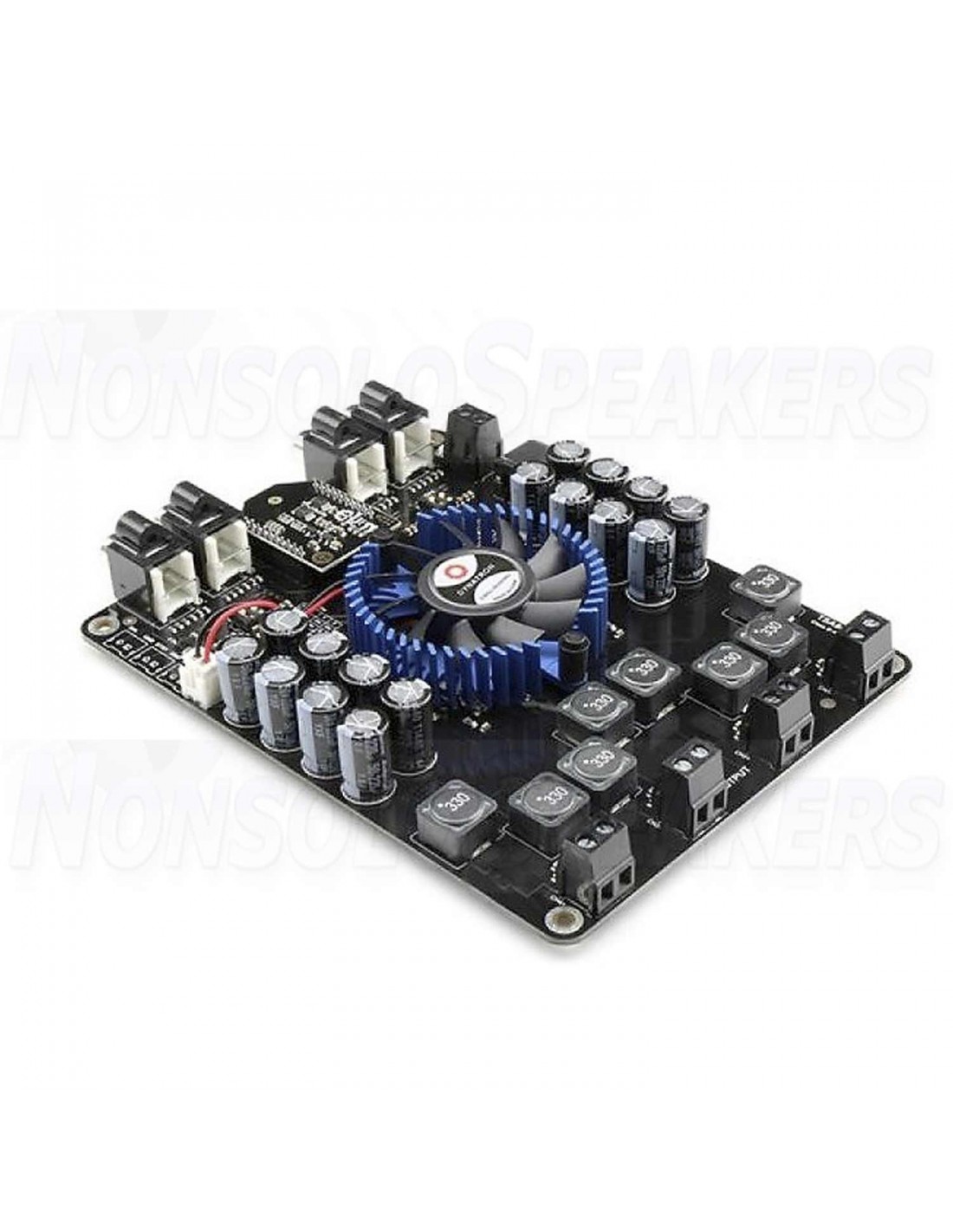

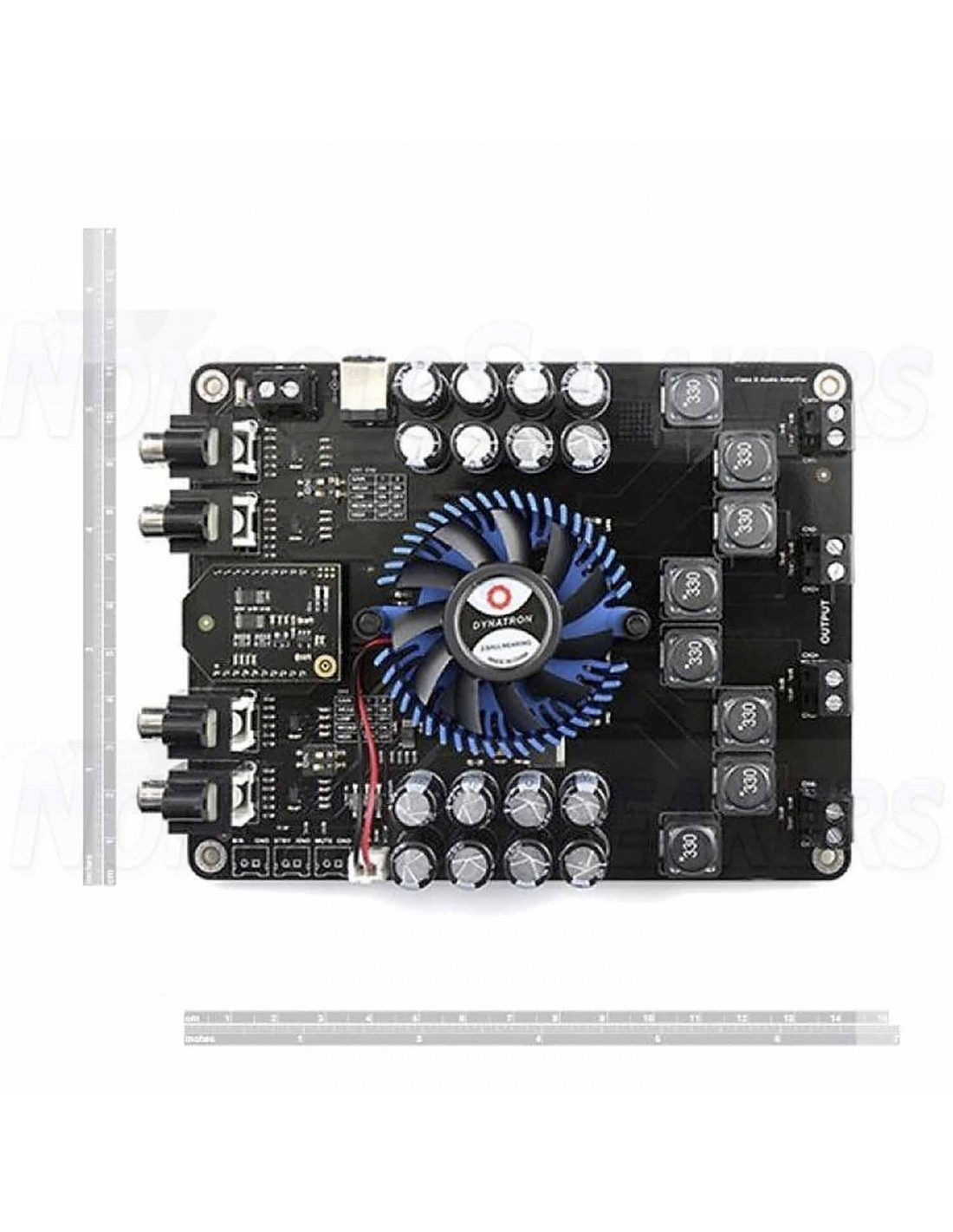

This is a 4x100W audio amplifier card with an AudioB plus Bluetooth module. It is integrated TDA7498 high performance 2xST which supports dual channel audio amplification. Each channel is able to output nominal power simultaneously and continuously. This card can be powered by any DC14V-39V power supply *. The power input port can be a power outlet or a screw terminal. The DC input jack is 2.5 mm with positive polarity of the core, and if you are using the screw termail, please pay attention to the polarity !.

It has an intelligent cooling system, the fan does not work in normal conditions to reduce noise. Only start when the chip temperature> 65 ° C. When the temperature drops, the fan stops.

It is perfect for your Hi-Fi application, the audio source can be RCA or Bluetooth input. Compatible with all Bluetooth devices that support multimedia audio, including iPhone, Android. Leave your smartphone paired with this card, play music. So easy!
