WONDOM AA-AB41141 Rectifier Board FOR Amplifier 94000uF 100V 50A
WONDOM AA-AB41141 Rectifier Board FOR Amplifier 94000uF 100V 50A
WONDOM AA-AB41141 Rectifier Board FOR Amplifier 94000uF 100V 50A
WONDOM AA-AB41141 Rectifier Board FOR Amplifier 94000uF 100V 50A
WONDOM AA-AB41141 Rectifier Board FOR Amplifier 94000uF 100V 50A
WONDOM AA-AB41141 Rectifier Board FOR Amplifier 94000uF 100V 50A

WONDOM AA-AB41141 Rectifier Board FOR Amplifier 94000uF 100V 50A

WONDOM AA-AB41141 Rectifier Board FOR Amplifier 94000uF 100V 50A

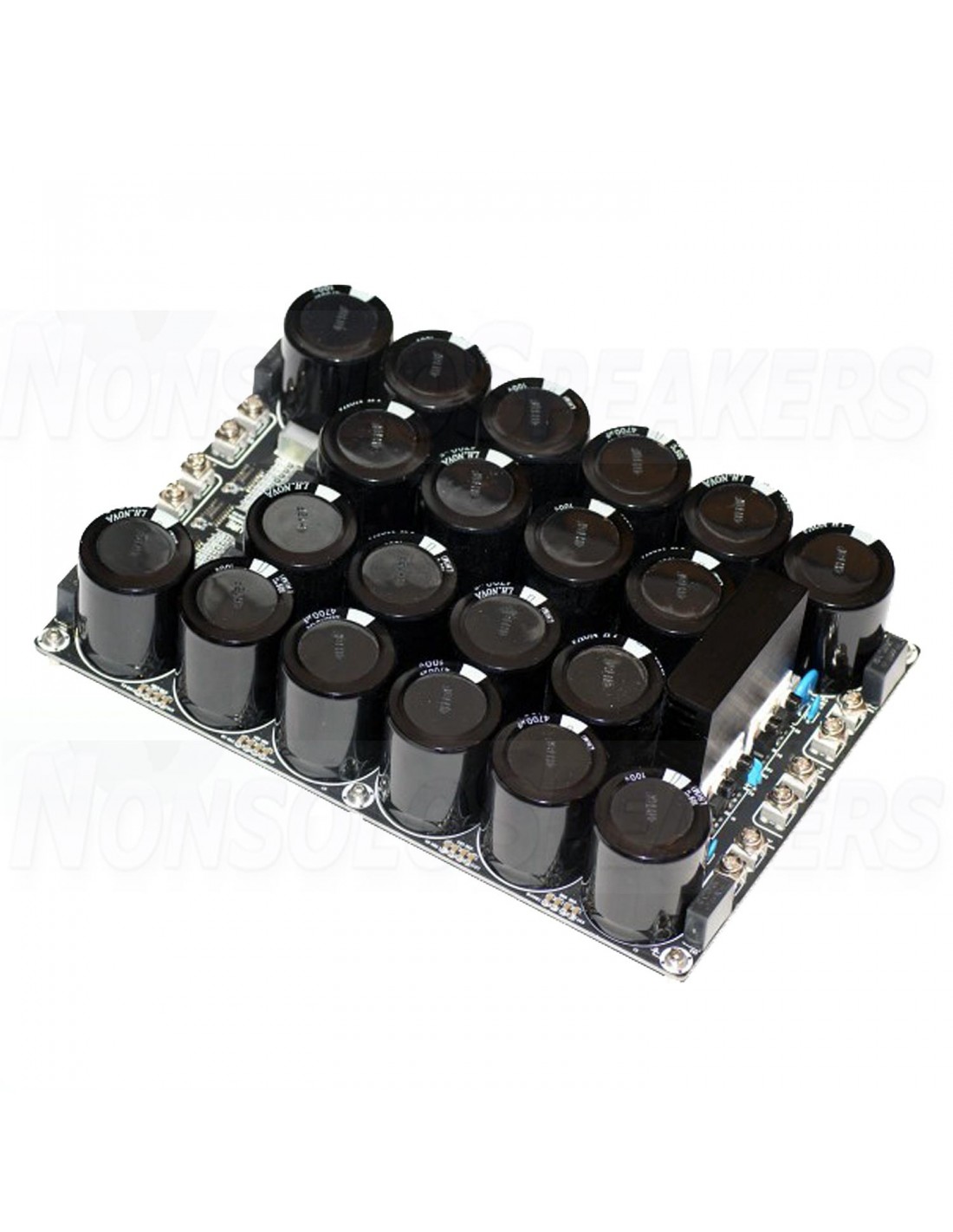

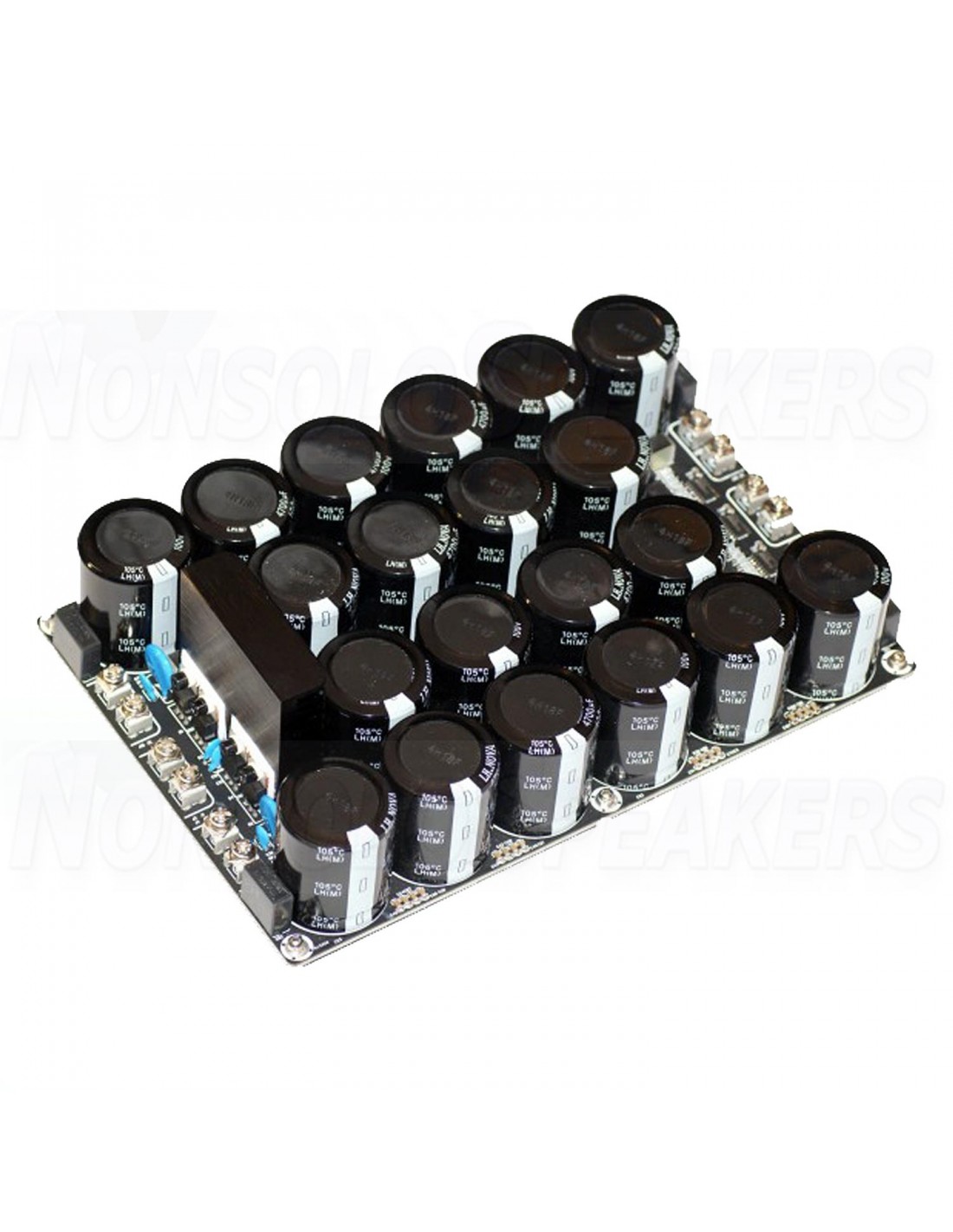

Built with 94,000 microfarads of power-buffering and ripple-reducing capacitance, this rectifier board converts AC input voltage into separate positive DC and negative DC voltage outputs.

SHIPMENT IN 7/10 WORKING DAYS
€89.00

Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



WONDOM AA-AB41141 Rectifier Board FOR Amplifier 94000uF 100V 50A

Brand Wondom - Sure Electronics
Tipology Rectifier board
Voltage Output [V] 100
Current Output [A] 50
Max Power [Watt] 5000

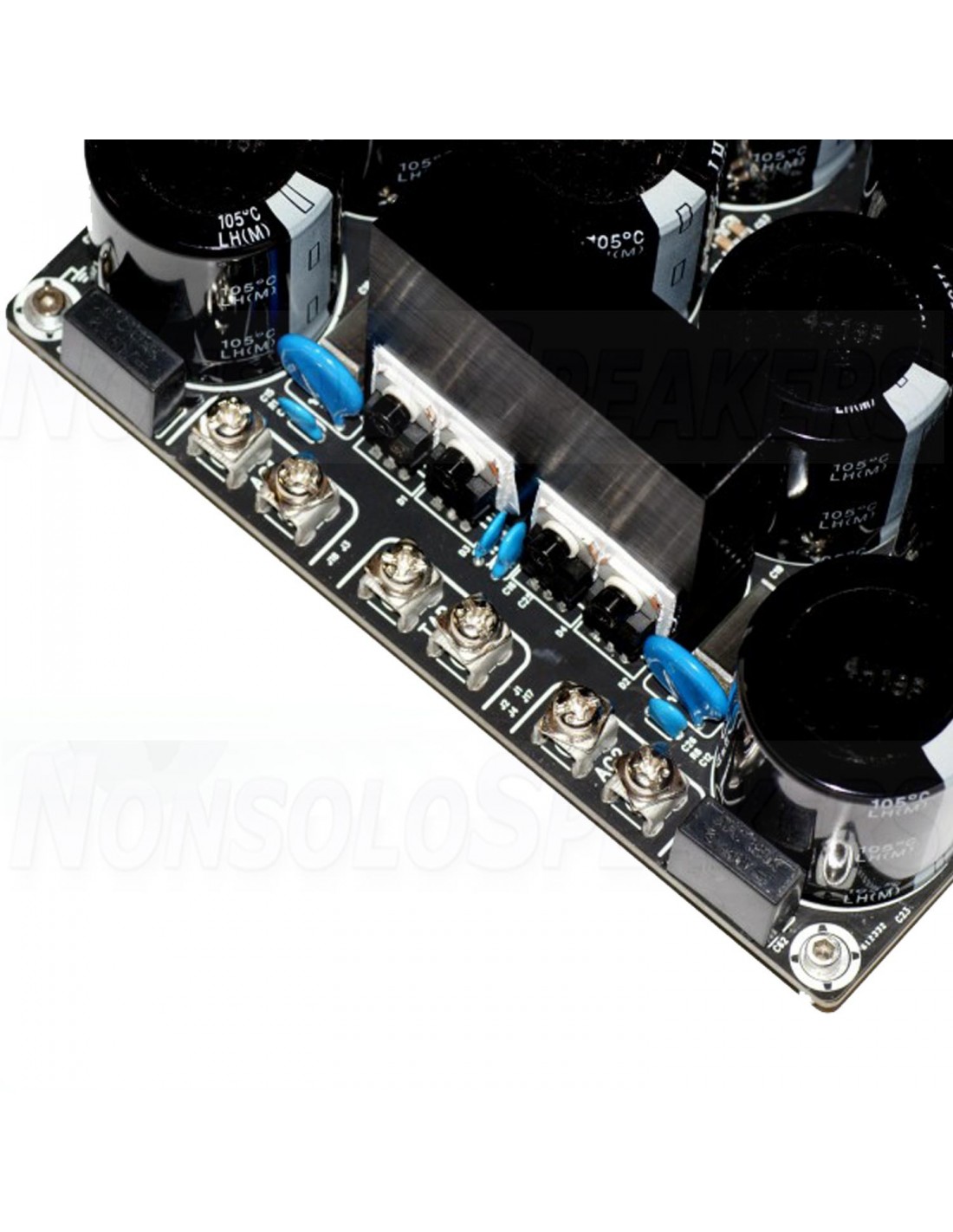

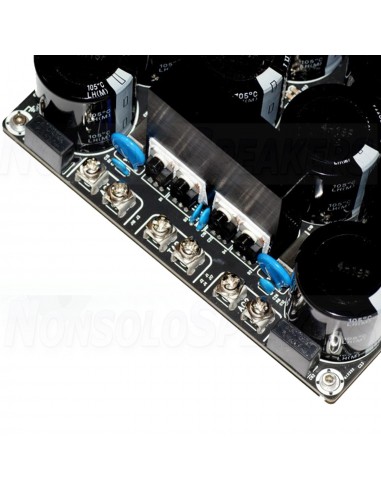

Built with 94,000 microfarads of power-buffering and ripple-reducing capacitance, this rectifier board converts AC input voltage into separate positive DC and negative DC voltage outputs. It features robust terminal connections, 1/2’’ standoffs and multi-play PCB, perfect for supplying power to amplifier boards requiring large symmetrical power supplies. The robust heatsink on board provides a drastic reduction for the system temperature and ease of cooling. Four high performance, ultra-fast ST Electronics' STTH1602 diodes are combined with ceramic capacitors for minimum harmonics.

  • Converts up to 70 VAC to symmetrical positive and negative DC voltage
  • Dimensions: 4.8" L x 3.6" W x 1.875" H (120 x 89 x 47.6 mm)
  • Robust terminal connections, 1/2" standoffs, and multi-layer PCB
  • Supports power converting for up to 1,500 watt devices
  • Twenty 4,700 uF capacitors for power buffering
Parameter Conditions Min. Typ.  Max. Units
Power Supply DC Input 5 - 70 VAC
Power Supply AC Input 7 - 100 VDC
Idle Power VIN=12VDC - 10 15 mA
Maximum Output Current  - - - 50 A
Capacitance - - 94000 - uF
Operating Temperature -   20 50 ℃
Storage  Temperature - -20 20 105 ℃
Thermal  Temperature - - 150 - ℃
WONDOM AA-AB41141
