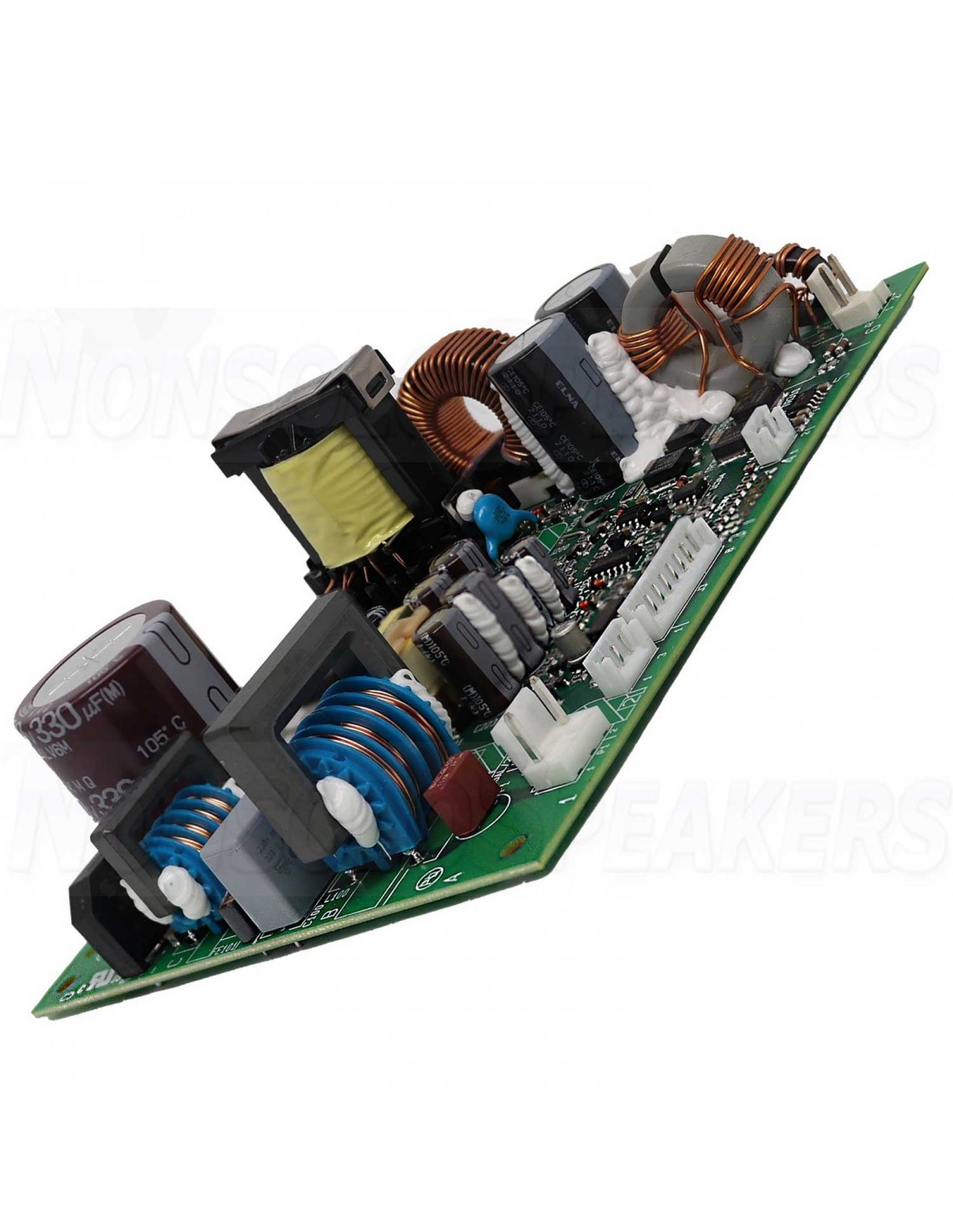

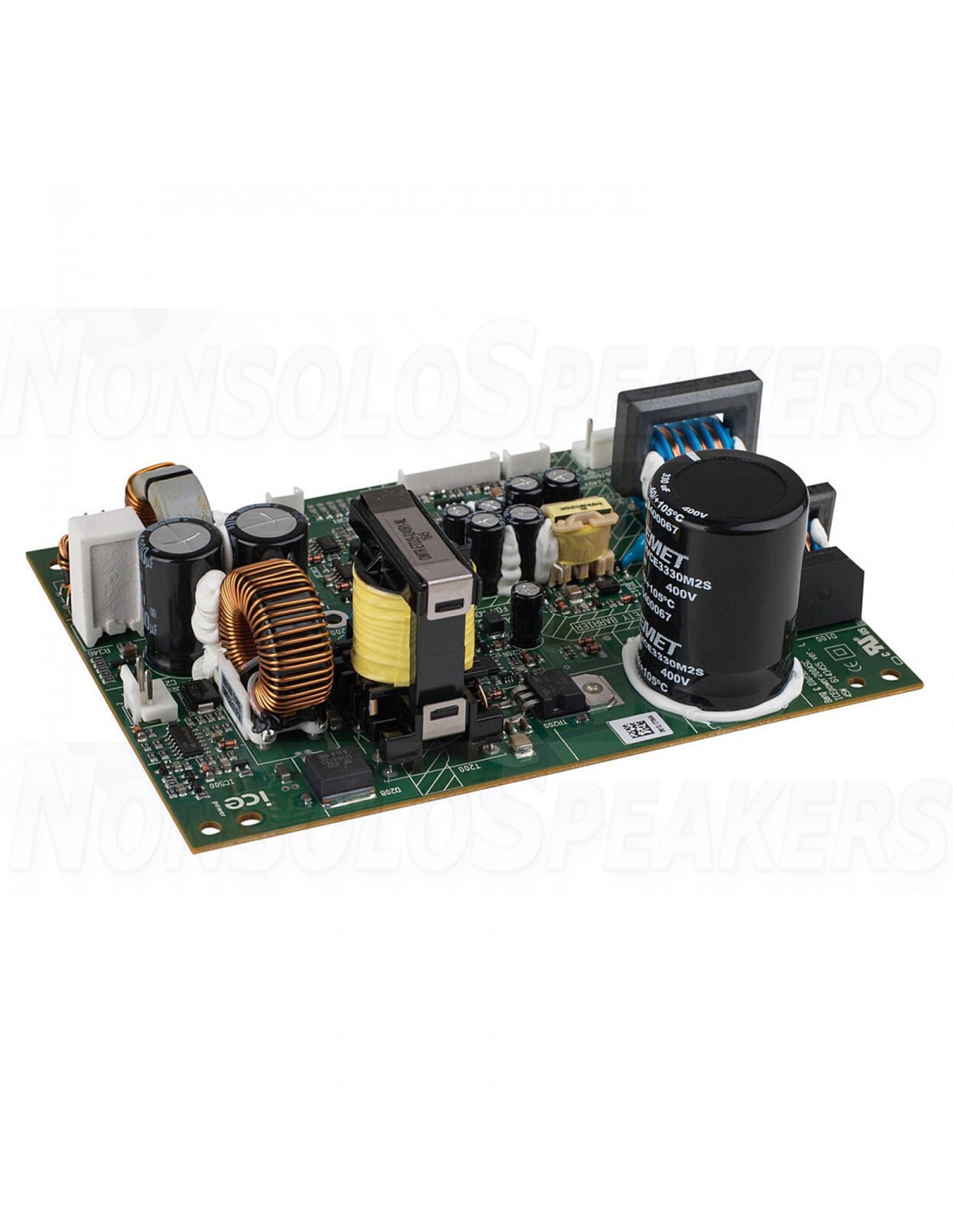

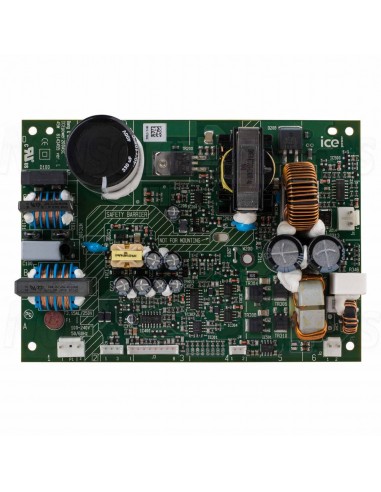

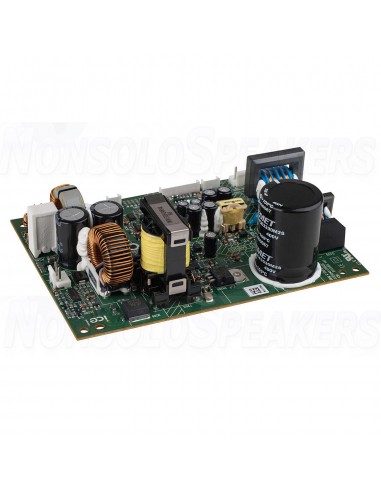

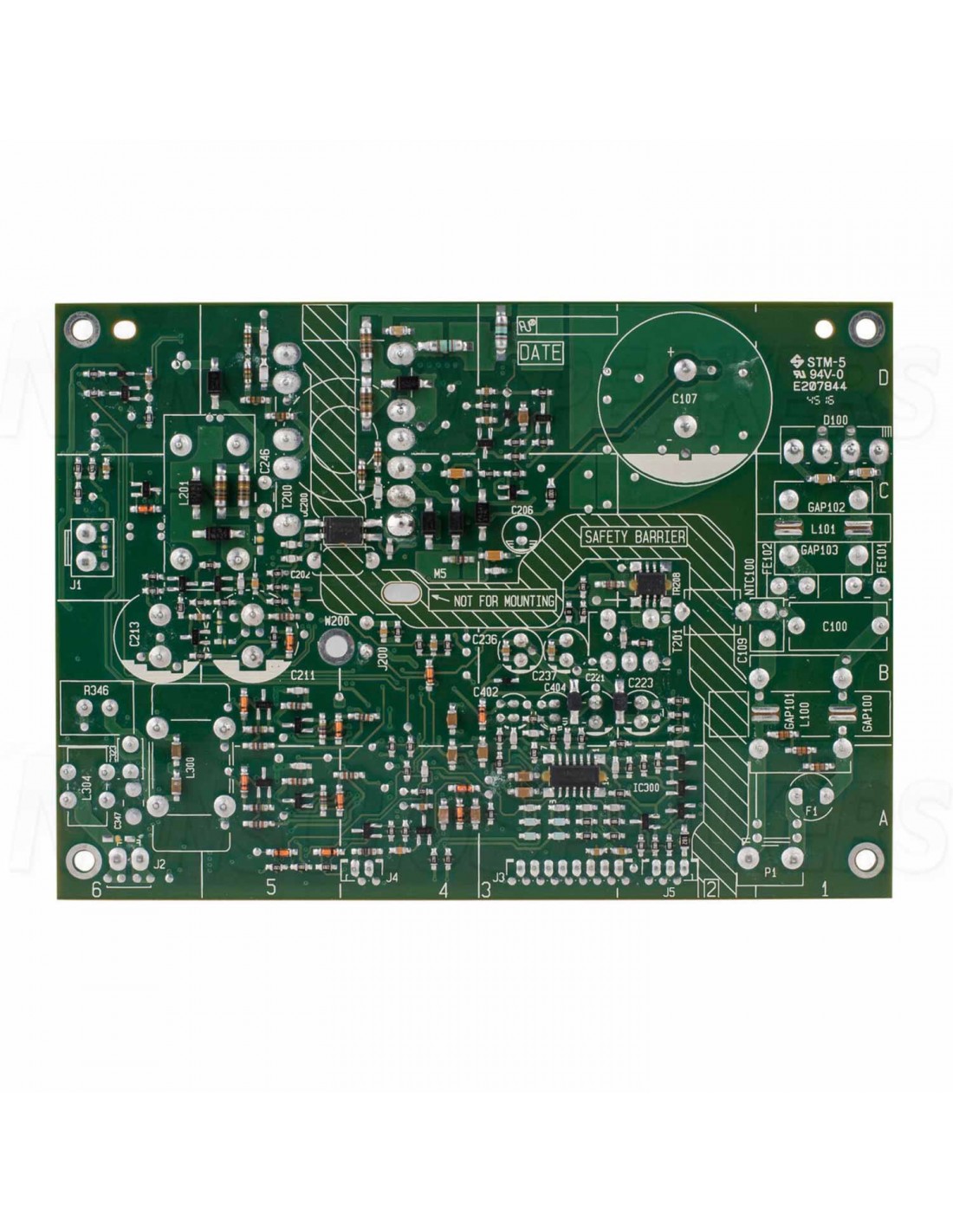

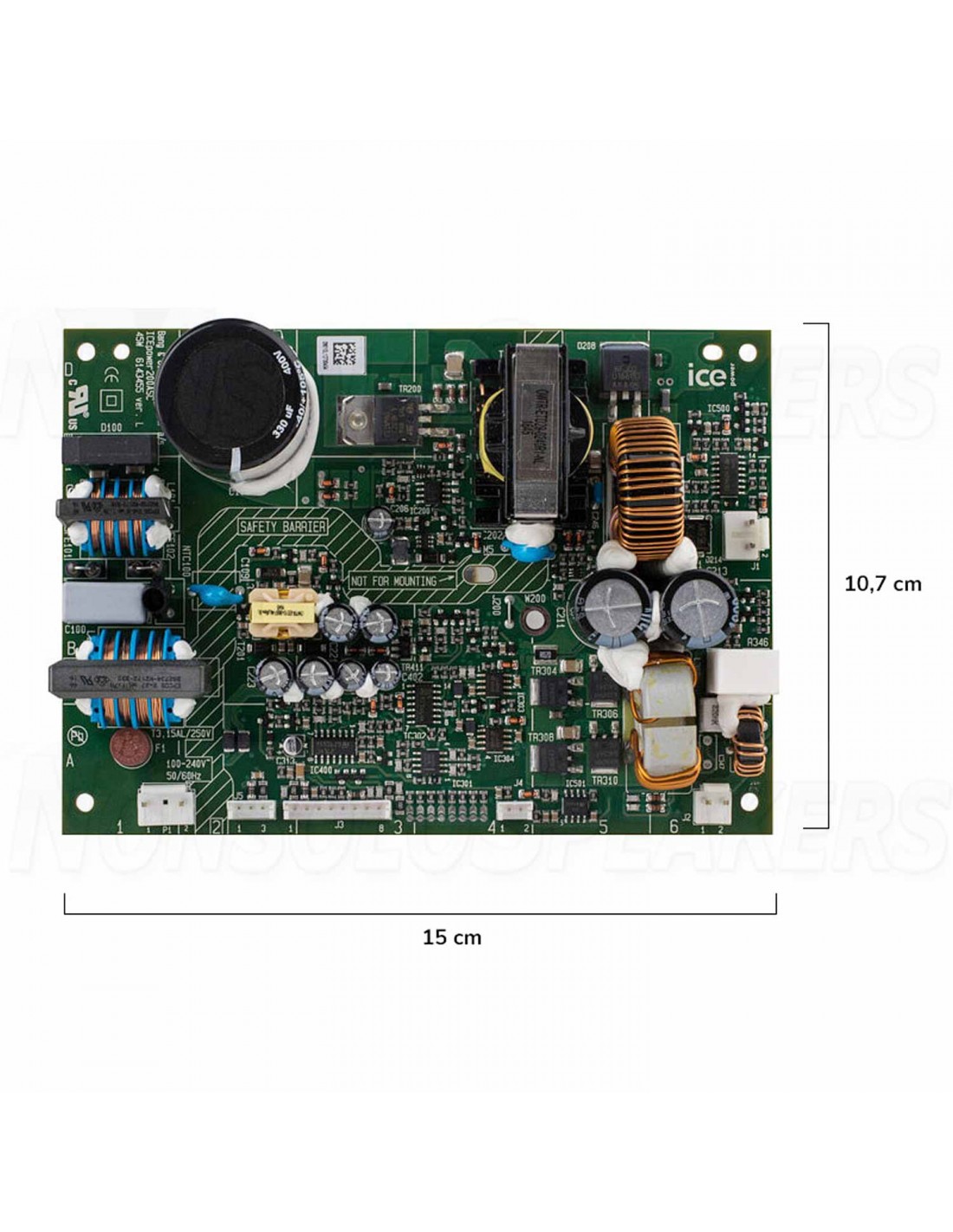

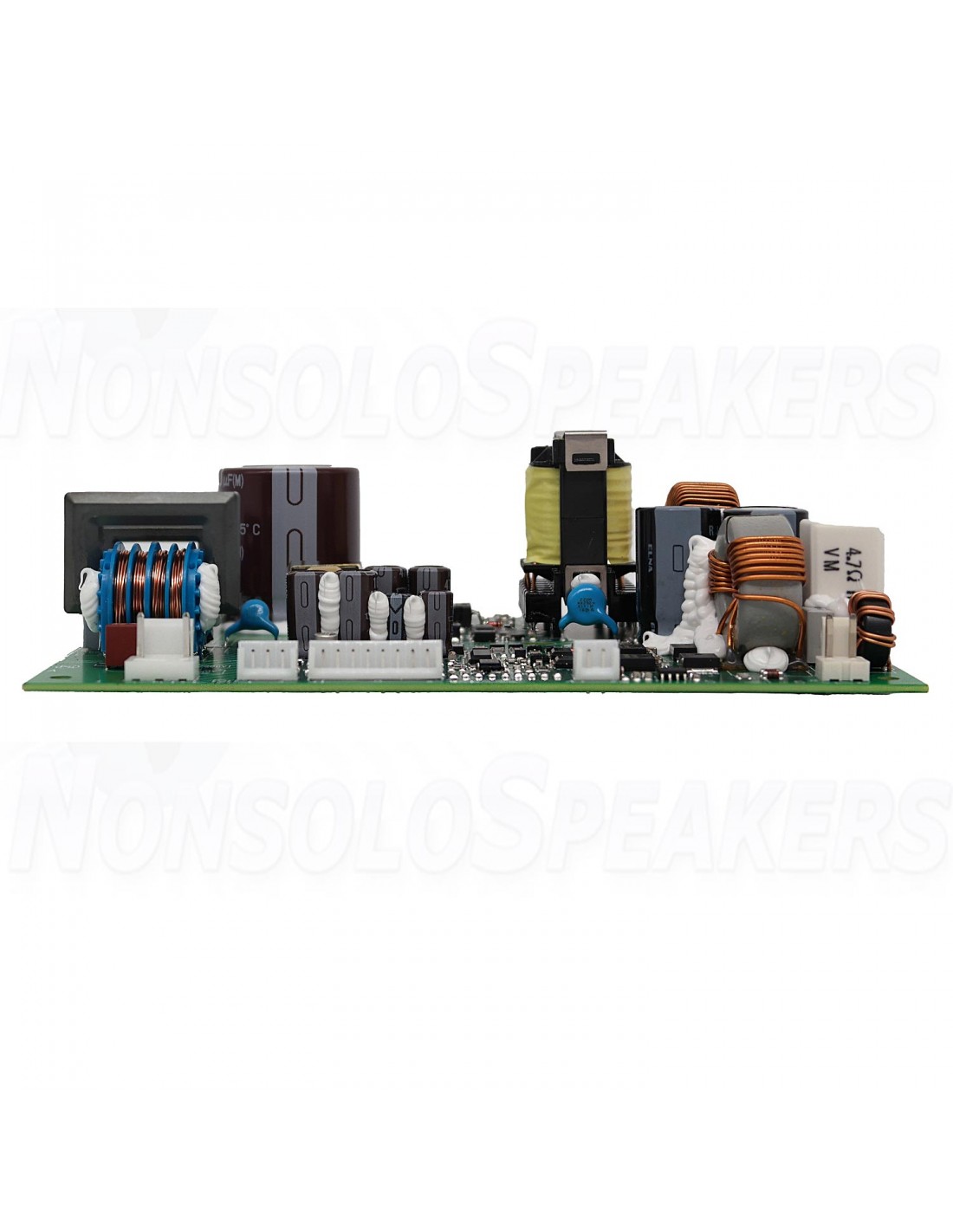

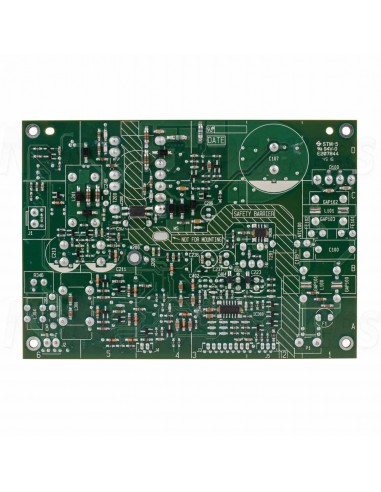

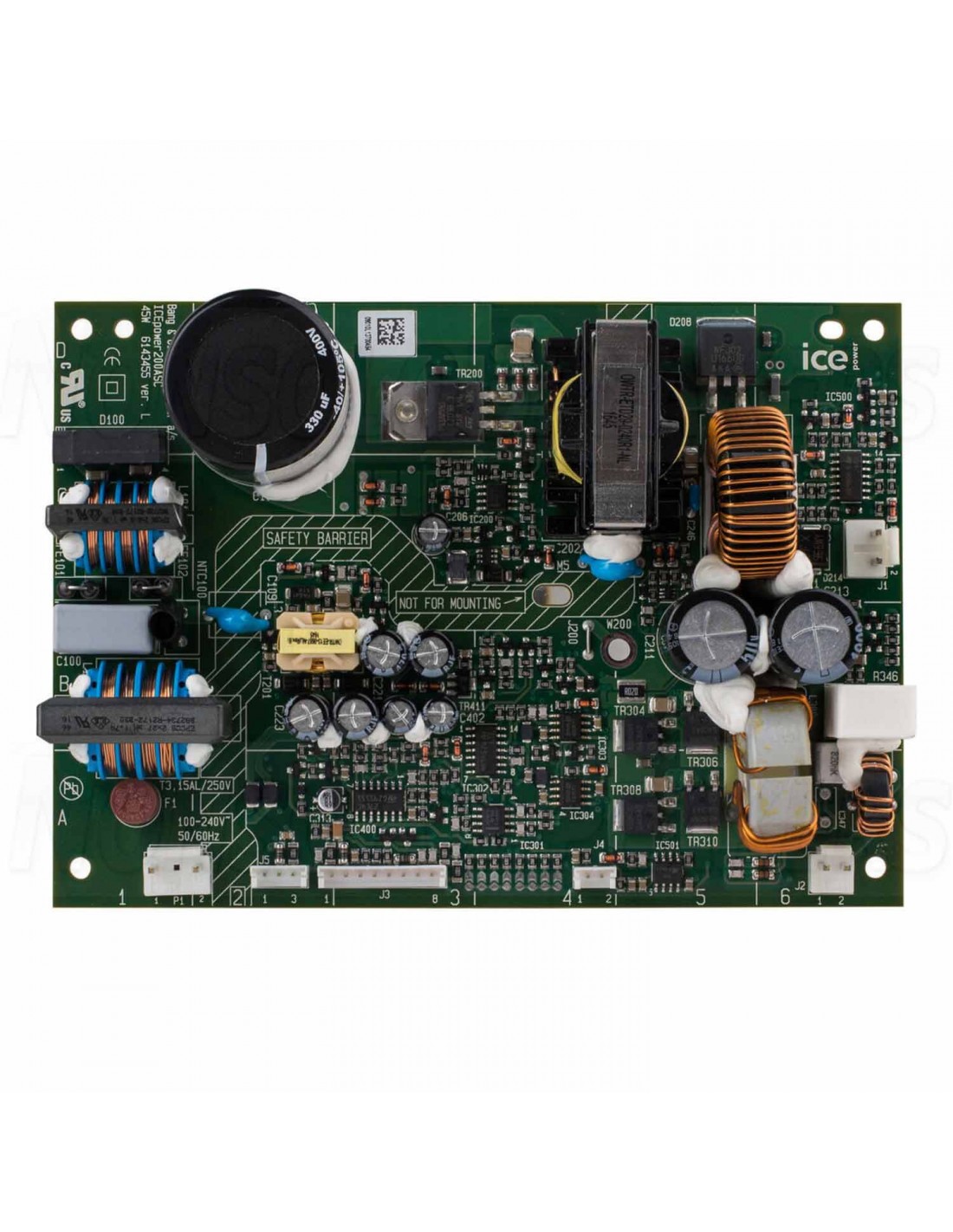

ICEpower 200ASC Amplifier Module with Integrated Power Supply

ICEpower 200ASC Amplifier Module with Integrated Power Supply The ICEpower200ASC is a fully integrated, intelligent audio power conversion module designed particularly for highly competitive consumer and professional audio applications. The ICEpower200ASC is pre-approved for EMC and safety and the “black-box” completeness allows for fast design-in and minimized time to market.

Key benefits include:• ICEpower’s patented COM modulation and MECC control techniques ensure excellent audio performance. • Integrated ICEpower supply with separate AUX converter and standby functionality makes for a compact, turnkey power solution. • A comprehensive set of features for plug and play implementation in a wide range of applications such as active speakers/subwoofers, HTIB, and A/V amplifiers/receivers. • Compliance with 2013 regulatory standby requirements 1275/2008/EC step II and Energy Star®, with 0.25W@230VAC standby current consumption with no payload. The ICEpower200ASC is an integrated power solution that completely eliminates the need for heat sinks and EMI shields. The ICEpower200ASC also provides an auxiliary +/-12V supply for external signal conditioning circuitry and the DC-bus output for powering additional ICEpower200AC amplifiers makes designing compact multi-way or multi-channel solutions easy.

.

Highlights

Rugged construction

Suitable for CE and FCC approved designs ±12V auxiliary

DC output Universal mains 85-264VAC

Thermal protection

Over-current protection

DC output protection

Sound optimized soft clipping

.

Specifications

Article number 200ASC

Rated power output 1x 230 watts at 4 ohms

Minimum load 2 Ohm

Efficiency 79%

Distortion 0.006 %

THD+N Gain 26.3 dB

Input impedance 10 kOhm

Amplifier Classification Class D

Speaker output channels 1

Power Requirements 85-264 VAC

Current limit 12.5 A

Mounting hole diameter 3.5 mm

.

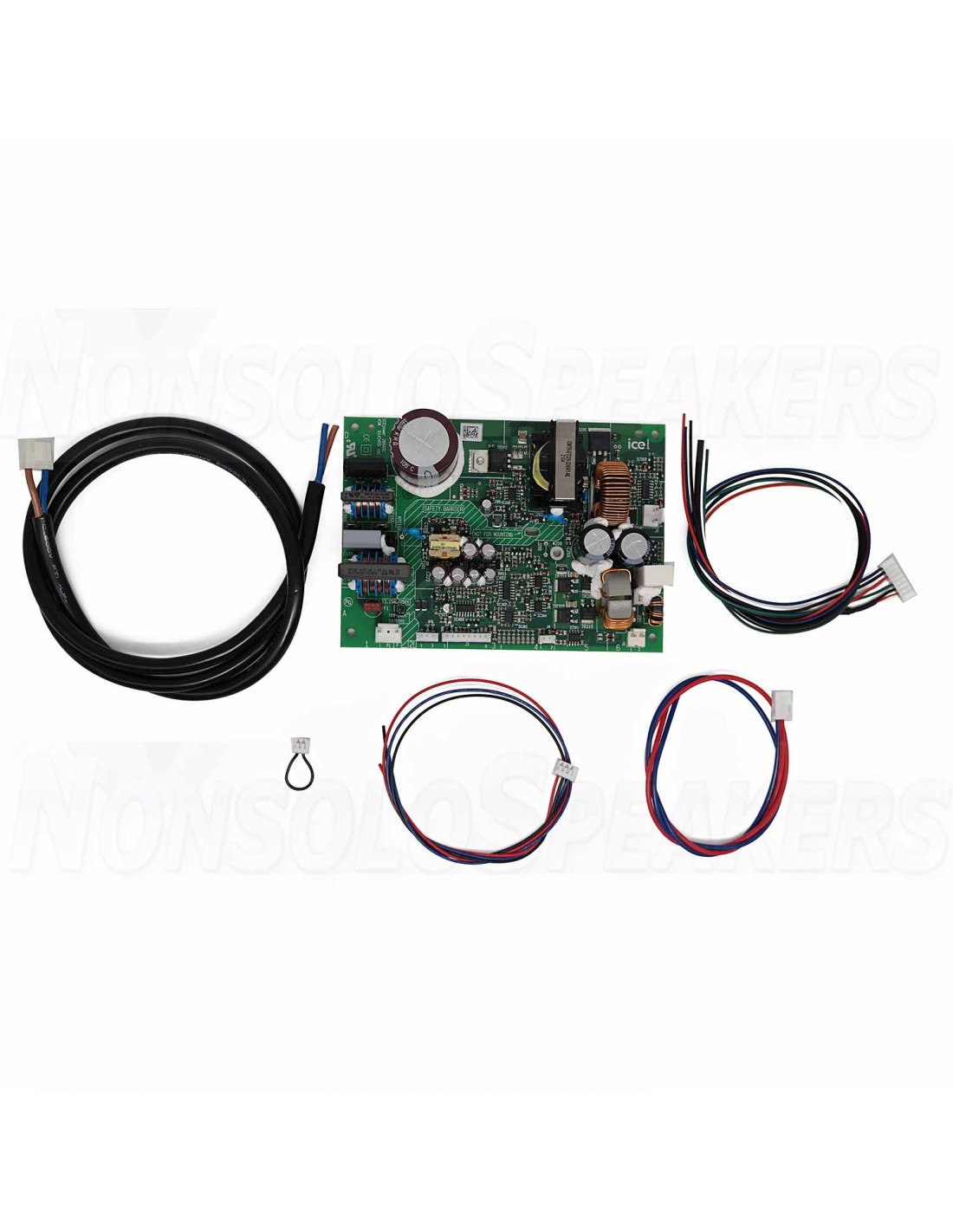

What’s In The Box?

1 x 200ASC Amplifier Module with Integrated Power Supply

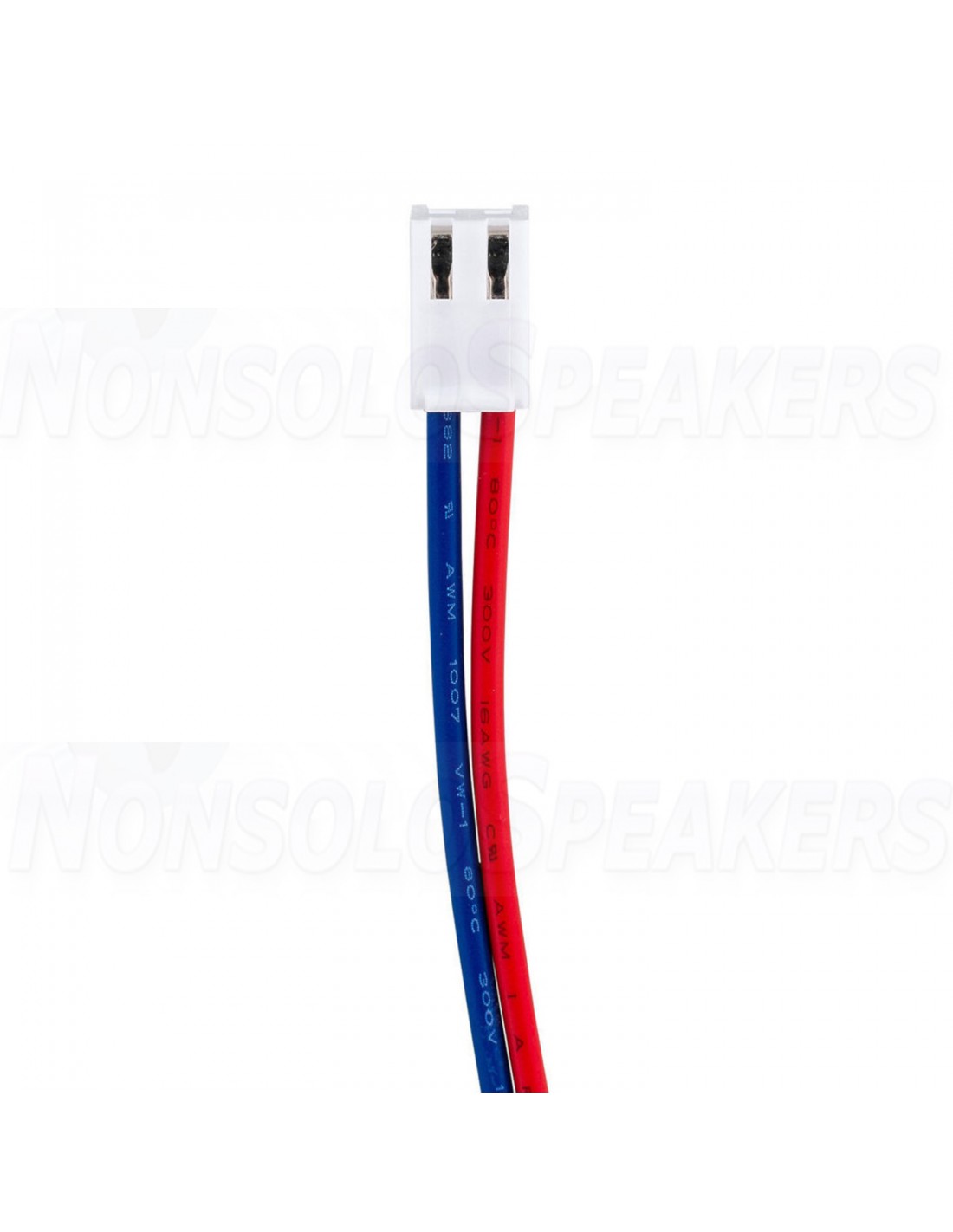

Cable set:

1 x (J) Signal 200ASC

1 x (F) 2pole Universal Speaker

1 x (L) AUX LEDs + 12V

1 x (M) AutoOn/Off

1 x (K) Mains without Earth
