Luxus Audio AMB2100TR - Amp Bluetooth APT-X/TWS 2x100W

Luxus Audio - AMB2100TR

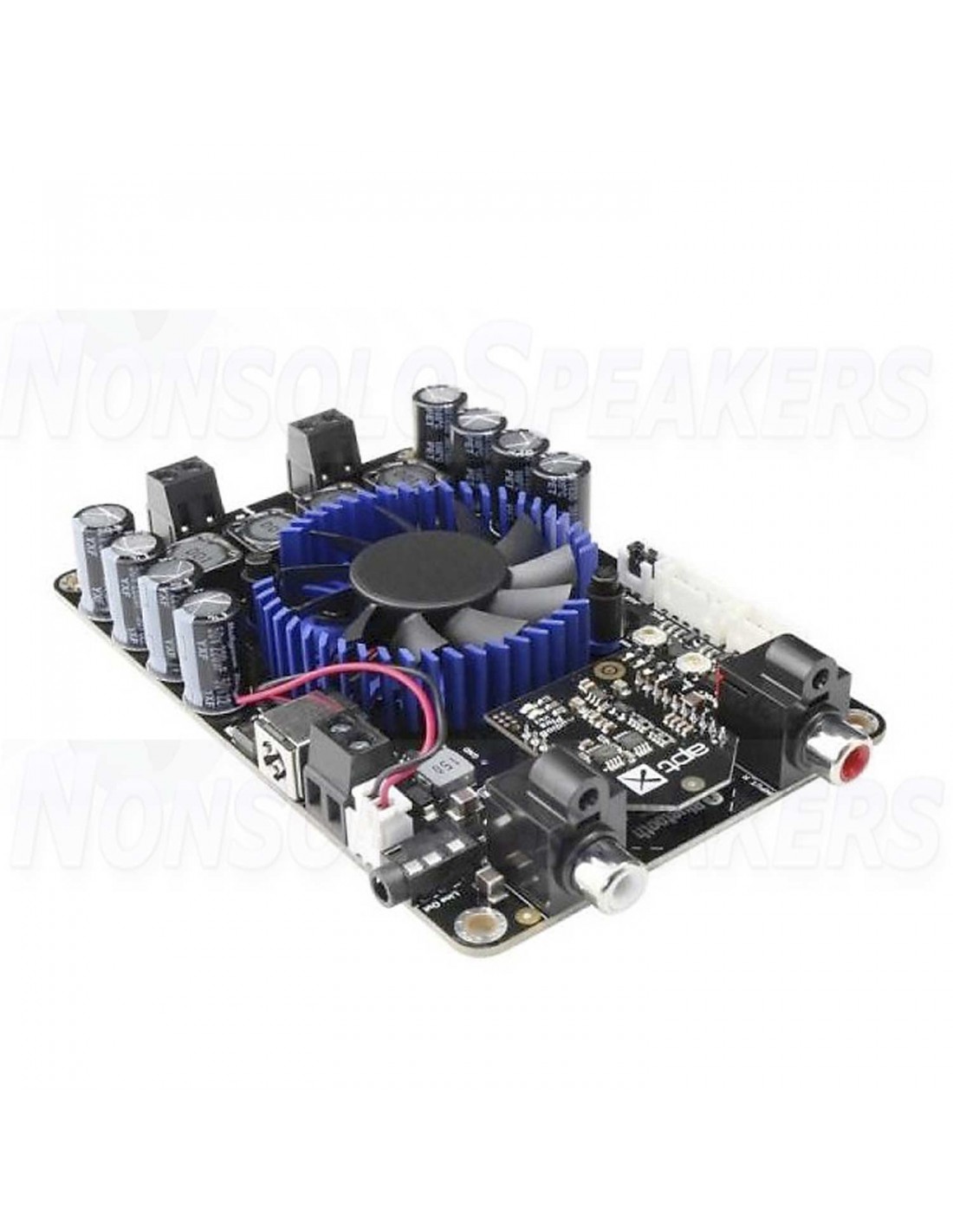

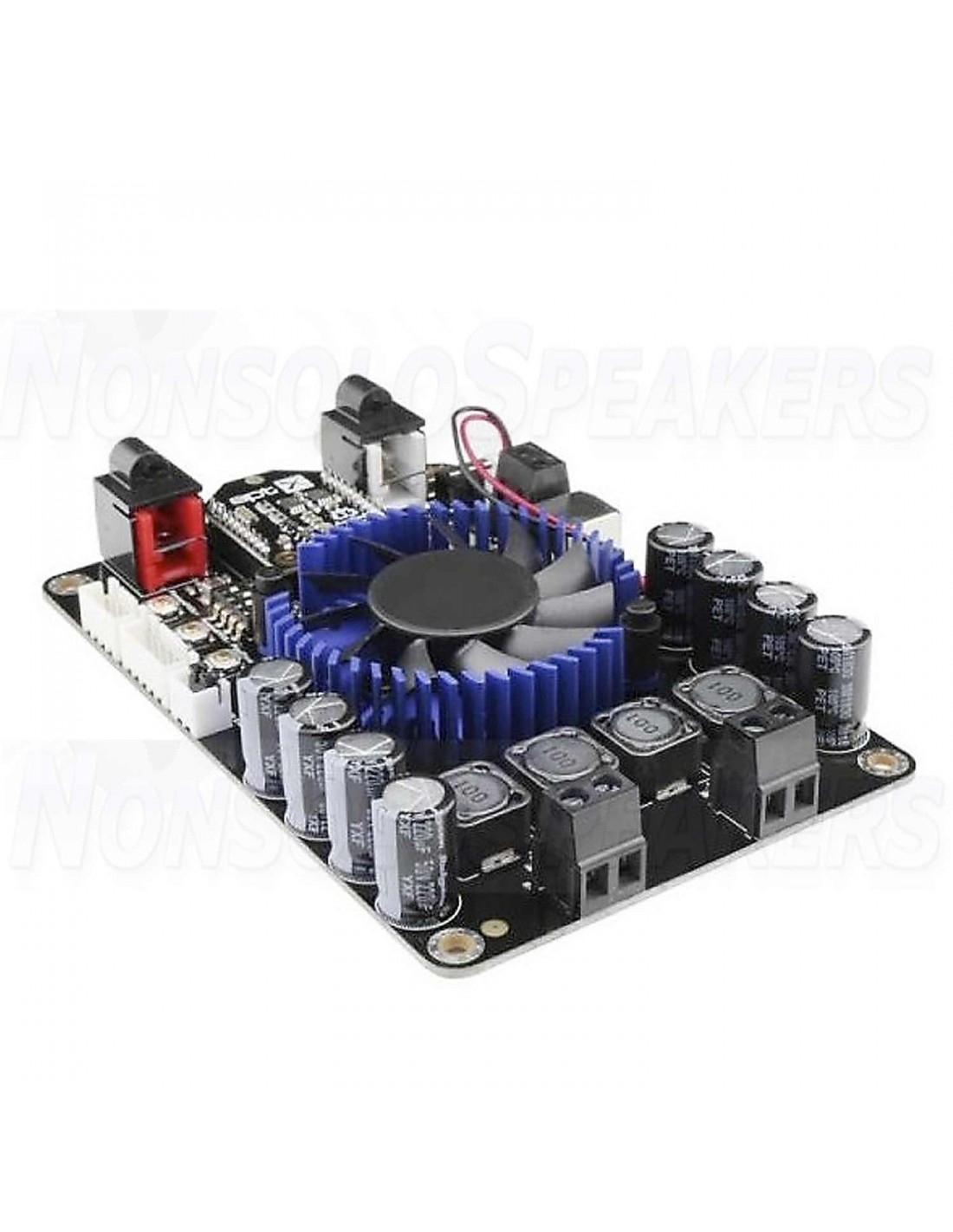

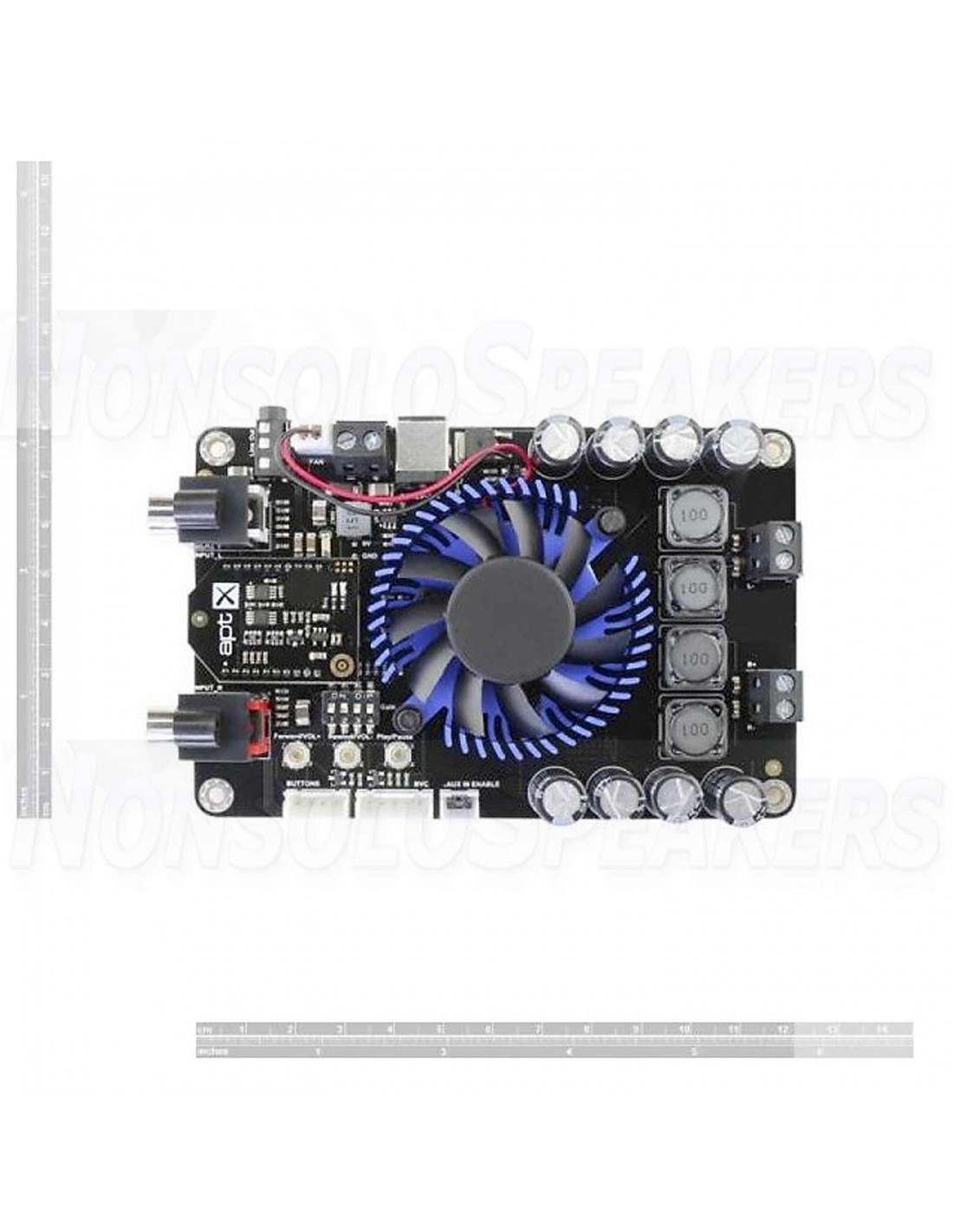

The AMB2100TR 2x100W Audio Amplifier Card with Bluetooth module has a perfect class D architecture (based on TPA3221) and each channel has a power of 100W. Both channels are able to output nominal power simultaneously and continuously. This card can be powered by any DC12V-30V power supply. It can be used to drive passive 2Ω, 4Ω or 8Ω speakers. AMB2100DR can also be connected with our external audio volume control board VCB0M01, VCB0J01 or VCB0R01.

It's perfect for your Hi-Fi application. You can connect it with a mobile phone or computer (etc.). Power the amplifier board. Use your Bluetooth source to search for a new Bluetooth device. The form will appear as "BT MODULE". You don't need a PIN, match it and then you can listen to music.

AMB2100DR can automatically detect the Aux / Line RCA input in the audio input. The Bluetooth audio source has a higher priority when the Bluetooth audio is paused or the bluetooth is disconnected, the amplifier will select the RCA Aux in / Line audio. If you want to manually select the Aux in / Line in and Bluetooth audio source, choose the other AMB2100NR amplifier model.

A LINE OUT audio output jack is available which can be used to connect it to a subwoofer amplifier board.

BVC port: The BVC port can be connected to the optional audio volume controller to control the Bluetooth audio volume.

AMB2100TR can automatically detect the Aux / Line RCA input in the audio input. The Bluetooth audio source has a higher priority when the Bluetooth audio is paused or the bluetooth is disconnected, the amplifier will select the RCA Aux in / Line audio.

AMB2100TR + VCB0M01, Aux in audio volume and Bluetooth can be controlled via the BVC port.

2 cards work in TWS mode

* The user must remove the Aux slave card in the Enable jumper before pairing 2 cards.
