Luxus Audio AMB2015AB - Amplifier Class D 2x15W Bluetooth 4.2 APTX no AUX

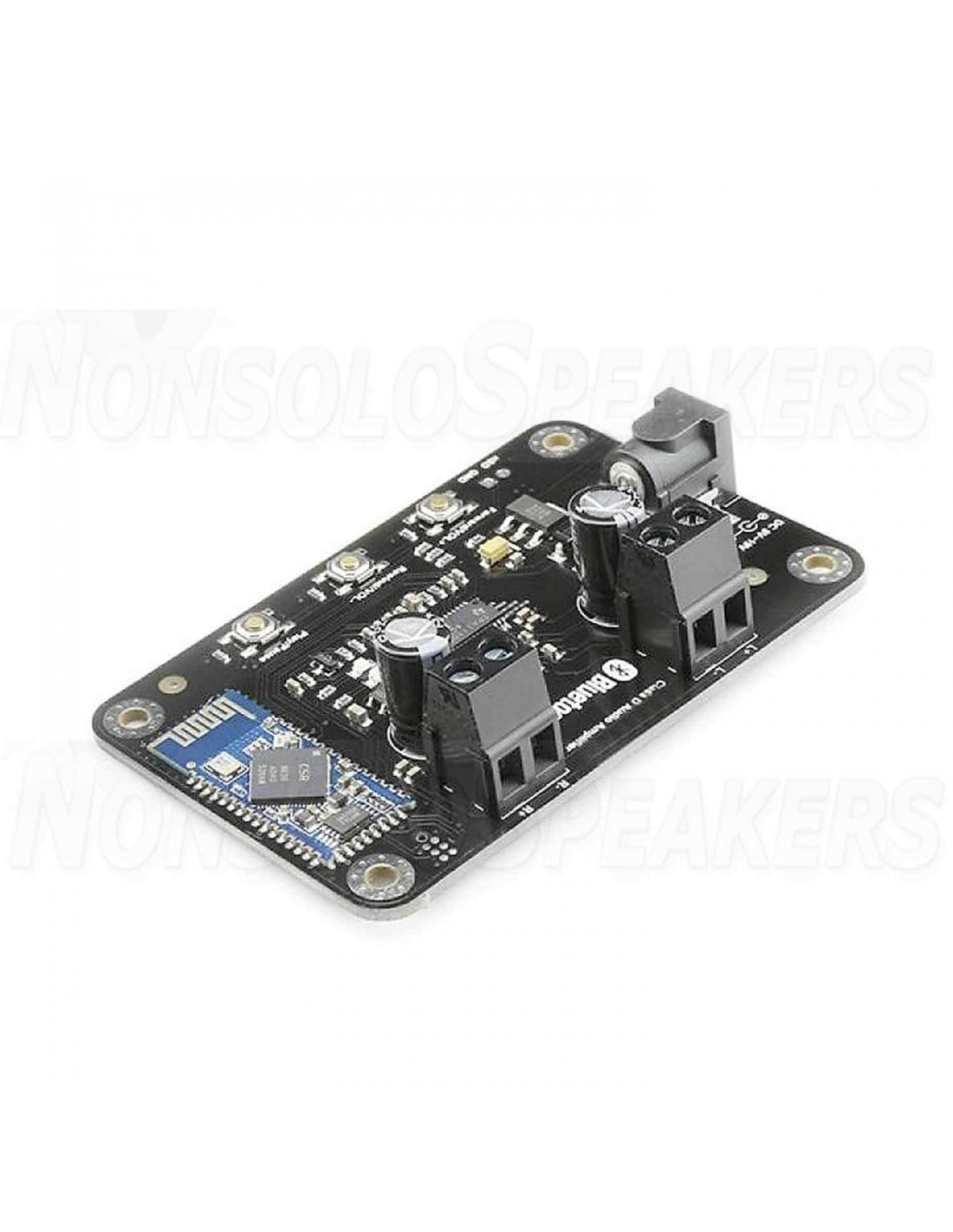

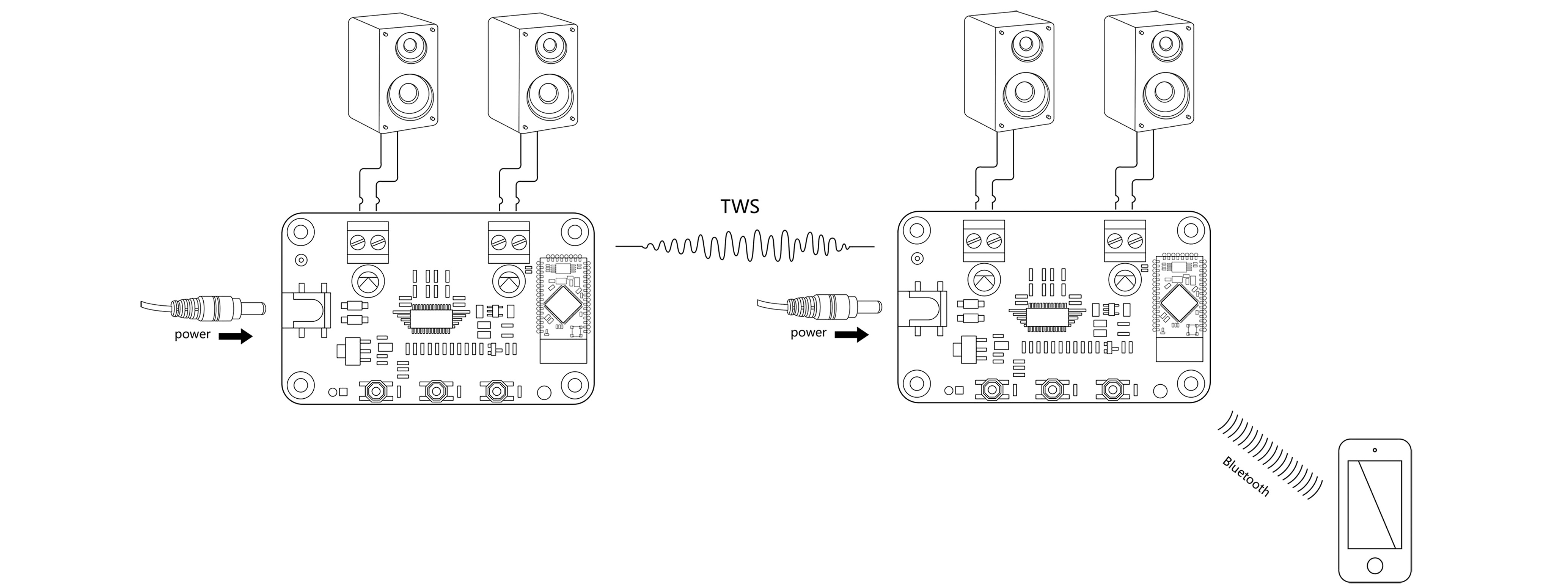

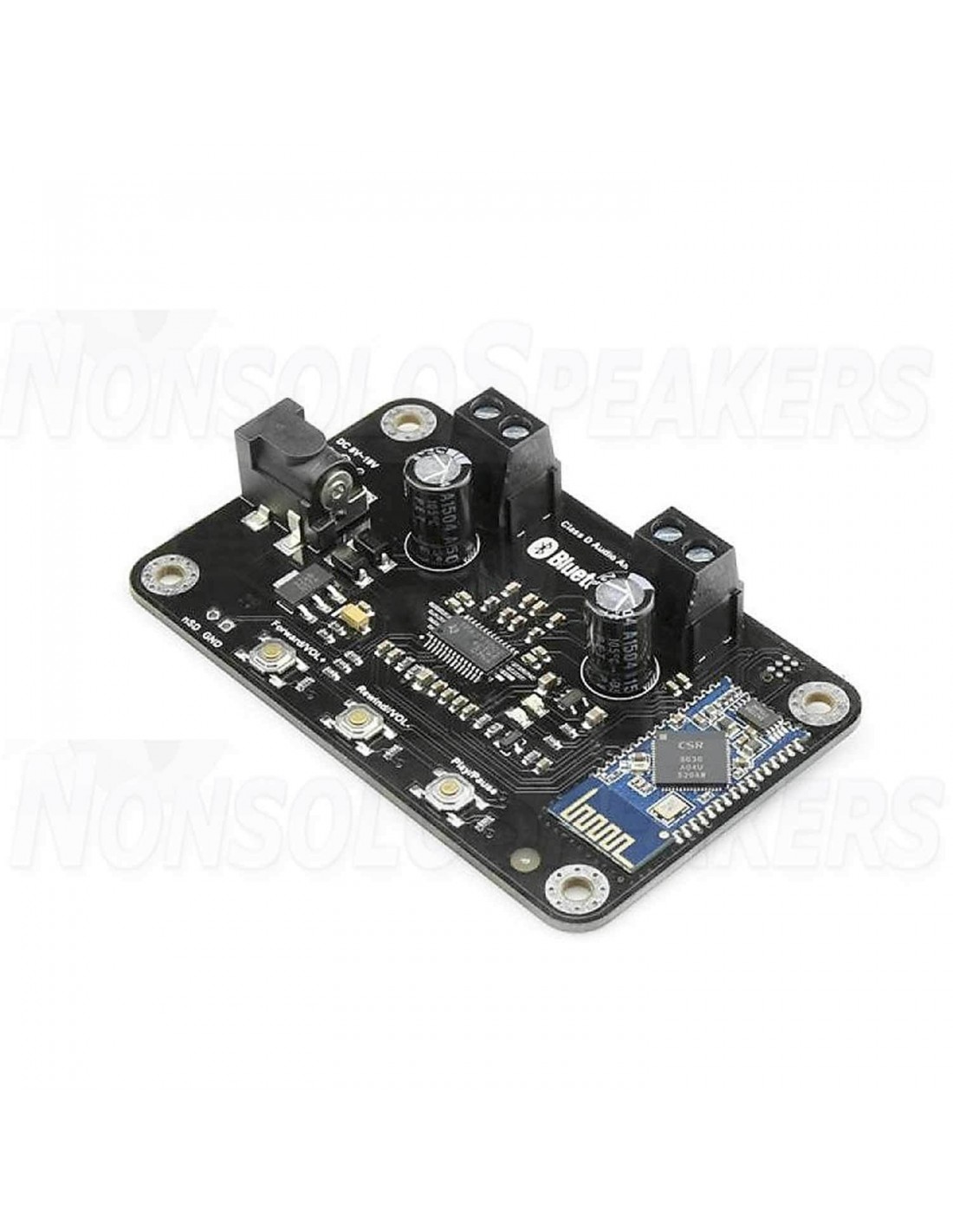

This is a 2x15W audio amplifier board with built-in Bluetooth 4.2. It has a perfect Class D architecture (based on TPA3110D2) and each channel has an output power of 15W. This board can be powered by any DC8V-16V power supply. It can be used to drive 4 Ω or 8 Ω passive speakers. The highlight is Apt-X and TWS supported. Thus, users can stream audio to 2-pair amplifier boards simultaneously wirelessly.

It is perfect for your Hi-Fi application. You may want to pair a mobile phone or computer (etc.). Power up the amplifier board. Use your phone or PC (etc.) to search for a new Bluetooth device. The module will appear as "BT Speaker" (you can also change the BT name if you have a programmer). You don't need a PIN, pair it and then you can play music.

.

Specific Parameters

Chip TPA3110D2

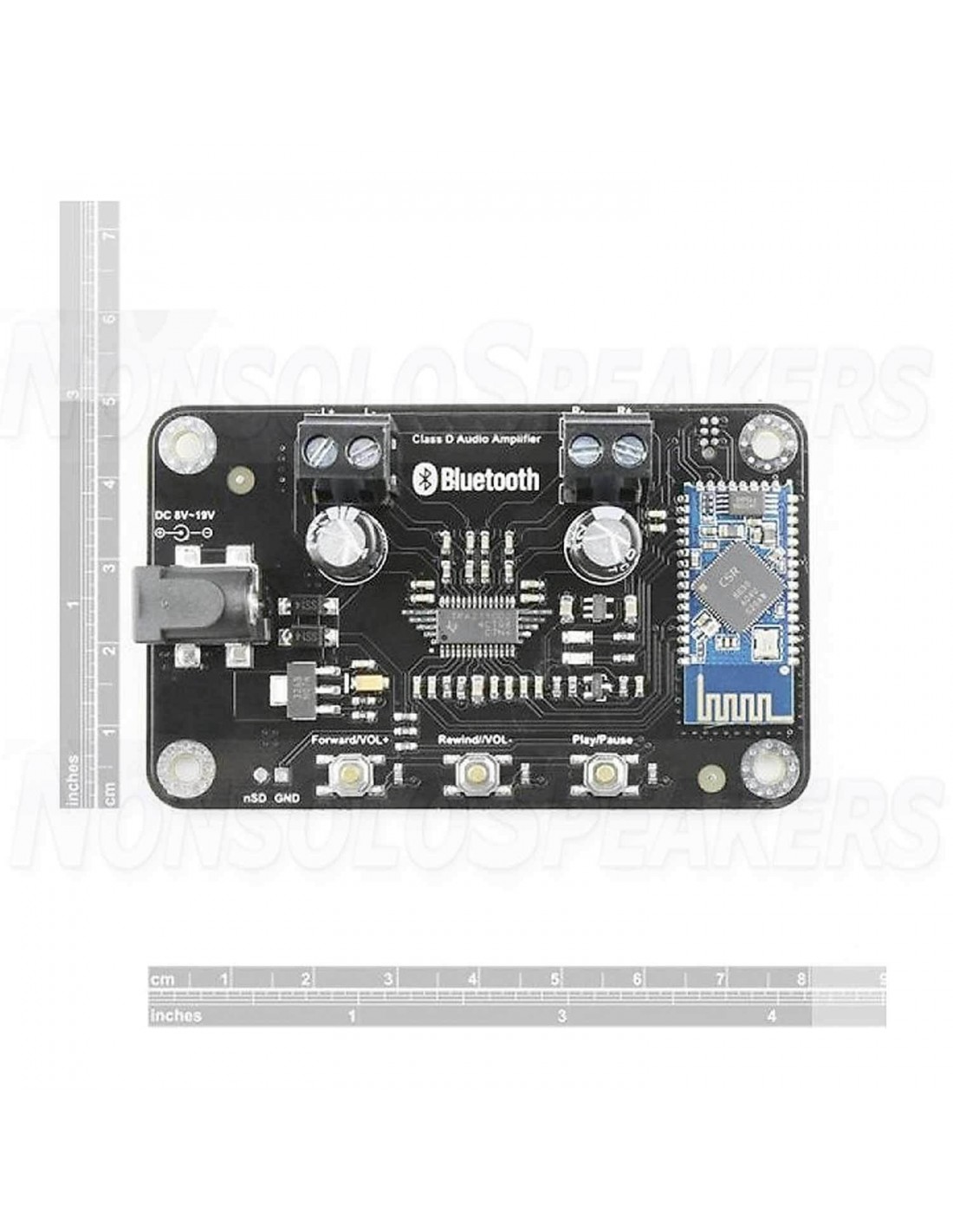

Dimensions 8 x 4.8 x 2.4 cm.

Power 2 x 15W

Amplifier Class D

Volume control Optional

Short circuit protection Yes

Overtemperature protection Yes

Bluetooth 4.2 Yes

TWS Yes

APT-X Yes

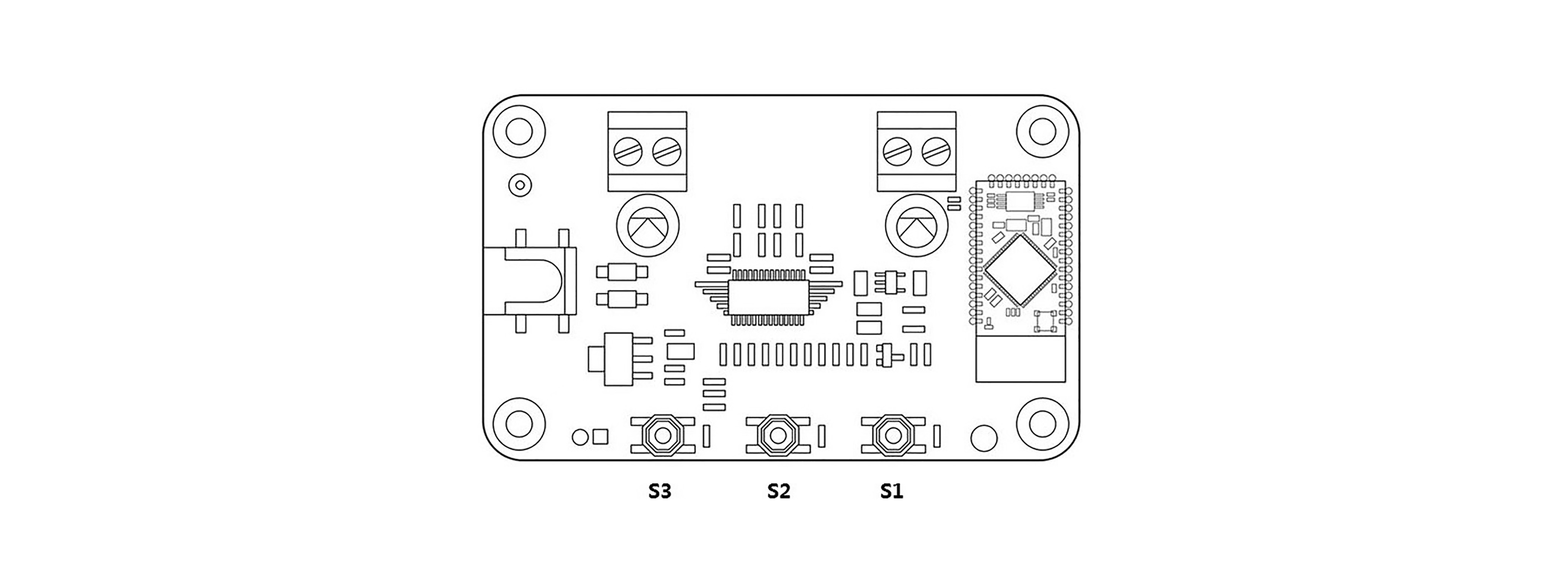

• S1 - Long press 3s in pairing mode. Long press 6s to clear pairing information;

• S1 + S2 - Long press 1s in TWS slave mode;

• S1 + S3 - Long press 1s in TWS master mode;

• S2 + S3 - Long press 1s to disconnect TWS connection.
