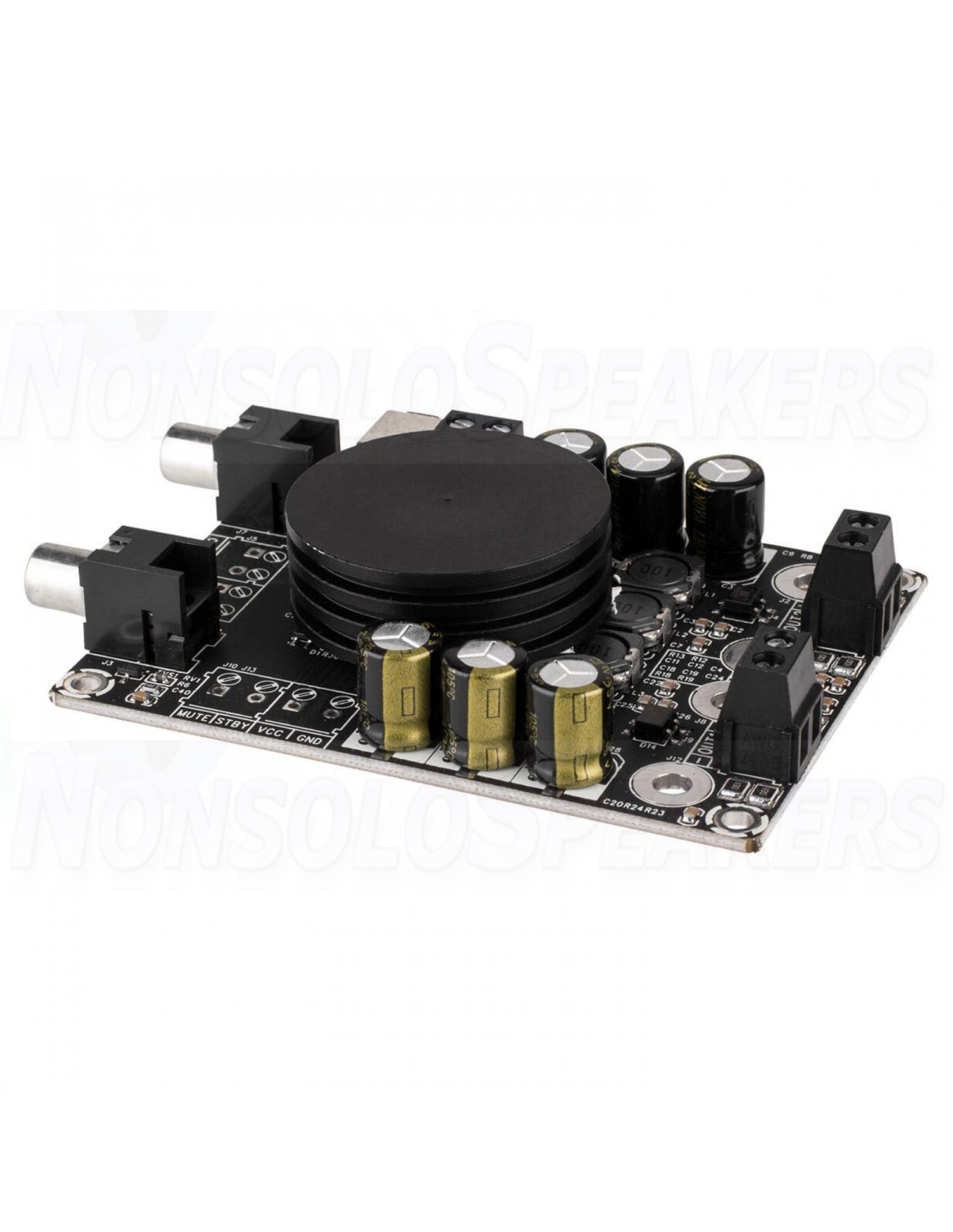

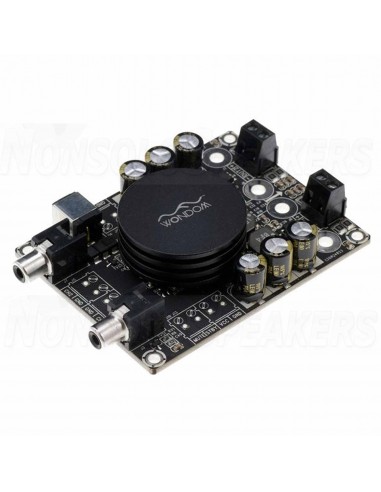

This compact amplifier module TPA3116 in Class D is of a formidable efficiency: it delivers 2x 50W under 4 Ohms.
Ideal for all types of DIY projects, it will easily integrate into your audio systems thanks to its simplified implementation.

Out-of-Stock
€26.30
Tax included
rating No review at the moment


Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



WONDOM AA-AB32178 Amplifier Module TPA3116 Class D 2 x 50 Watts 4 Ohms

This compact amplifier module TPA3116 in Class D is of a formidable efficiency: it delivers 2x 50W under 4 Ohms.
Ideal for all types of DIY projects, it will easily integrate into your audio systems thanks to its simplified implementation.

Due to its power supply range it is very convenient and can easily run on batteries. It has a DC 5.5 / 2.5mm jack input.

Characteristics :

  • Amplifier TPA3116
  • Architecture Class D
  • Excellent audio quality
  • Line level input (2VRMS) Solder or RCA pads
  • Over Current and Overtemperature Protection
  • Hp protection ("plocs")
  • Power: 25W x 2 @ 4 ohms (<0.1% THD + N), 50W x 2 @ 4 ohms (<10% THD + N)
  • Input Impedance: 22 kohm
  • Frequency response: 20Hz - 22kHz to +/- 3dB
  • Operating Temperature Range: 0 to 50 ° C
  • Yield: 90% to 12V
  • Power supply: 8 to 26VDC (2 to 6A) / DC Jack 5.5 / 2.5mm
  • Dimensions: 91x68mm

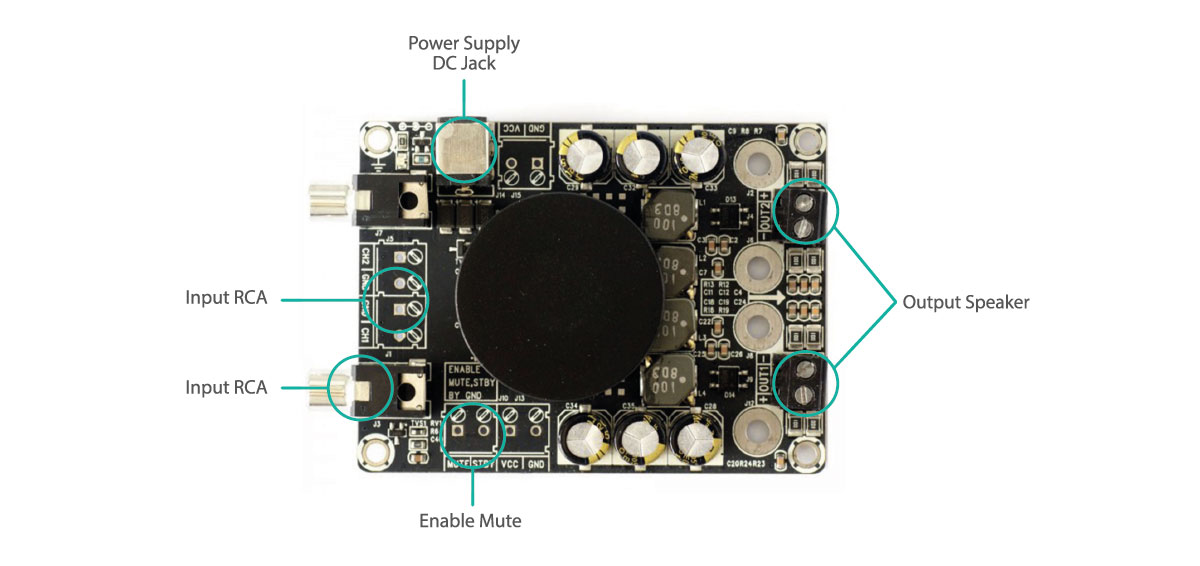

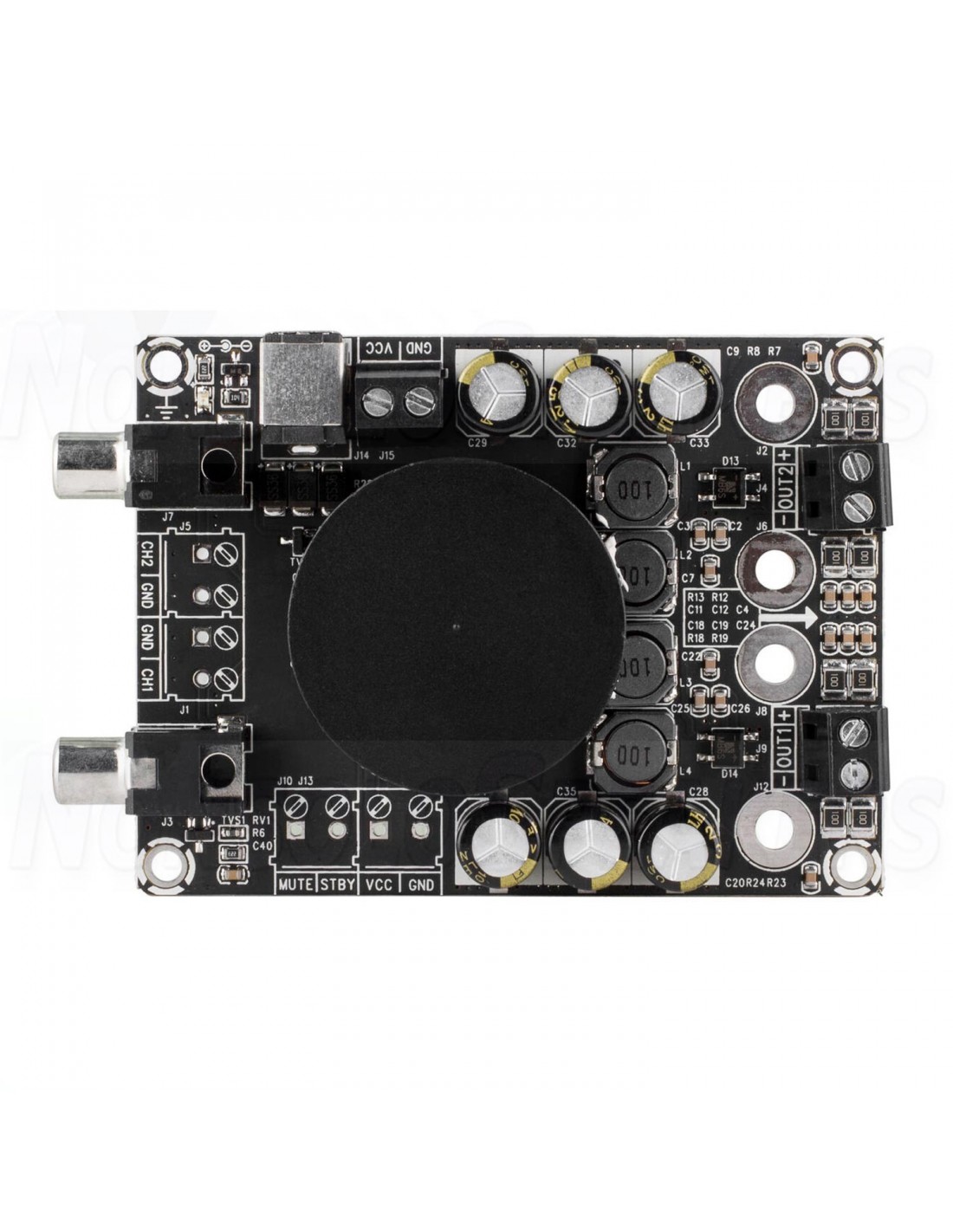

Dettaglio di connessione amplificatore in classe D

 Features AA-AB32178

Parametri  Condizioni di Test Valori
Tensioni di Alimentazione  - 10-24 VDC
Corrente Massima  100W @ 4Ohm 5.29UN
Efficienza 50W @ 4Ohm 87-92%
Carico Min. Supportato 3.2Ω
Frequenza Swhitching 394kHz
Guadagno 24-26dB
Sensibilità di ingresso (RMS) @ 4Ω, 50W, 1KHz 808mV
Impedenza di ingresso 22kΩ
Potenza di Uscita THD+N 1% @ 4Ω THD + N 1% 36W
Potenza di Uscita THD+N 10% @ 4Ω THD + N 10% 50W
Banda Passante ±3dB @4ohm 20Hz - 20kHz
THD (1W) @ 4Ω, 1W, 1KHz 0,0299%
THD (10W) @ 4Ω, 10W, 1KHz 0,073%

Others features AA-AB32178

Parametri  Specifiche
Chip TPA3116
Dimensioni 3.6" x 2.7" x 0.94"
Potenza 2 x 50W
Classe Amplificatore D
Controllo di volume  Opzionale
Protezione da cortocircuiti Si
Protezione da sovratemperatura Si

Misure

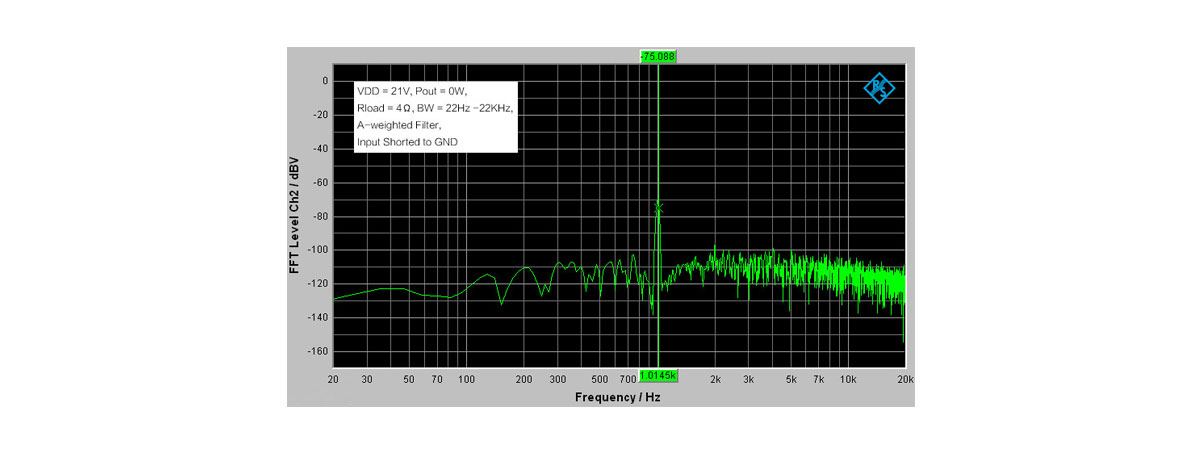

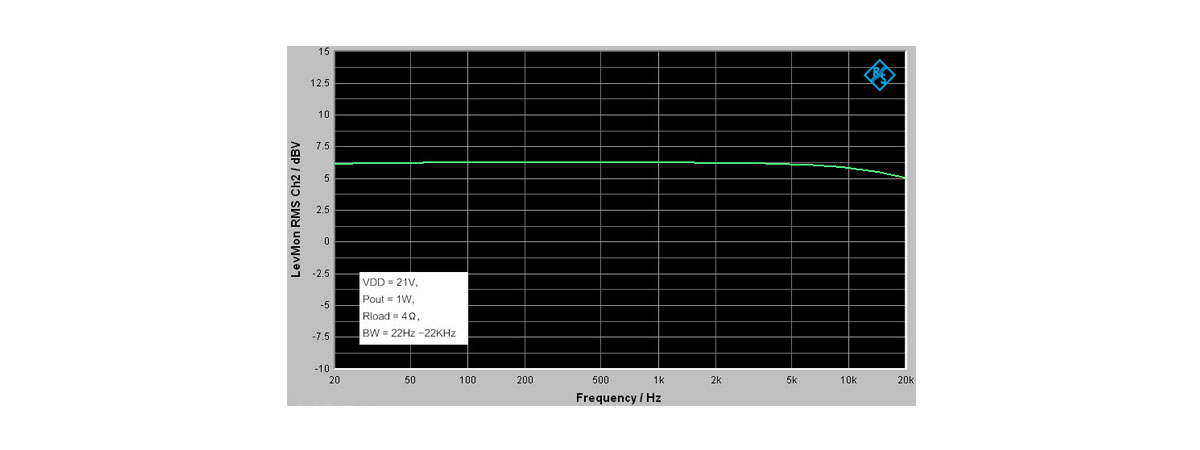

Amplificatore Digitale classe D grafico performance

Amplificatore Digitale Classe D grafico performance

Amplificatore Digitale Classe D grafico performance

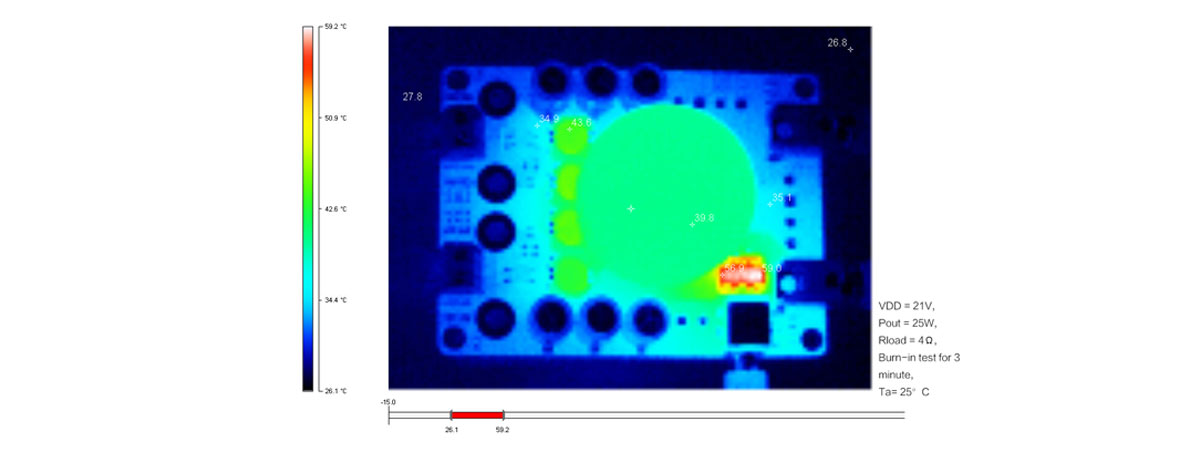

Amplificatore Digitale Classe D misure termiche

WONDOM AA-AB32178
