WONDOM AA-AB32314 - 2x400W amplifier class D

WONDOM AA-AB32314 - 2x400W amplifier class D

Here is the upgrade version of the original T-Amp sound card 2 x 400 watt class D -AA-AB32314. Thanks to the dedicated heat sink design with temperature controlled fan, it is able to simultaneously deliver the maximum dual channel power from 400 W RMS to 3ohm without the use of an additional additional heat sink

SHIPMENT IN 7/10 WORKING DAYS
€87.00
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



WONDOM AA-AB32314 - 2x400W amplifier class D

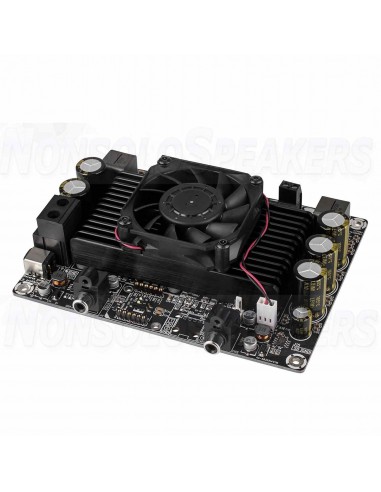

Here is the upgrade version of the original T-Amp sound card 2 x 400 watt class D -AA-AB32314. Thanks to the dedicated heat sink design with temperature controlled fan, it is able to simultaneously deliver the maximum dual channel power from 400 W RMS to 3ohm without the use of an additional additional heat sink. In addition to the integrated protection of the chip, the protection components against ESD discharges and used throughout the input and output of the amplifier board guarantee its robustness and reliability.

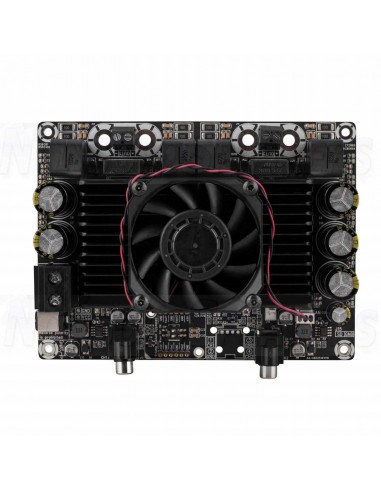

A low-noise, temperature-controlled cooling fan is mounted above the robust heat sink to maximize heat dissipation. Also included are thermal protection, over / under voltage and current circuits to extend the life of the amplifier board. Mounting holes are provided as a 2.5mm x 5.5mm power jack for quick connection. Phoenix type screw terminals are included for quick connection of speaker cables. The RCA line level inputs are pre-attached to make this board ready for rock. Recommended power supply: ALC24V6AJ.

Dettaglio di connessione amplificatore in classe D

Features AA-AB32314

Parametri  Condizioni di Test Valori
Corrente massima 800 W @ 3 Ohm 20.2 UN
Tensioni di Alimentazione  - 24-44 V
Efficienza 400 W @ 3 Ohm 87-92 %
Potenza Inattiva

SD Floating, FAN ON

SD Floating, FAN OFF

12.8-18 W

11.4-15 W
Frequenza Swhitching SD Floating 730 kHz
Potenza in Standby SD collegato a GND, FAN OFF 0.4-3 W
Sensibilità  di ingresso (RMS) @ 3 Ω, 400 W, 1 KHz 1.56 V
Impedenza di ingresso - 10 KΩ
Guadagno - 28-32 dB
Impedenza di carico minima - 3 Ω
Potenza in uscita

@ 3 Ω THD + N 1%

@ 3 Ω THD + N 10%

211 W

400 W
Larghezza di banda @ ± 3dB @ 3 Ω 20-20K Hz
THD

@ 3 Ω, 1W, 1KHz

@ 3 Ω, 10W, 1KHz

0.013 %

0.017 %
Livello di rumore in uscita Ponderazione, Ingresso collegato a GND 206 mV
SNR 211 W @ 3 Ω THD + N 1% 93 dB
Temperature
 - 50 °C

Others features AA-AB32314

Parametri Specifiche
Chip T-AMP
Dimensioni 15,2 x 11,4 x 3,8 cm.
Potenza 2 x 400W
Classe Amplificatore D
Controllo di volume  Opzionale
Protezione da cortocircuiti Si
Protezione da sovratemperatura Si

Performance

Amplificatore Digitale Classe D

Amplificatore Digitale Classe D

Amplificatore Digitale Classe D

Amplificatore Digitale Classe D
