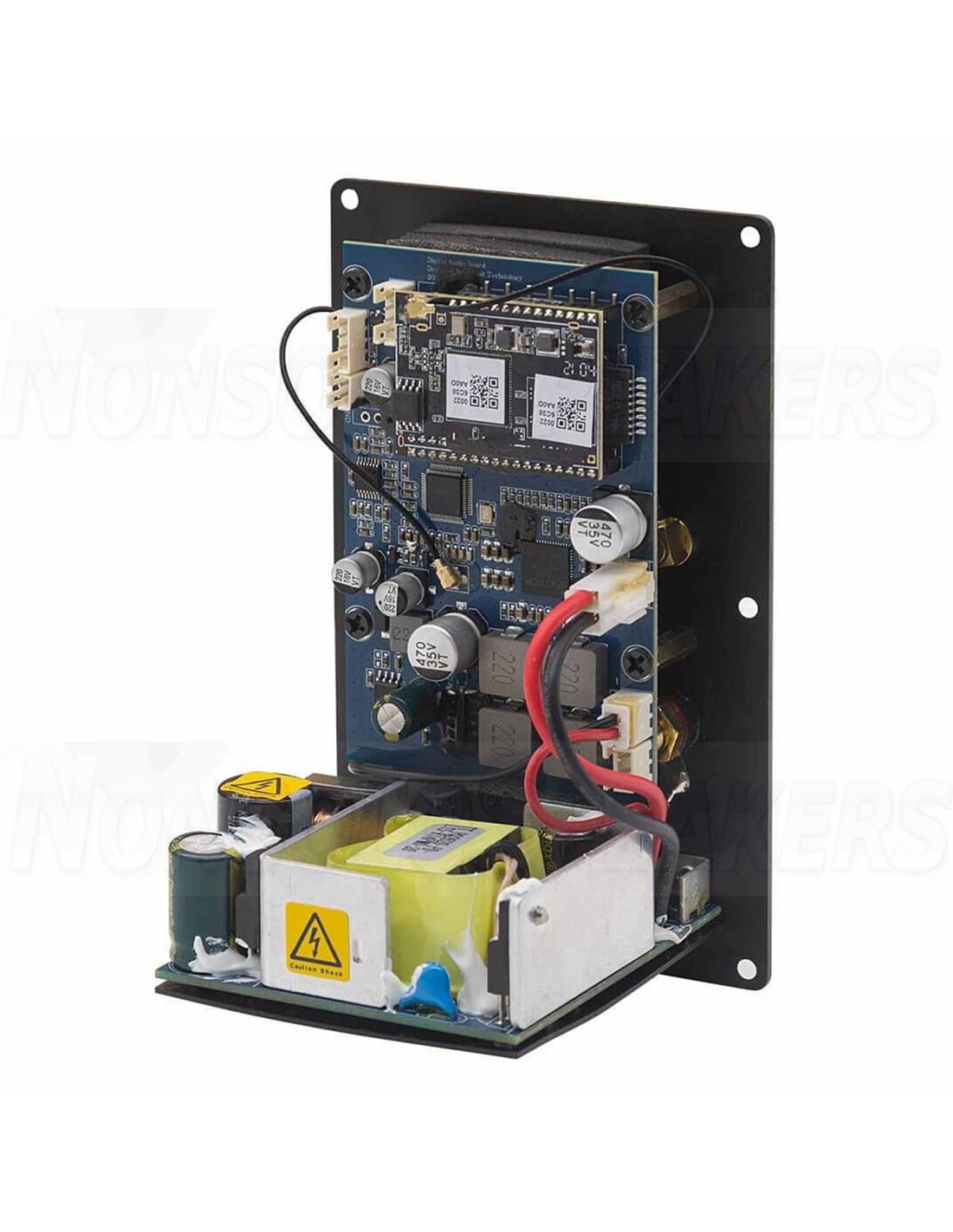

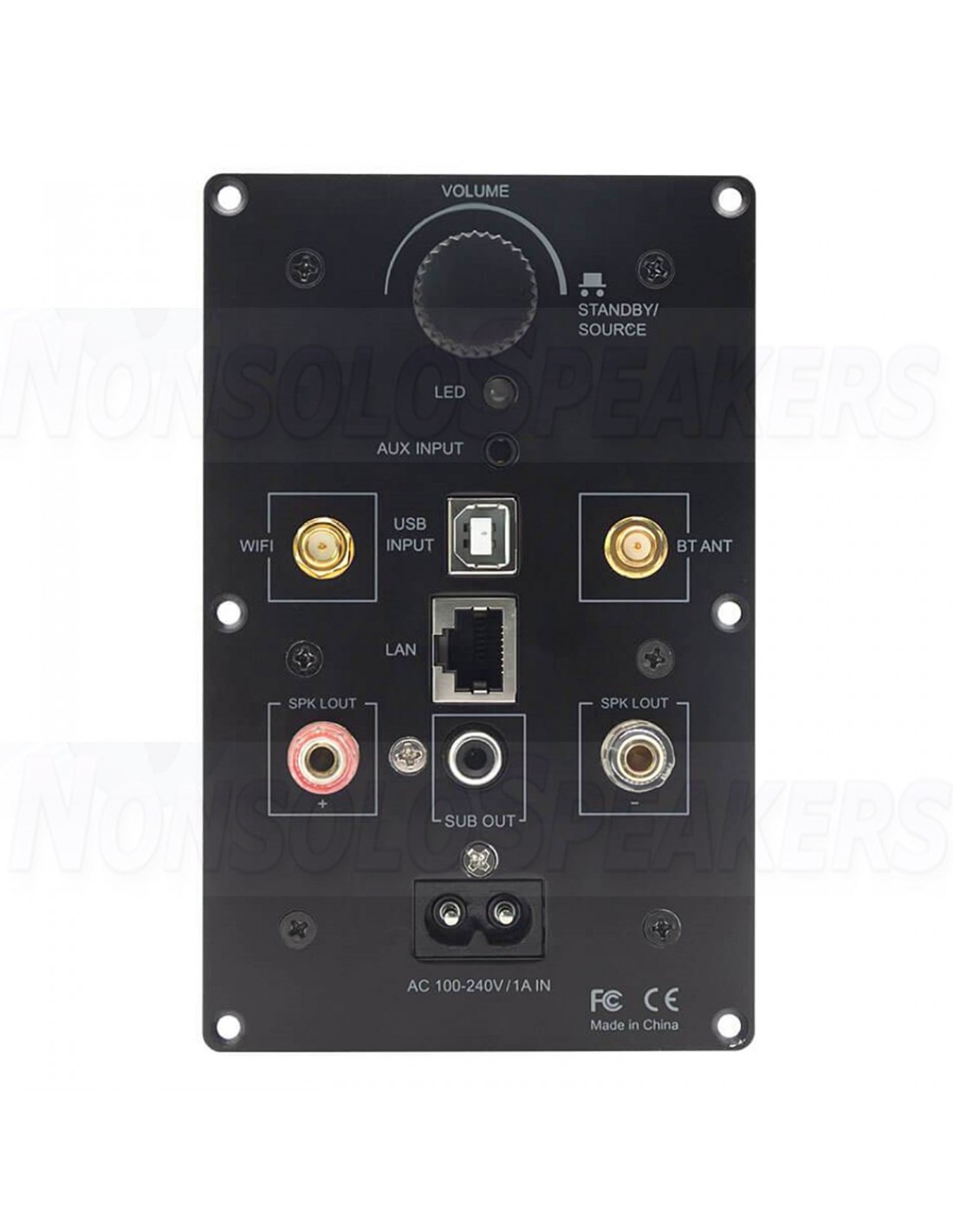

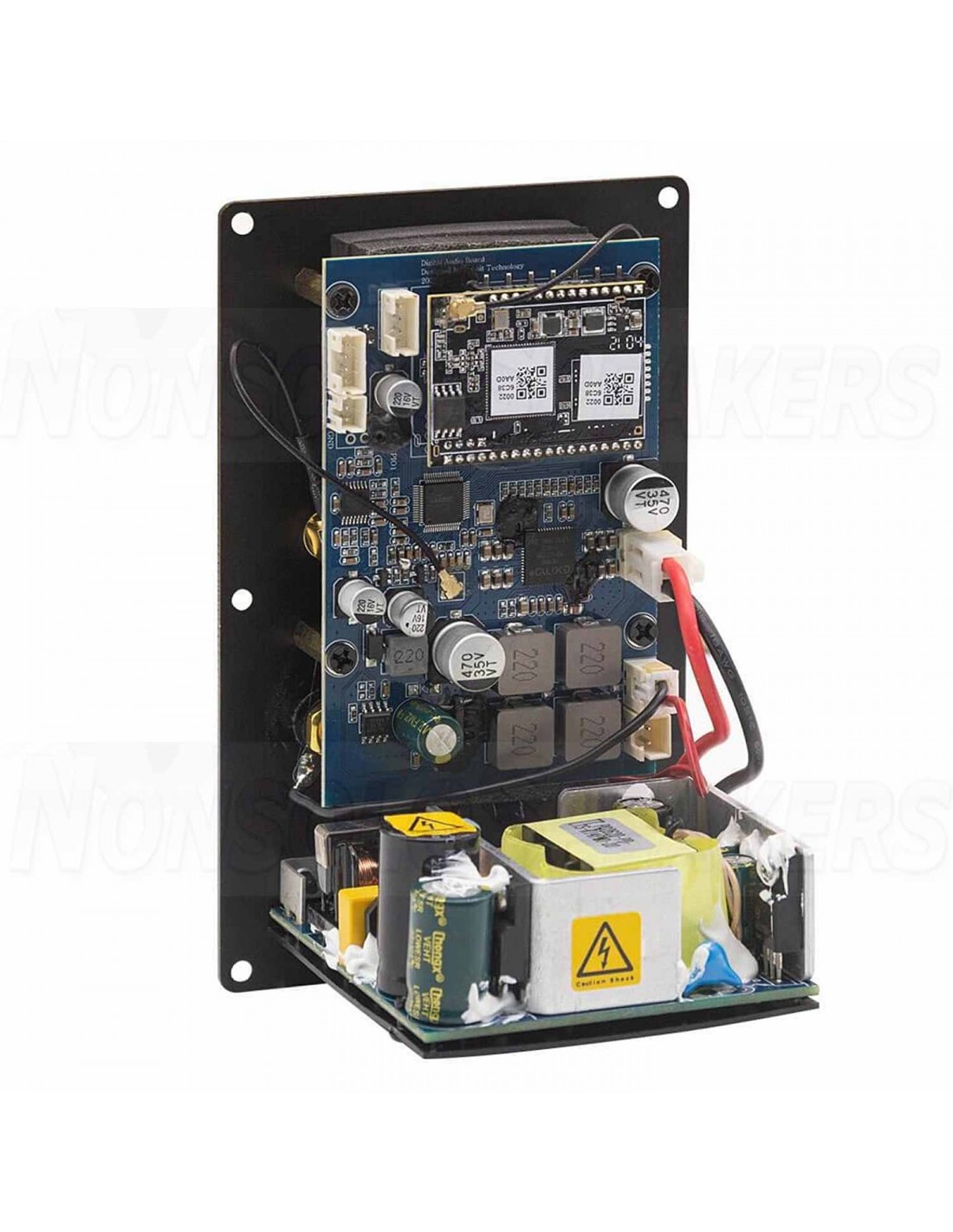

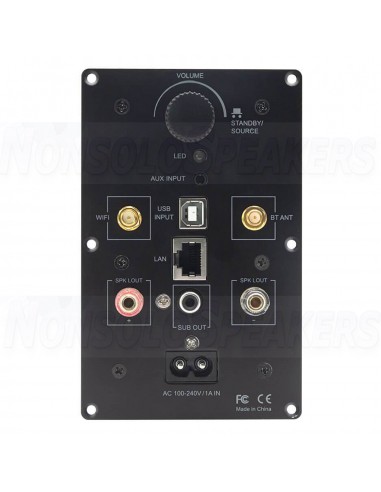

Arylic Up2Stream Module amplifier 2 channel wifi - bluetooth

Arylic Up2Stream Module amplifier 2 channel wifi - bluetooth

Name: Arylic Up2Stream Module amplifier 2 channel wifi - bluetooth
Brand: Arylic
SKU: Arylic Up2Stream
Price: 199.95 EUR
Availability: OutOfStock

Arylic Up2Stream Module amplifier 2 channel wifi - bluetooth

Streaming music by Wi-Fi streaming using the free 4Stream Android/iOS application

2 x 40 watts at 4 ohms

USB connection USB-A for PC Connection (16bit/44.1kHz) and ACPWorkbench

Network connection WiFi + LAN

Out-of-Stock

€199.95

Tax included

No review at the moment

Estimated Shipping Costs

Shipping Costs

€16.80

Shipping Time

Want to check another country or courier?

Arylic Up2Stream Module amplifier 2 channel wifi - bluetooth

Product description

You can use this Plate AMP to easily build your own wireless stereo system and stream online music from many famous online music services like Spotify, Deezer, TuneIn and more. Control audio remotely by Wifi, Bluetooth, Airplay 1 and Spotify connect. Arylic Up2Stream AMP can provide you with 2 x 40 Watt power to 4 ohm speakers, perfect for building your own pair of active bookshelf or multimedia speakers.

Highlights

Streaming music by Wi-Fi streaming using the free 4Stream Android/iOS application

Adjust volume by physical Volume Knob

2.5Ghz WiFi or LAN internet connection

Subwoofer output makes it easy to add a powered subwoofer

Bluetooth version 5.0

USB port for PC connection and ACPWorkbench

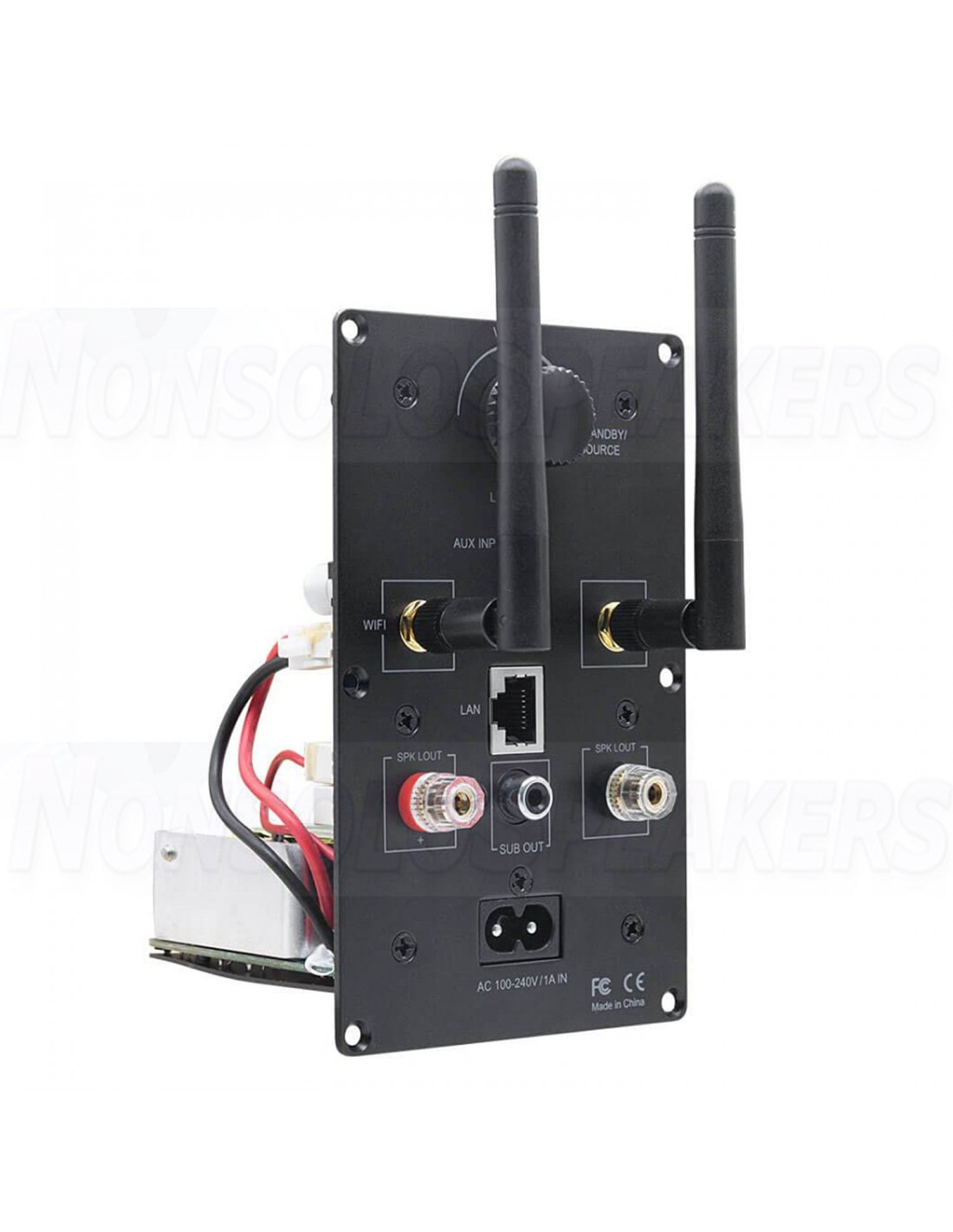

2 External antennas for WiFi and Bluetooth

135.3 x 85.3 x 77.3 mm, one of the smallest in its form for creating small powered bookshelf or monitor speakers

Lifetime Firmware Online Update

Product details

Arylic Up2Stream Plate AMP 2x40W Plate Amplifier with Bluetooth 5.0, WiFi and LAN.

Arylic Plate AMP offers you a small plate amplifier for creating small powered bookshelf or monitor speakers with the versatility of multimedia connections and the option of direct music streaming.

With multiple input options including AUX (3.5mm), USB, Bluetooth 5.0, Wi-Fi and Ethernet, the Plate AMP is easy to integrate in any existing speaker or new project. The convenient wireless possibility with the 4Stream App allows full control of the amplifier's power, volume, and input. In addition, a mono line level subwoofer out makes it easy to integrate a powered subwoofer into the system if needed.

To get optimal WiFi and Bluetooth range, the Plate AMP is equiped with 2 external antennas that improves the signal range and strenght. The sound output is immaculate and stunning, definitely enough to keep you partying at home all day long.

The streamer can handle the most popular online music services such as Spotify, Deezer, Tidal, Amazon Music, Qobuz, Napstar, iHeartradio, Internet Radio and QQ Music. Not only the music services that you are used to are important, fast and reliable internet connection also matters. The Plate AMP is proviced with a 2.4Ghz WiFi module and LAN (RJ45) ethernet connector for a fast and reliable connection.

Would you like to add an active subwoofer, this is possible! The Plate AMP features a subwoofer output (RCA - 20-200Hz Max 2V RMS). With this option you can make a 2.1 speaker set-up with all the wired and wireless connectivity of this time. Up2stream Plate Amp support streaming from PC directly and you can customize the precise EQ settings with our ACPWorkbench tuning tool.

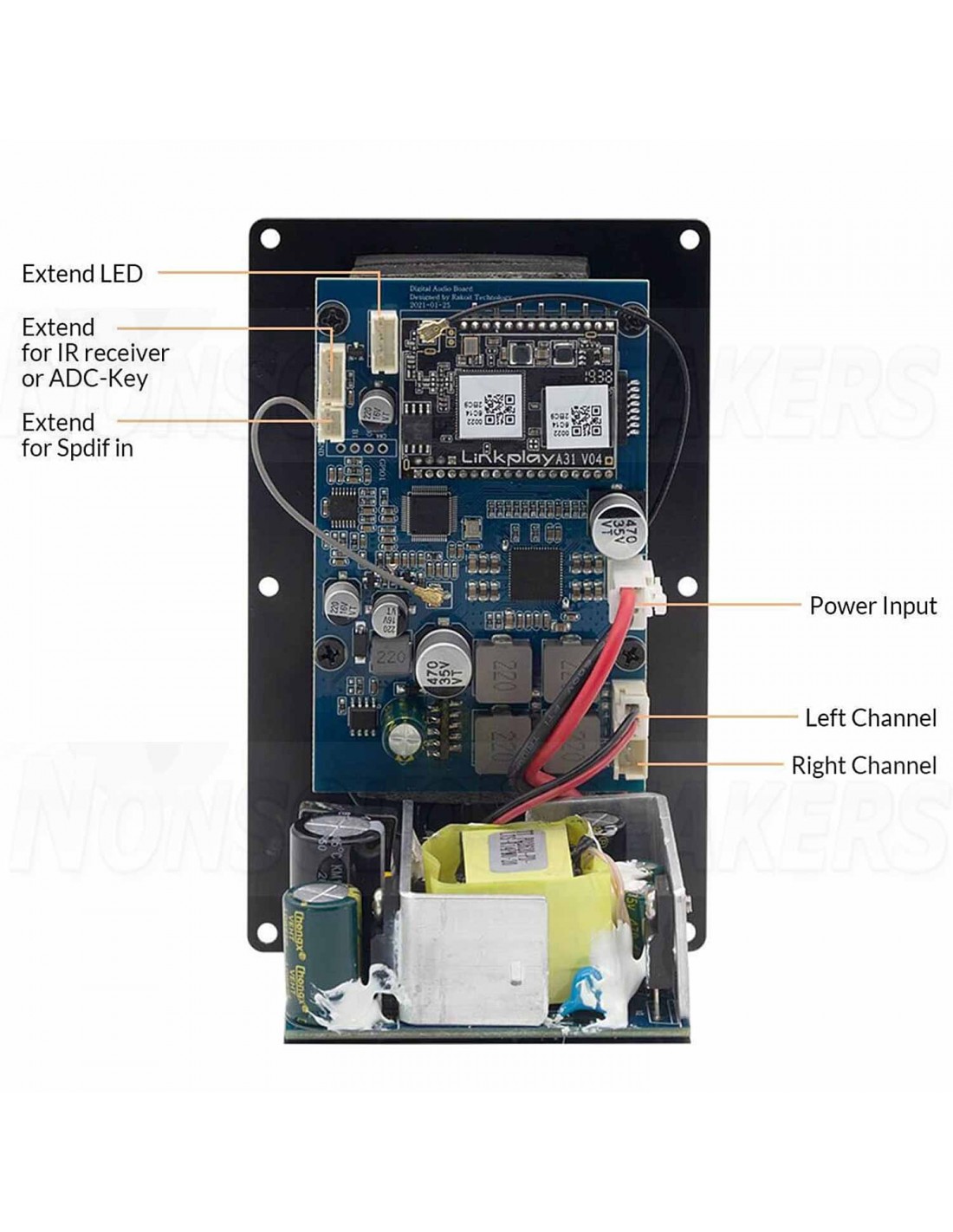

Compatible Expansion Boards:

Arylic ADC-KEY Button Expansion Board

Arylic SPIDF IN Expansaion Board

Arylic SPDIF OUT Expansion Board

Arylic IR Extension Board (need to use with ADC-KEY board)

What's Included:

1 x Up2Stream Plate AMP

1 x Internal Speaker Cable

2 x Antenna's

4 x Sealing Tape (EVA Sticker)

1 x USB Cable

1 x C7 Power Cord

1 x User Manual

Specifications

Article number

Up2Stream Plate AMP

Rated power output

2 x 40 watts at 4 ohms

2 x 20 watts at 8 ohms

Minimum load 4 ohm

Signal-to-noise ratio (SNR) ≥ 85 dB at max

Distortion <0.9% at 1kHz, 1 watts

Amplifier classification Class D

Frequency response 20 - 20.000 Hz (Sub out 20-200Hz)

Input sensitivity AUX max 1V RMS input

DSP Yes via ACPWorkbench

Speaker output channels 1

Jack in/out 1/0 3.5mm

USB connection USB A for PC Connection (16bit/44.1kHz) and ACPWorkbench

Network connection WiFi + LAN

Bluetooth 5.0 AAC, SBC

Subwoofer pre-out 20-200Hz Max 2V RMS

App control Arylic 4Stream Appliciation Android/iOS

Equalizer (EQ) adjustment Via Arylic 4Stream Appliciation and ACPWorkbench

Equalizer (EQ) profiles Via Arylic 4Stream Appliciation and ACPWorkbench

Control software ACPWorkbench

Power requirements 100-240 VAC, 50/60Hz, 1A

Reference Arylic Up2Stream

Arylic was founded by a group of experts with more than 10 years behind-the-scenes experience developing new technology products. They have different skills from home audio to lifestyle products. Arylic focused on producing products that reflect the team's strengths in wireless audio and gradually created a successful range of products with excellent value for money, including a range of amplifier modules.

Arylic Up2stream amplifier boards

SoundImports offers four products from the Up2Stream series. First is the Arylic Up2Stream Amp 2.0 V3 WiFi and Bluetooth 5.0 Stereo Amplifier Board, which can stream music from any reputable streaming service with its free Android and iOS app; Wi-Fi, Bluetooth 5.0, DLNA, AirPlay, Spotify, Deezer, Tidal, Qobuz, iheartRadio, Napster, Internet radio, whatever you want. L'app non è solo la prima volta per lo streaming musicale non riconosciuto, but also allows you to change the name of any Arylic product on your network and set up a multi-room sound system. The new model of the Up2Stream series and the Arylic Up2Stream 2.1 amplifier. This class D stereo amplifier board with a powerful subwoofer output can produce 50W + 50W + 100W and performs well with low impedance speakers. It also offers the most advanced wireless technology with WiFi, Bluetooth 5.0, Airplay, Spotify Connect and DLNA and UPnP protocols for wireless control.

Arylic Up2stream V3

With the Arylic Up2Stream Mini V3-Wi-Fi & Bluetooth Audio Receiver Module with I2S you can wirelessly stream your audio data to your speakers. With its five streaming options and all its other features, it's the most complete and easiest way to enjoy music wirelessly. Arylic Up2Stream Pro V3 L'Up2Stream Pro è dotato di a USB memory, which can also function as a USB DAC. It can connect to a PC and digitally stream PC audio. Thanks to the updated CPU, you can now also change the device name for WiFi SSID and Bluetooth via the mobile app.

Arylic A Series Amplifiers

L'Arylic A30 is the simplest and cheapest Wifi & Bluetooth 5.0 stereo amplifier di Arylic. Despite this, it offers all the features you need for a wireless sound system or even a wireless multi-room sound system. The Arylic A50 is the more versatile and powerful brother of the A30. It has a handful of additional features that make it useful for a wider range of applications. The Arylic A50 lets you play high-resolution lossless audio via the free Android or iOS app or Bluetooth 5.0 connectivity. In addition, the Arylic A50 has a USB DAC, a line-in, a dedicated subwoofer output and wired and wireless internet connections.

Arylic S Series Amplifiers

You can easily control the Arylic Arylic S10 with the supplied remote control. In qualsiasi altra situazione puoi accedere all'app a buon mercato to control the volume of each Arylic device in your network, set up a multi-room network, create a True Wireless Stereo setup, adjust the equalizer settings and the desired select source. The Arylic S50 Pro is the bigger brother of the S10, with some extras that make it suitable for even more uses. Funzionalità Wi-Fi e Bluetooth 5.0 connectivity, DLNA streaming, NAS (Network Attached Storage), streaming di musica online ad high velocità, aptX HD playback e and app iOS e Android a basso costo available in all the functional devices. The Arylic S50 is packed with all these features which are impressive especially considering the price.
