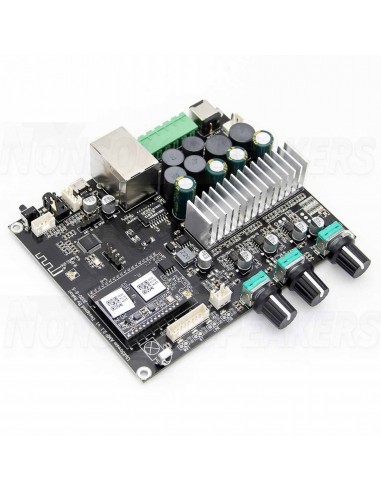

Arylic Up2Stream amp 2.1 WiFi and Bluetooth 5.0 Stereo Amplifier Board

Product description

Highlights

Rotary Knob Control

Equipped with 50W*2 stereo pair + 100W high-powered subwoofer

First Wifi 2.1 amplifier board

Precisely EQ Adjustment

Wireless Connectivity

.

Product details

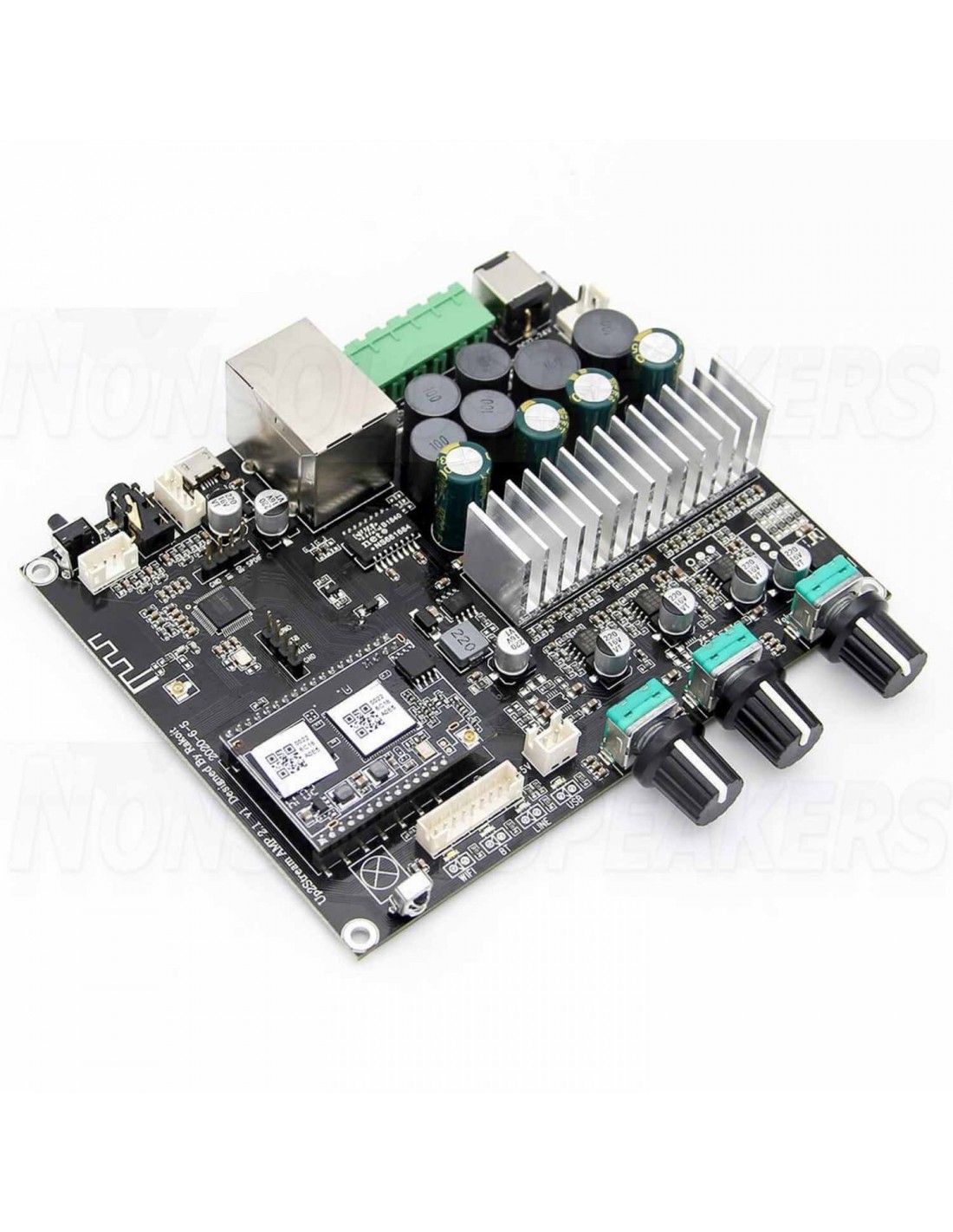

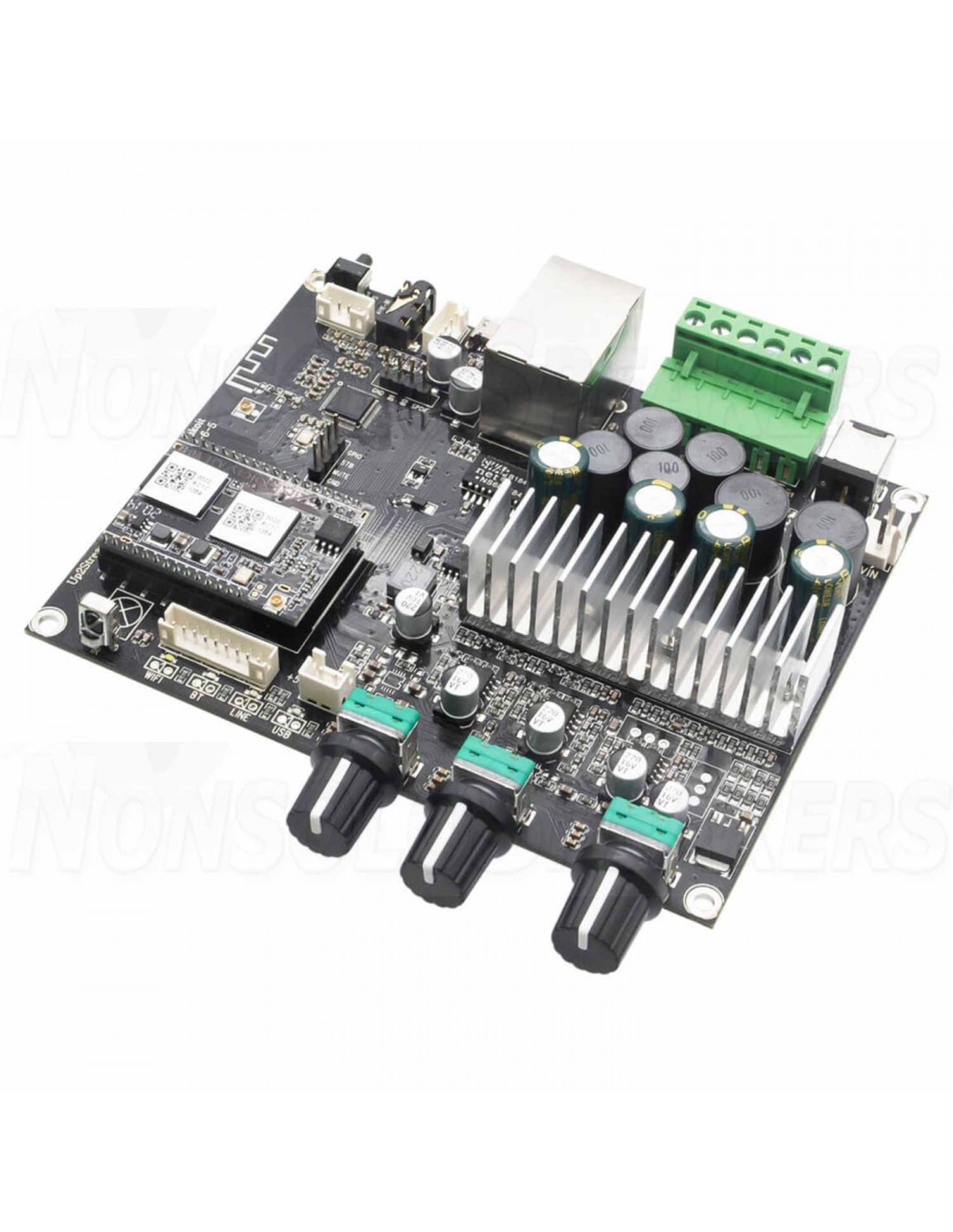

Arylic Up2Stream amp 2.1 WiFi and Bluetooth 5.0 Stereo Amplifier Board

The Up2stream Amp 2.1 is a specialized wireless subwoofer amplifier module designed for DIY users and subwoofer lovers. In addition to the undistorted sound quality and a powerful subwoofer output, you also get the most advanced wireless technology. With wifi, Bluetooth 5.0, Airplay, Spotify Connect, also DLNA and UPnP protocols for wireless control. It's worth mentioning that the sound quality via wifi streaming is without any compression and no distance limitation as long as your wifi signal is strong enough, which upgrades your home audio system to be more usable and enjoyable to listen to.

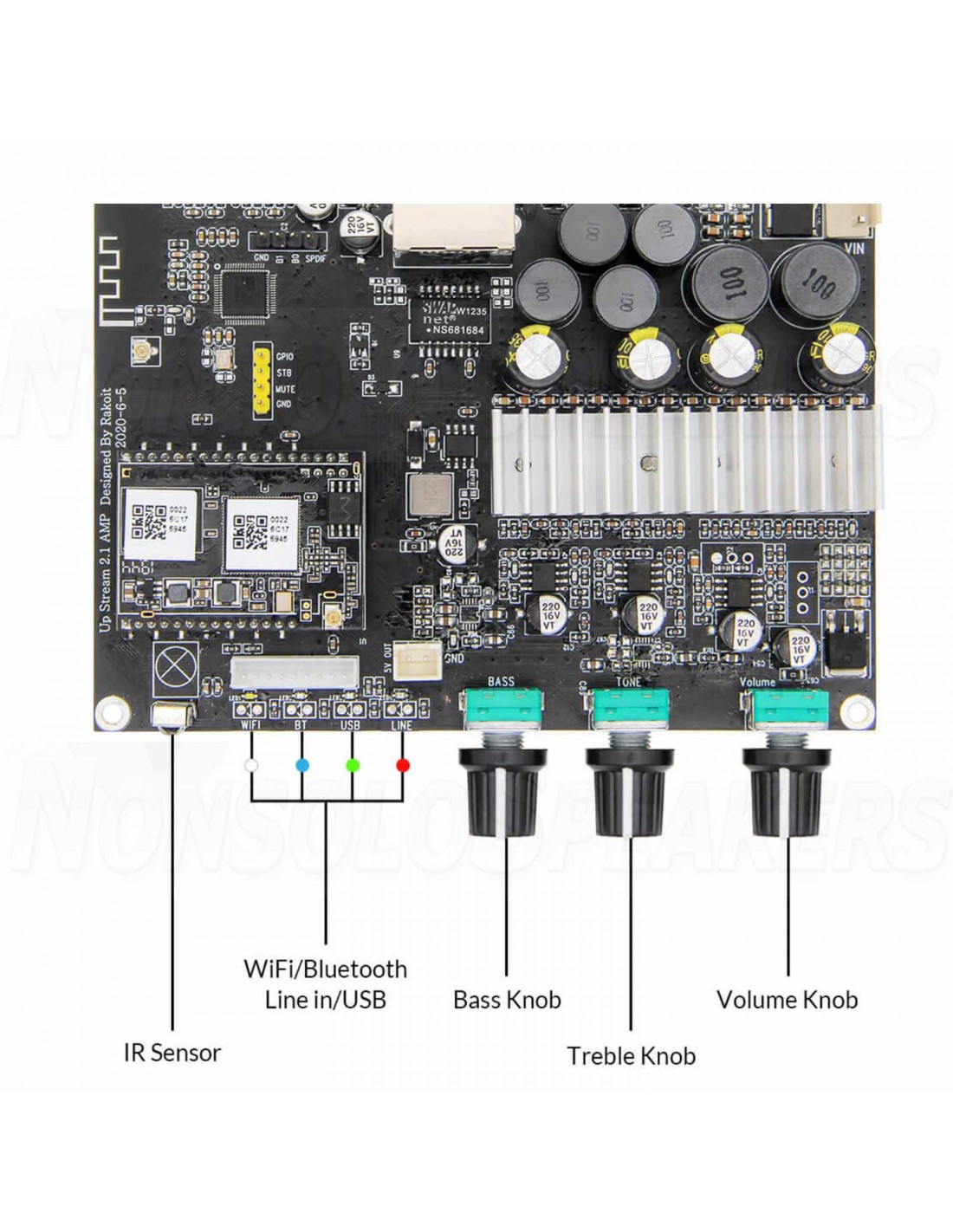

Besides adjusting the volume in real-time, you can also change your Treble and Bass while listening to your music through the corresponding knob. Assually when it comes to audio products, especially subwoofers, players are very interested in EQ control. The Up2stream Amp 2.1 can adjust its treble and bass via the remote control, app, and knobs, but the best way is to use our ACPWorkbench tuning tool, which can adjust the EQ precisely.

Huge music resources supported like Spotify, Pandora, Amazon Music, Tidal, Deezer, Qobuz, Internet Radio, iheart Radio, Napster etc. Except online music, you also can play local music by NAS, USB storage where you have collected your favorite song for years. Streaming your audio all the way by Wifi, Bluetooth 5.0, DLNA, UpPnP, Airplay, Spotify Connect.

You can use the app called “4stream” which is compatible to your iOS & Android system. From here all the features can be controlled easily. And in the app you will also automatically receive a notification when one of our regular firmware updates is available.

.

Specifications

Article number Up2Stream 2.1 AMP

Rated power output (RMS) 2 x 50W @ 4Ω + 100W @ 2Ω BTL load at 24 V

Minimum load 4 Ohms

Distortion <0.03%, @1kHz/1W/24V/4Ω

Frequency response 20Hz to 20kHz

Input impedance 4-8 Ohms

DAC micro-USB DAC

Maximum sampling rate Up to 24bit/192kHz

Amplifier classification Class D

USB Play USB music

Bluetooth 5.0, SBS/AAC

Wi-Fi IEEE802.11 b/g/n 2.4G

Remote control Optional

Dimensions (D x W x H) 124*100*25mm

.

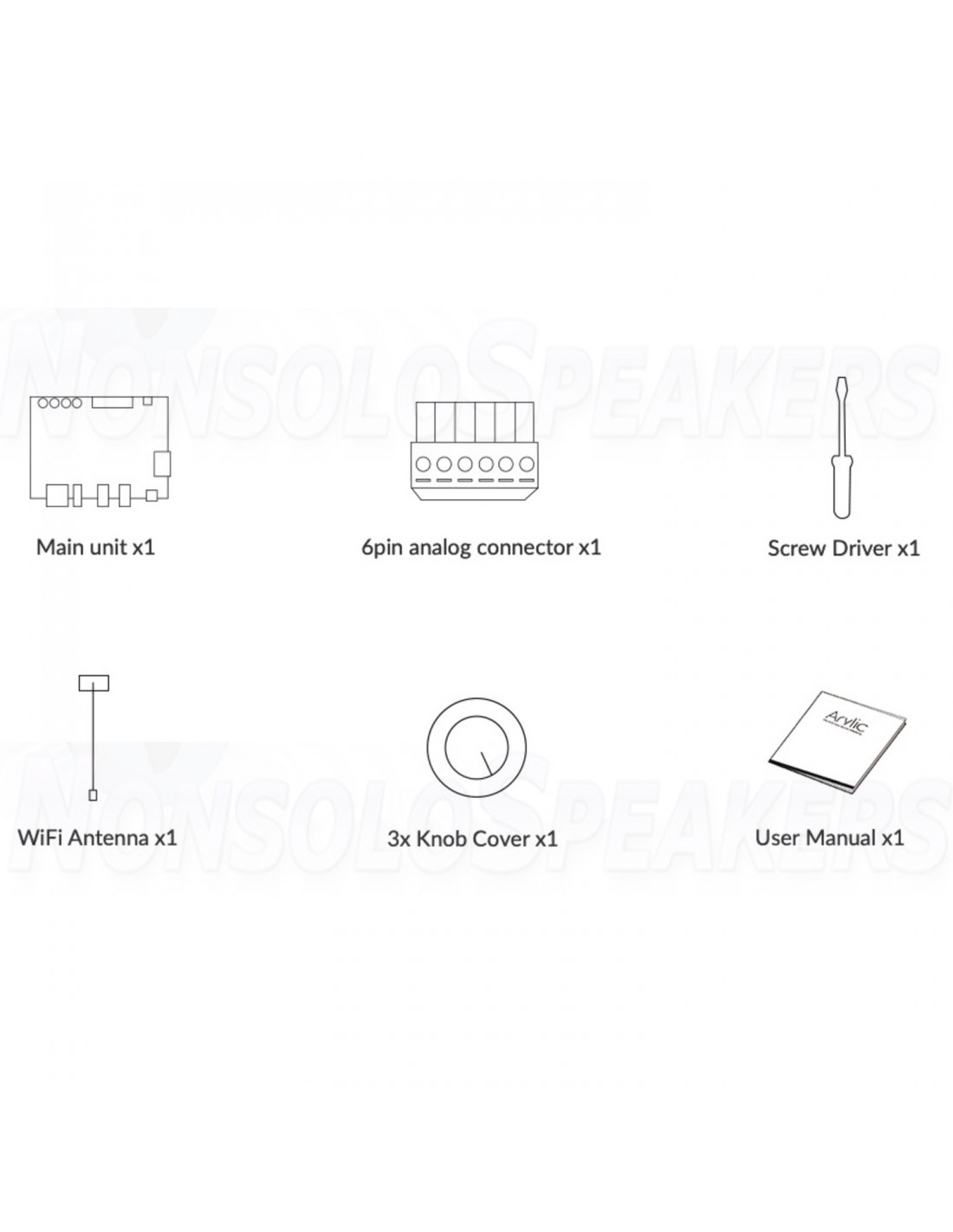

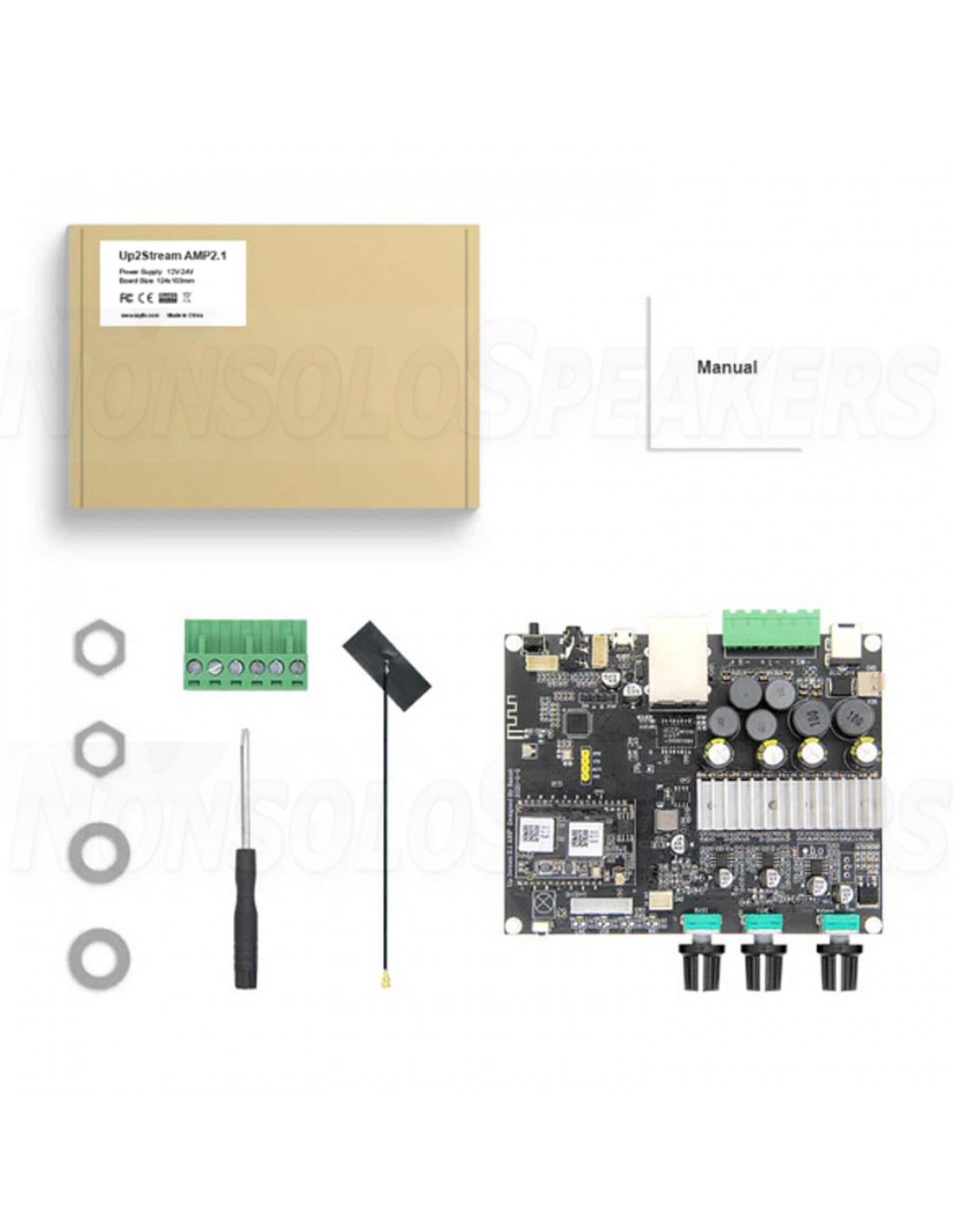

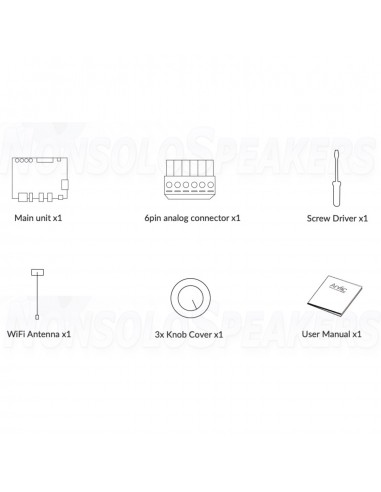

What’s in the box?

Up2Stream 2.1 Amp

6-pin analog connector

Screw Driver

Wi-Fi Antenna

3 x Knob Cover

User manual

-
