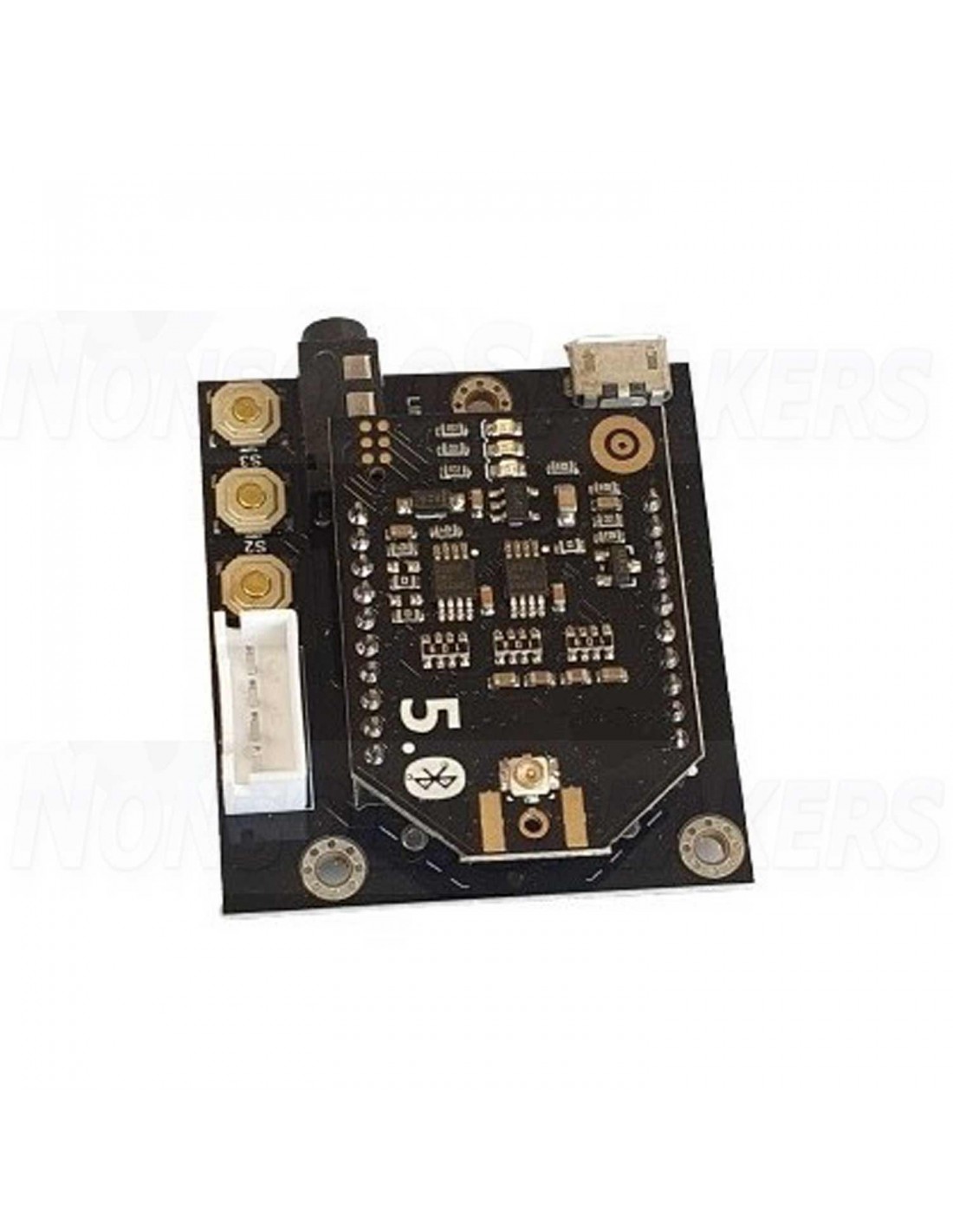

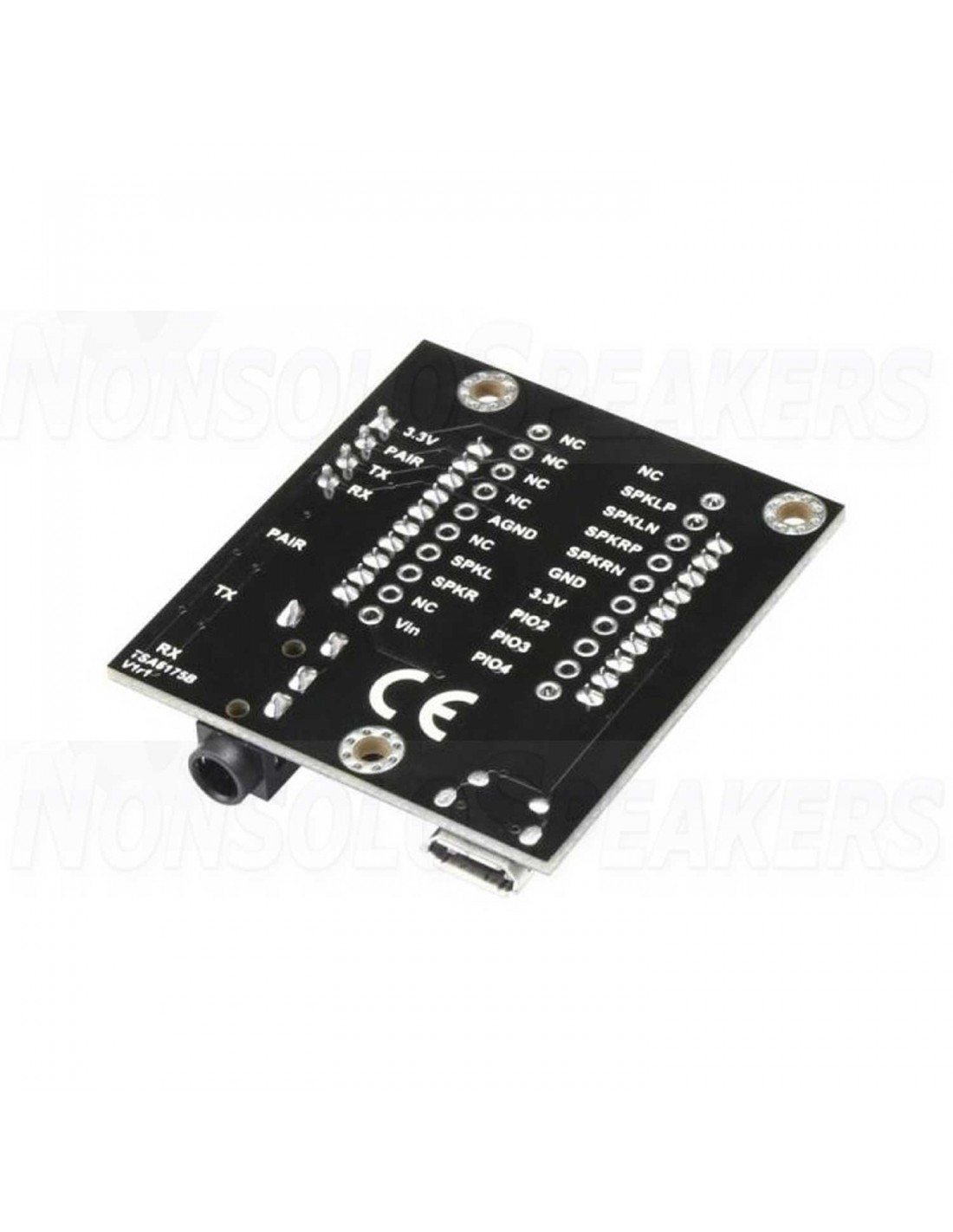

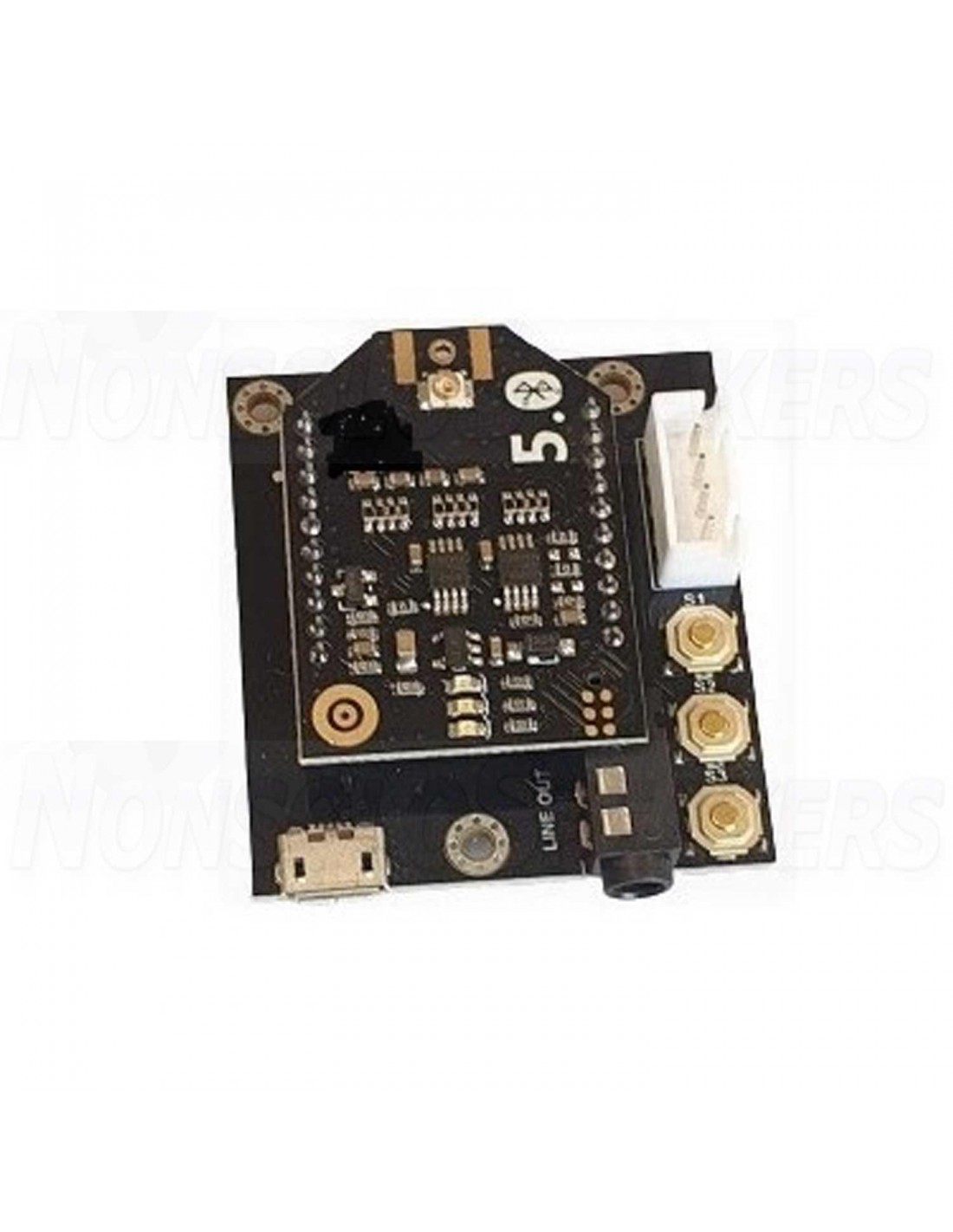

Luxus Audio BTBY50AJ - Apt-X multi-point Bluetooth 5.0 audio receiver with U.FL connector

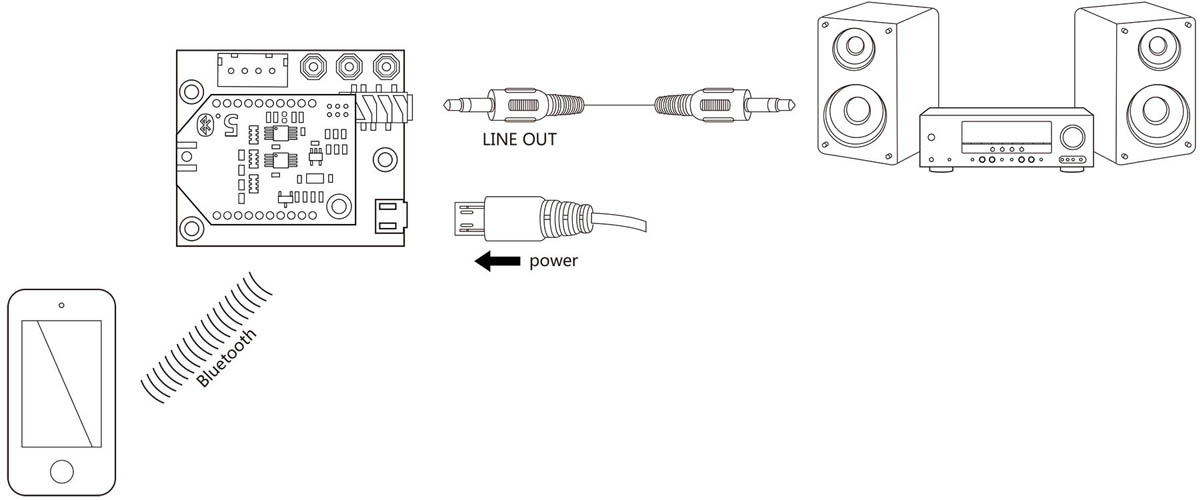

BTBY50AJ is a Bluetooth 5 multipoint audio receiver. You can pair many BTBY50AJs and work together. You can also let it work as a regular Bluetooth audio receiver. This Bluetooth music receiver connects to the Line-In or Aux input of your home audio system. You can then stream the audio from your Bluetooth-enabled cellphone or mp3 player to your home audio system. Enjoy the convenience of having your music source in the palm of your hand and listening to it through your home stereo.

-

Main module:

Turn on the module, the blue LED flashes slowly.

Double-click S1 to put the module in binding mode. The blue LED flashes quickly. (Voice: matching)

Now, the smartphone will be able to find a new Bluetooth device whose name is "CSR8675". Connect it.

You can play the music now. If you only use one module as a normal receiver. You don't need to take the following steps.

Click S2, set the module to transmitter mode. (Voice: transmitter mode)

-

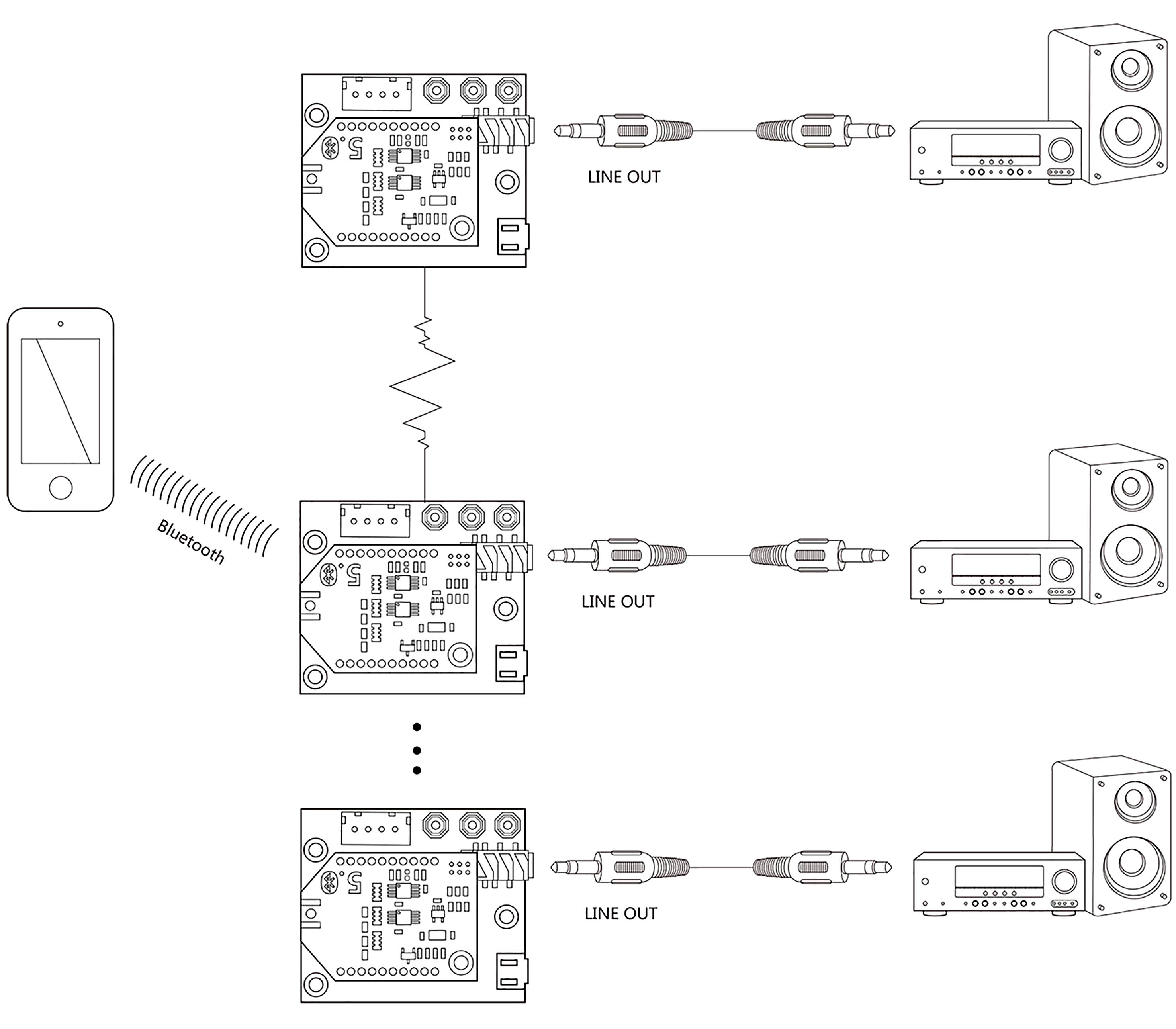

Slave module:

Turn on the module. Blue LED flashes slowly.

Make sure the master module is already working properly and in transmitter mode. Click on S3 to set the salvo module to receiver mode. It will automatically search for the master module. (Voice: Receiver Mode, Search)

Double-click S2 on the Master module. The master module will perform the automatic search (30s) of the slave module. Both master and slave modules will be connected. (Voice: search)

The slave module will output the music now.

If there is a new module, you want to join as a slave mode. Just click S3 on the new module and double click S2 on the Master module.

If a slave module wants to exit. Click S2 on that module.

Note: If you don't hear the voice prompt when clicking S2. Click S3 to switch to mode, then click S2 again.

-

Features:

Size: 44 * 38 * 11mm

Multipoint connection

Bluetooth 5.0

Apt-X supported

Qualcomm cVc audio technology

Qualcomm TrueWireless technology

Stereo reception

Effective transmission distance: 10-15m

Mcro female USB port for powering the receiver from any USB power source (5 VDC)

Compatible with all Bluetooth devices that support multimedia audio, including the iPhone
