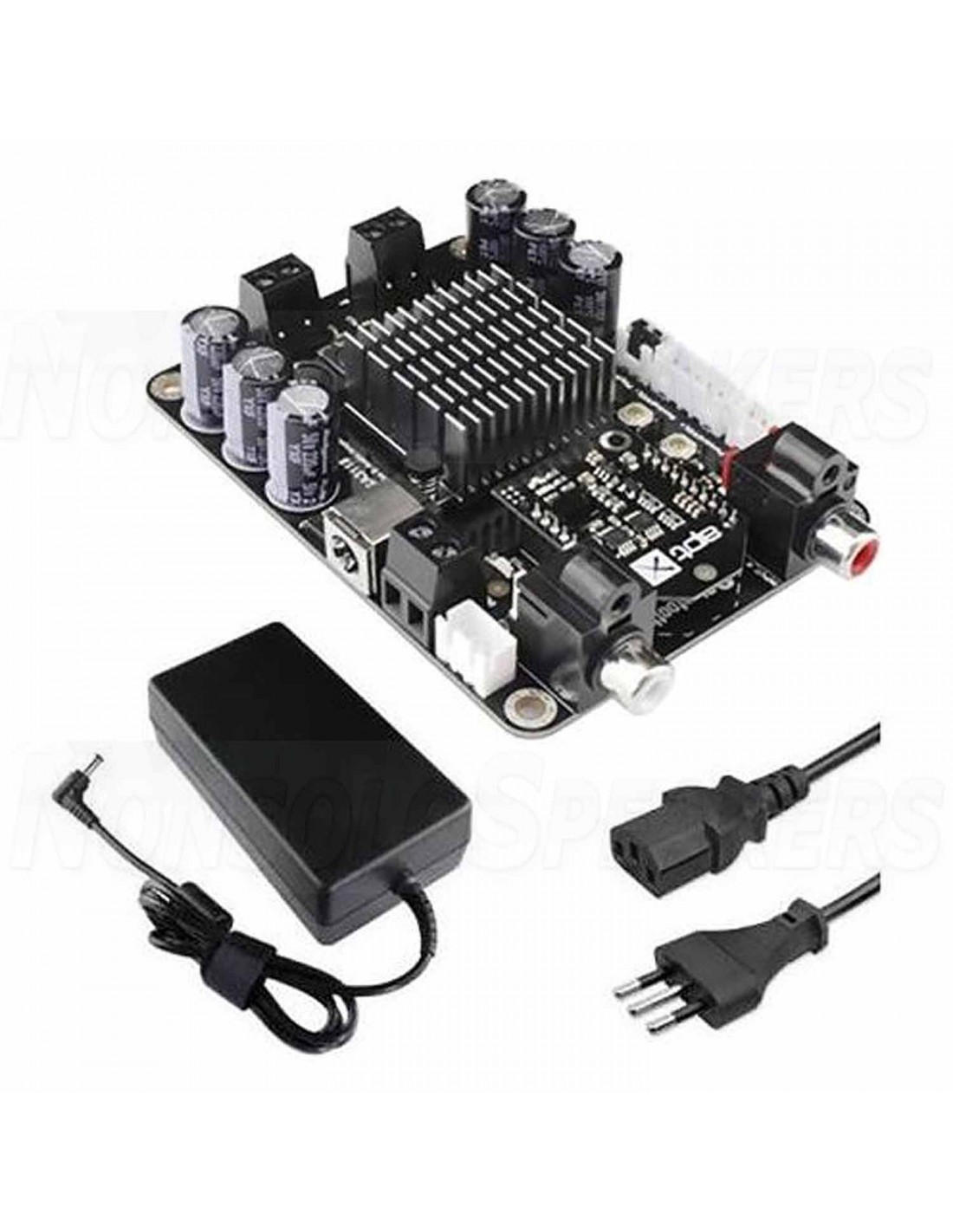

LUXUS AUDIO AMB2050TR KIT2 - Amplifier Bluetooth TWS APT-X 2x50W , Cable

The Board AMB2050TR is a Class D amplifier based on the TPA3116D2 chip with integrated bluetooth module

The output power of the class D amplifier is 50W with a supply voltage of 24V. The voltage range supported varies from a minimum of 10V to 24V. It drives passive loudspeakers that vary from a nominal impedance of 4 to 8 ohms.

The sources used, in order to send music signal to the Class D amplifier, can be connected via cable (RCA) or by means of Bluetooth 4.0 protocol, selectable via micro-switch located on the board.

AMB2050TR can automatically detect the Aux / Line input in the audio input. Bluetooth audio source has a higher priority. When Bluetooth audio is paused or bluetooth is disconnected. The amplifier will output Aux in / Line audio. If you want to manually select the Aux in / Line in and bluetooth audio source, select AMB2050TR.
TWS mode supported. Users can transmit audio to 2-pair amplification boards simultaneously wirelessly.

Multiple AMB2050TR cards can be connected together to become a multi-channel amplification system. The audio output port can also be connected with a subwoofer amplifier board. BVC port: the BVC port can connect with our audio volume controller to control the Bluetooth audio volume.

The highlight is supported by APT-X and TWS. Therefore, users can transmit audio to 2-pair amplification boards at the same time wirelessly. It is perfect for your Hi-Fi application. You may want to pair a cell phone or computer (etc.). Power the amplifier board. Use your phone or PC (etc.) to search for a new Bluetooth device. The form will appear as "AMB2050TR". You don't need a PIN, match it and then you can listen to music.

AMB2050TR can automatically detect the Aux / Line input in the audio input. Bluetooth audio source has a higher priority. When Bluetooth audio is paused or bluetooth is disconnected. The amplifier will output the TV sound.

AMB2050TR + AMB2050TR, Both RCA inputs and Bluetooth audio volume can be controlled via the BVC port.

Multiple AMB2050TR cards can be connected together to become a multi-channel amplification system. The audio output port can also be connected with a subwoofer amplifier board.

SPECIFICATIONS AMB2050TR

Altre Caratteristiche Scheda AMB2050TR
