WONDOM AA-AB31316 - 1x400W Amplifier Class D - T-AMP

WONDOM AA-AB31316 - 1x400W Amplifier Class D - T-AMP

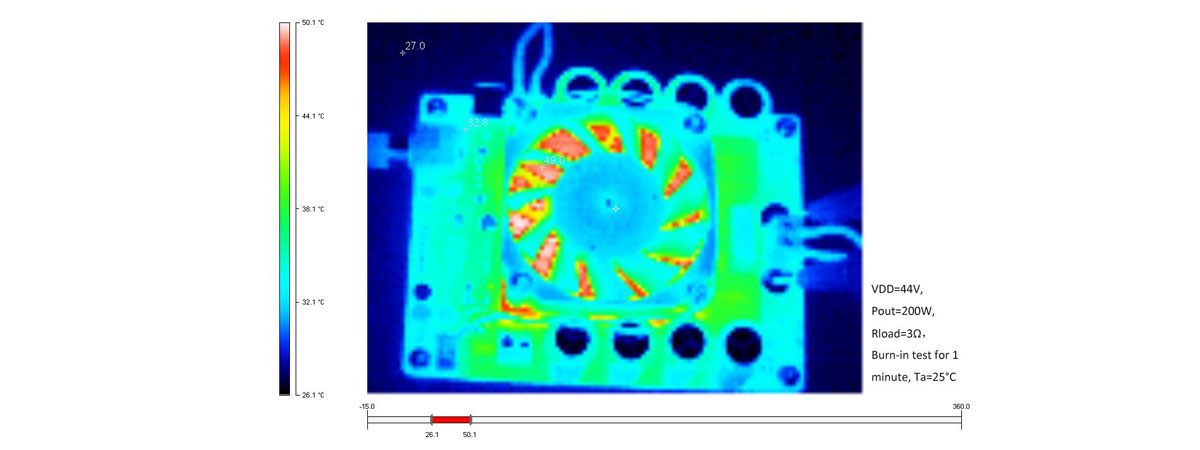

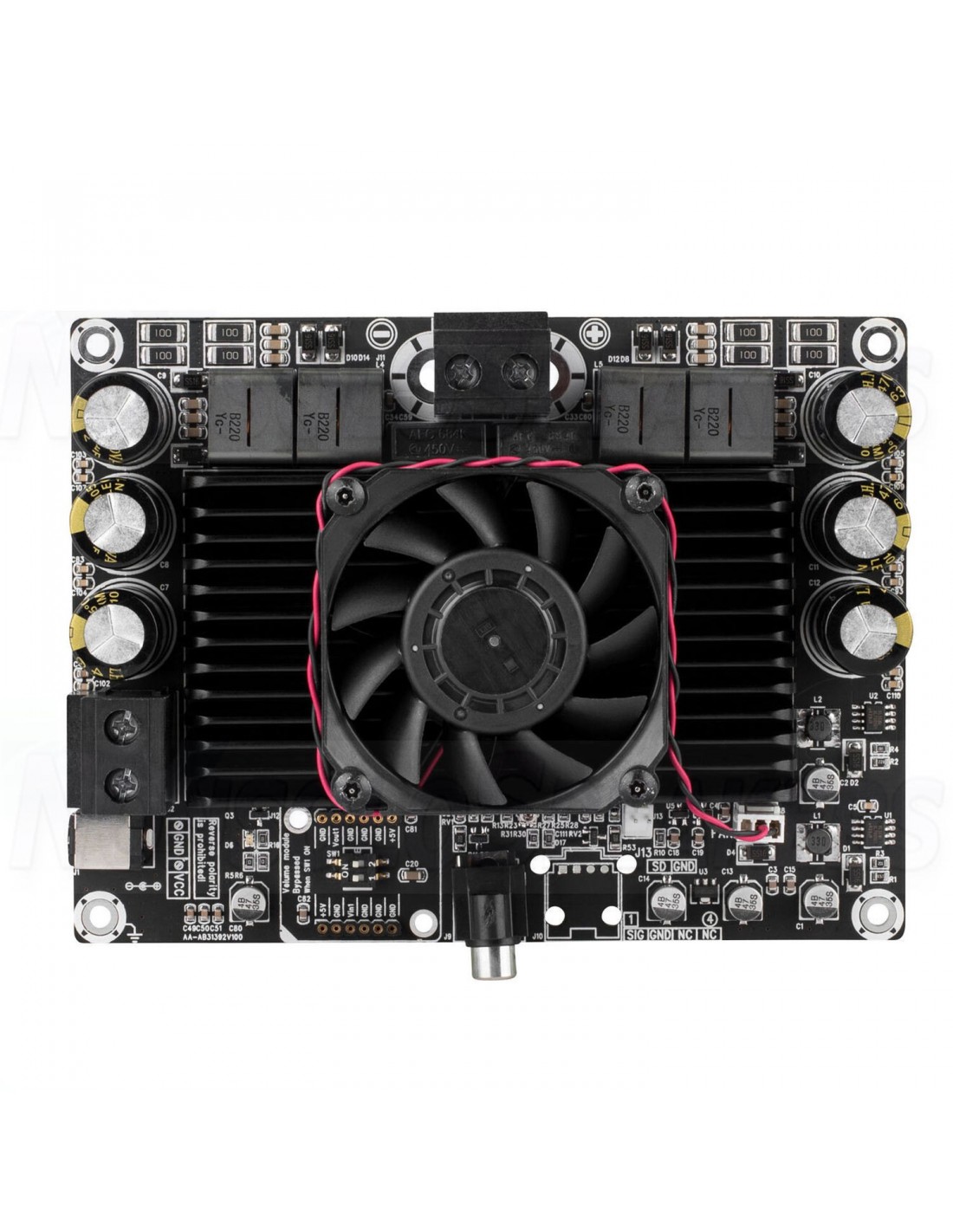

This AA-AB31315 1x400W audio amplifier board uses Sure Electronics' T-AMP technology, which features low distortion and low noise level. This amplifier board supports mono amplification using PBTL topology. Thanks to the dedicated heatsink design with temperature controlled fan, it is capable of delivering a maximum single channel power of 400W RMS at 3ohm without using an additional heatsink.

In addition to the integrated chip protection, ESD and discharge protection components used throughout the amplifier board's input and output ensure its robustness and reliability. Recommended power supply: ALC24V6AJ

Maximum current 400 W @ 3 Ohm 44 V
Supply Voltages - 15-46 V
Efficiency 200 W @ 3 Ohm 90-95%
Idle Power
SD Floating, FAN ON

SD Floating, FAN OFF

6.7-10 W

5.8-9 W

Swhitching frequency SD Floating 700 kHz
Standby power SD connected to GND, FAN OFF 0.8-2.4 W
Input sensitivity (RMS) - 1.3-1.8V
Input impedance - 10-11 KΩ
Gain - 31 dB
Minimum load impedance - 2 Ω
Power output
@ 3 Ω THD + N 1%

@ 3 Ω THD + N 10%

300 W

400 W

Bandwidth @ ± 3dB @ 1.5 Ω 20-20K Hz
THD
@ 3 Ω, 1W, 1KHz

@ 3 Ω, 10W, 1KHz

0.0056-0.01%

0.078-0.1%

Output Noise Level Weighting, Input connected to GND 217-400 mV
SNR 150 W @ 3 Ω THD + N 1% 96-100 dB
Temperatures
- 50 ° C
Other Features Board AA-AB31316
Specific Parameters
T-AMP chip
Dimensions 12.2 x 9.1 x 3.8 cm.
Power 1 x 400W
Amplifier Class D
Volume control Optional
Short circuit protection Yes
Overtemperature protection Yes

Performance
