ICEpower 300A2 Amplifier Module

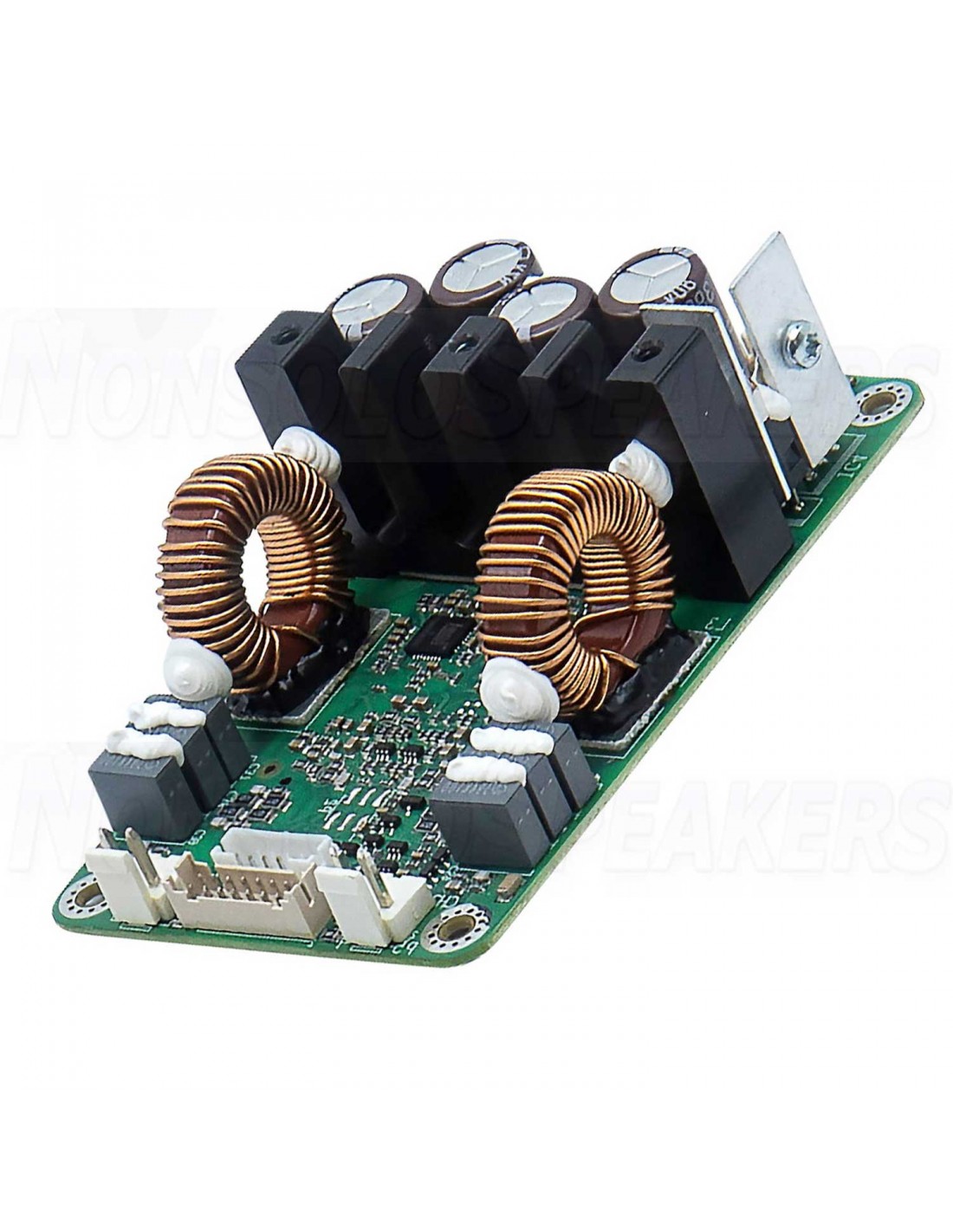

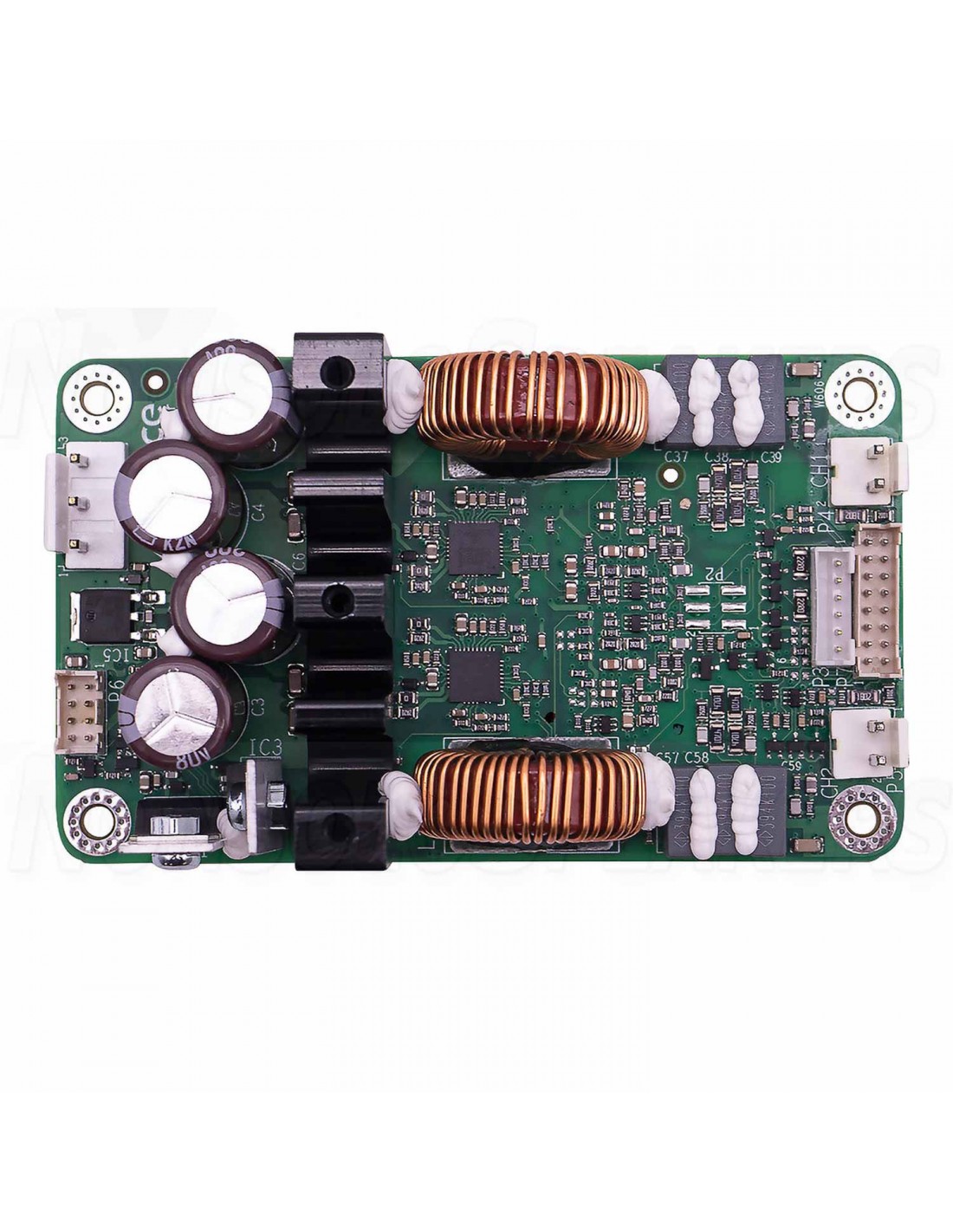

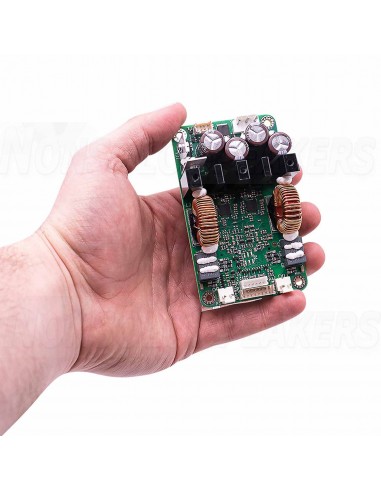

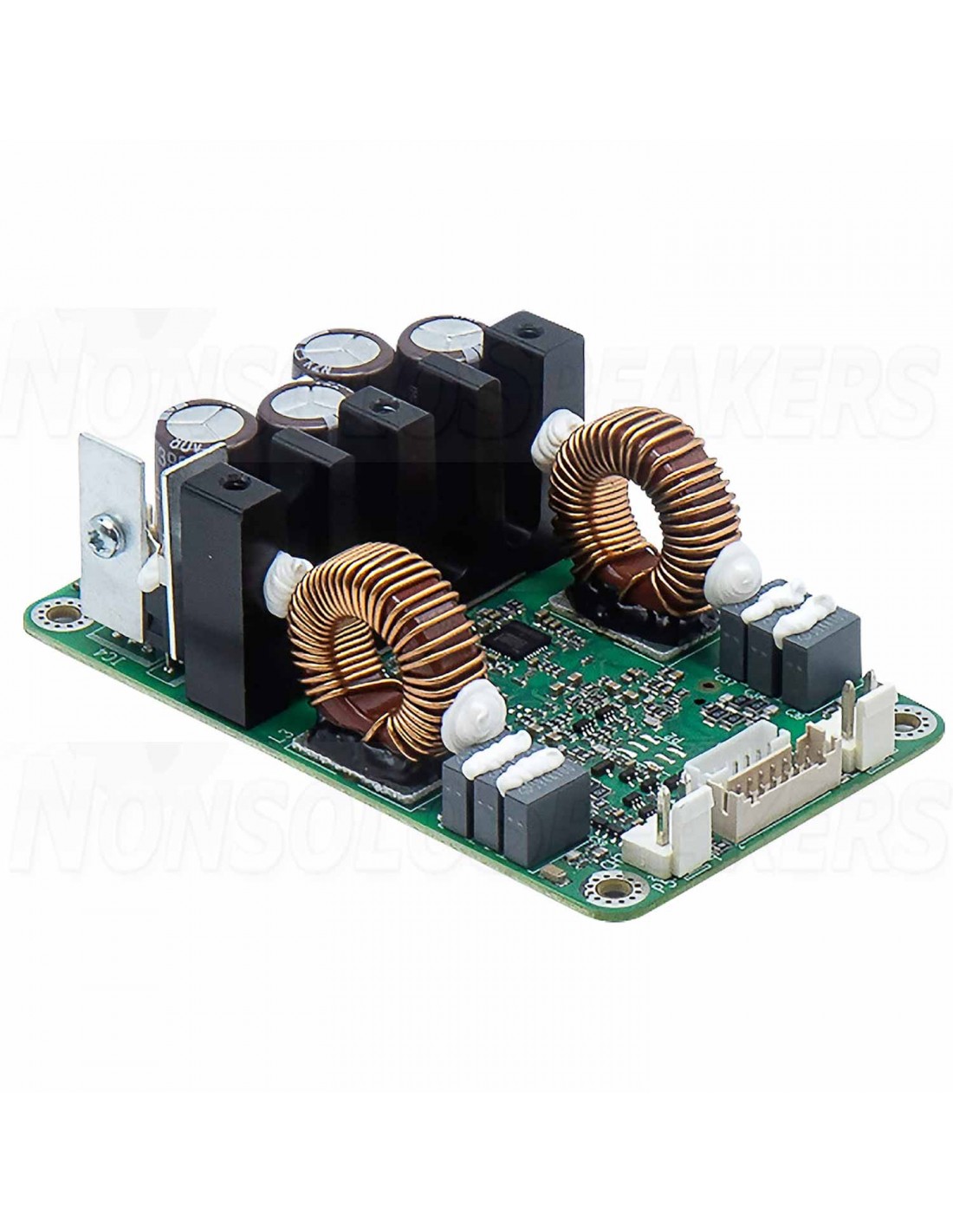

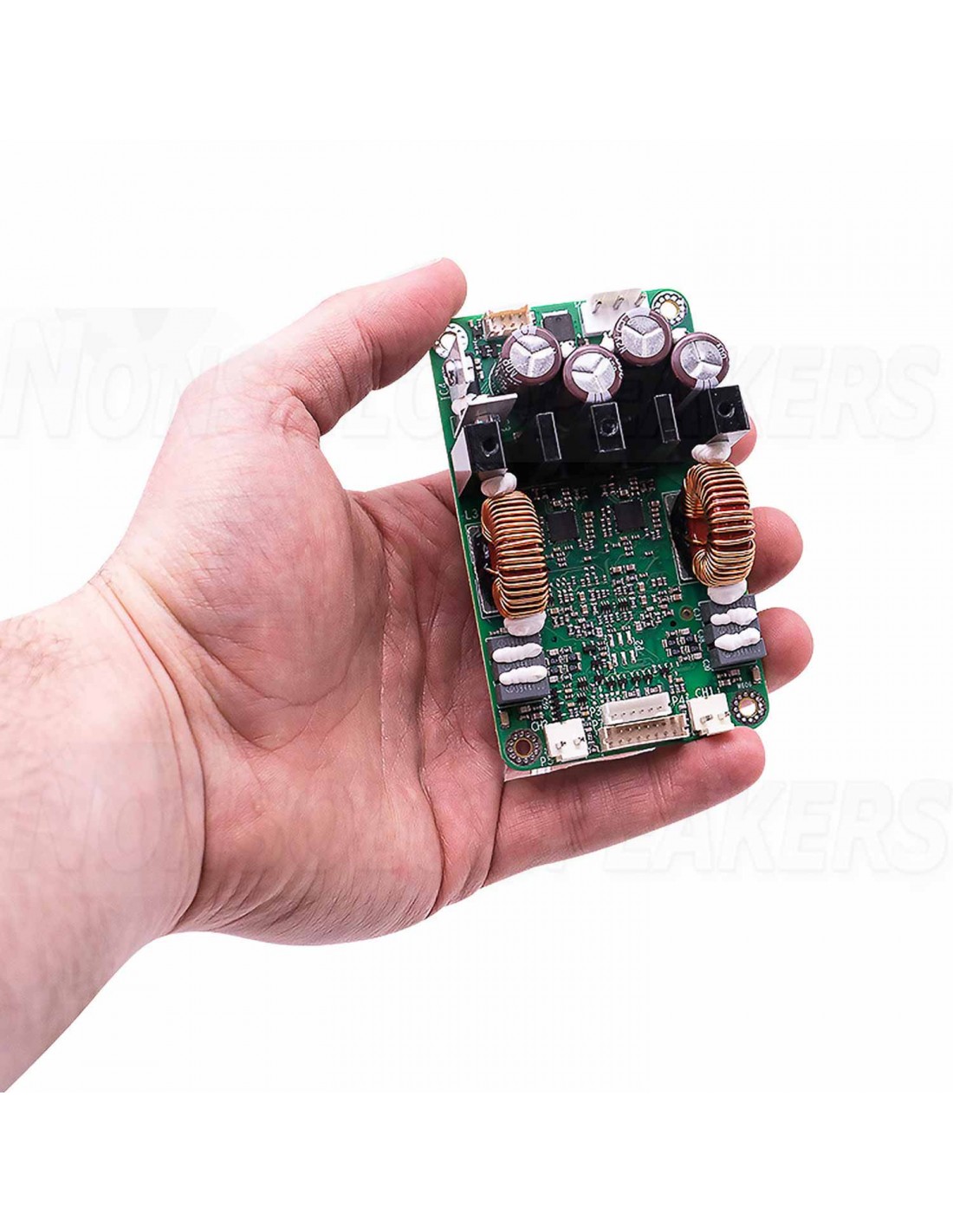

ICEpower 300A2 Amplifier Module The 300A2 provides two channels with the outstanding audio quality from a small footprint. This module incorporates the state of the art ICEedge Chipset technology, enabling superior sound quality with an ultra-low noise floor, of a typical 22 µV for a signal-to-noise ratio of 123.5 dB. It may be used as a singled ended two-channel power amplifier for driving two 4Ω loudspeakers or as one channel amplifier to drive an 8Ω speaker in BTL mode. The 300A2 provides comprehensive protection and monitoring functions with a user-friendly control interface. The dedicated monitor outputs allow for a real-time protection system on the loudspeaker output voltage. The module is designed for high continuous output power making it ideal, not only for home audio but also for more demanding applications such as studio monitors and high-performance amplifiers for PRO audio speakers. The integrated aluminium heatsink can easily be extended to an external heatsink for improved long term output power. This unit is perfect for adding two channels to the 700AS1 and 700AS2 modules.
.

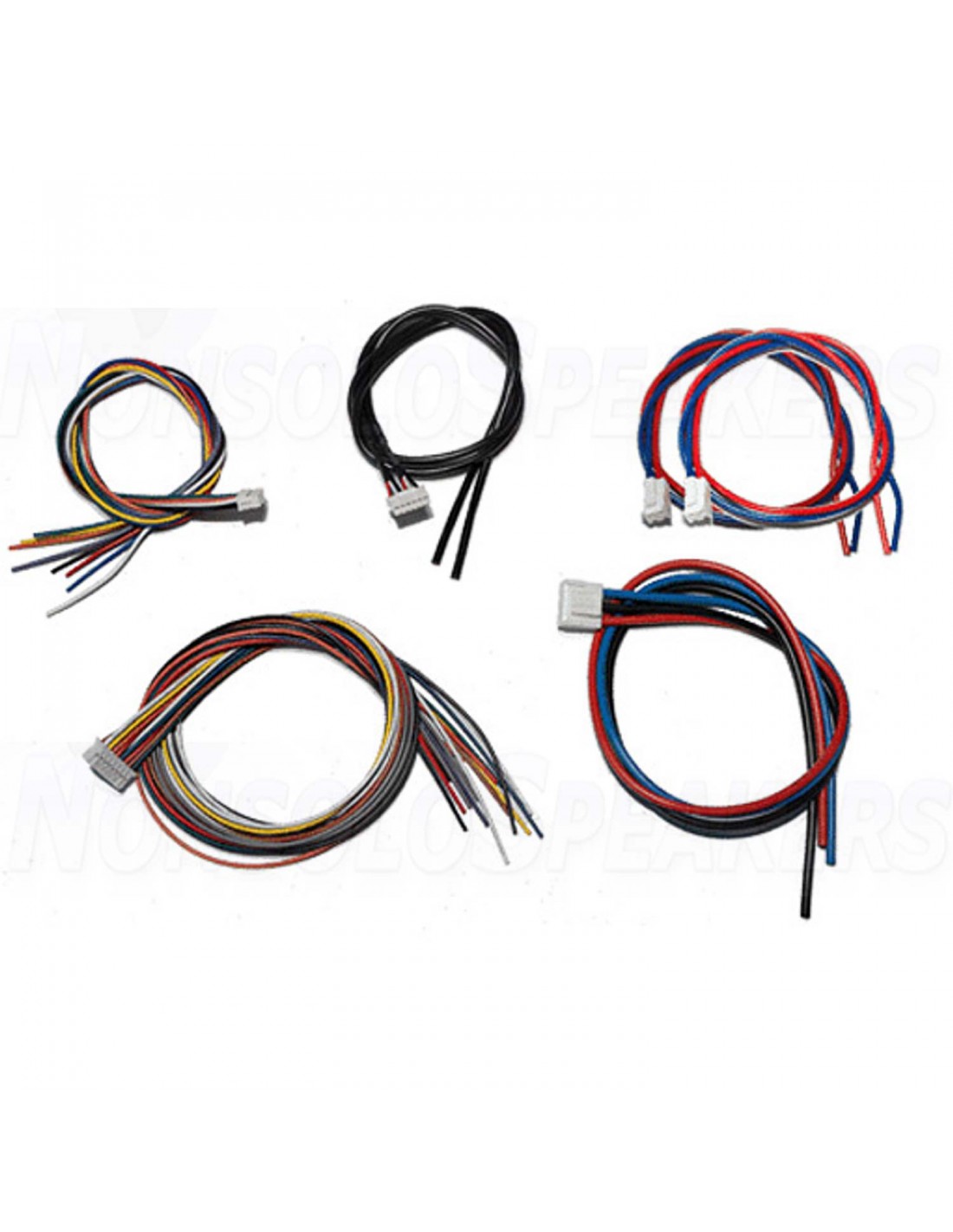

Cable Set
The included cable set allows access to all features of the 300A2. The kit contains cables with all the right connectors on one end. The other ends are left unterminated so you can terminate the wires with the connections of your choice.
.
Highlights
Can be configured as a two-channel
SE-amplifier or a single channel BTL-amplifier
Flexible mounting
Designed as hanger module for 1500S-57V and 1200AS1/1200AS2
Thermal, over-current, over- and under-voltage protection Fits 1U enclosures
Fully differential audio inputs Amplifier
Disable function
Clip detect signals for both channels
Real-time voltage monitor output for both channels
.
Specifications
Article number 300A2
Rated power output 2x 300 watts at SE, 4 ohms 2x 600 watts at BTL 8 ohms
Minimum load 3 Ohm
Efficiency > 90%
Distortion 0.002 %
THD+N Gain 25.7 dB
Input impedance 38 kOhm
Amplifier Classification Class D
Speaker output channels 2
Current limit 20 A
Dimensions (L x W x H) 100 x 60 x 35 mm
Mounting hole diameter 3.5 mm
.
What’s In The Box?
1 x 300A2 amplifier module
Cable set:
1 x (NA) Audio input 2 channel
1 x (NH) Hanger Small Signal Supply
2 x (F) 2pole Universal Speaker
1 x (NK) Basic+ control/features (16 pins)
1 x (NG) Hanger Rail Supply
