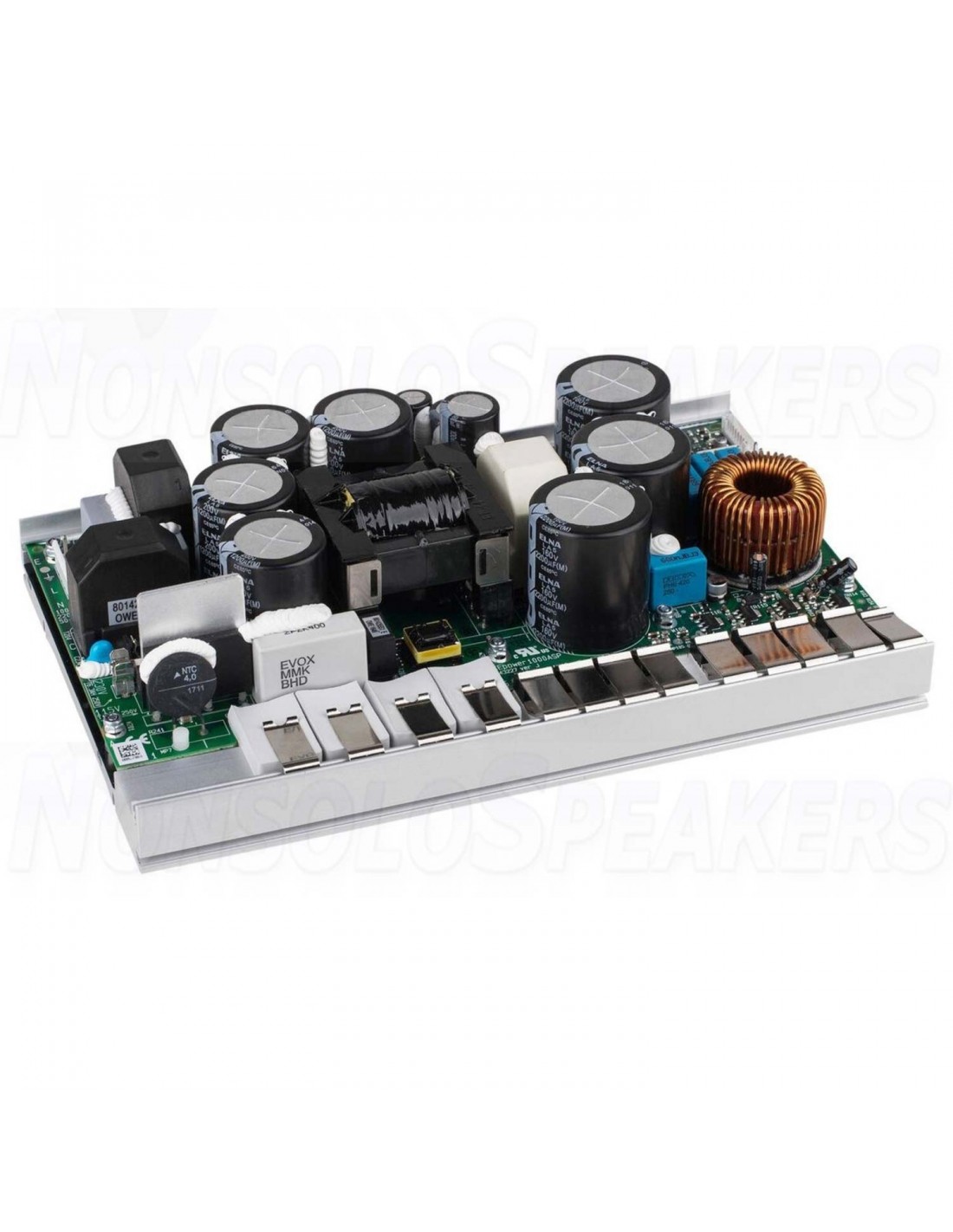

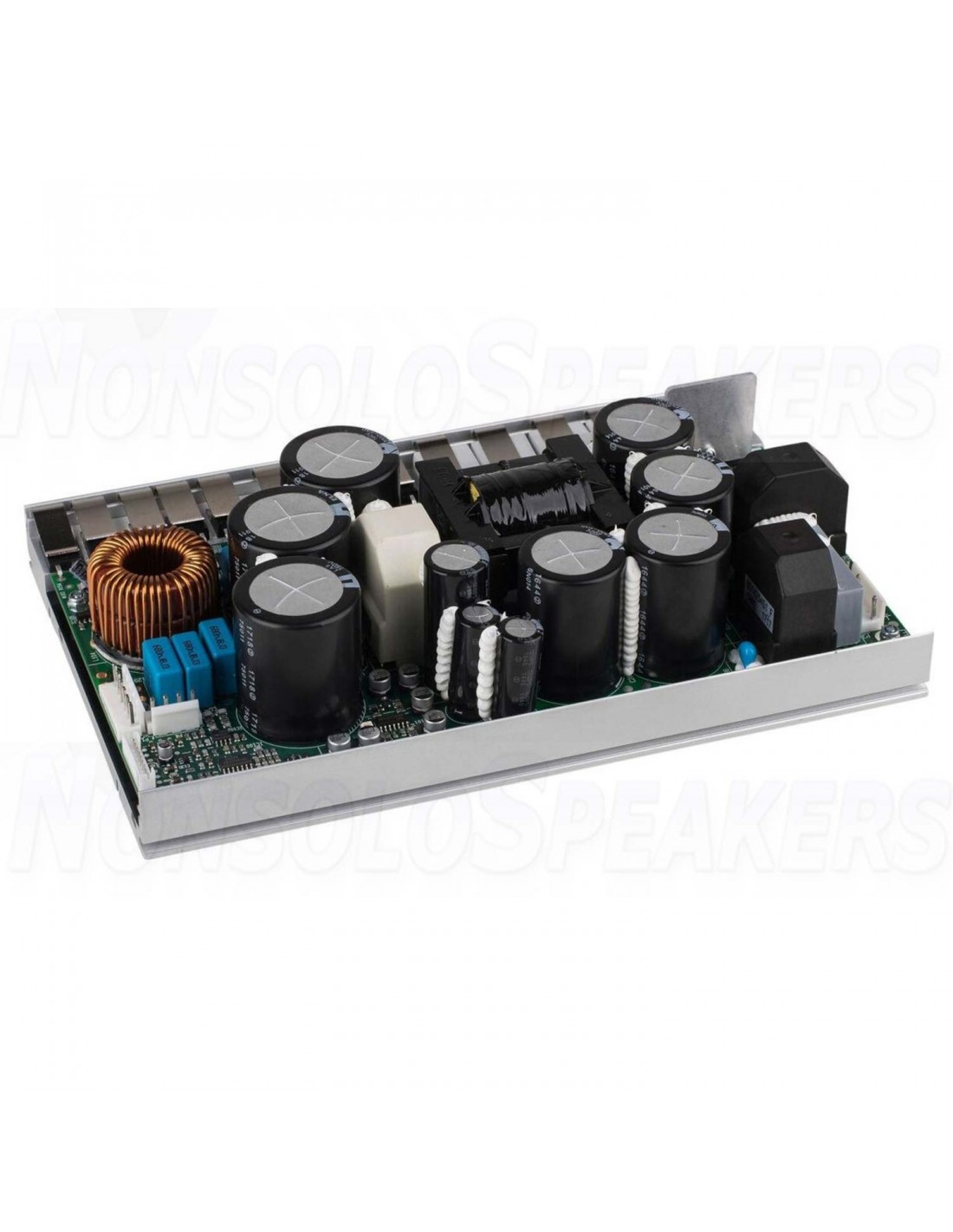

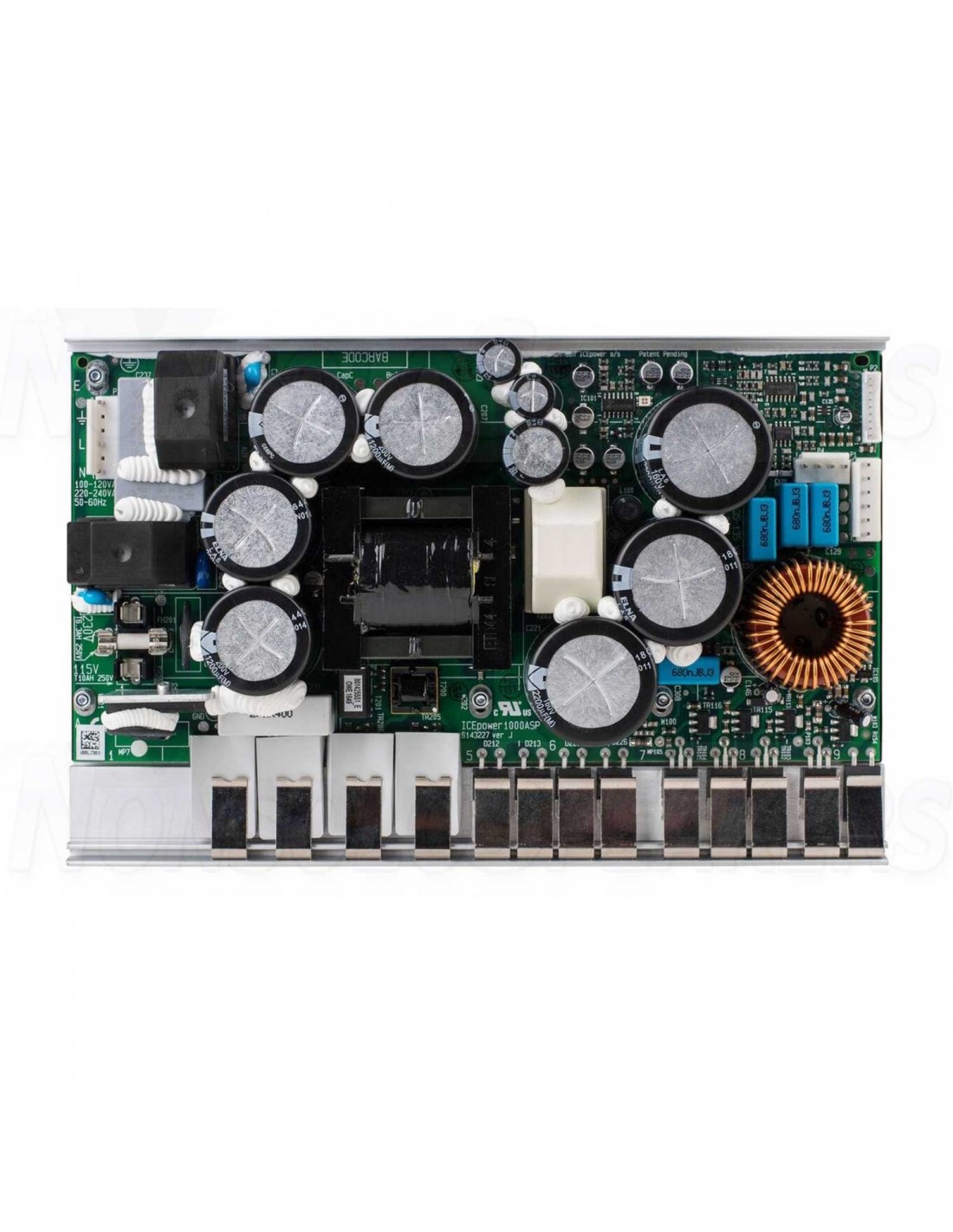

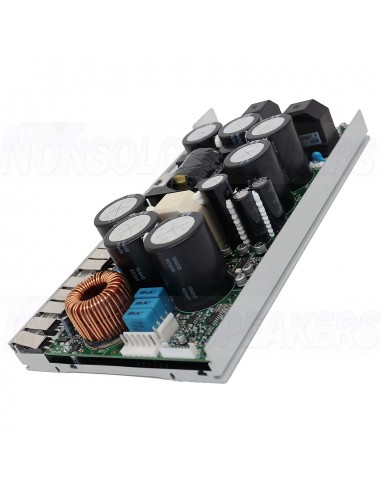

ICEpower 1000ASP Amplifier Module with Integrated Power supply
The ICEpower 1000ASP is a high-performance and extreme reliable amplifier module with an integrated power supply. The amplifier section is essentially the 1000A module without the bandwidth limit and is capable of 1000-watts of output power. Designed to withstand the demands of professional (live concert) applications, not only in terms of sound quality but also on ruggedness and reliability. The ASP-series is the self-contained amplification solution from our amplifier modules category, fit for your most demanding applications. The ICEpower 1000ASP offers extreme power and high fidelity from a relatively compact package. Thanks to state-of-the-art ICEpower® analogue technology. True high-end performance is guaranteed by the patented, proprietary COM-modulation and MECC-control techniques. The turn-key design shortens the time to implement amplification in your end product drastically. The connection interface uses industry-standard Molex Micro-Fit and JST PH-series connectors. The power supply of the 1000ASP includes a DC hanger bus output, which can be used for powering additional 500A or 1000A modules. This makes it very convenient to create 2- or 3-channel amplifiers, combining the 1000ASP with the 500A and the 1000A.
.

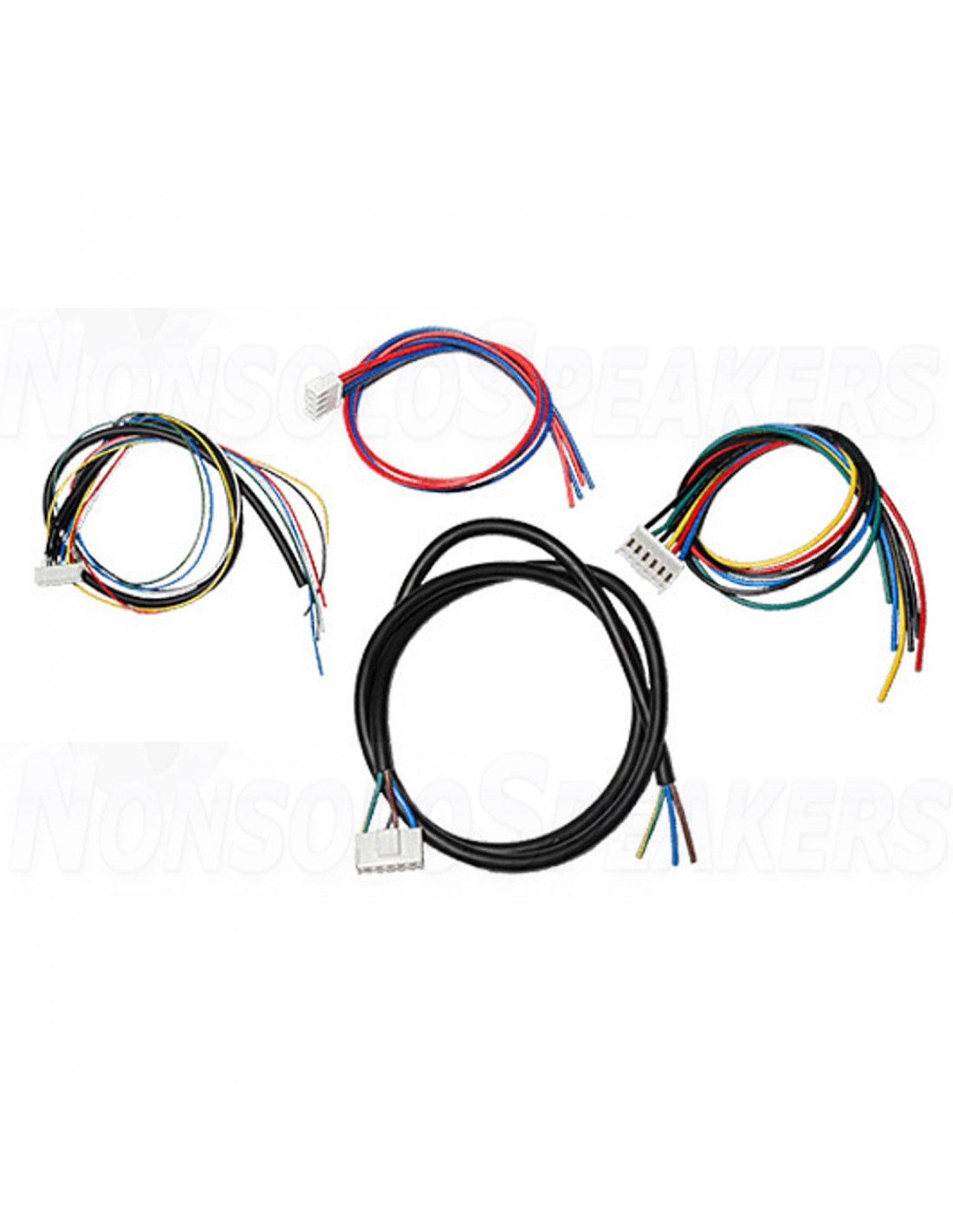

Cable Set
The included cable set allows access to all features of the 1000ASP. The kit contains cables with all the right connectors on one end. The other ends are left unterminated, so you can terminate the wires with the connections of your choice.
.
Product description
Highlights of the ICEpower 1000asp
Very rugged construction for professional use
Amplifier and power supply in one
Comprehensive protection scheme
Suitable for CE approved designs
Power output for ICEpower 500A and/or 1000A ±12.8 volt auxiliary output
Selectable mains 115/230Vac
Safety conforms to UL/IEC 60065 and others
.
What’s In The Box of the ICEpower 1000asp?
1 x 1000ASP Amplifier Module with Integrated Power supply
Cable set:
1 x (D) Signal ASPseries
1 x (G) SPK 1 x (E) ASPseries DCbus
1 x (H) Mains with Earth
.
Specifics
Article number 1000ASP
Rated power output
1x 1000 watts at 4 ohms
1x 525 watts at 8 ohms
Minimum load 2 Ohm
Efficiency 83%
Distortion 0.007 % THD+N
Gain 26.7 dB
Input impedance 8 kOhm
Amplifier Classification Class D
Speaker output channels 1
Power Requirements 115-230 VAC
Current limit >50 A
Dimensions (L x W x H) 233 x 150 x 57
Mounting hole diameter 3.5 mm
