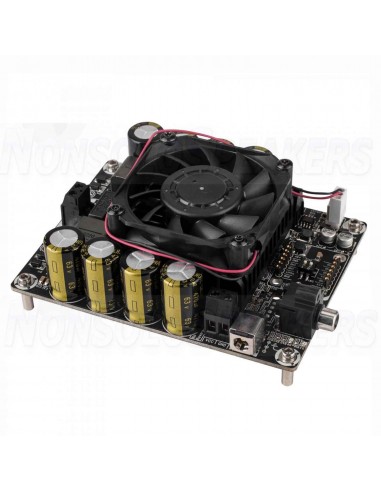

Here comes the 1 x 500W amplifier board, AA-AB31511. This audio amplifier board uses the T-AMP Sure Electronics - STA516BE technology, characterized by low distortion and low noise level. This amplifier board supports mono amplification using the PBTL topology.

Out-of-Stock
€53.00
Tax included
rating No review at the moment


Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



WONDOM AA-AB31511 - 1x500W@3ohm amplifier class D T-AMP

Here comes the 1 x 500W amplifier board, AA-AB31511. This audio amplifier board uses the T-AMP Sure Electronics - STA516BE technology, characterized by low distortion and low noise level. This amplifier board supports mono amplification using the PBTL topology.

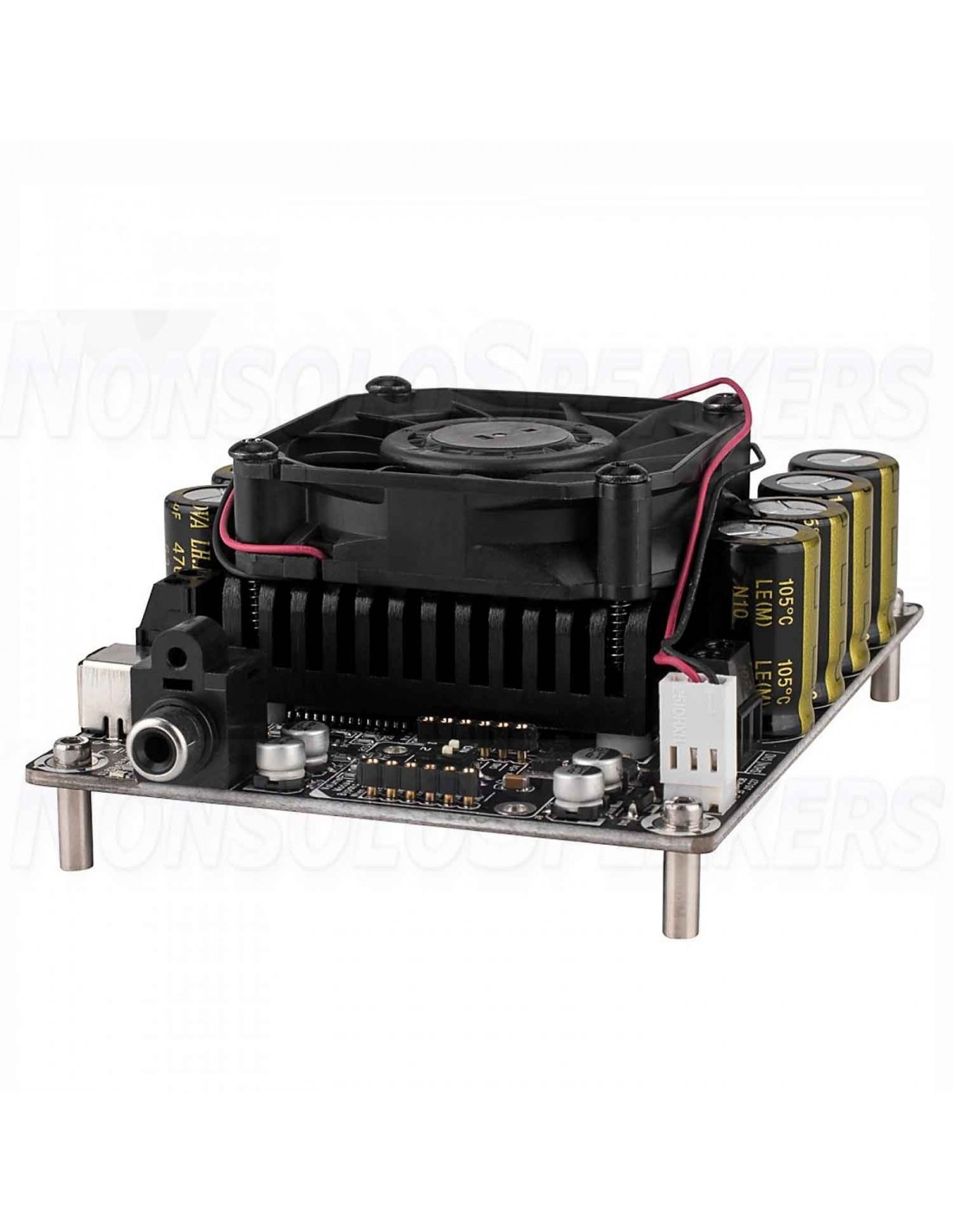

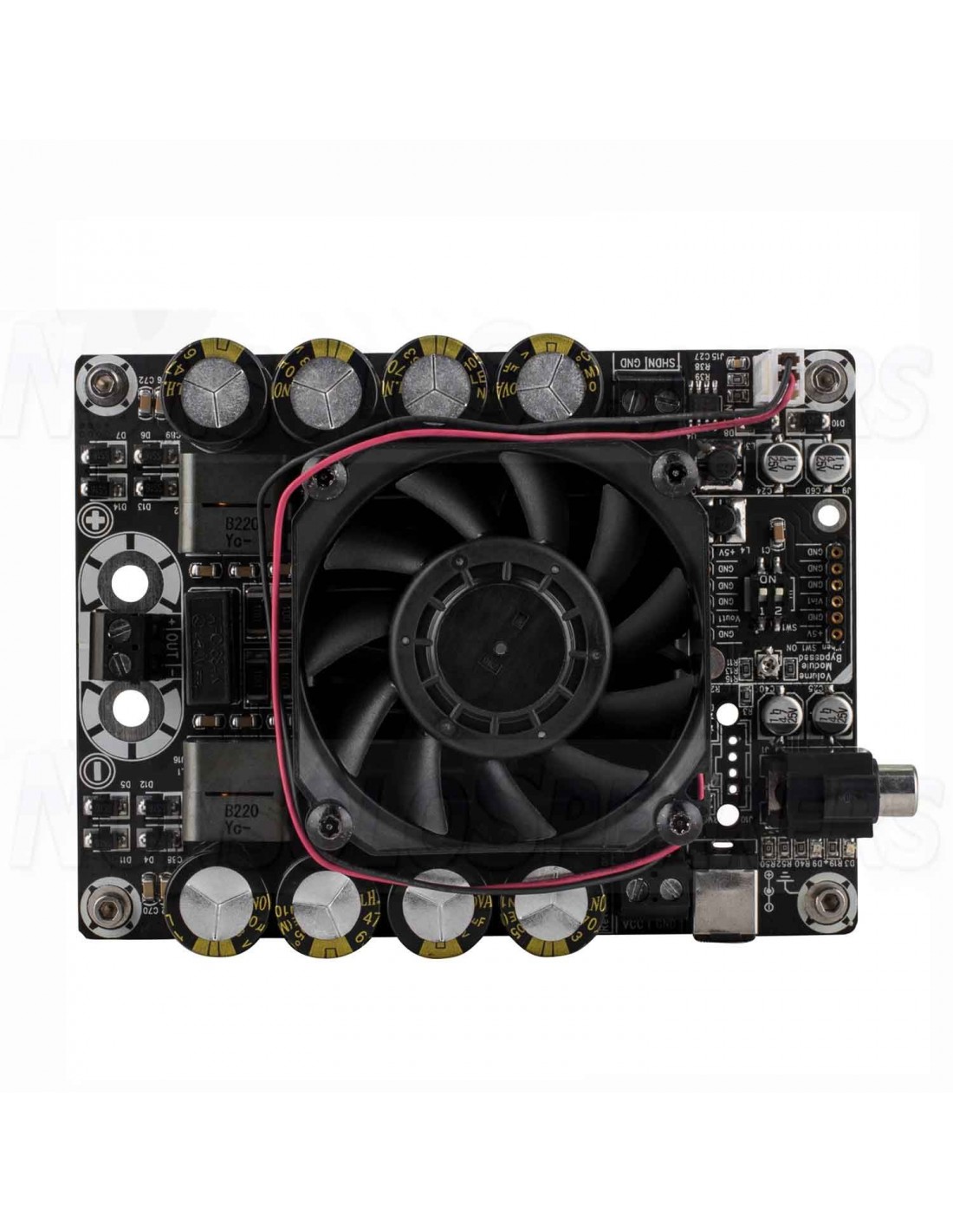

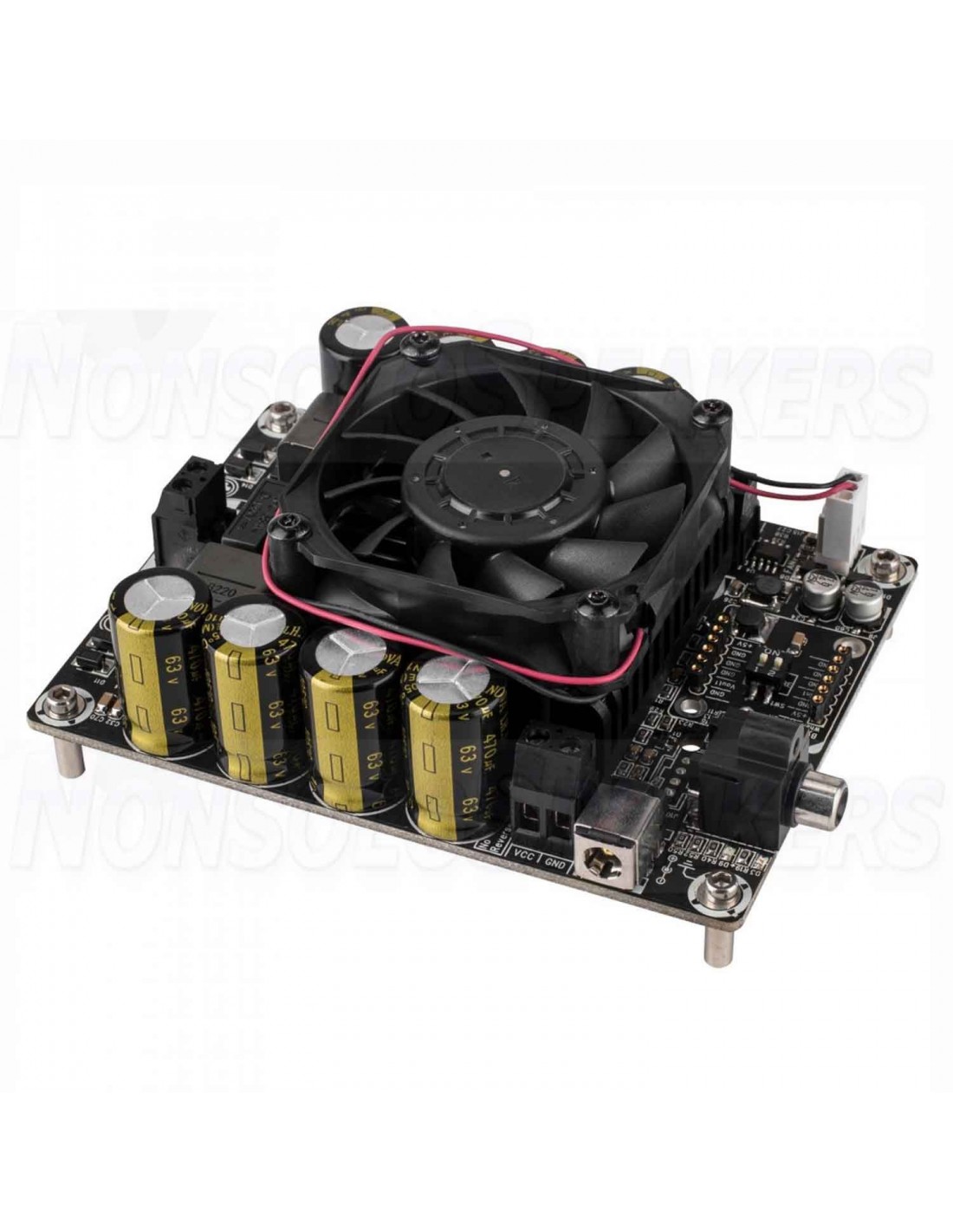

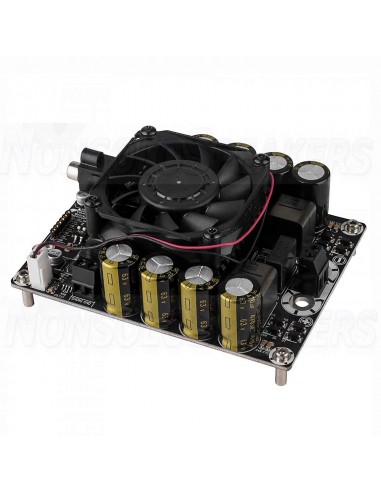

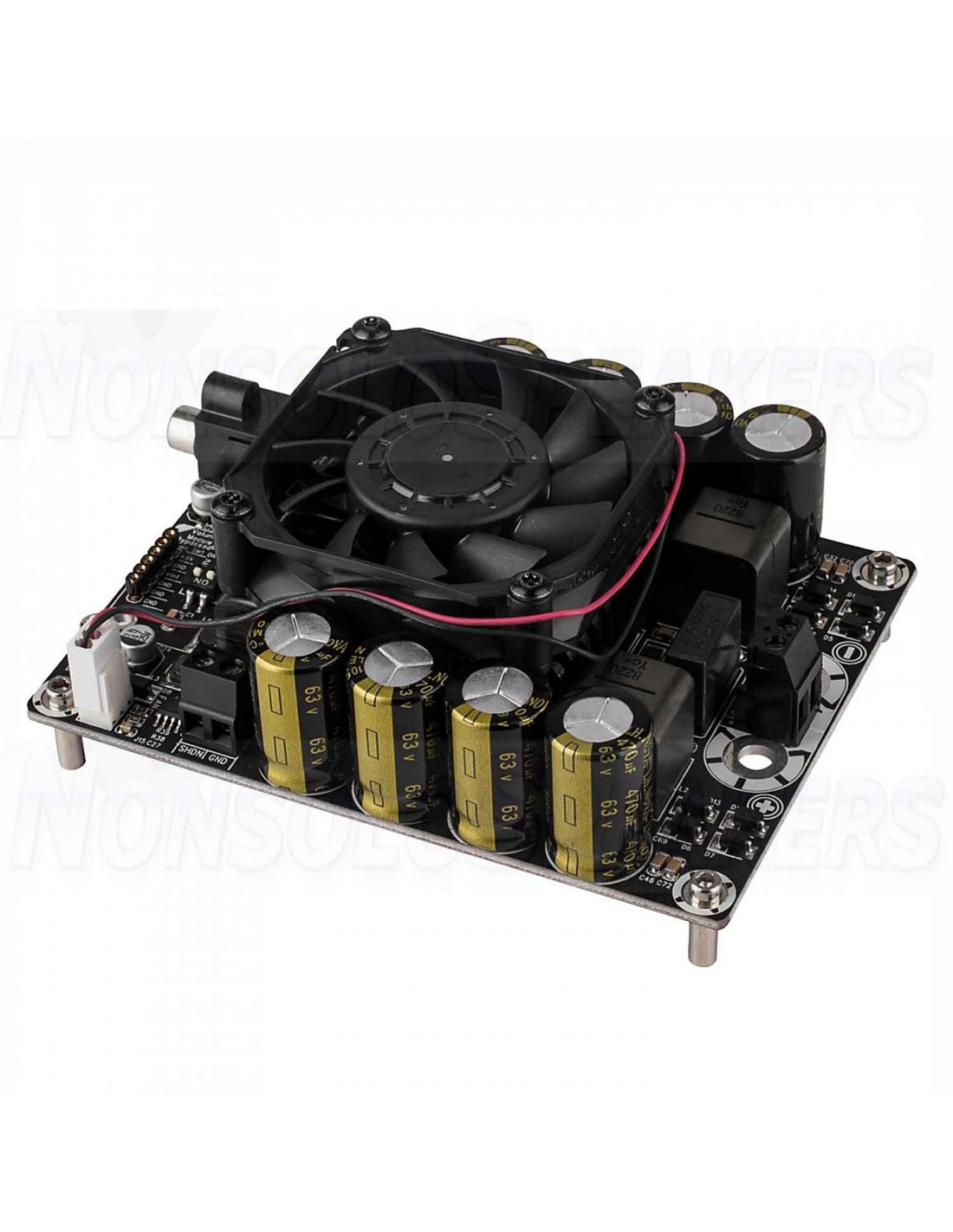

Thanks to the design of the dedicated heat sink with temperature controlled fan, it is able to supply a maximum power to a 500 W RMS @ 3ohm channel without using an additional heat sink. In addition to the integrated protection of the chip, the ESD protection components used in the entire input and output of the amplifier board guarantee its robustness and reliability. Recommended power supply: ALC24V6AJ.

Dettaglio di connessione amplificatore in classe D

FEATURES AA-AB31511

Parametri  Condizioni di Test Valori
Corrente massima 500 W @ 3 Ohm 50 V
Tensioni di Alimentazione  - 15-52 V
Efficienza 1000 W @ 1.5 Ohm 91-96 %
Potenza Inattiva

SD Floating, FAN ON

SD Floating, FAN OFF

9.7-15 W

8.5-13 W
Frequenza Swhitching SD Floating 680 kHz
Potenza in Standby SD collegato a GND, FAN OFF 1-3 W
Sensibilità  di ingresso (RMS) @ 3 Ω, 500 W, 1 KHz 1.3-1.8 V
Impedenza di ingresso - 10-11 KΩ
Guadagno - 31 dB
Impedenza di carico minima - 2 Ω
Potenza in uscita

@ 3 Ω THD + N 1%

@ 3 Ω THD + N 10%

350 W

500 W
Larghezza di banda @ ± 3dB @ 3 Ω 20-20K Hz
THD

@ 3 Ω, 1W, 1KHz

@ 3 Ω, 10W, 1KHz

0.0072 %

0.0085 %
Livello di rumore in uscita Ponderazione, Ingresso collegato a GND 225 mV
SNR 150 W @ 3 Ω THD + N 1% 95-100 dB
Temperature
 - 50 °C

OTHERS FEATURES  AA-AB31511

Parametri Specifiche
Chip T-AMP STA516BE
Dimensioni 12,1 x 9,1 x 3,8 cm.
Potenza 1 x 500W
Classe Amplificatore D
Controllo di volume  Opzionale
Protezione da cortocircuiti Si
Protezione da sovratemperatura Si

Performance

Amplificatore Digitale Classe D

Amplificatore Digitale Classe D

Amplificatore Digitale Classe D

Amplificatore Digitale Classe D
