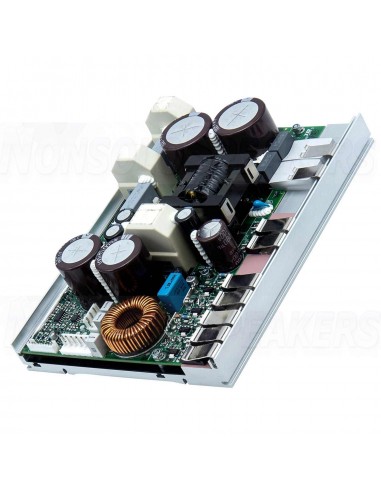

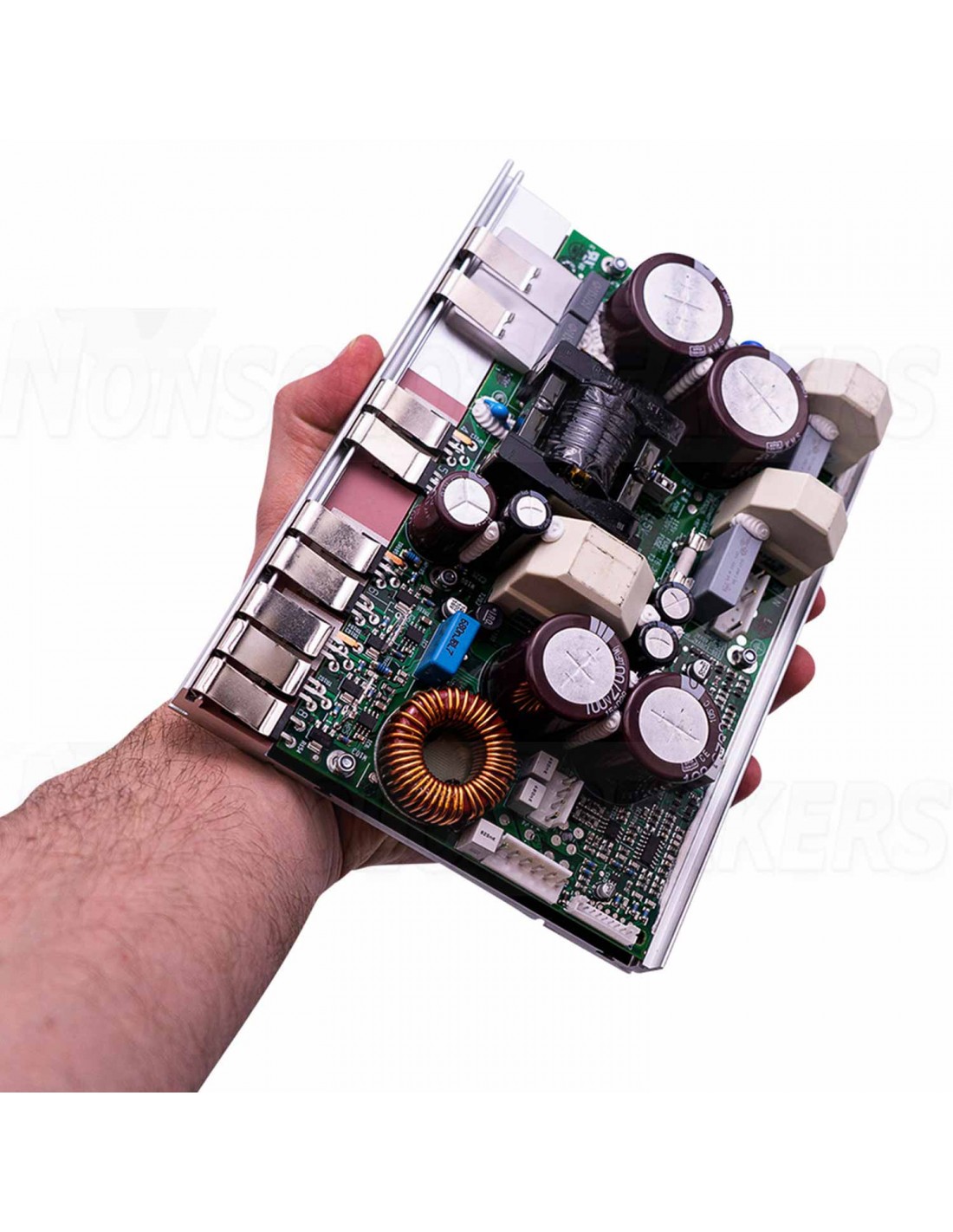

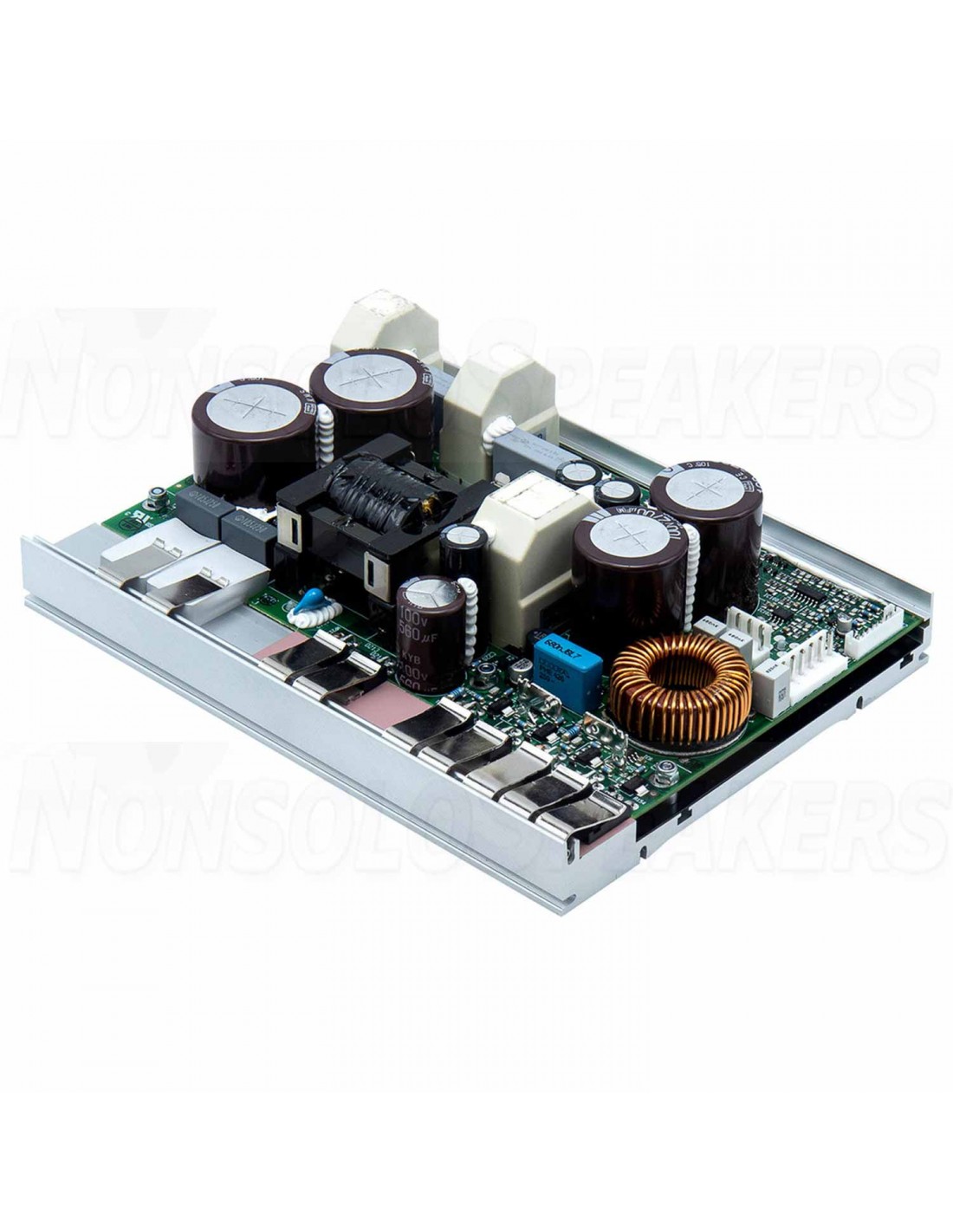

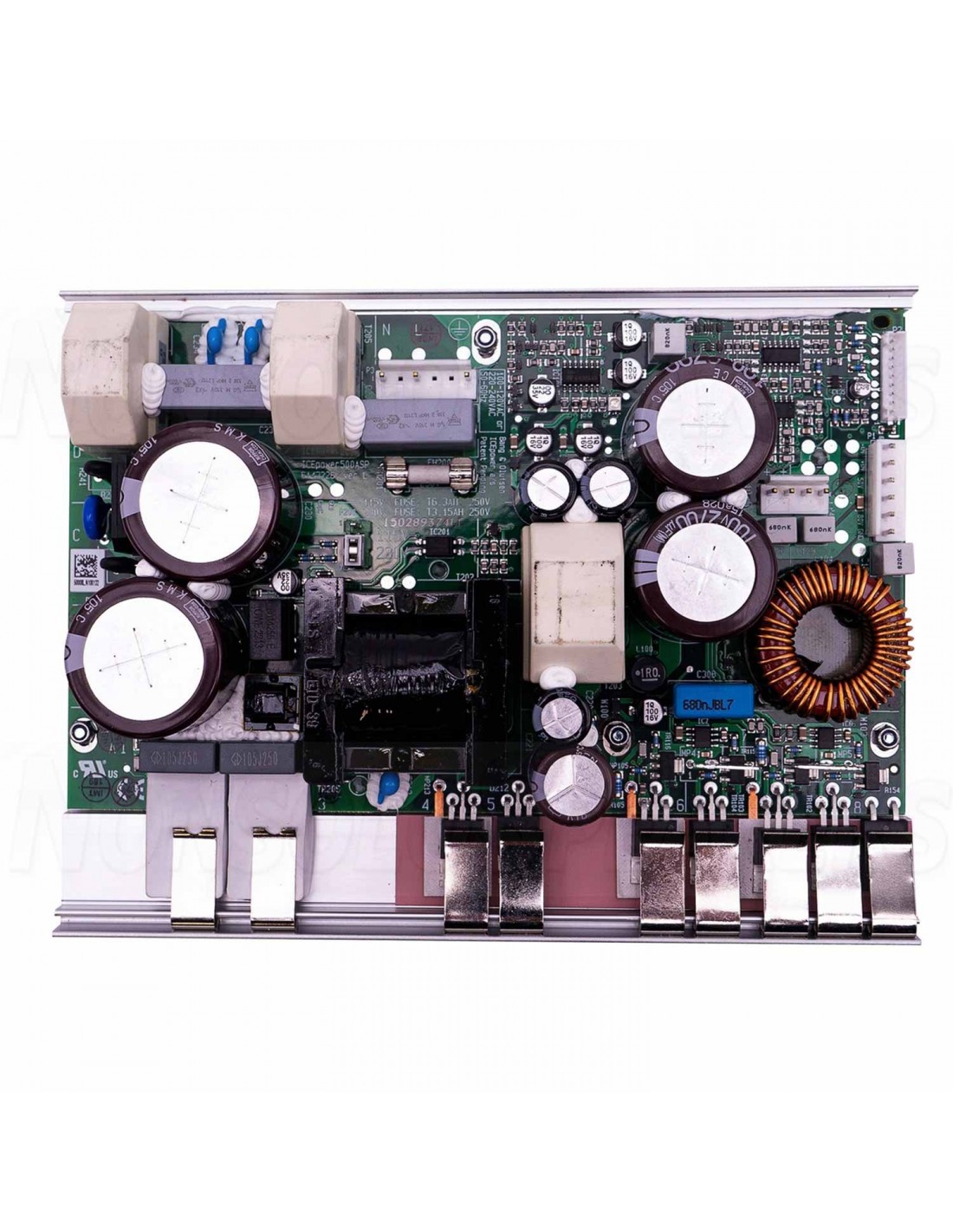

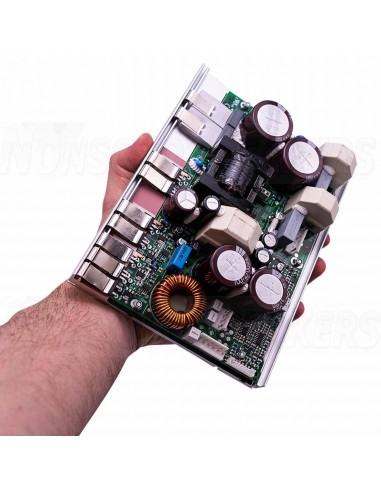

ICEpower 500ASP Amplifier module with integrated power supply

ICEpower 500ASP Amplifier Module with Integrated Power supply The ICEpower 500ASP is a high-performance and extreme reliable amplifier module with an integrated power supply. The amplifier section is essentially the 500A module and is capable of 500-watts of output power. Designed to withstand the demands of professional (live concert) applications, not only in terms of sound quality but also on ruggedness and reliability. The ASP-series is the self-contained amplification solution from our amplifier modules category, fit for your most demanding applications. The ICEpower 500ASP offers extreme high fidelity and lots of power from a small footprint, thanks to state-of-the-art ICEpower® analogue technology. True high-end performance is guaranteed by the patented, proprietary COM-modulation and MECC-control techniques. The turn-key design shortens the time to implement amplification in your end product drastically. The connection interface uses industry-standard Molex Micro-Fit and JST PH-series connectors. The power supply of the 500ASP includes a DC hanger bus output, which can be used for powering additional 250A or 500A modules. This makes it very convenient to create 2 and 3 channel amplifiers, combining the 500ASP with the 250A and the 500A.

.

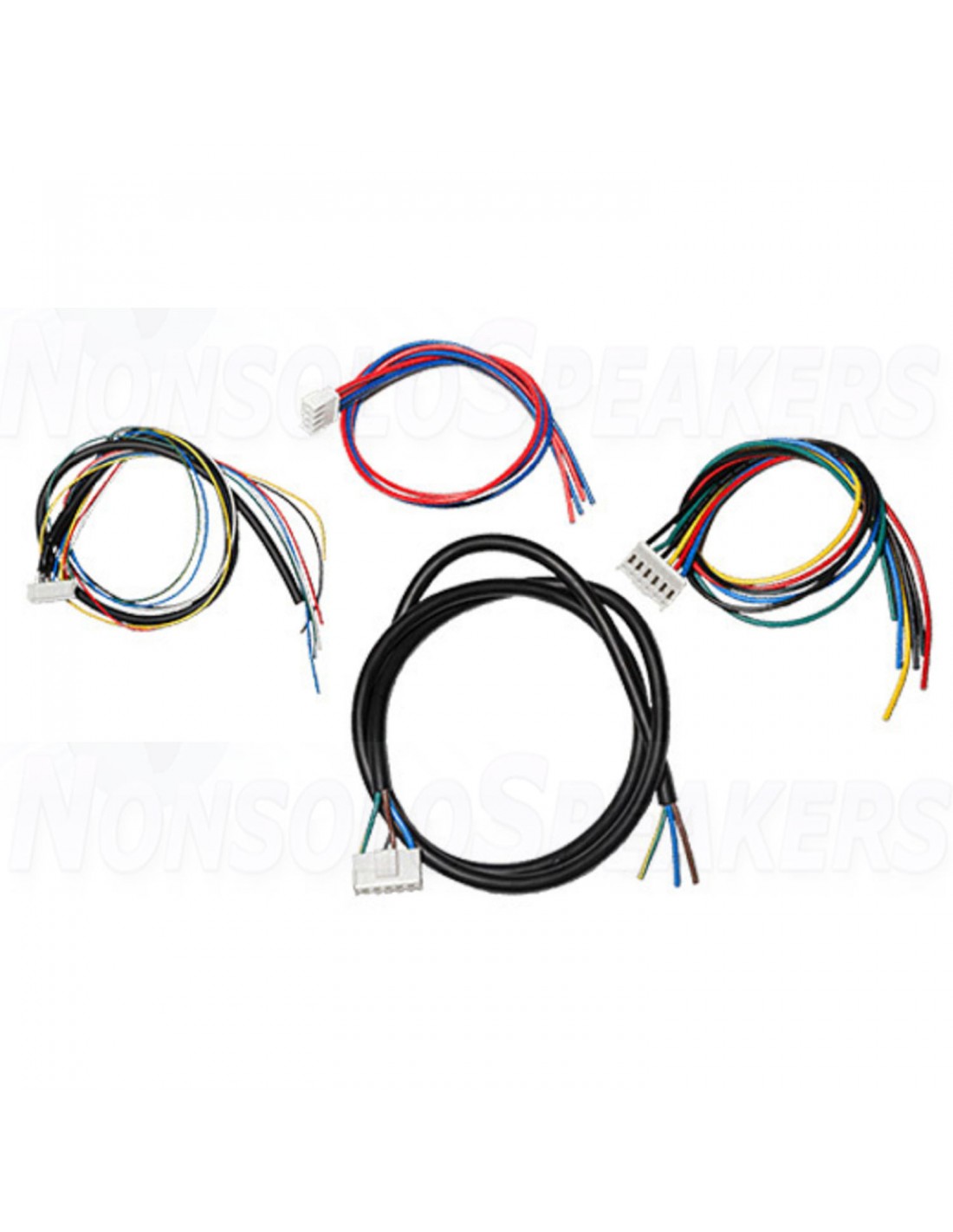

Cable Set

The included cable set allows access to all features of the 500ASP. The kit contains cables with all the right connectors on one end. The other ends are left unterminated so you can terminate the wires with the connections of your choice.

.

Highlights

Very rugged construction for professional use

Amplifier with integrated power supply

Comprehensive protection scheme

Suitable for CE approved designs

Power output for ICEpower 250A and/or 500A ±12 volt auxiliary output S

electable mains 115/230Vac

Safety conforms to UL/IEC 60065 and others

.

Specifications

Article number 500ASP

Rated power output 1x 500 watts at 4 ohms 1x 250 watts at 8 ohms

Minimum load 2 Ohm

Efficiency 83%

Distortion 0.006 %

THD+N Gain 26.8 dB

Input impedance 8 kOhm

Amplifier Classification Class D

Speaker output channels 1

Power Requirements 115-230 VAC

Current limit >45 A

Dimensions (L x W x H) 198 x 150 x 52

Mounting hole diameter 3.5 mm

.

What’s In The Box?

1 x 500ASP Amplifier Module with Integrated Power supply

Cable set:

1 x (D) Signal ASPseries

1 x (G) SPK

1 x (E) ASPseries DCbus

1 x (H) Mains with Earth
