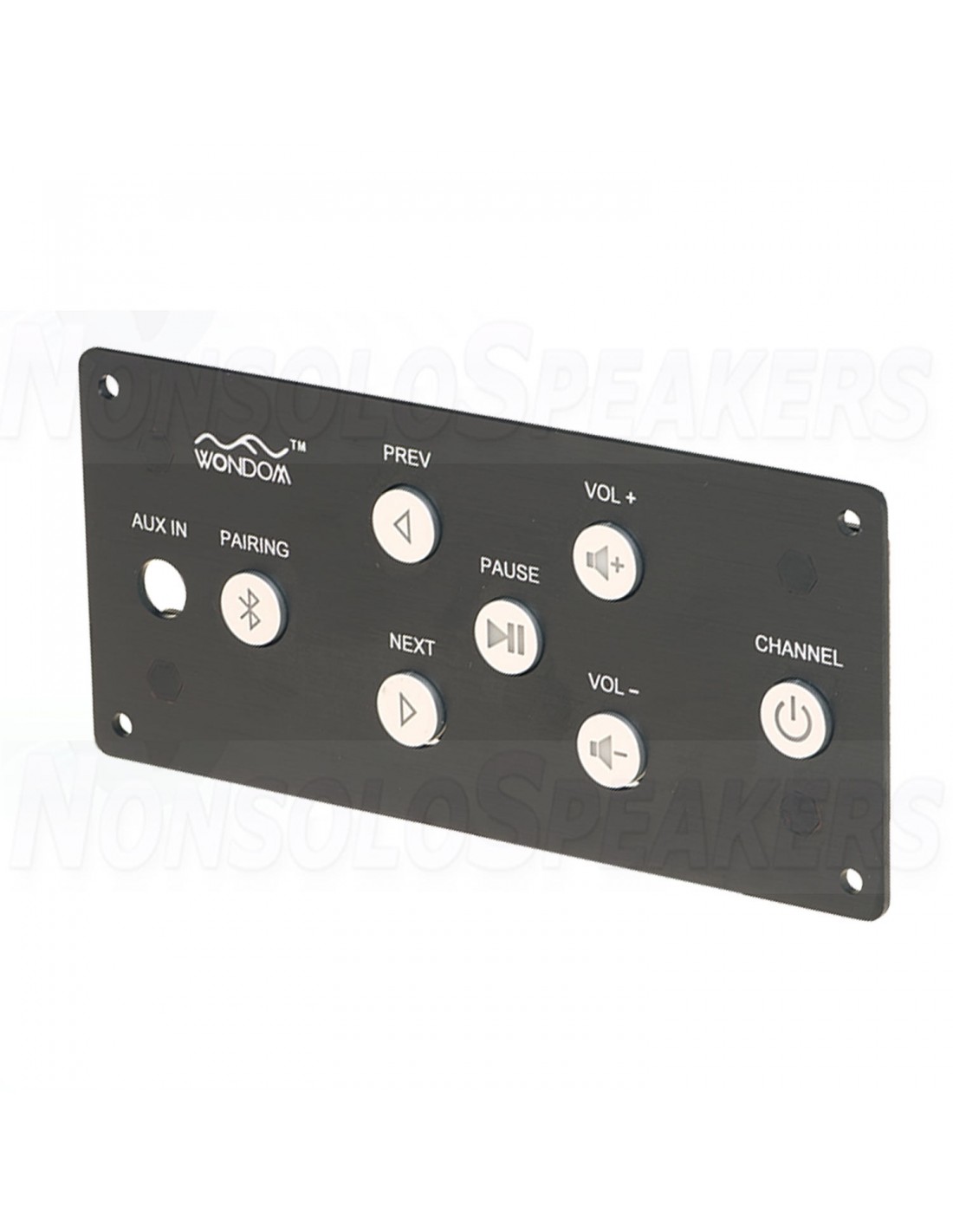

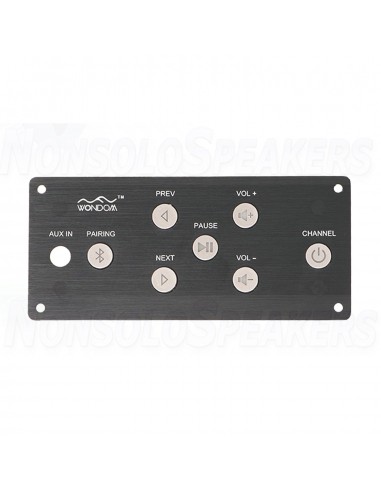

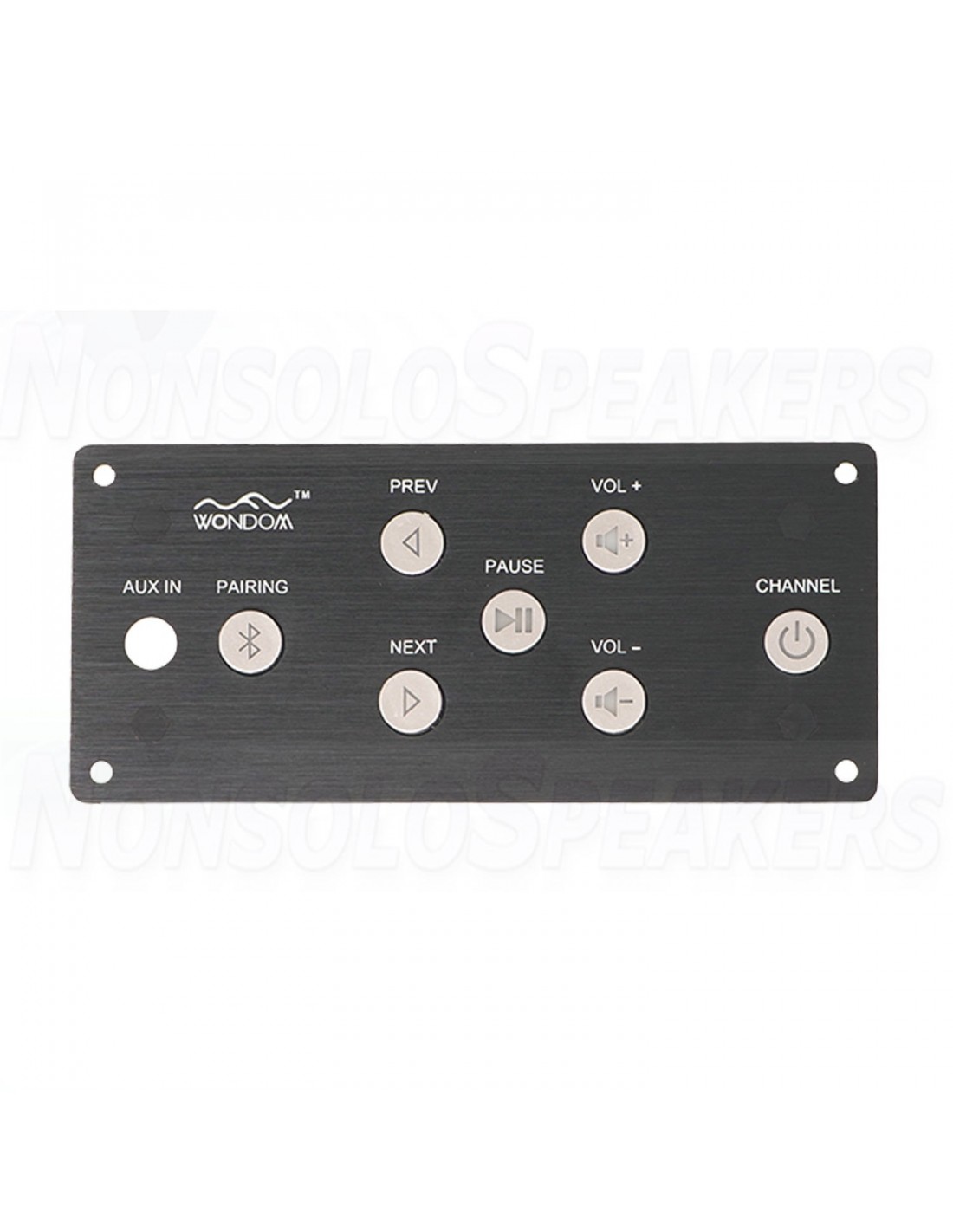

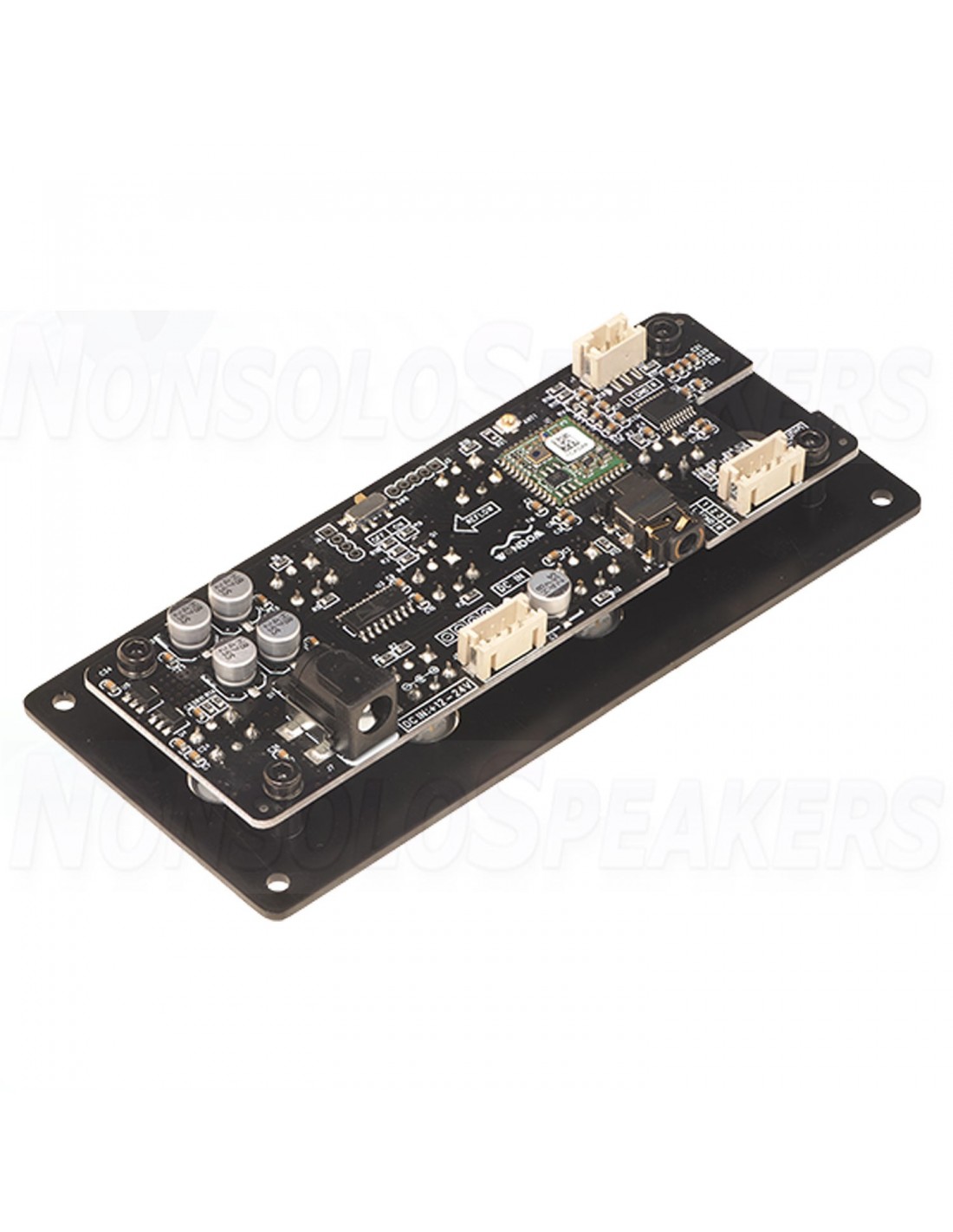

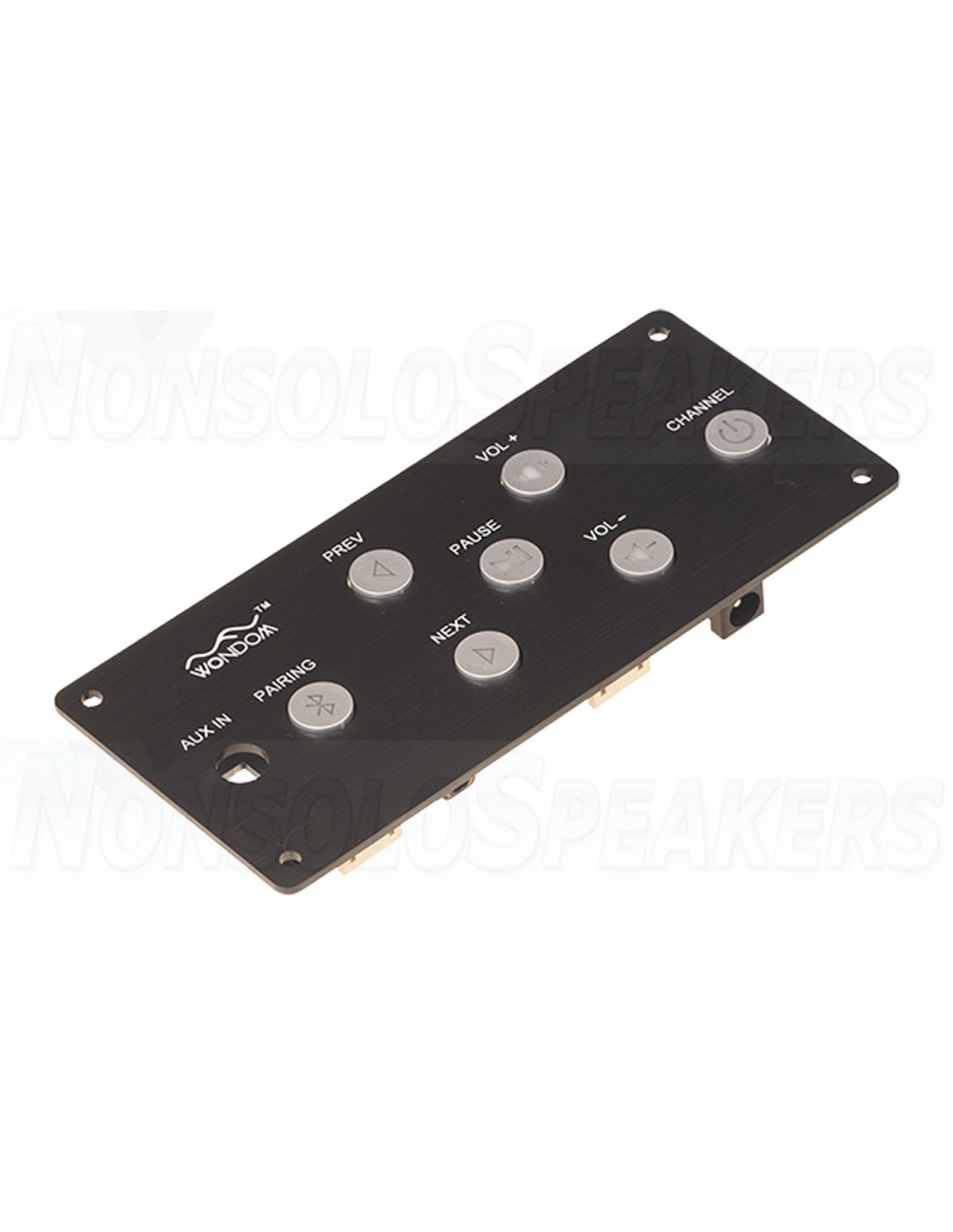

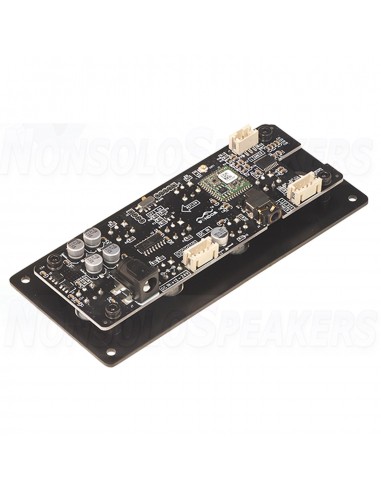

WONDOM AA-AB41158 -Bluetooth V4.0 audio receiver card with BRB6P control panel

Features:

•   CSR8645 Chipset
•   Bluetooth V4.0 +EDR, A2DP, AAC
•   Power Supply: Supporting 5v Power Adapter

                          Supporting 3s 18650 Battery Board

•   Closable Backlight Buttons
•   Closable Backlight Buttons
•   (I-PEX Micro RF Coax Connector)
•   External Bluetooth Antenna included

          (Default Package: I-PEX Antenna, I-PEX to SMA solution available.)

•   Bluetooth Pairing Name Customizable
•   Mounted Control Panel for Channel Selection, Volume Control and Song Switching.
•   Line Signal Straight Through

•   Desktop Wireless Music Receiver
•   Wireless audio source for amplifiers
•   Wireless headphone driver (HP amp needed to use with some headphones)

•

  Features AA-AB41158

  Parametri	Condizioni	Specifiche
  Alimentazione elettrica	-	10.5-24 VDC
  Distorsione	Vo=700mVrms, f=1kHz	0.12 %
  Corrente di riposo	Vin=12V	20-30 mA
  Corrente Massima	-	35-40 mA
  BT Wireless Range (con Antenna BT)	-	10 m
  Temperatura di esercizio	-	20-55 °C
  Temperatura di conservazione	-	-40-105 °C
  THD	Vin=775mVrms, f=1kHz	0.002 %
  Livello di rumore in uscita	Vin=12V	5.1 μV
  SNR	Vin=775mVrms, f=1kHz	94 dB
  Chips	-	CSR8645
  Bluetooth	-	4.0
  Potenza	-	12 V
  Ricezione Stereo	-	-
  APT-X	-	-
  TWS	-	-
  Dimensioni	-	4,2 x 3,7 x 1,1 cm
