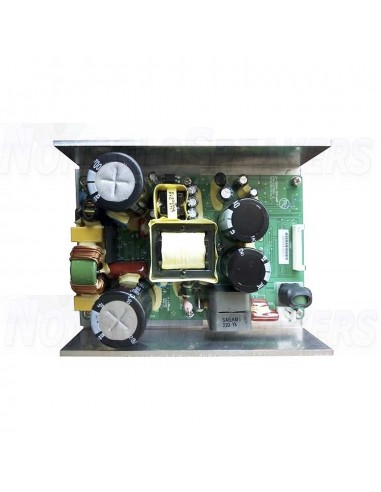

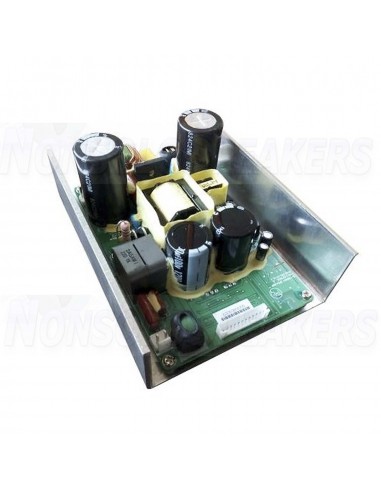

AMB15000M - 1x500W / 4ohm Luxus Audio Digital Amplifier + power supply
Class D Digital Amplifier 1x500W @ 4 ohm with integrated power supply
Specifications | Condition of Test | |
Potenza di uscita | 500 W 300 W | 4ohm @1% THD 8ohm @1% THD |
Rapporto S/N alla potenza nominale | - | >100 dB/A-Weighted |
THD | @ -3dB potenza nominale | <0.05 % |
Sensibilità di ingresso | - | @ 1.8 Volt. |
Impedenza di ingresso | - | 22 kΩ |
Risposta in frequenza | 20Hz ~ 20K Hz | +/- 1 dB |
Other features AMB15000M
Parameter | Specifications |
Dimensioni | 13,8 x 10,5 x 5,4 cm. |
Potenza | 1 x 500W |
Classe Amplificatore | D |
Controllo di volume | (Opzionale) |
Protezione da cortocircuiti | Si |
Protezione da sovratemperatura | Si |
Assignment PIN
Number PIN | Condition | exit current | |
PIN 1 | +5Vc | Voltage regulator This ± 12 V controlled by Pin 11 When Pin11 is Hi (3.3 ~ 5 V) with output When Pin11 is low (0 V) No output | 100mA |
PIN 2 | -5Vc | ||
PIN 3 | Nc | - | |
PIN 4 | Terra | Earth signal | |
PIN 5 | Ingresso analogico | Input signal | |
PIN 6 | +5Vdc | Voltage regulator This 5 V controlled by Pin 11 When Pin11 is Hi (3.3 ~ 5 V) with output When Pin11 is low (0 V) No output | 100mA |
PIN 7 | Terra | Earth signal | |
PIN 8 | +3.3V | Standby 3.3V | 100mA |
PIN 9 | SD IN | Protection measures MCU can detect this PIN voltage When the protection device starts, this PIN is Low (0V) and the amplifier turns off | |
PIN 10 | TMP | Temperature measurements MCU can detect this pin voltage, so this voltage is converted to temperature When the heatsink temperature is higher, the lower the voltage of this pin (0.5 V - 4 V) | |
PIN 11 | CTL | When Pin11 is Hi (3.3 ~ 5V), it turns on When Pin11 is in low standby (0V) | |
PIN 12 | SD OUT | When Pin12 is Hi (3.3 ~ 5V) Amp ON When Pin12 is Low Amp Stop (0 V) |
