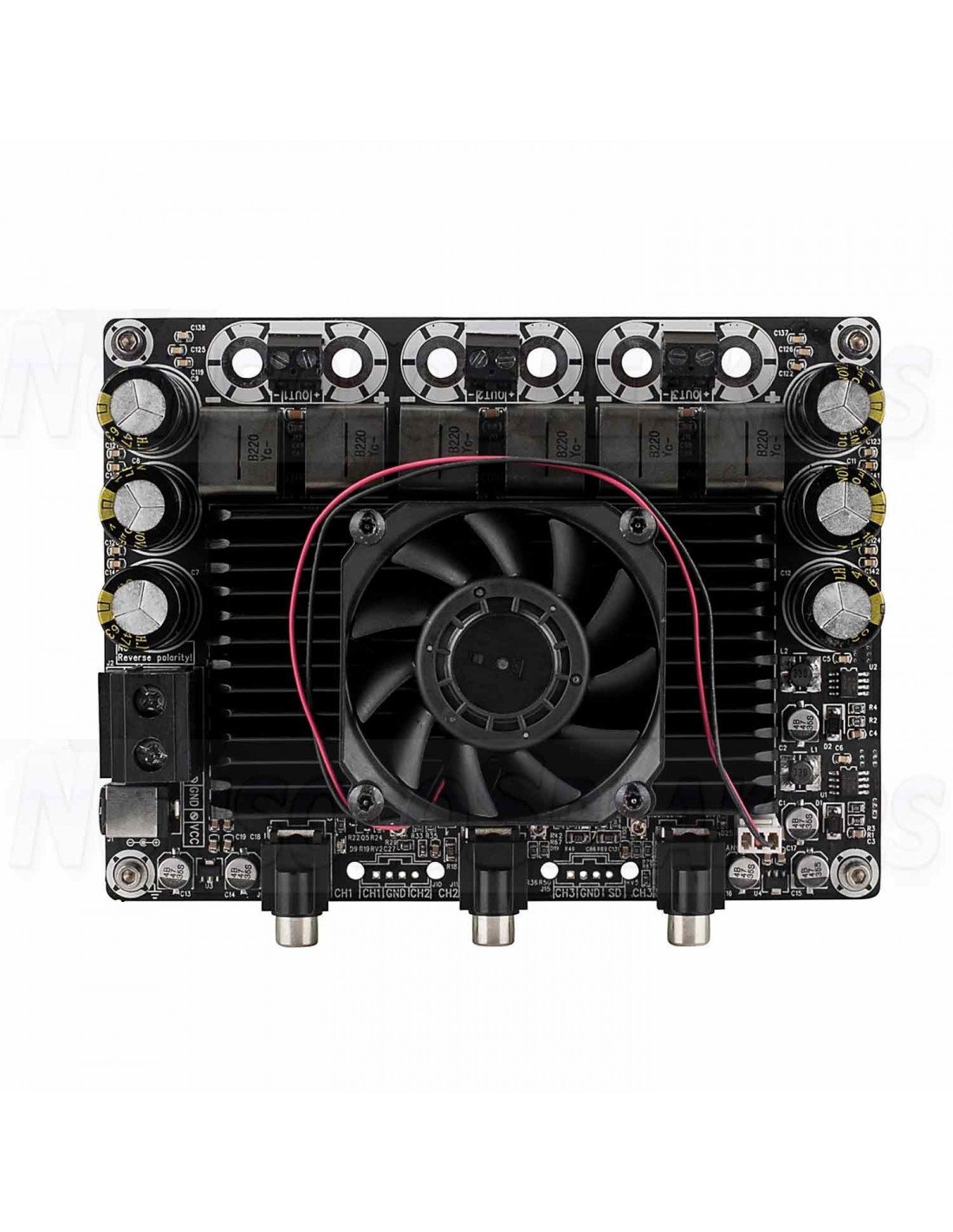

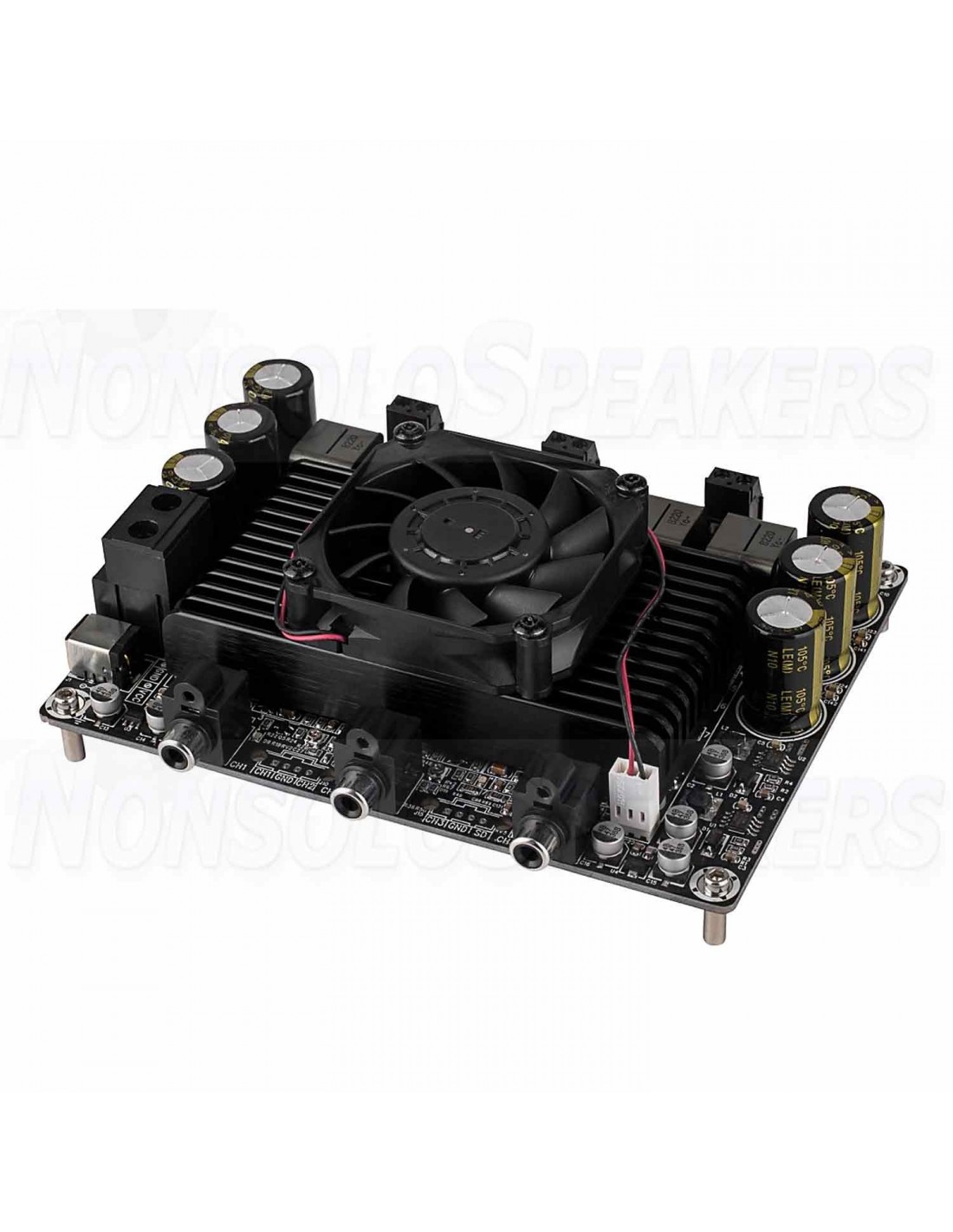

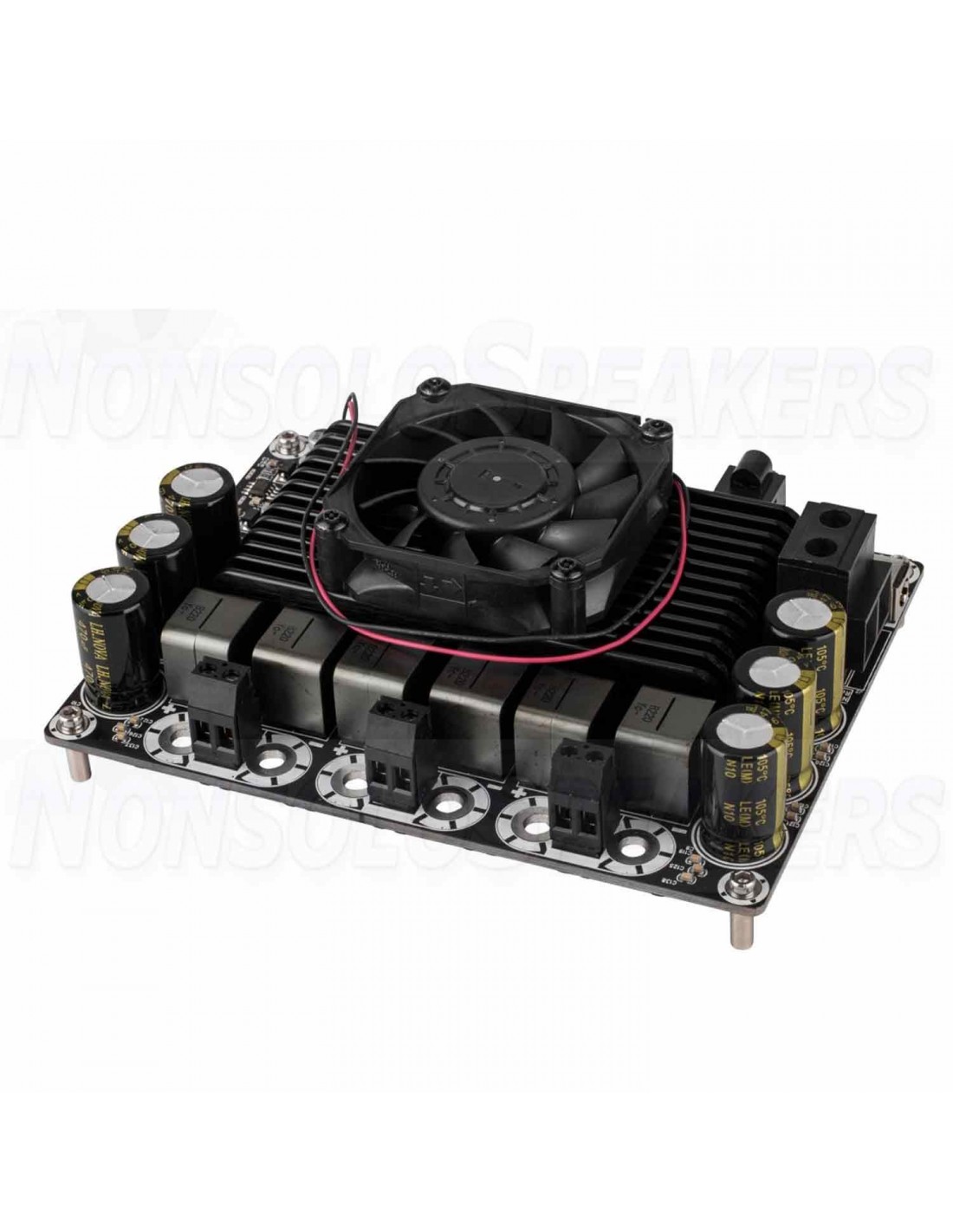

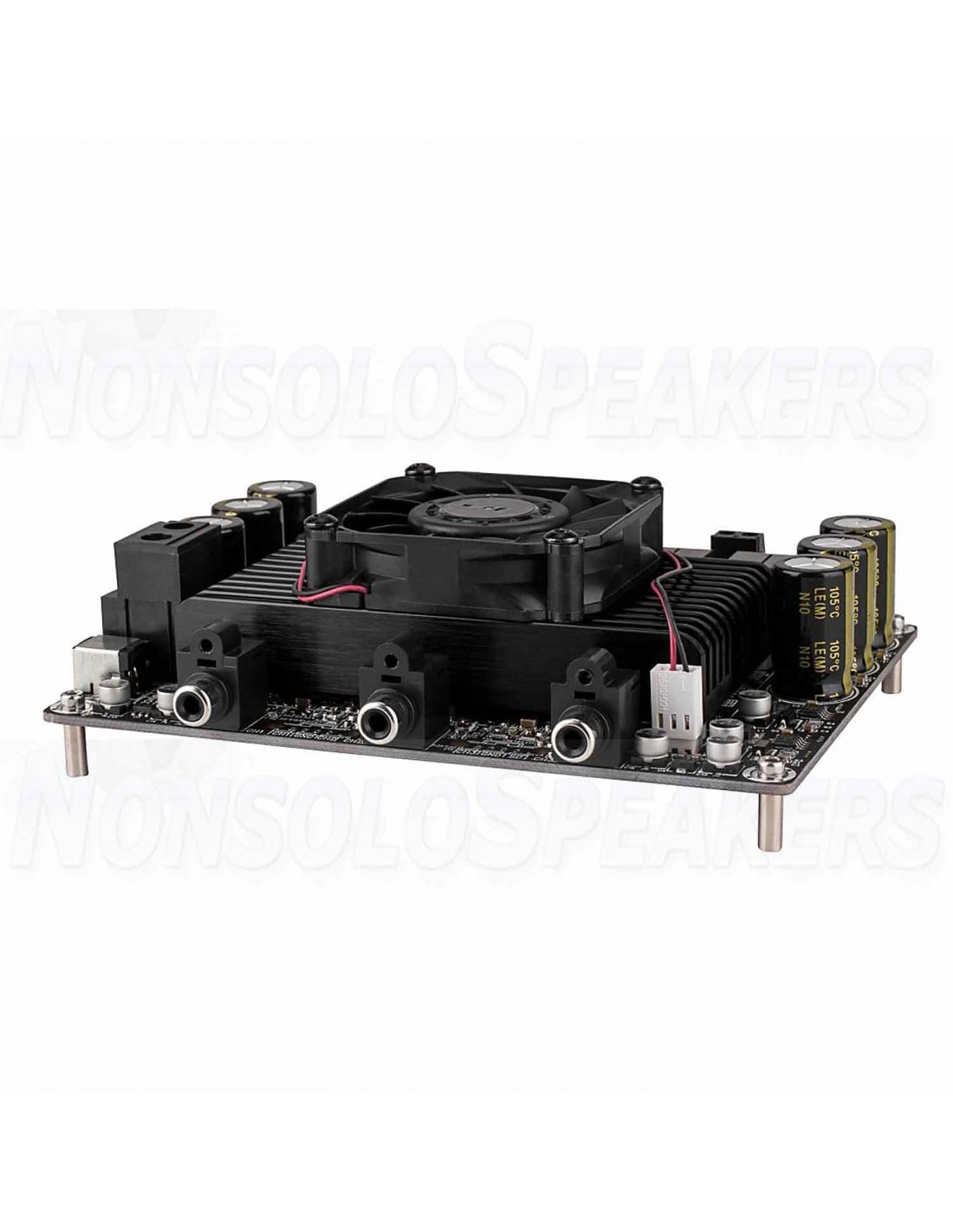

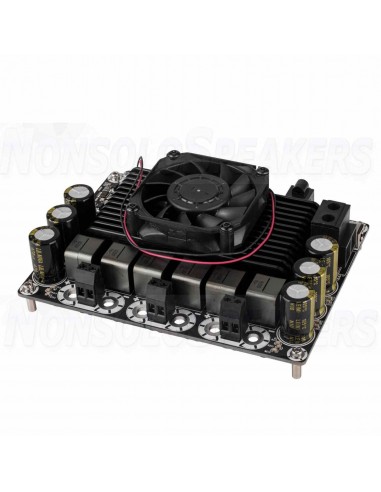

This audio amplifier board uses the T-AMP - AA-AB35311 technology, characterized by low distortion and low noise level.

SHIPMENT IN 7/10 WORKING DAYS
€118.00
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



WONDOM AA-AB35311 - 3x400W amplifier class D

This audio amplifier board uses the T-AMP - AA-AB35311 technology, characterized by low distortion and low noise level. The fan works when the heat sink temperature reaches 45 degrees Celsius and stops when the temperature drops to 40 degrees Celsius.

Therefore the audible noise and the loss of inactive power carried by the fan could be omitted when the output RMS power is moderate.

Dettaglio di connessione amplificatore in classe D

Features AA-AB35311

Parametri  Condizioni di Test Valori
Corrente massima 1200 W @ 3 Ohm 28.2 UN
Tensioni di Alimentazione  - 24-50 V
Efficienza 400 W @ 3 Ohm 90-95 %
Potenza Inattiva

SD Floating, FAN ON

SD Floating, FAN OFF

18-22 W

14.8-18 W
Frequenza Swhitching SD Floating 700 kHz
Potenza in Standby SD collegato a GND, FAN OFF 0.9-3 W
Sensibilità  di ingresso (RMS) @ 3 Ω, 400 W, 1 KHz 1.24 V
Impedenza di ingresso - 33 KΩ
Guadagno - 28.5-32.5 dB
Impedenza di carico minima - 3 Ω
Potenza in uscita

@ 3 Ω THD + N 1%

@ 3 Ω THD + N 10%

270 W

400 W
Larghezza di banda @ ± 3dB @ 3 Ω 20-20K Hz
THD

@ 3 Ω, 1W, 1KHz

@ 3 Ω, 10W, 1KHz

0.015 %

0.007 %
Livello di rumore in uscita Ponderazione, Ingresso collegato a GND 266 mV
SNR 128 W @ 3 Ω THD + N 1% 96 dB
Temperature
 - 50 °C

Others features AA-AB35311

Parametri Specifiche
Chip T-AMP STA516BE
Dimensioni 15,2 x 11,4 x 3,7 cm.
Potenza 3 x 400W
Classe Amplificatore D
Controllo di volume  Opzionale
Protezione da cortocircuiti Si
Protezione da sovratemperatura Si

Performance tipiche

Amplificatore Digitale Classe D

Amplificatore Digitale Classe D

Amplificatore Digitale Classe D

Amplificatore Digitale Classe D
