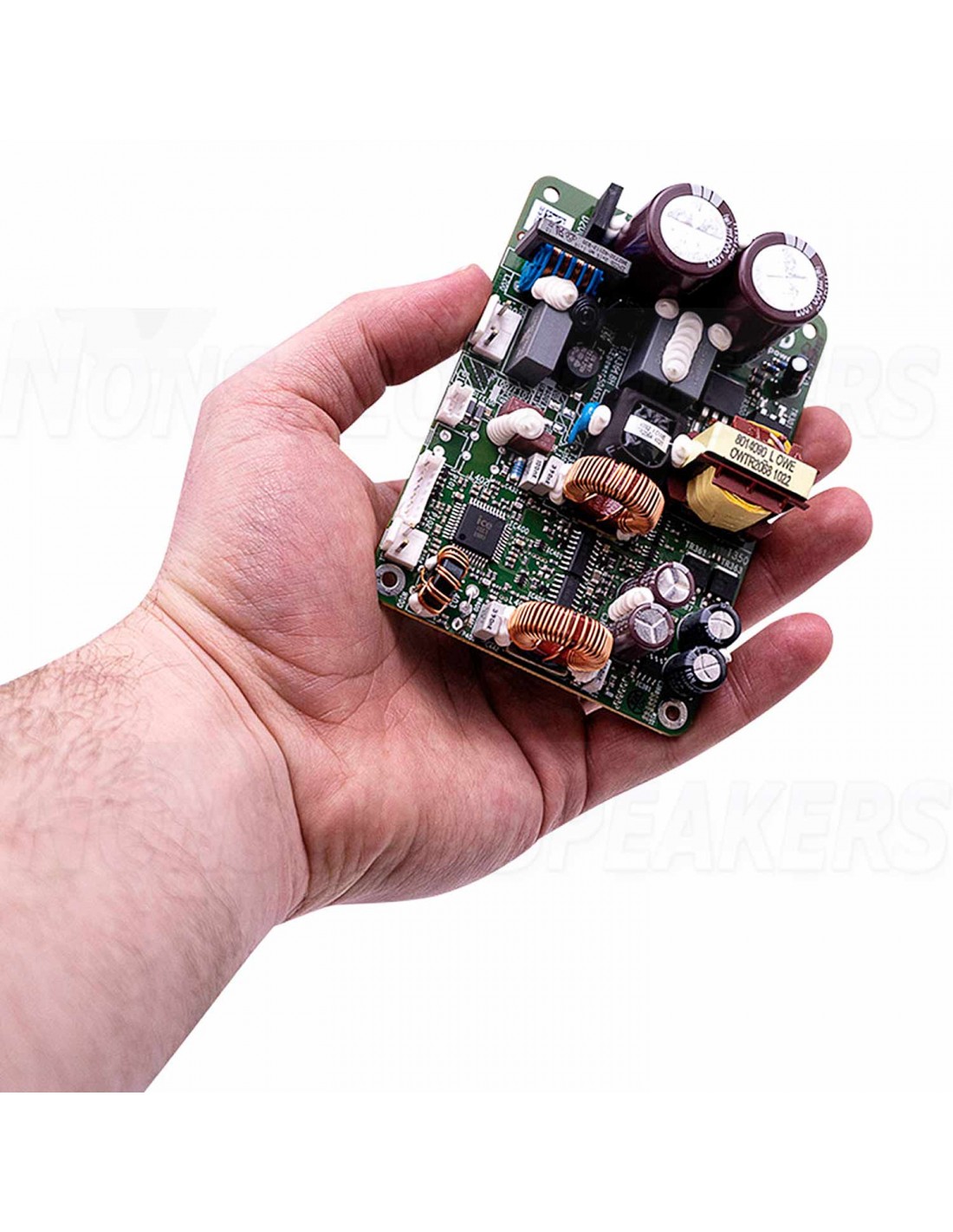

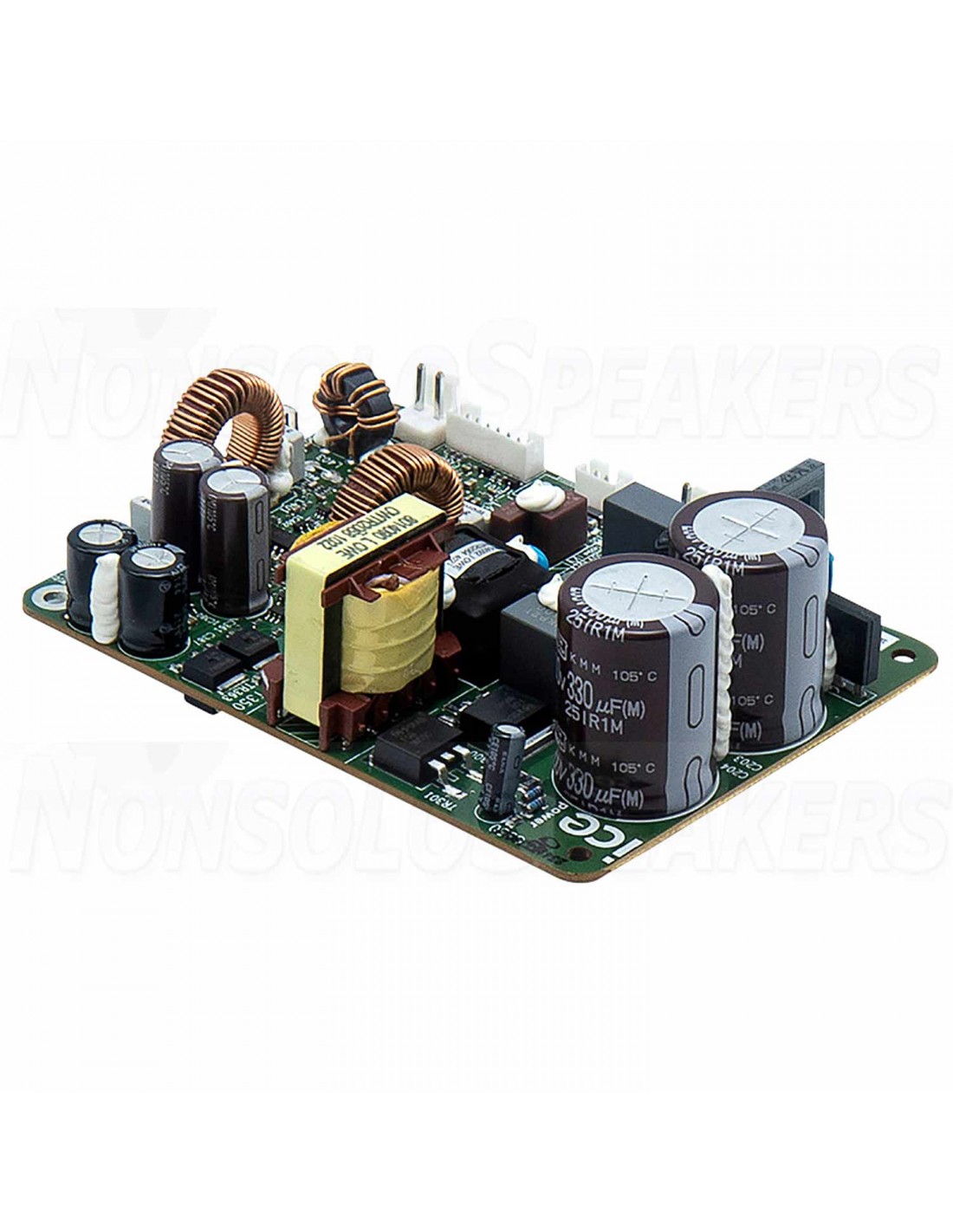

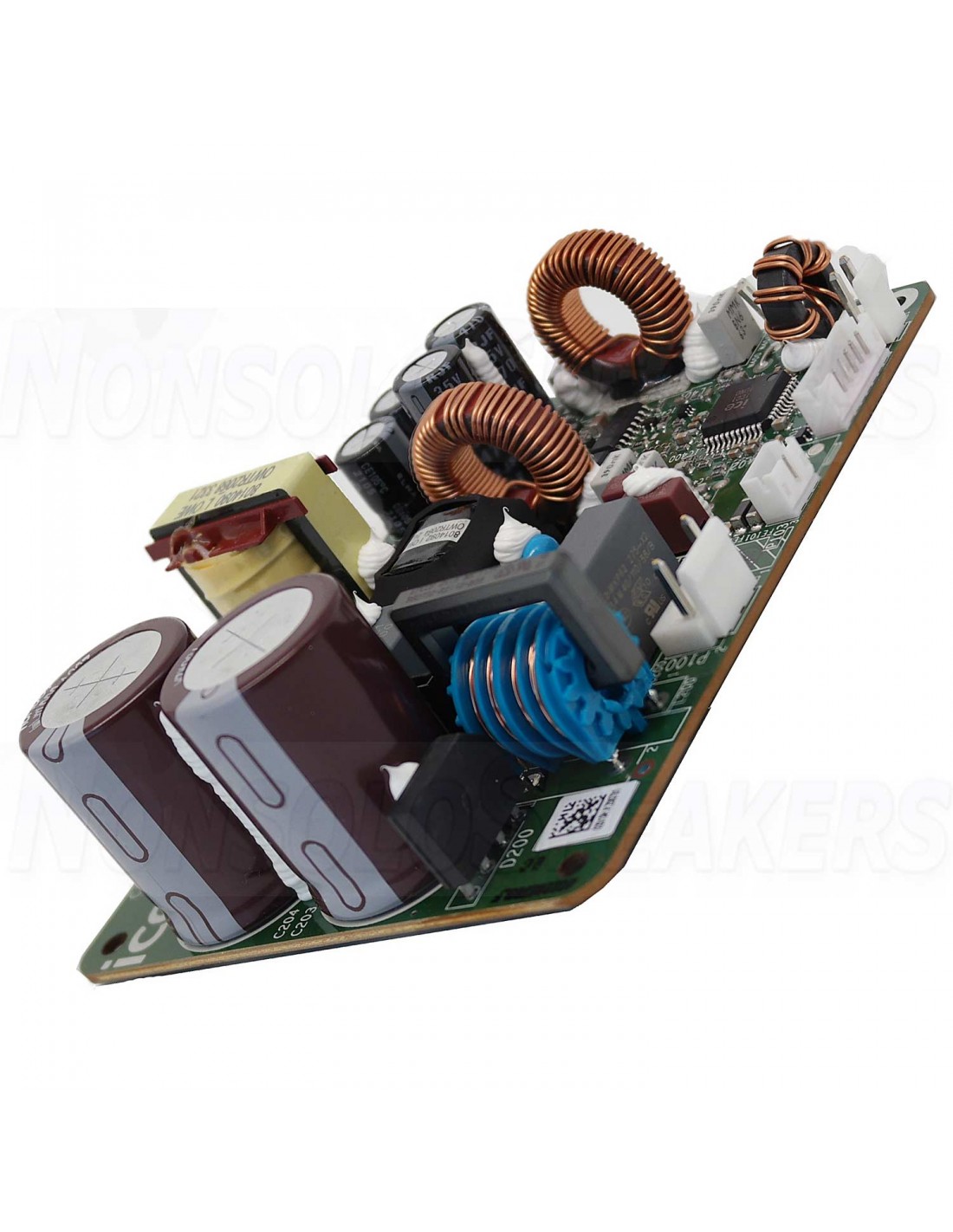

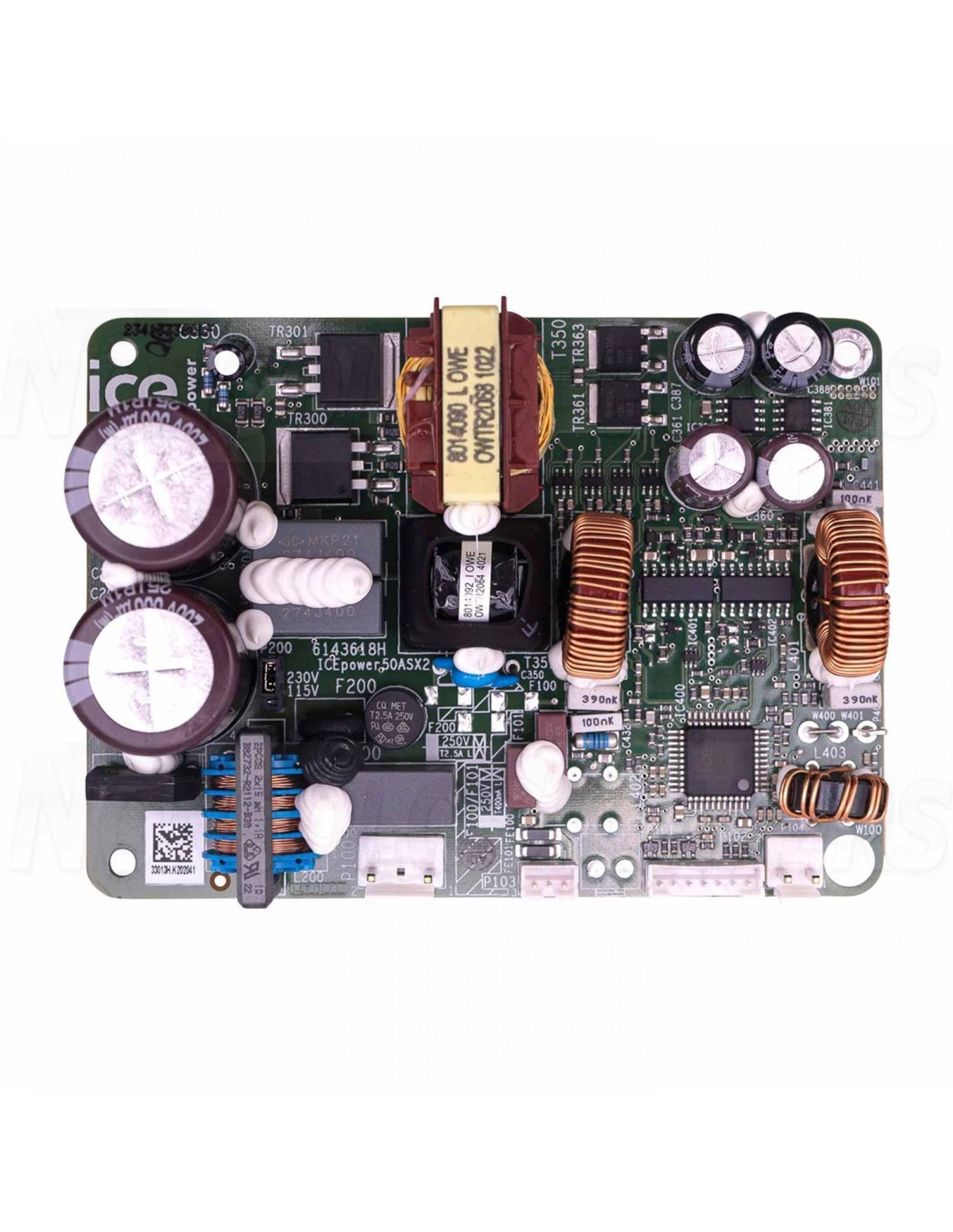

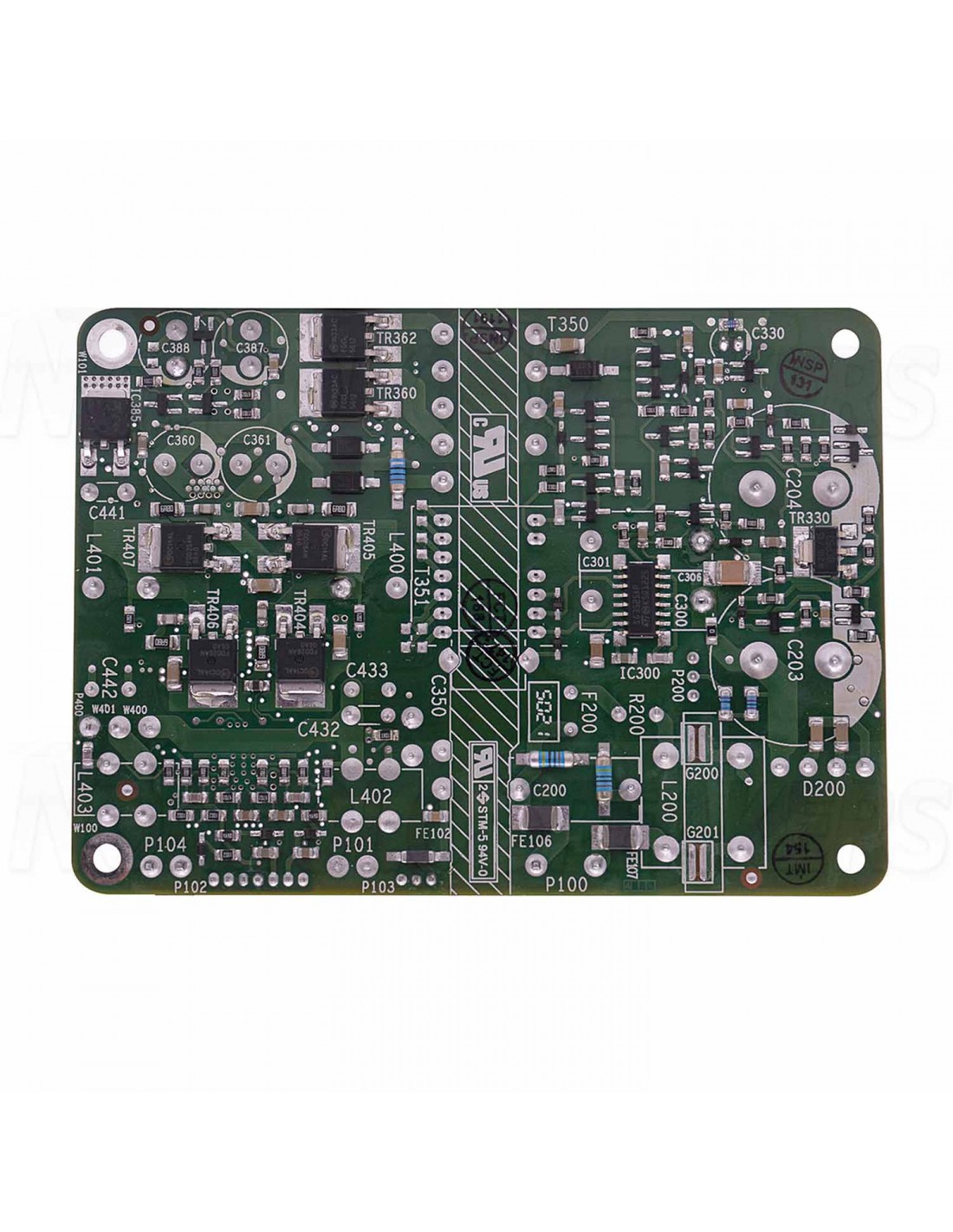

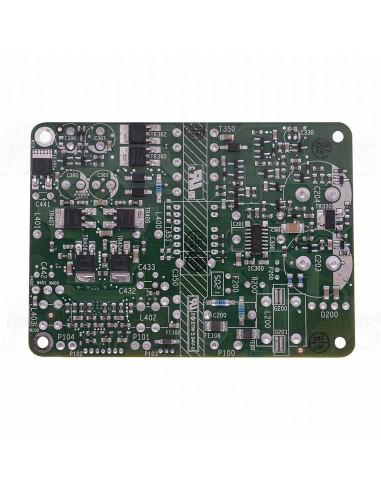

ICEpower 50ASX2(BTL) 1x170W Amplifier Module with integrated ICEpower Supply
The 50ASX2(BTL) is a fully integrated, intelligent amplification solution designed particularly for consumer and professional audio applications. This ultra-compact amplifier module has an integrated high efficient resonant power supply. It is a great choice from the amplifier modules category as it offers excellent audio quality, is powerful but ultra-compact and has a nice set of features. This module is EMC and safety approved. The auxiliary supply for powering external circuitry, elimination of heat sinks and EMI shields allow for fast implementation in your project. The 50ASX2 is protected against short-circuit, overload and over-heating and includes onboard fuses and EMI filtering to provide a CE and FCC pre-approved design. The 50ASX2 is available in two variants with either stereo or mono output configuration. This BTL (bridge tight load) version is perfect for single-channel applications up to 170 watts, such as subwoofers or monoblock amplifiers. Please note that this BTL version requires an inverted and non-inverted version of signal at the inputs. For the single-ended two-channel version, check out the 50ASX2(SE). For other members from the ASX-series check out the more powerful 125ASX2 and 250ASX2.
.

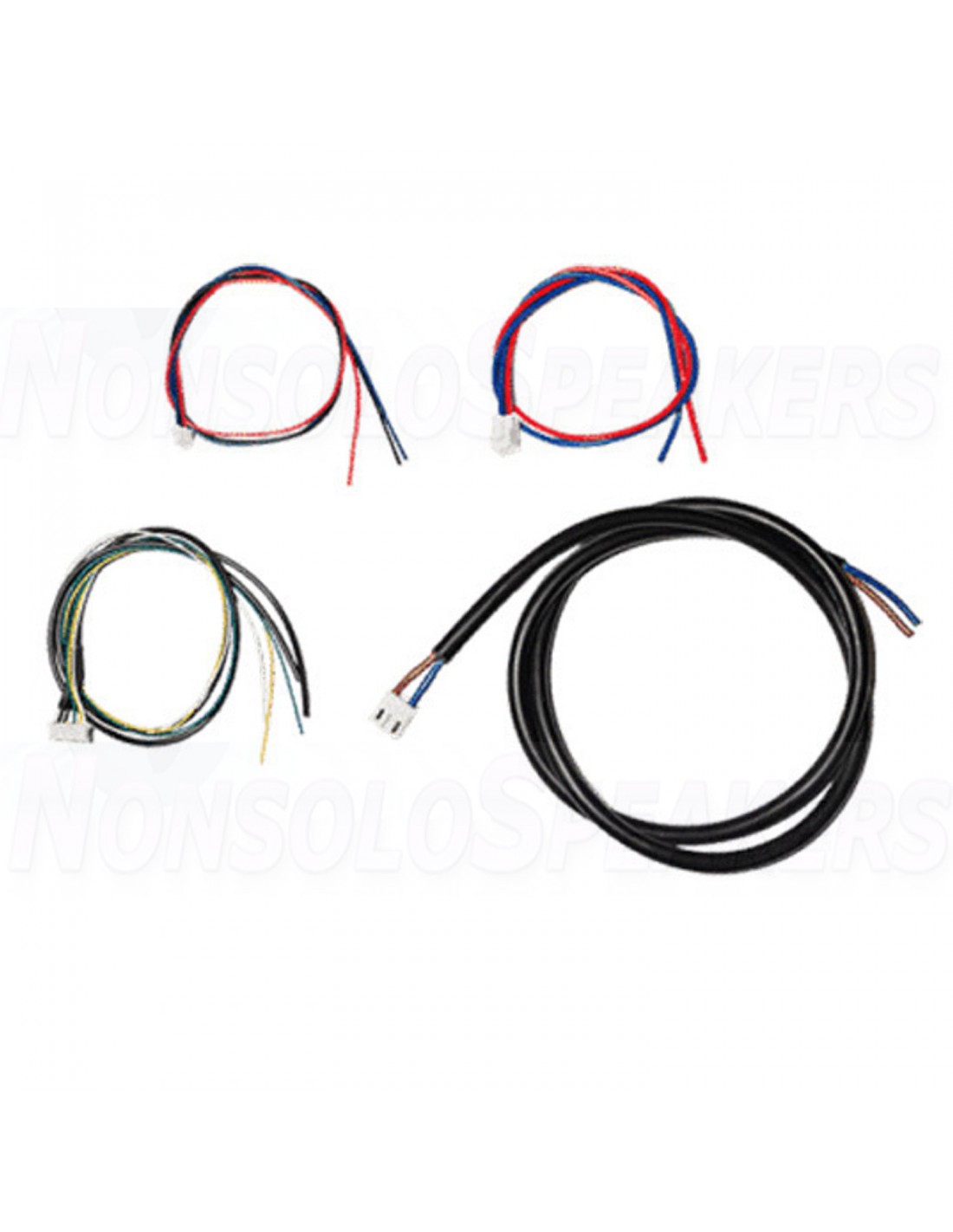

Cable Set
The included cable set allows access to all features of the 50ASX2. The kit contains cables with all the right connectors on one end. The other ends are left unterminated so you can terminate the wires with the connections of your choice.
.
Highlights
Fully integrated audio power solution
Stereo or mono output versions available
Rugged construction
Thermal protection
Over-current protection
Sound optimized soft clipping
Suitable for CE approved designs
.
Specifications
Article number 50ASX2(BTL)
Rated power output 1x 170 watts at 4 ohms
Minimum load 3 Ohm
Efficiency 81%
Distortion 0.002 %
THD+N Gain 20 dB
Input impedance 8 kOhm
Amplifier Classification Class D
Speaker output channels 1
Power Requirements 85-264 VAC
Current limit 20 A
Under/over voltage protection
Dimensions (L x W x H) 110 x 80 x 33.30
Mounting hole diameter 3.5 mm
.
What’s In The Box?
1 x 50ASX2(BTL) Amplifier Module with integrated ICEpower Supply
Cable set:
1 x (K) Mains without Earth
1 x (R) Supply ASX2series AUX
1 x (S) Signal
1 x (F) 2pole Universal Speaker
