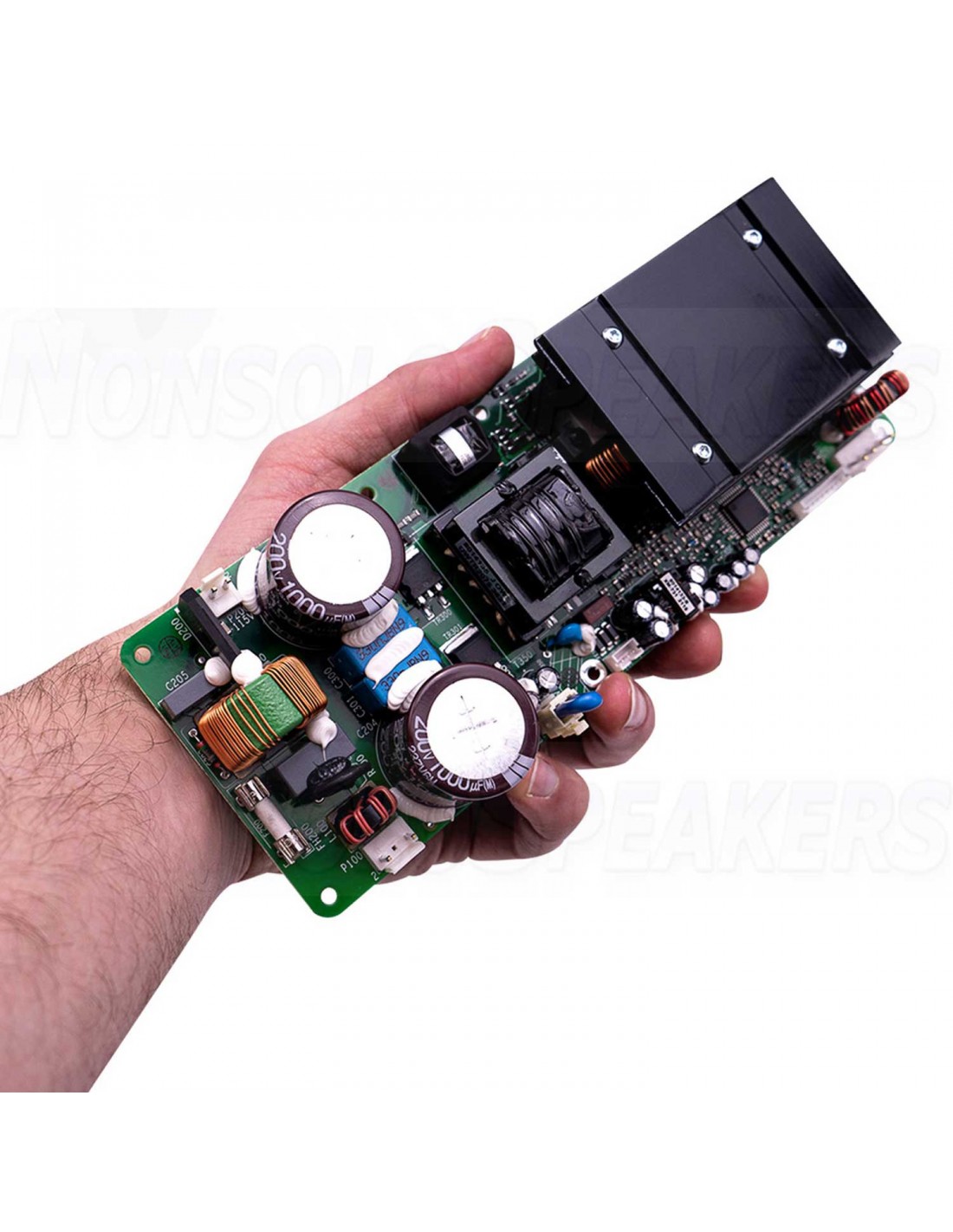

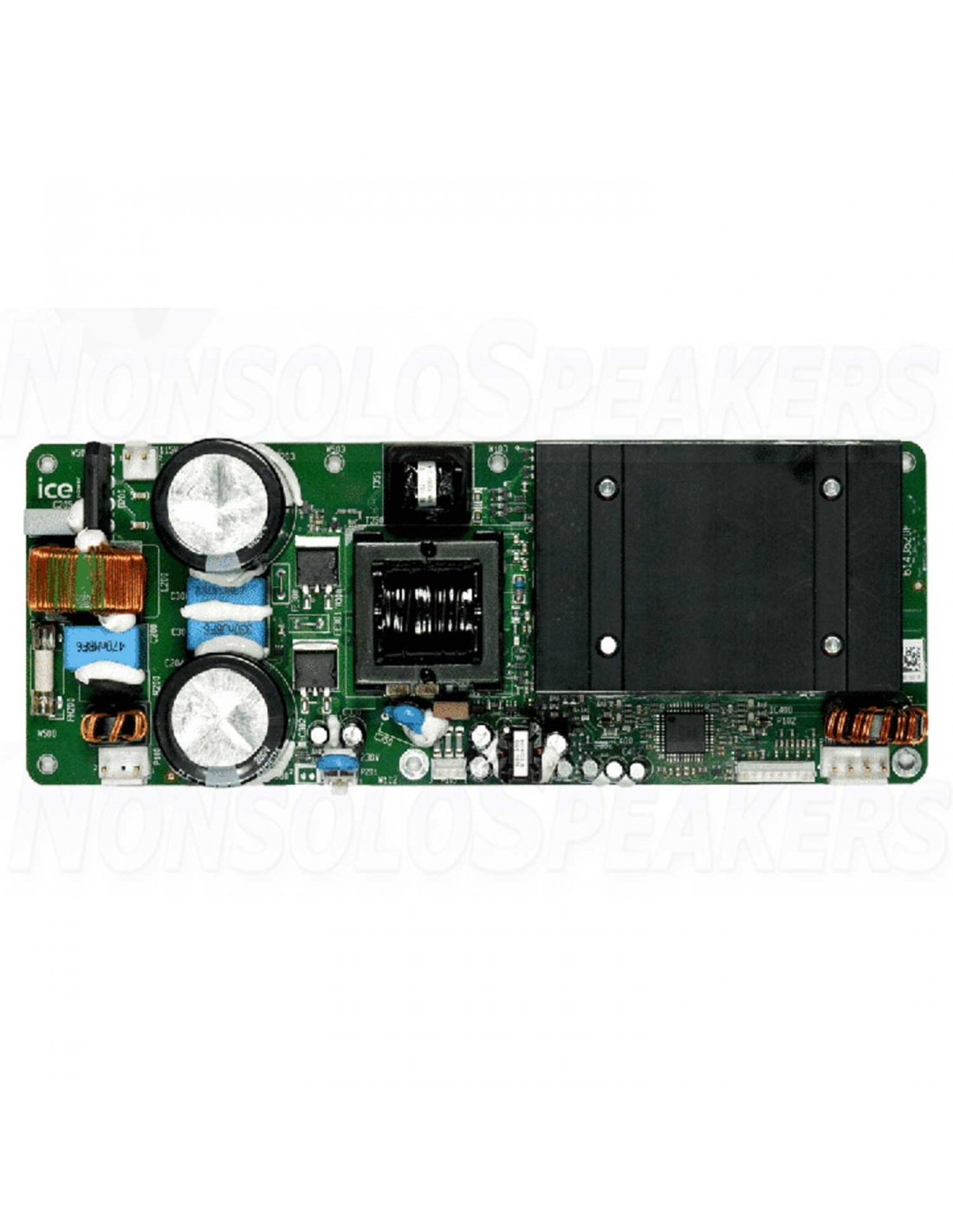

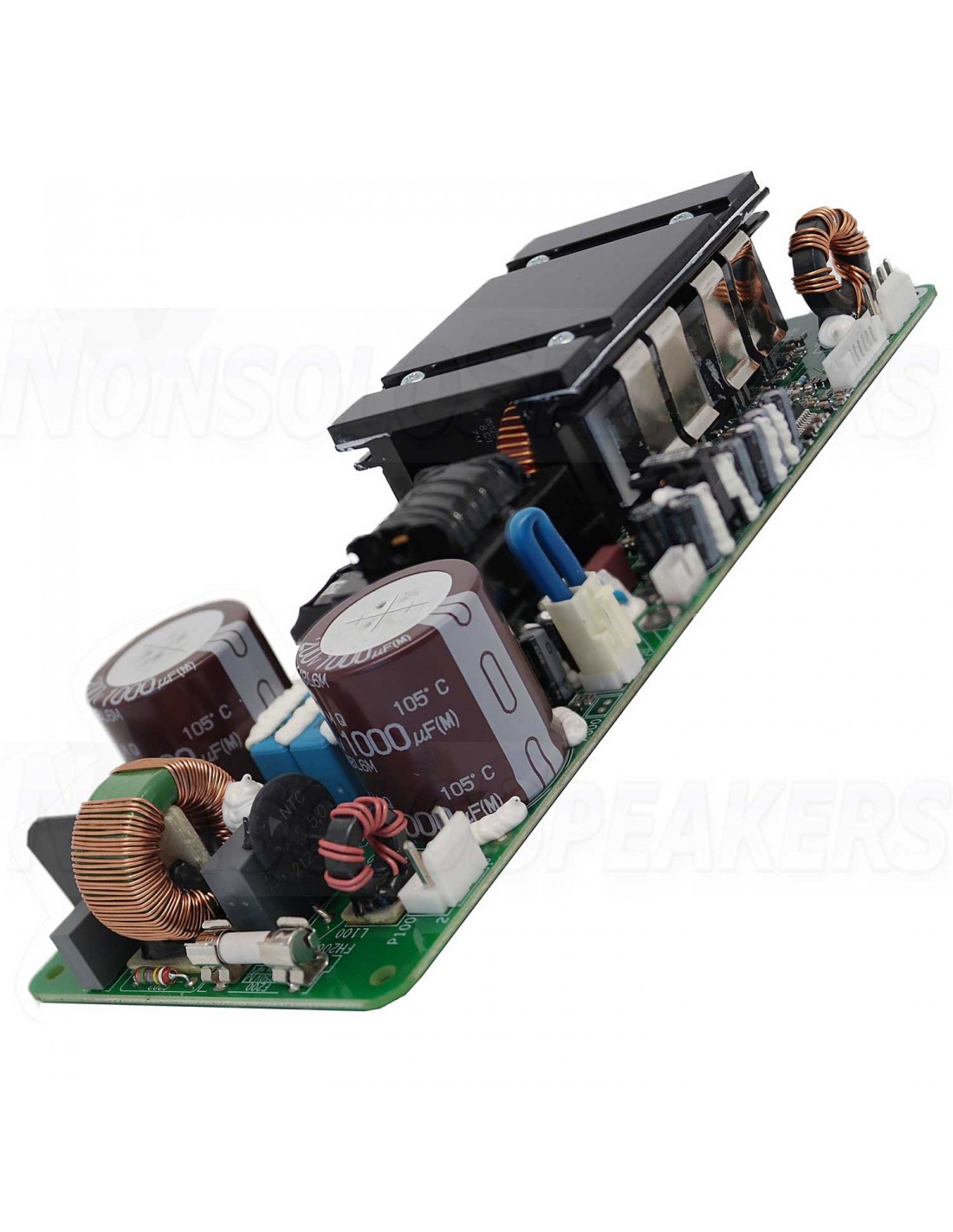

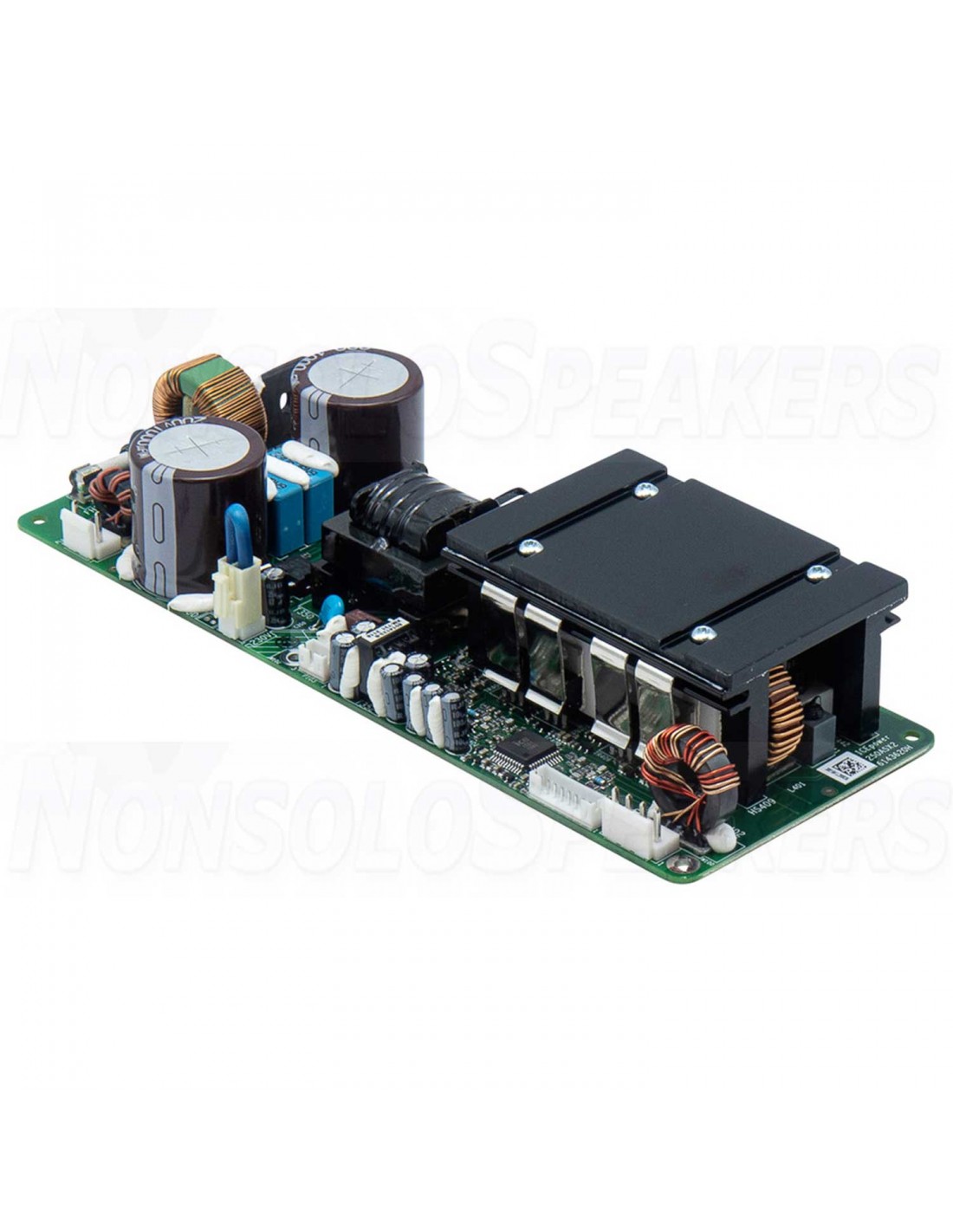

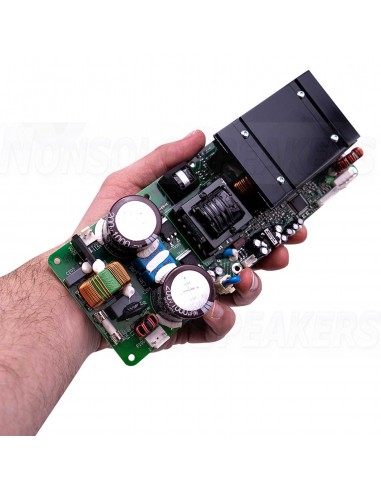

ICEpower 250ASX2 2 x 250 W Amplifier Module with Integrated Power Supply

The 250ASX2 is a fully integrated, intelligent amplifier module designed particularly for consumer and professional audio applications. This amplifier module has an integrated high efficient resonant power supply. It is an excellent choice from the amplifier modules category as it offers audiophile quality, is very powerful but also compact and has a nice feature set. The 250ASX2 can be configured to either stereo or mono output. With both channels driven it is up to providing 230 watts into 4Ω on both channels. In the bridged configuration, it outputs up to 500 watts into 8Ω! The ±24 VDC auxiliary supply for powering external circuitry, elimination of heat sinks and EMI shields allow for easy implementation in your project. This module is EMC and safety approved. It is protected against short-circuit, overload and over-heating and includes onboard fuses and EMI filtering to provide a CE and FCC pre-approved design. Do you like the 250ASX2, but looking for something smaller? Check out the 125ASX2 for the 2x 125-watt version. The even smaller 50ASX2 is available in two variants. The 50ASX2(SE) is the stereo single-ended version. For the single-channel BTL version, check out the 50ASX2(BTL). Did you know this is the very module that is used in combination with a DSP front-end in the miniDSP PWR-ICE250 plate amplifier?

.

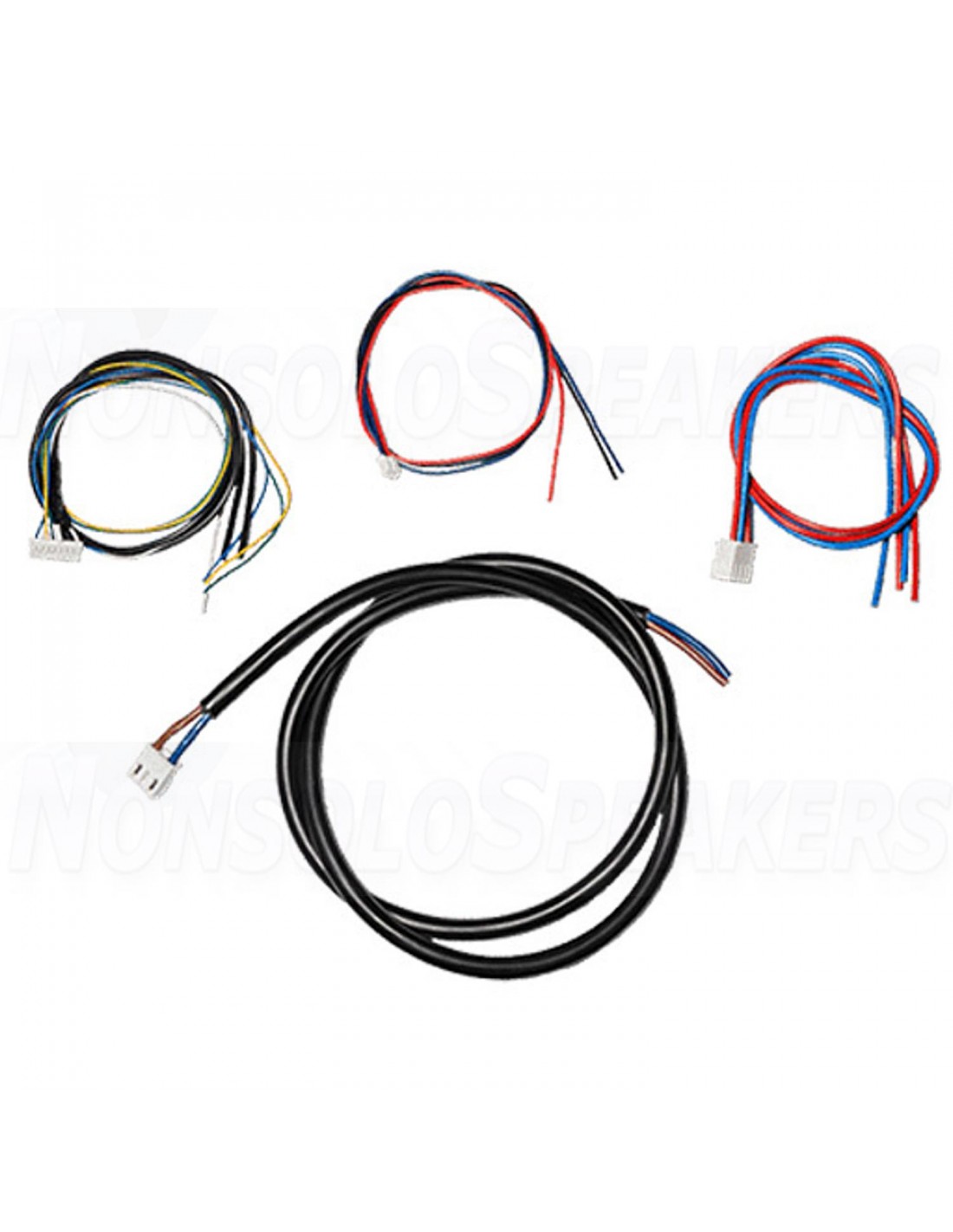

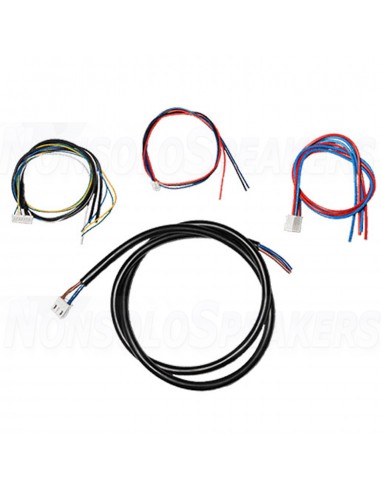

Cable Set

The included cable set allows access to all features of the 250ASX2. The kit contains cables with all the right connectors on one end. The other ends are left unterminated so you can terminate the wires with the connections of your choice.

.

Specifications

Article number 250ASX2

Rated power output 2x 250 watts at 4 ohms 2 x 500 watts at 8 ohms

Minimum load 3 Ohm

Efficiency 81%

Distortion 0.002 %

THD+N Gain 27.8 dB

Input impedance 8 kOhm

Amplifier Classification Class D

Speaker output channels 2

Power Requirements 85-264 VAC

Current limit 20 A

Under/over voltage protection

Dimensions (L x W x H) 210 x 80 x 35

Mounting hole diameter 3.5 mm.

.

What’s In The Box?

1 x 250ASX2 Amplifier Module with Integrated Power Supply

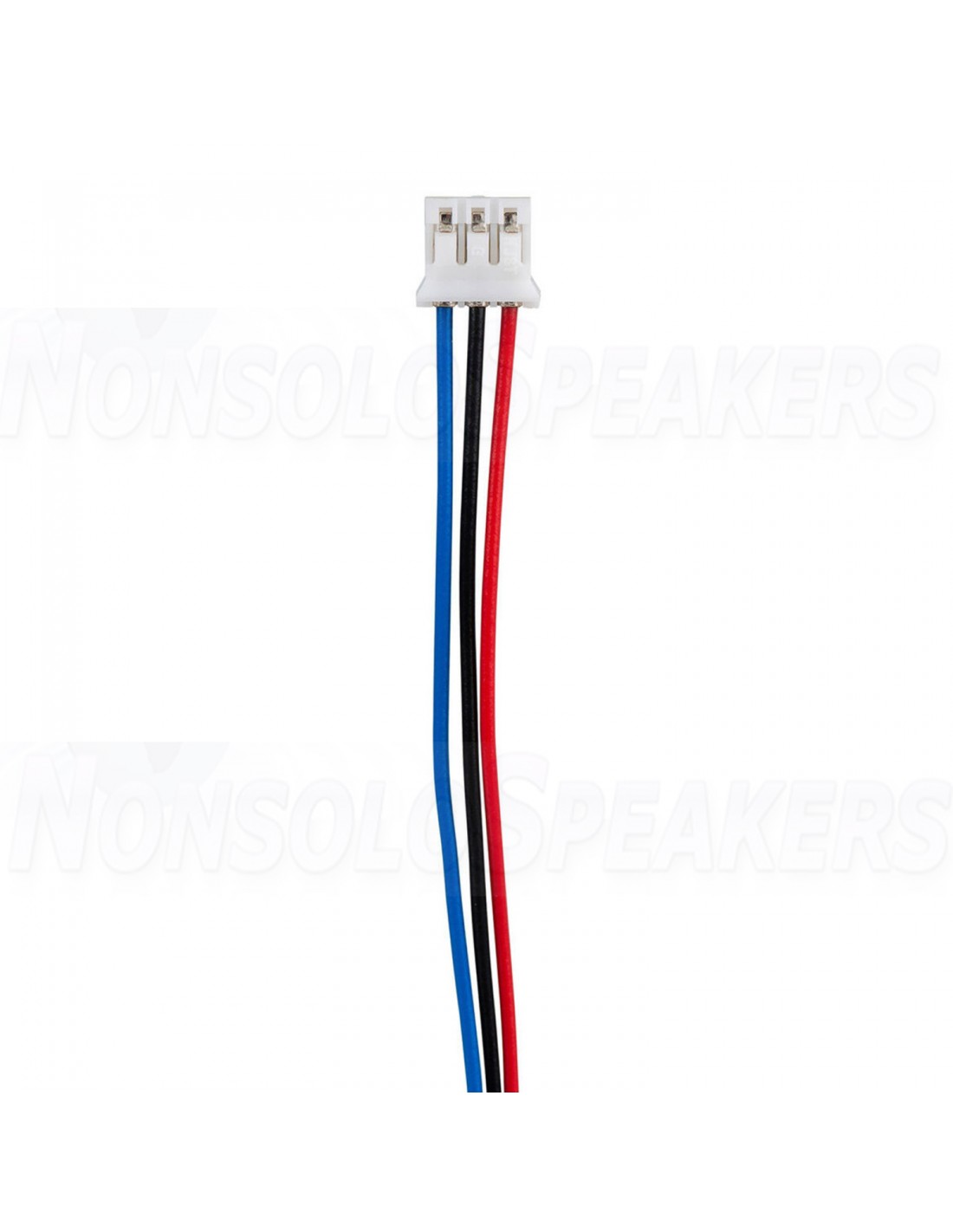

Cable set:

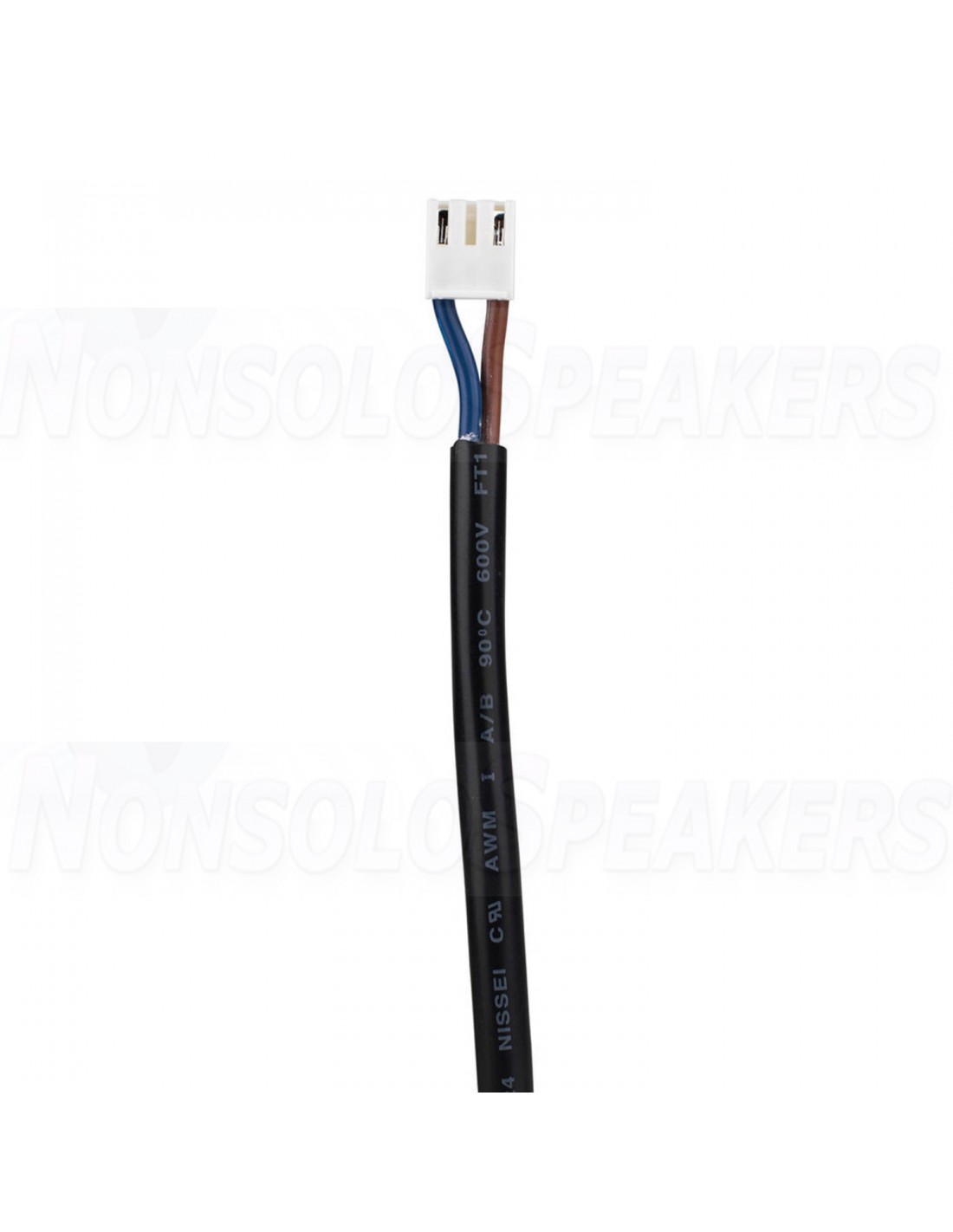

1 x (K) Mains without Earth

1 x (R) Supply ASX2series AUX

1 x (A) Signal

1 x (T) Speaker
