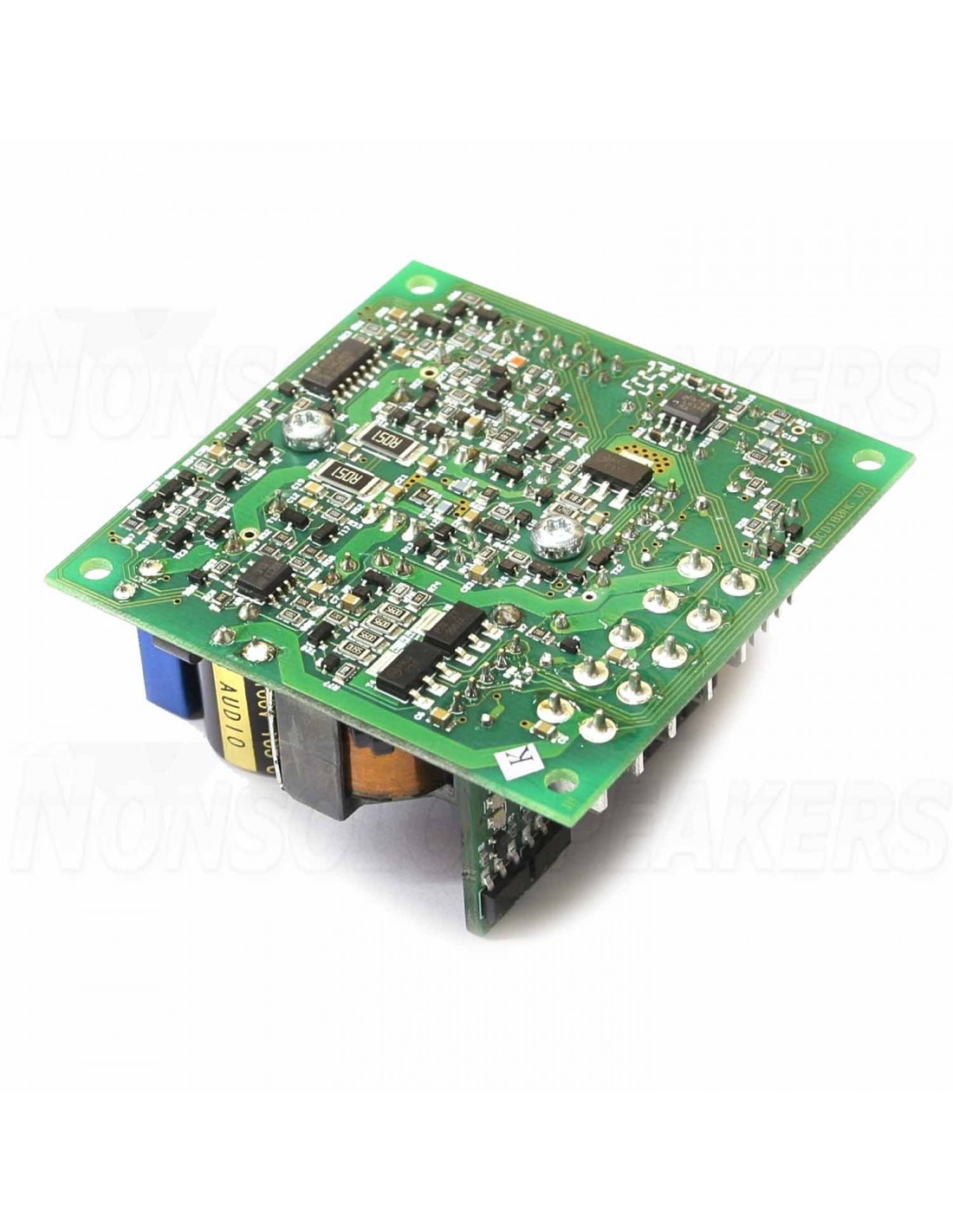

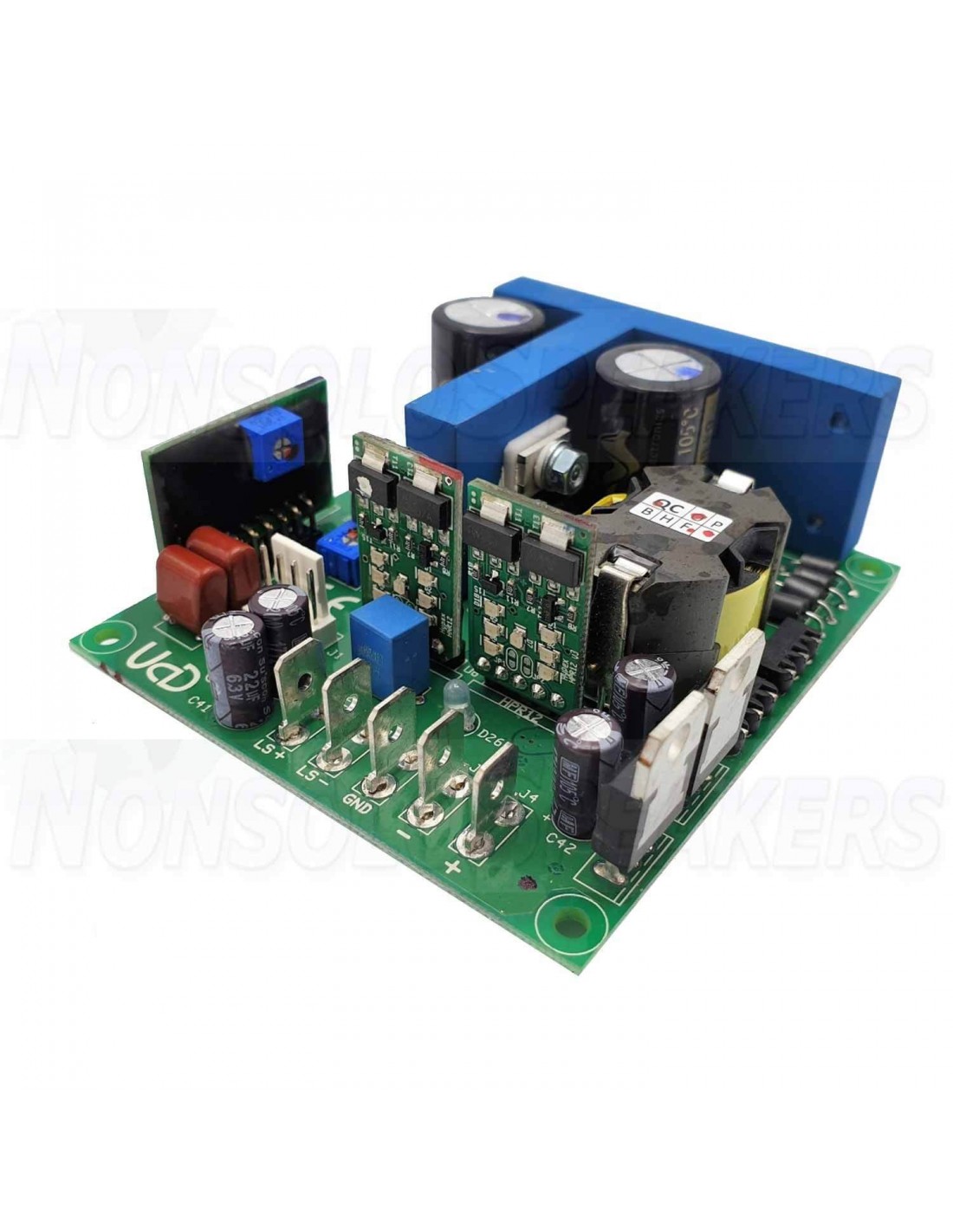

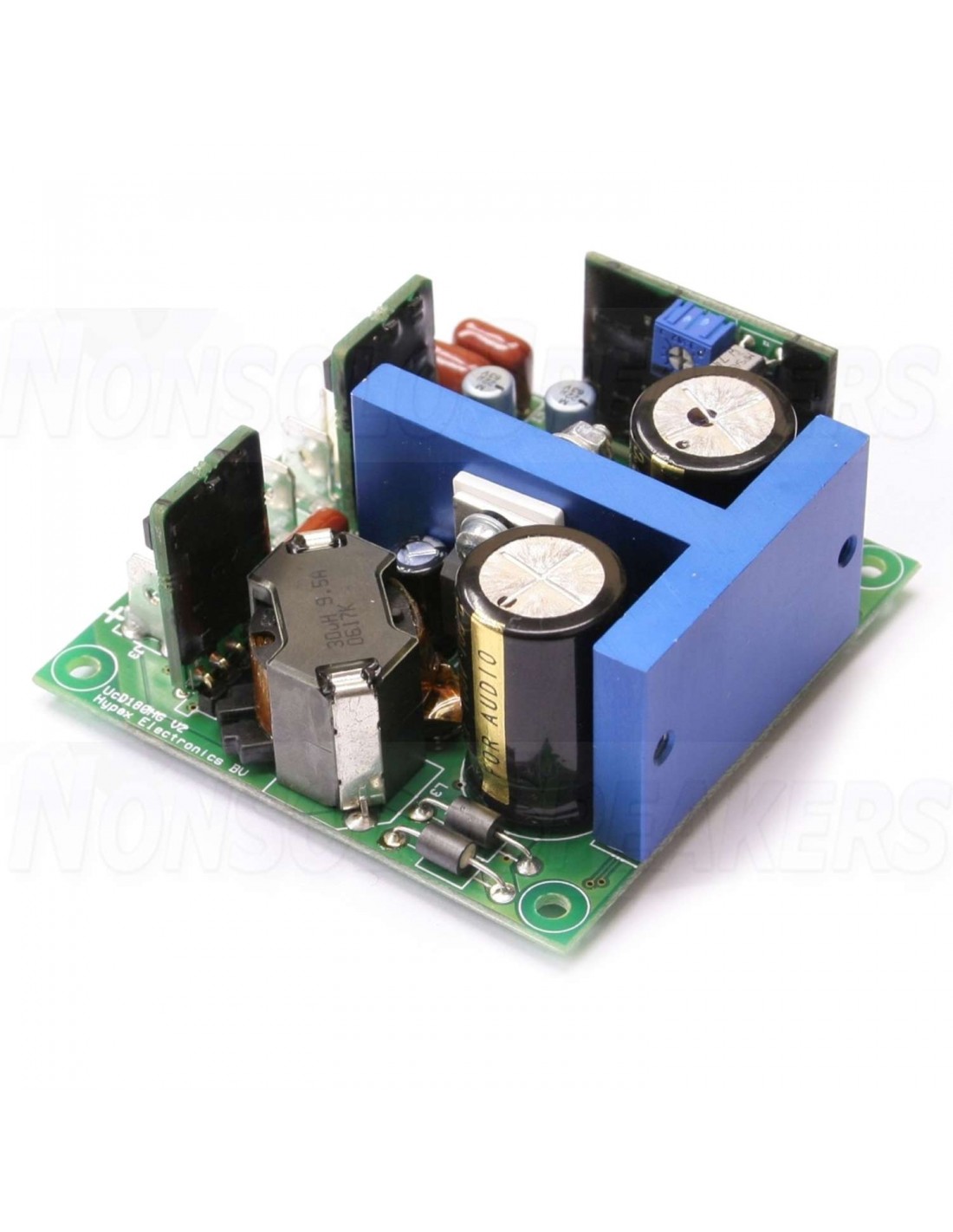

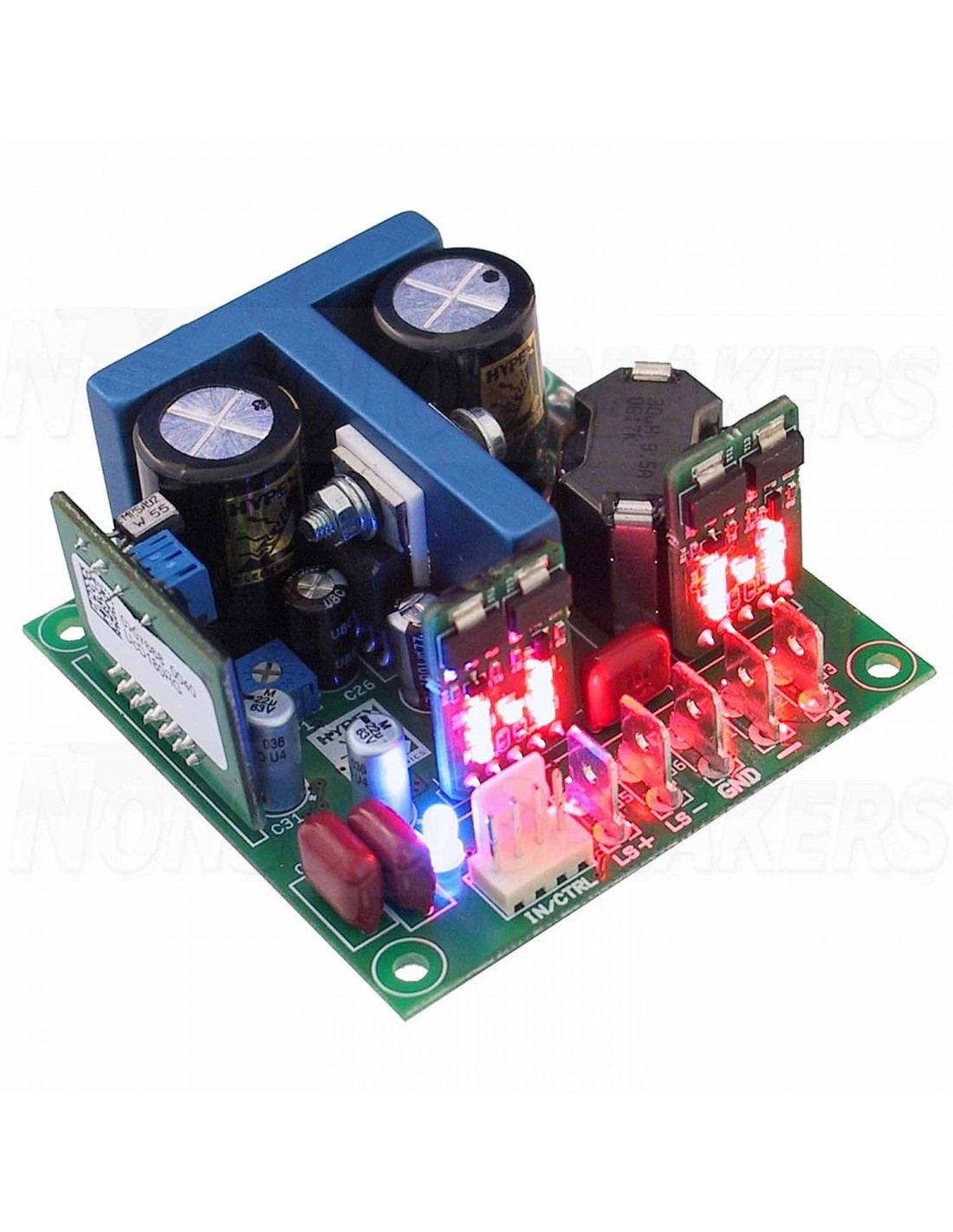

Hypex UcD180HG HxR 1x180W Universal Class D Amplifier Module

The UcD180HG HxR amplifier module is an entry level high-end class D amplifier, with HxR upgrade from Hypex. This amplifier is known for its high performance, reliability and ease of use. The UcD180HG hxR comes with the required UcD Signal Cable.

-

Highlights

    Flat, fully load-independent frequency

    Low output impedance

    Very low, frequency-independent THD

    Ultra low noise due to HxR

-

Product Details

Hypex UcD180HG HxR 1x180W Universal Class D Amplifier Module

The UcD180HG HxR amplifier is intended for a wide range of audio applications, ranging from Public Address systems to ultrahigh-fidelity replay systems for studio and home use. Hypex distinguishes their amplifiers from other class D designs due a unique circuit topology. This results in flat frequency response irrespective of load impedance, nearly frequency-independent distortion behavior and very low radiated and conducted EMI.

The Hypex UcD modules have established themselves as the new standard, both in terms of measured and subjective performance and therefore very suitable as amplifier in professional audio as well in consumer purposes.

-

Features

    Pop-free start and stop control

    Differential audio input

    Overcurrent and over voltage protection

    No compromise components

    LM4562 buffer OpAmp

    HxR12 mounted

.

Specifications

• Article number. UcD180HG HxR

• Rated power output

• 180 watts at 4 ohms

• 120 watts at 8 ohms

• Minimum load. 1 ohm

• Efficiency. 92 %

• Signal-to-noise ratio (SNR)

• Distortion. 0.1 % THD+N (20-20,000 Hz at 0.5 x rated power output)

• Frequency response  10 - 50,000 Hz

• Gain. 26 dB

• Input impedance. 100k ohms

• Amplifier Classification. Class D

• Circuit Topology UcD®

• Speaker output channels. 1

• Input connection type. 4 pin PCB connector

• Speaker output connection type. Crimp/solder connection tabs

• DSP function

• Bluetooth

• EQ Adjustment

• Power Requirements 30 - 49 VDC (symmetric supply +/-)

• Power inlet connector

• Crimp/solder connection tabs

• Current limit. 10 A

• Under/over voltage protection

• Dimensions (L x W x H) 65 x 65 x 25 mm

• Mounting hole spacing. 57.4 x 57.4 mm

-

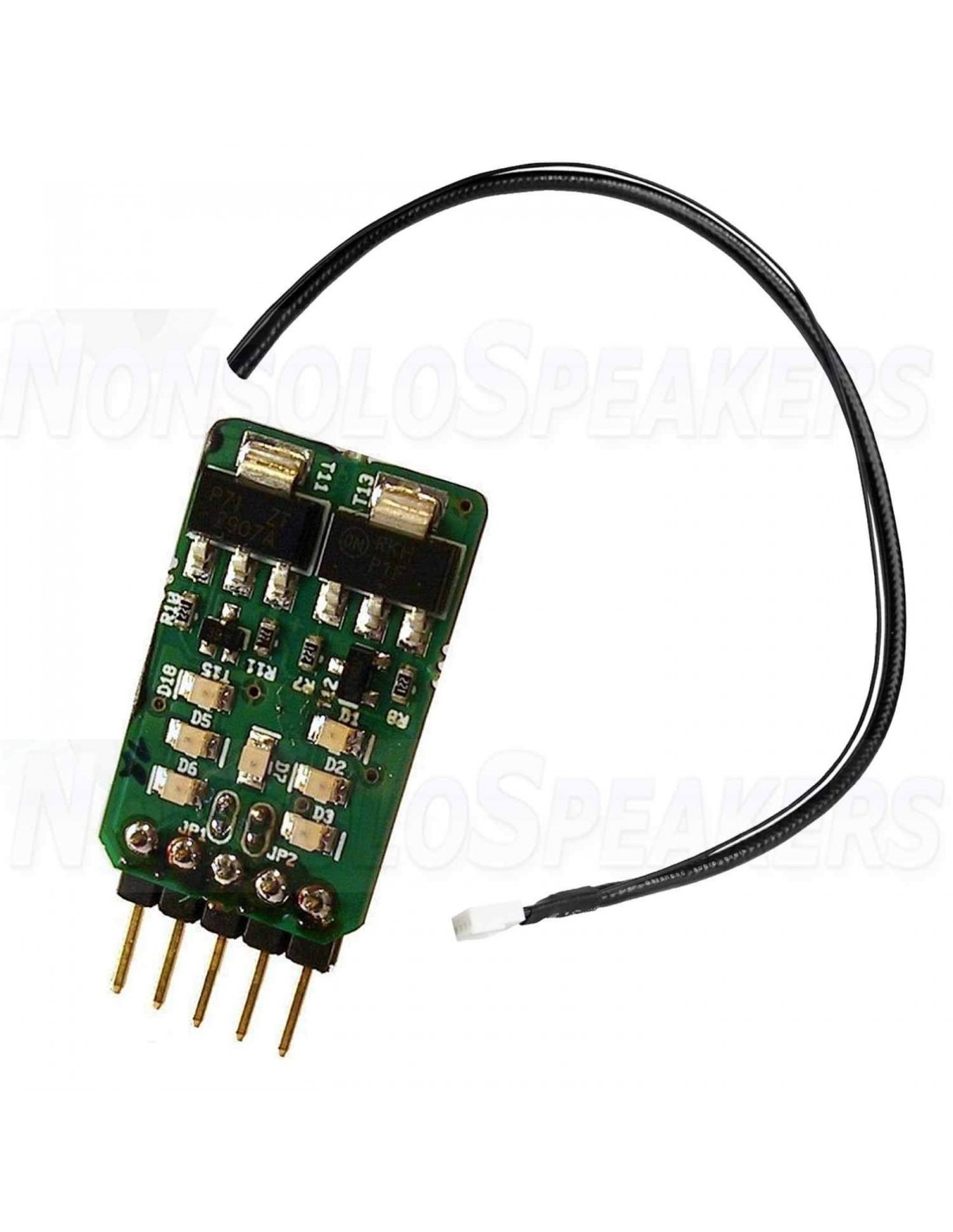

These optional voltage regulators supply the UcD’s (input)opmp section, with a regulated voltage, as alternative to the standard LM7812/7912 regulators onboard the UcD modules. The HxR (HPR12/HNR12) has wider bandwidth, lower noise and lower output impedance. Clean supplies are an important aspect for good audio reproduction. This UcD180HG HxR comes with HxR pre mounted

-

What’s In The Box

•     UcD180HG HxR amplifier module

•     Mounting set UcD

•     UcD Signal Cable

•     Manual

The UcD amplifier modules only need the proper signal and power supply connections to start with their efficient, ultra clean power delivery. We recommend the SMPS400A180 as power supply for the UcD180HG HxR amplifier module.
