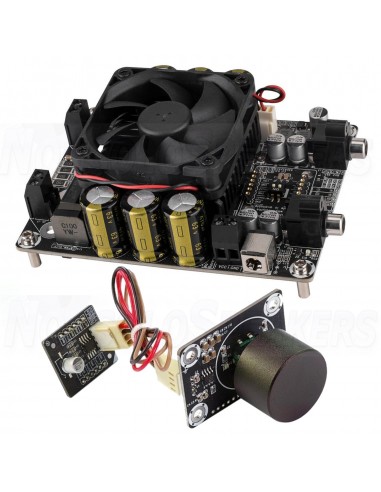

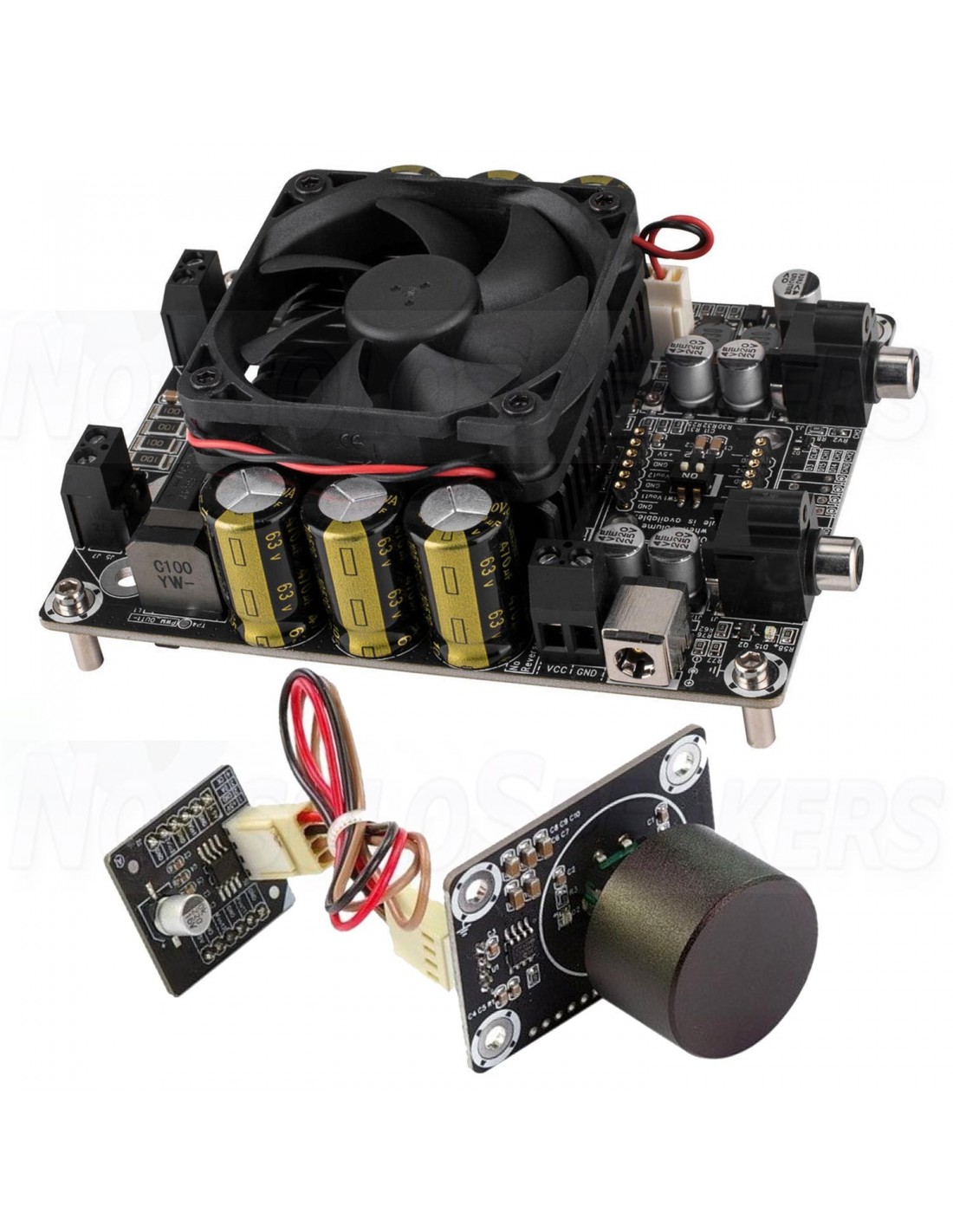

AA-AB32281 KIT1 - amplifier 2x200W@4ohm Classe D + Volume

WONDOM AA-AB32281 KIT1 - amplifier 2x200W@4ohm Classe D + Volume

Name: WONDOM AA-AB32281 KIT1 - amplifier 2x200W@4ohm Classe D + Volume
Brand: Wondom - Sure Electronics
SKU: AA-AB32281 KIT1
Price: 57 EUR
Availability: InStock

WONDOM AA-AB32281 KIT1 - amplifier 2x200W@4ohm Classe D + Volume

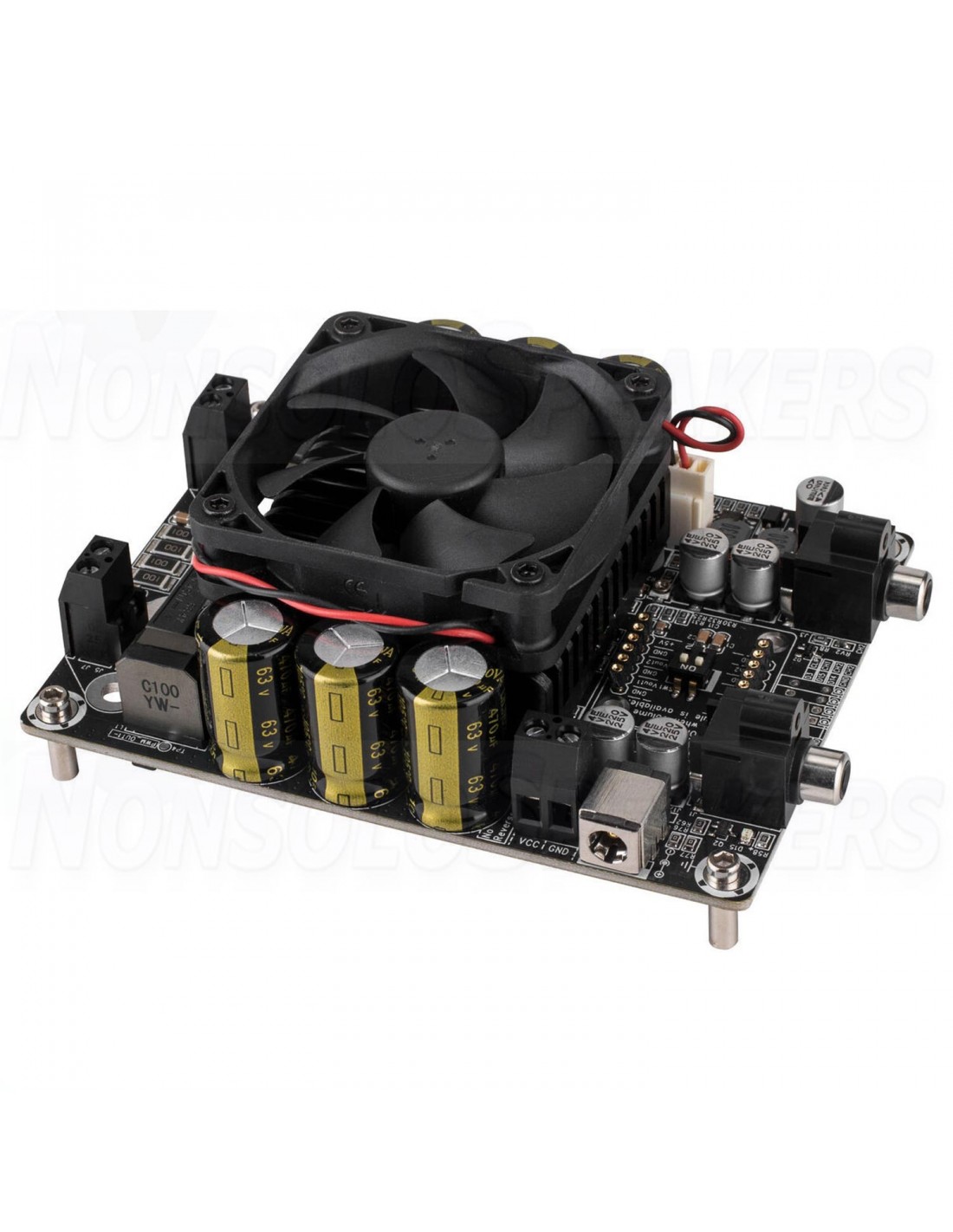

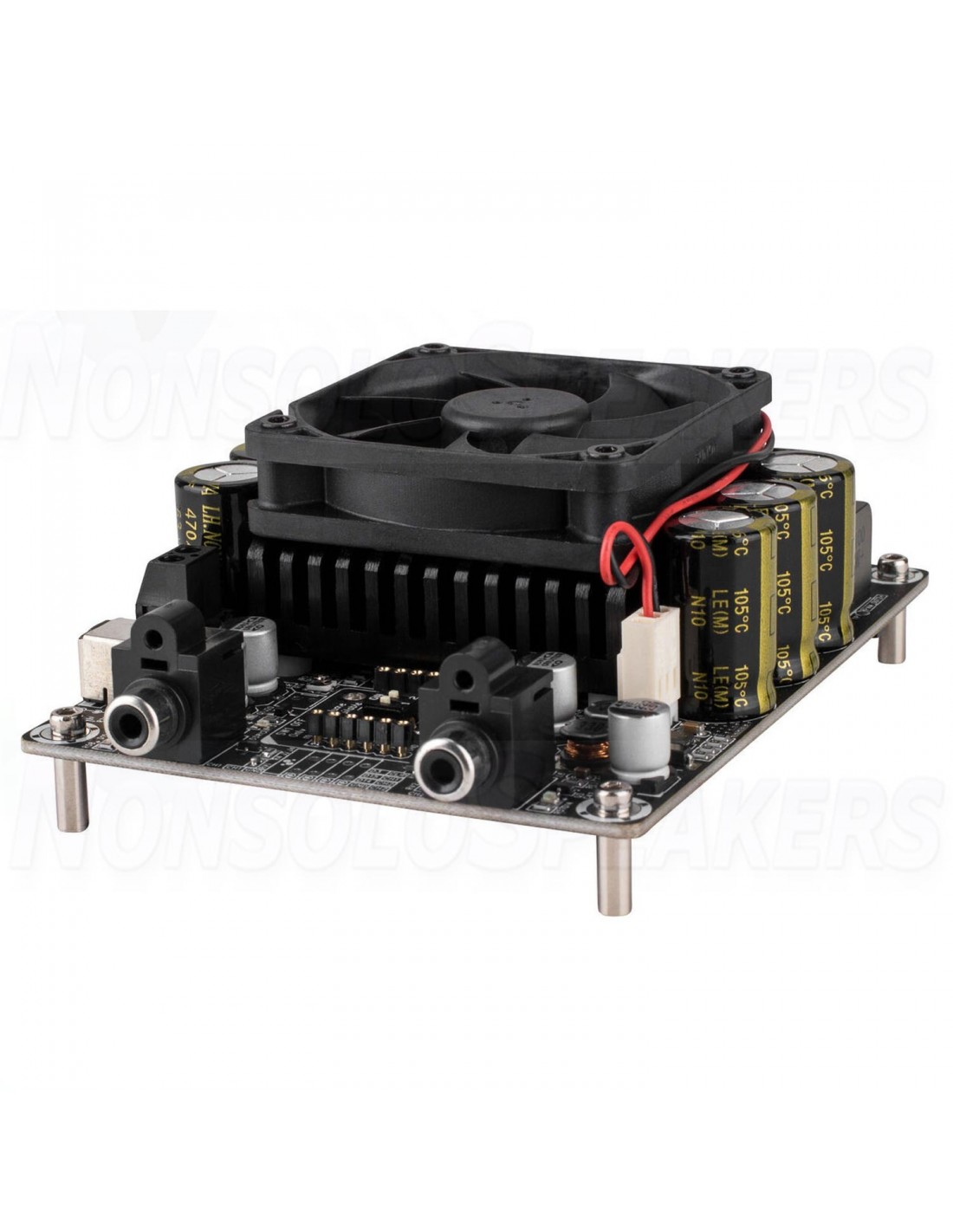

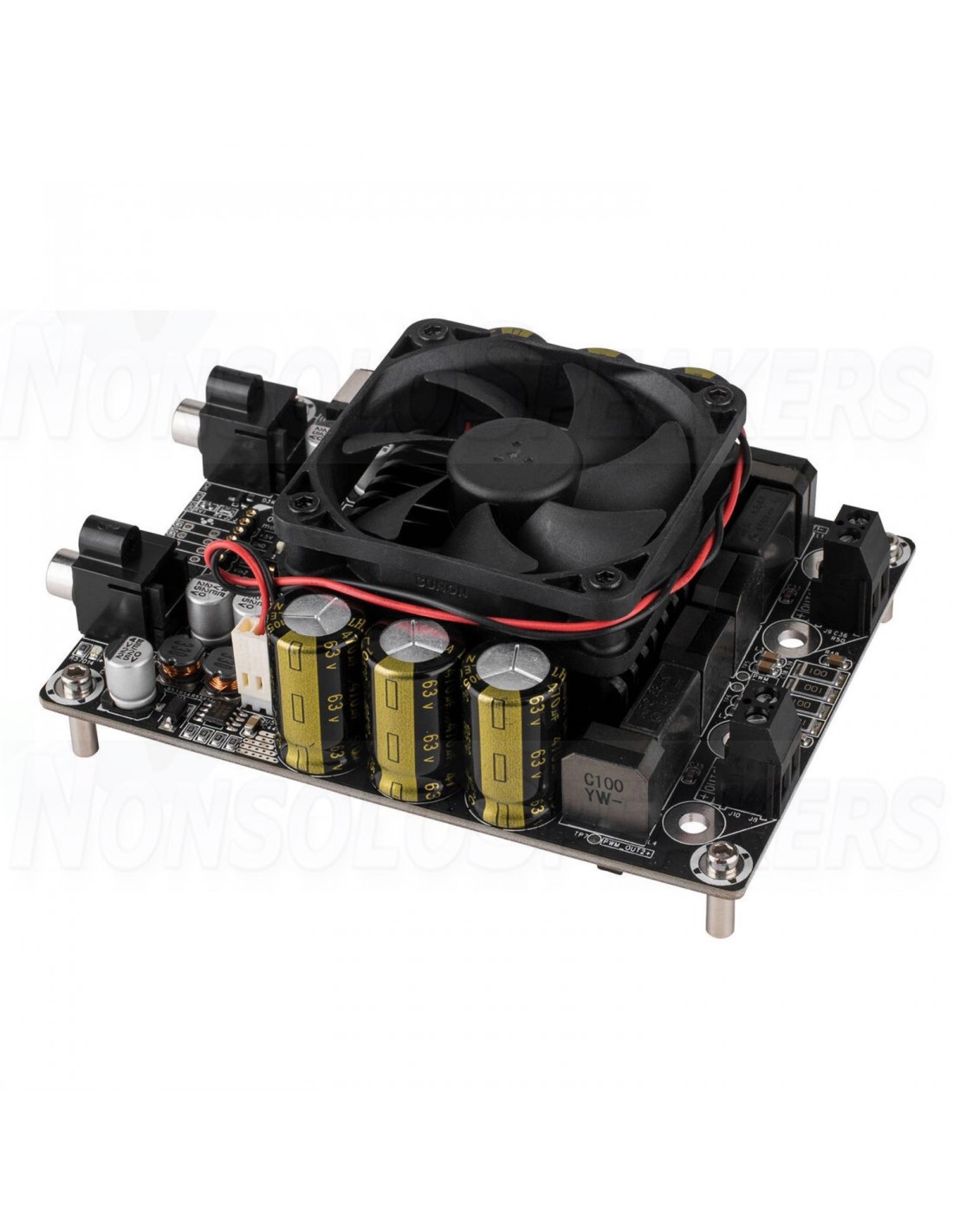

This medium power stereo amplifier board means serious business! This audio amplifier board generates up to 400 watts of power using Sure Electronics' T-AMP technology, characterized by low distortion and low noise level. For do-it-yourselfers, look for an audio amplifier for your home or vehicle.

SHIPMENT IN 7/10 WORKING DAYS

€57.00

Tax included

No review at the moment

Estimated Shipping Costs

Shipping Costs

€12.60

Shipping Time

Want to check another country or courier?

WONDOM AA-AB32281 KIT1 - amplifier 2x200W@4ohm Classe D + Volume

Temperature-controlled cooling fan and over / under-voltage, over-current, short-circuit and over-temperature protection circuits are integrated for years of fun. This amp card has three fixed gain settings or you can use the Sure plug-in volume control option. A 15 to 36 VDC power supply is required. Recommended power supply: ALC24V6AJ.

Dettaglio di connessione amplificatore in classe D

Features AA-AB32281 KIT1

Parametri	Condizioni di Test	Valori
Corrente massima	400 W @ 3 Ohm	12.6 UN
Tensioni di Alimentazione	-	15-36 V
Efficienza	200 W @ 3 Ohm	86-91 %
Potenza Inattiva	SD Floating, FAN ON SD Floating, FAN OFF	8.2-16 W 6.8-14 W
Frequenza Swhitching	SD Floating	730 kHz
Potenza in Standby	SD collegato a GND, FAN OFF	0.7-5 W
Sensibilità di ingresso (RMS)	@ 3 Ω, 200 W, 1 KHz	740 mV
Impedenza di ingresso	-	33 KΩ
Guadagno	-	24-28 dB
Impedenza di carico minima	-	3 Ω
Potenza in uscita	@ 3 Ω THD + N 1% @ 3 Ω THD + N 10%	128 W 200 W
Larghezza di banda @ ± 3dB	@ 3 Ω	20-20K Hz
THD	@ 3 Ω, 1W, 1KHz @ 3 Ω, 10W, 1KHz	0.004 % 0.02 %
Livello di rumore in uscita	Ponderazione, Ingresso collegato a GND	188 mV
SNR	128 W @ 3 Ω THD + N 1%	94 dB
Temperature	-	50 °C

Others features AA-AB32281 KIT1

Parametri	Specifiche
Chip	T-AMP
Dimensioni	12,1 x 9,1 x 3,8 cm.
Potenza	2 x 200W
Classe Amplificatore	D
Controllo di volume	Opzionale
Protezione da cortocircuiti	Si
Protezione da sovratemperatura	Si

Caratteristiche Scheda Controllo Volume AA-AA11117

The Digital Volume Control AA-AA11117 is specially designed for audio amplifier card. Flexible and easy to install connection, also thanks to a 20 cm cable. It has a single-end audio signal input and output, an LED status indicator and a similar DIP module for plug-in play.

Parametri	Condizioni	Unità
Alimentazioneelettrica	-	5V DC
Corrente di riposo	-	10 mA
THD	F = 1kHz, Vo = 0.5Vrms, ATT = 0	0.01/0.05%
Tensione di ingresso massima	THD = 1%, ATT = -6dB	1.5/1.7 vrms
Tensione di uscita massima	THD = 1%	0.8/1.3 vrms
Temperatura di esercizio	-	20-50°C
Temperatura di conservazione	-	-20-105 °C
Temperatura termica	-	150 °C
Dimensioni Volume Control Board	-	1.1" x 0.9"
Dimensioni Decode Board	-	2" x 1.5" x 1.7"
