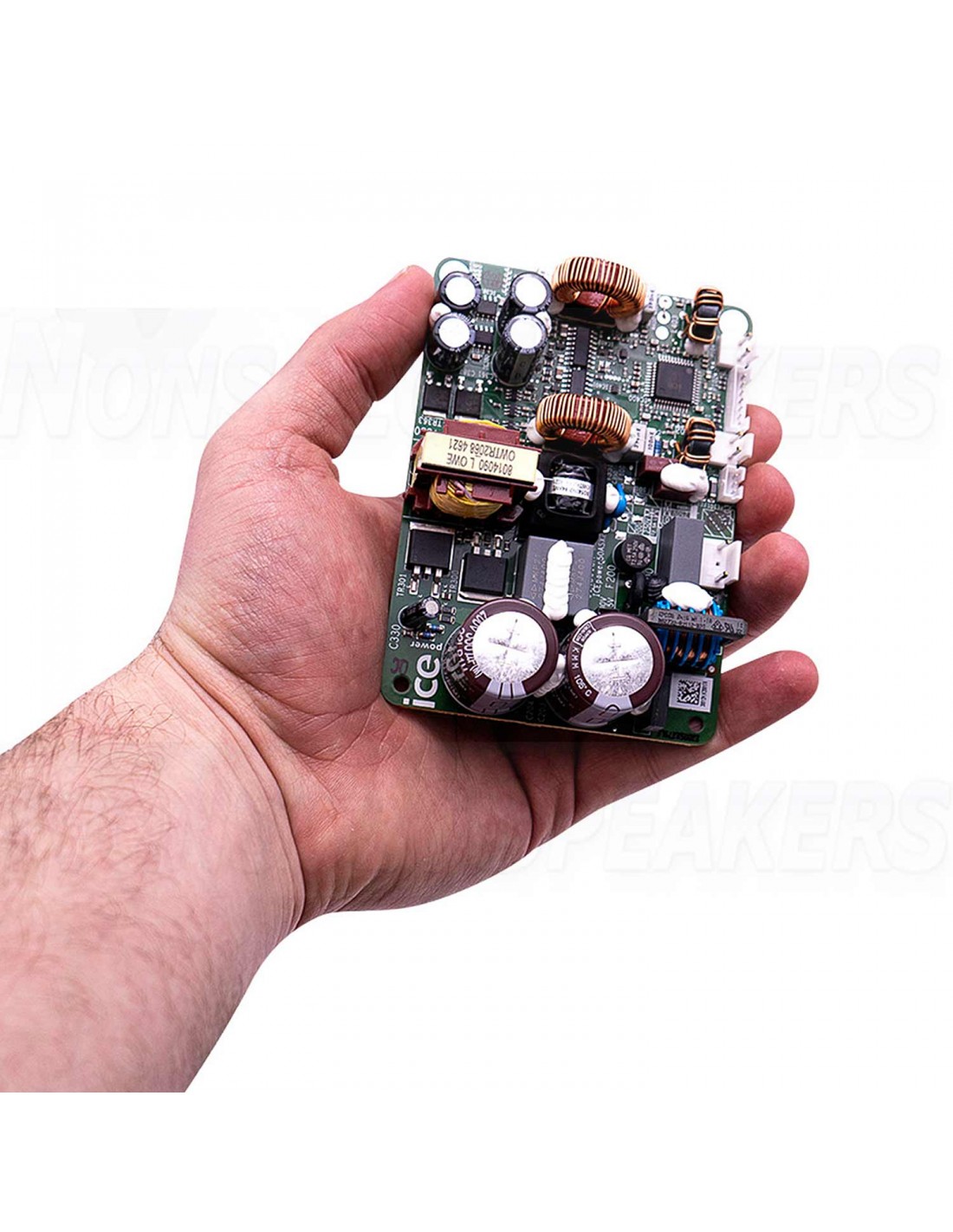

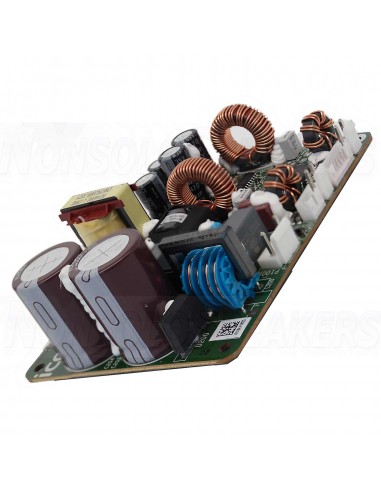

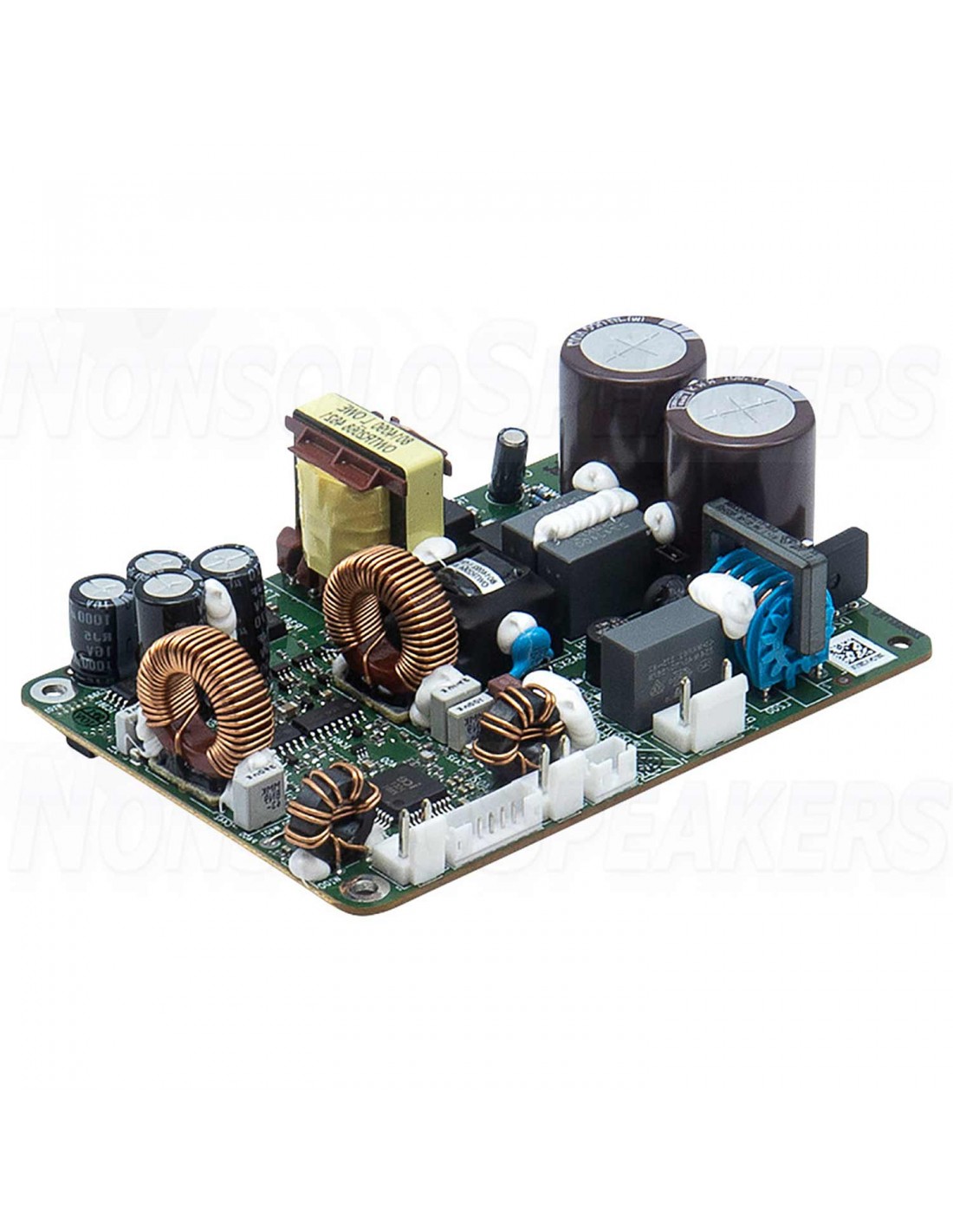

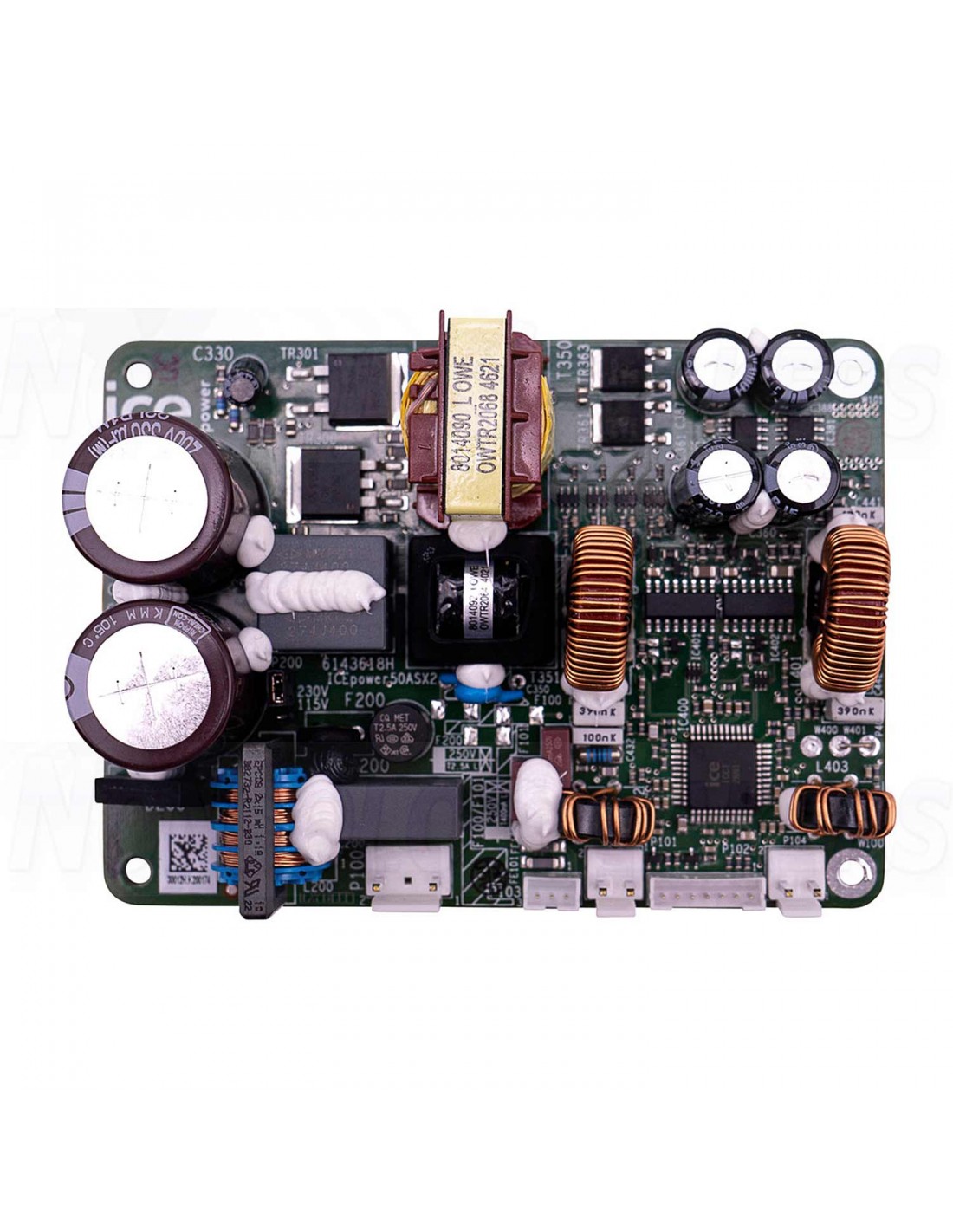

ICEpower 50ASX2(SE) 2x50W Amplifier Module with integrated ICEpower Supply

ICEpower 50ASX2(SE) 2x50W Amplifier Module with integrated ICEpower Supply The 50ASX2 is a fully integrated, intelligent amplification solution designed particularly for consumer and professional audio applications. This ultra-compact amplifier module has an integrated high efficient resonant power supply. It is a great choice from the amplifier modules category as it offers excellent audio quality, is ultra-compact and has a nice set of features. This module is EMC and safety approved. The auxiliary supply for powering external circuitry, elimination of heat sinks and EMI shields allow for fast implementation in your project. The 50ASX2 is protected against short-circuit, overload and over-heating and includes onboard fuses and EMI filtering to provide a CE and FCC pre-approved design. The 50ASX2 is available in two variants with either stereo or mono output configuration. This SE (single-ended) version is perfect for active 2-way speakers and stereo applications. For the single-channel BTL version, check out the 50ASX2(BTL). For other members from the ASX-series check out the more powerful 125ASX2 and 250ASX2.

.

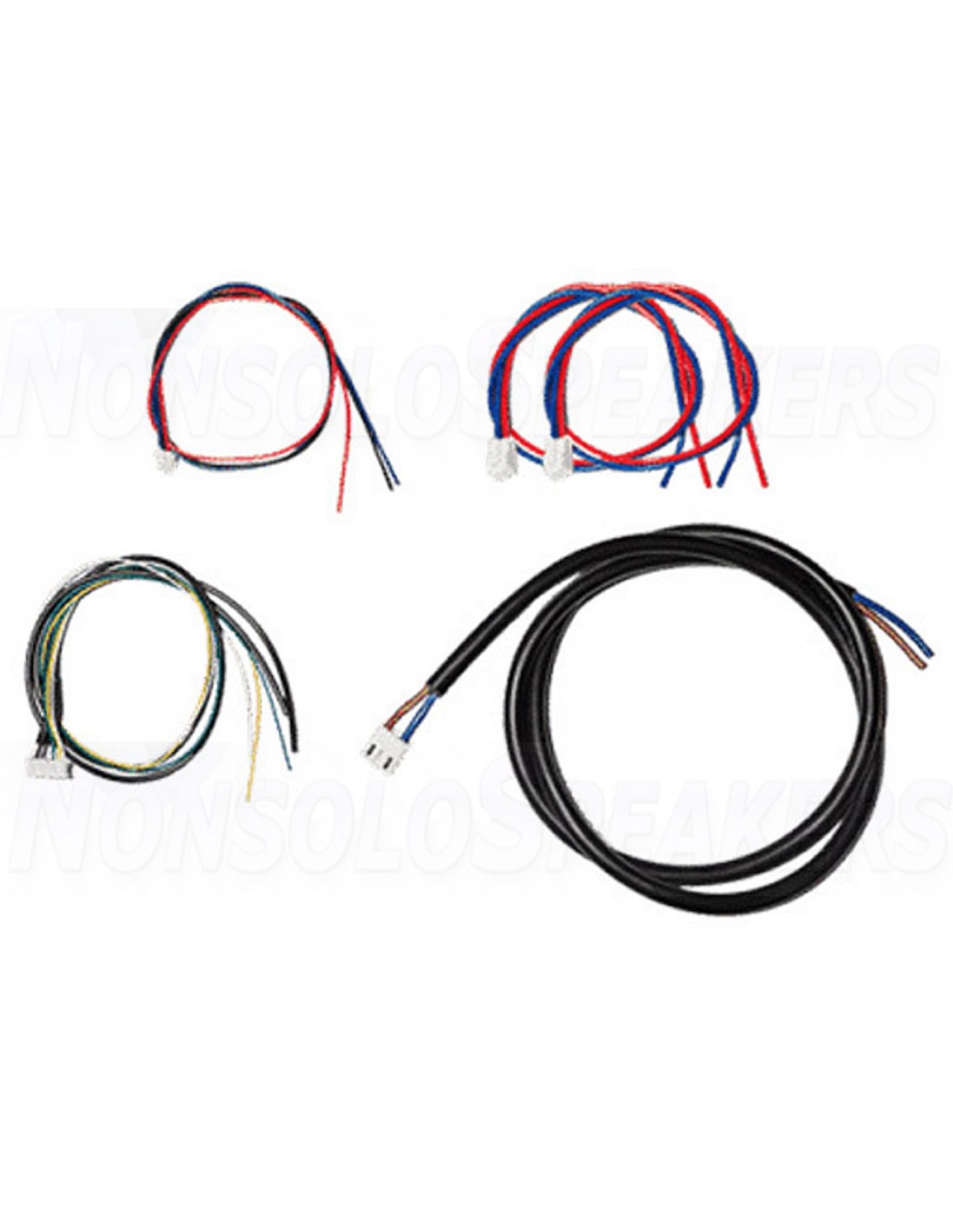

Cable Set

The included cable set allows access to all features of the 50ASX2. The kit contains cables with all the right connectors on one end. The other ends are left unterminated so you can terminate the wires with the connections of your choice.

.

Highlights

Fully integrated audio power solution

Stereo or mono output versions available

Rugged construction

Thermal protection O

ver-current protection

Sound optimized soft clipping

Suitable for CE approved designs

.

Specifications

Article number 50ASX2(SE)

Rated power output 2X 50 watts at 4 ohms 2X 25 watts at 8 ohms

Minimum load 2 Ohm

Efficiency 81%

Distortion 0.003 %

THD+N Gain 20 dB

Input impedance 8 kOhm

Amplifier Classification Class D

Speaker output channels 2

Power Requirements 85-264 VAC

Current limit 20 A

Mounting hole diameter 3.5 mm.

.

What’s In The Box?

1 x 50ASX2(SE) Amplifier Module with integrated ICEpower Supply

Cable set:

1 x (K) Mains without Earth

1 x (R) Supply ASX2series AUX

1 x (S) Signal

2 x (F) 2pole Universal Speaker
