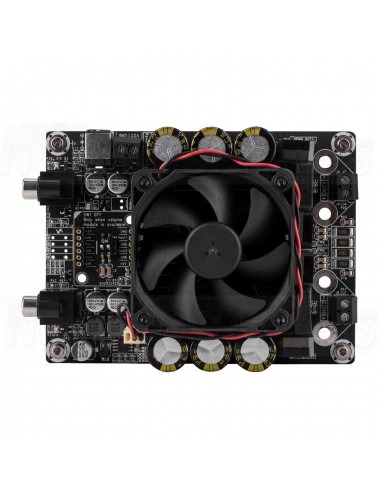

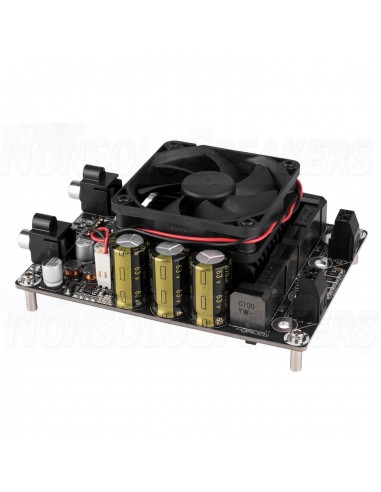

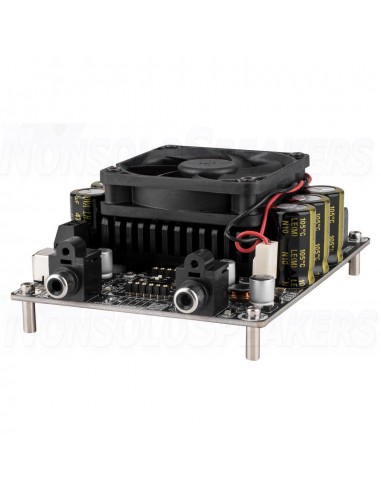

Here is the upgrade version of the original T-Amp sound card 2 x 500 watt class D -AA-AB32512. Thanks to the dedicated heat sink design with temperature controlled fan, it is able to simultaneously deliver maximum dual channel power from 500 W RMS to 3ohm without using an additional heat sink

SHIPMENT IN 7/10 WORKING DAYS
€88.00

Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



WONDOM AA-AB32512 - 2x500W@3ohm amplifier class D

Here is the upgrade version of the original T-Amp sound card 2 x 500 watt class D -AA-AB32512. Thanks to the dedicated heat sink design with temperature controlled fan, it is able to simultaneously deliver maximum dual channel power from 500 W RMS to 3ohm without using an additional heat sink. In addition to the integrated protection of the chip, the protection components against ESD discharges and used throughout the input and output of the amplifier board guarantee its robustness and reliability.

A low-noise, temperature-controlled cooling fan is mounted above the robust heat sink to maximize heat dissipation. Also included are thermal protection, over / under voltage and current circuits to extend the life of the amplifier board. Mounting holes are provided as a 2.5mm x 5.5mm power jack for quick connection. Phoenix type screw terminals are included for quick connection of speaker cables. The RCA line level inputs are pre-attached to make this board ready for rock.

Dettaglio di connessione amplificatore in classe D

Features AA-AB32512

Parametri  Condizioni di Test Valori
Corrente massima 1000 W @ 3 Ohm 21.5 UN
Tensioni di Alimentazione  - 24-50 V
Efficienza 500 W @ 3 Ohm 91-96 %
Potenza Inattiva

SD Floating, FAN ON

SD Floating, FAN OFF

15-20 W

13.5-17 W
Frequenza Swhitching SD Floating 700 kHz
Potenza in Standby SD collegato a GND, FAN OFF 0.5-3 W
Sensibilità  di ingresso (RMS) @ 3 Ω, 500 W, 1 KHz 1.76 V
Impedenza di ingresso - 10 KΩ
Guadagno - 28.5-32.5 dB
Impedenza di carico minima - 3 Ω
Potenza in uscita

@ 3 Ω THD + N 1%

@ 3 Ω THD + N 10%

310 W

500 W
Larghezza di banda @ ± 3dB @ 3 Ω 20-20K Hz
THD

@ 3 Ω, 1W, 1KHz

@ 3 Ω, 10W, 1KHz

0.01 %

0.019 %
Livello di rumore in uscita Ponderazione, Ingresso collegato a GND 240 mV
SNR 128 W @ 3 Ω THD + N 1% 95 dB
Temperature
 - 50 °C

Others features AA-AB32512

Parametri Specifiche
Chip T-AMP STA516BE
Dimensioni 15,2 x 12,1 x 3,5 cm.
Potenza 2 x 500W
Classe Amplificatore D
Controllo di volume  Opzionale
Protezione da cortocircuiti Si
Protezione da sovratemperatura Si

Performance
