Monacor SAM-500d Active subwoofer modules
Monacor SAM-500d Active subwoofer modules
Monacor SAM-500d Active subwoofer modules
Monacor SAM-500d Active subwoofer modules
Monacor SAM-500d Active subwoofer modules
Monacor SAM-500d Active subwoofer modules

Monacor SAM-500d Active subwoofer modules

Monacor SAM-500d Active subwoofer modules

SHIPMENT IN 5-7 WORKING DAYS
€367.08 €399.00 -8%

Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€19.08
Shipping Time
.
Want to check another country or courier?

You might also like



Monacor SAM-500d Active subwoofer modules

Active Subwoofer Modules for the Digital Age
Due to state-of-the-art technology in the digital D class, the digital active subwoofer modules from MONACOR provide a powerful bass reproduction in self-built subwoofer systems. The components feature a high power efficiency and provide an energy-saving operation. The lightweight design of these models which are available at an attractive price ensures a low total weight of the speaker system.

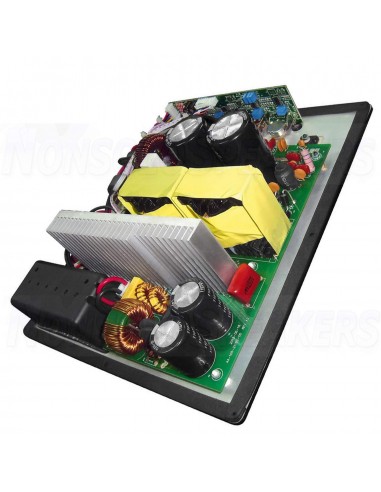

Class D active subwoofer module, 500 W at 4 Ω
  • High-performance active module in class D technology
  • Variable low-pass filter: 40-200 Hz (18 dB)
  • Continuously adjustable phase control 0-180° for perfectly matching it to the main speakers
  • Line input, par. line output
  • Integrated bass boost of approx. 3 dB at 40 Hz
  • High-level inputs for parallel connection to the speaker cables
  • Very high power reserves for bass speakers with a diameter up to 46 cm

Technical Specifications

SAM-500D

Peak output power 700 W
Power rating 500 W
Power rating at 4 Ω 500 W
Power rating at 8 Ω 250 W
Channels 1
Inputs max. 7 V/22 kΩ
Attenuation factor 25.0
Frequency range 20 Hz - (var. 40-200 Hz)
Crossover network 18 dB/oct.
S/N ratio > 70 dB
THD < 1%
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 840 VA
Power consumption, standby < 0.5 W
Admiss. ambient temp. 0-40 °C

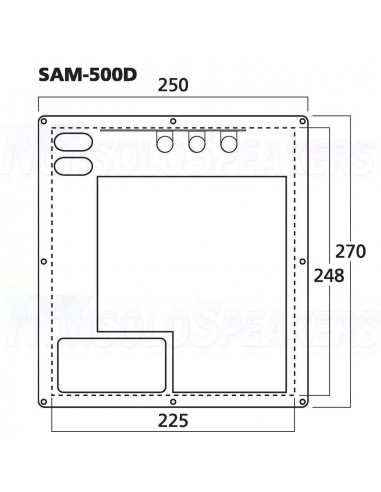

Width 251 mm
Height 270 mm
Depth 90 mm
Weight 2.6 kg
Connections 1 x RCA (line in),

1 x speaker terminal (high power in),

1 x RCA (line out)
Packing dimensions (W x H x L) 0.25 x 0.1 x 0.27 m
Gross weight 3.22 kg
Net weight 2.6 kg
