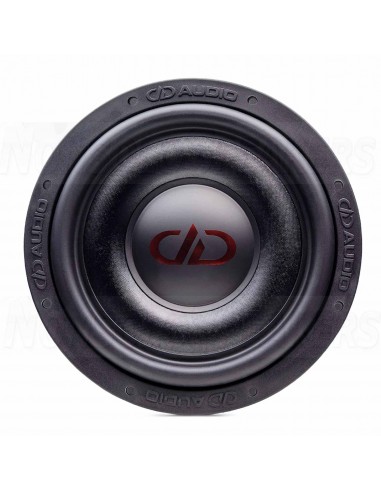

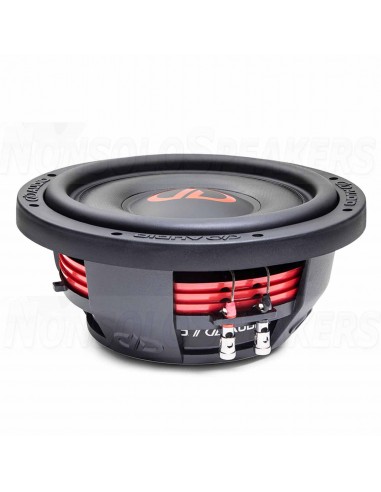

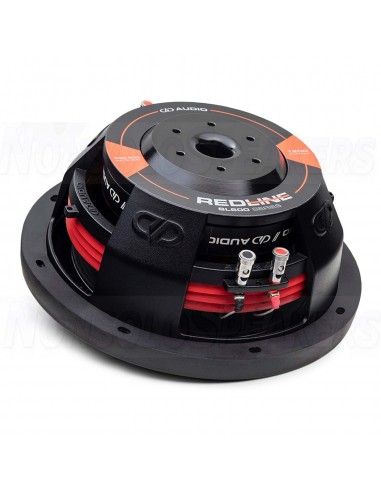

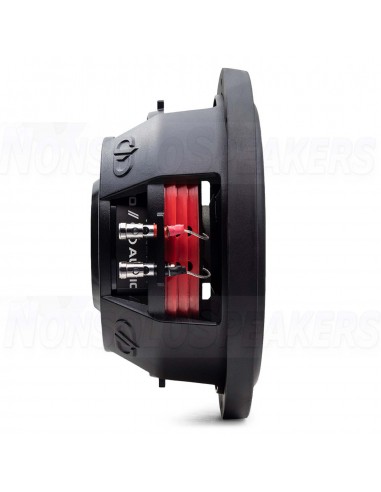

DIGITAL DESIGNS SL610 D2  double coil 25cm 2+2 ohm

The SL600 series subwoofers, which include the DD Audio HI-DEF SL610 10″ (25cm) flat subwoofer, feature a very shallow mounting depth, and the suspensions have been tuned to perform exceptionally well in sealed and small bass-reflex enclosures. To ensure high power handling, good cooling and large excursion, the SL600 subwoofers feature 2.5-inch high-temperature voice coils, 72-ounce magnets, rear panel coil venting and an EROM surround. One of the unique features of the SL600 is the three-layer, low-profile diaphragm cone. By compressing a layer of foam between two layers of cellulose, the cone is as light and stiff as a standard cone, yet shallow enough to allow a suspension travel equivalent to that of a full-sized subwoofer.

.

Features:

Data:

Fs (Hz): 29

Qms: 6.878

Qes: 0.393

Qts: 0.372

Vas: 26.769

Xmech (MM): 40

Xmax (MM): 14.5

Dimensions:

Enclosure Recommendation:

Closed cabinet : 14-28 litres

Bass reflex cabinet : 14-35 litres.
