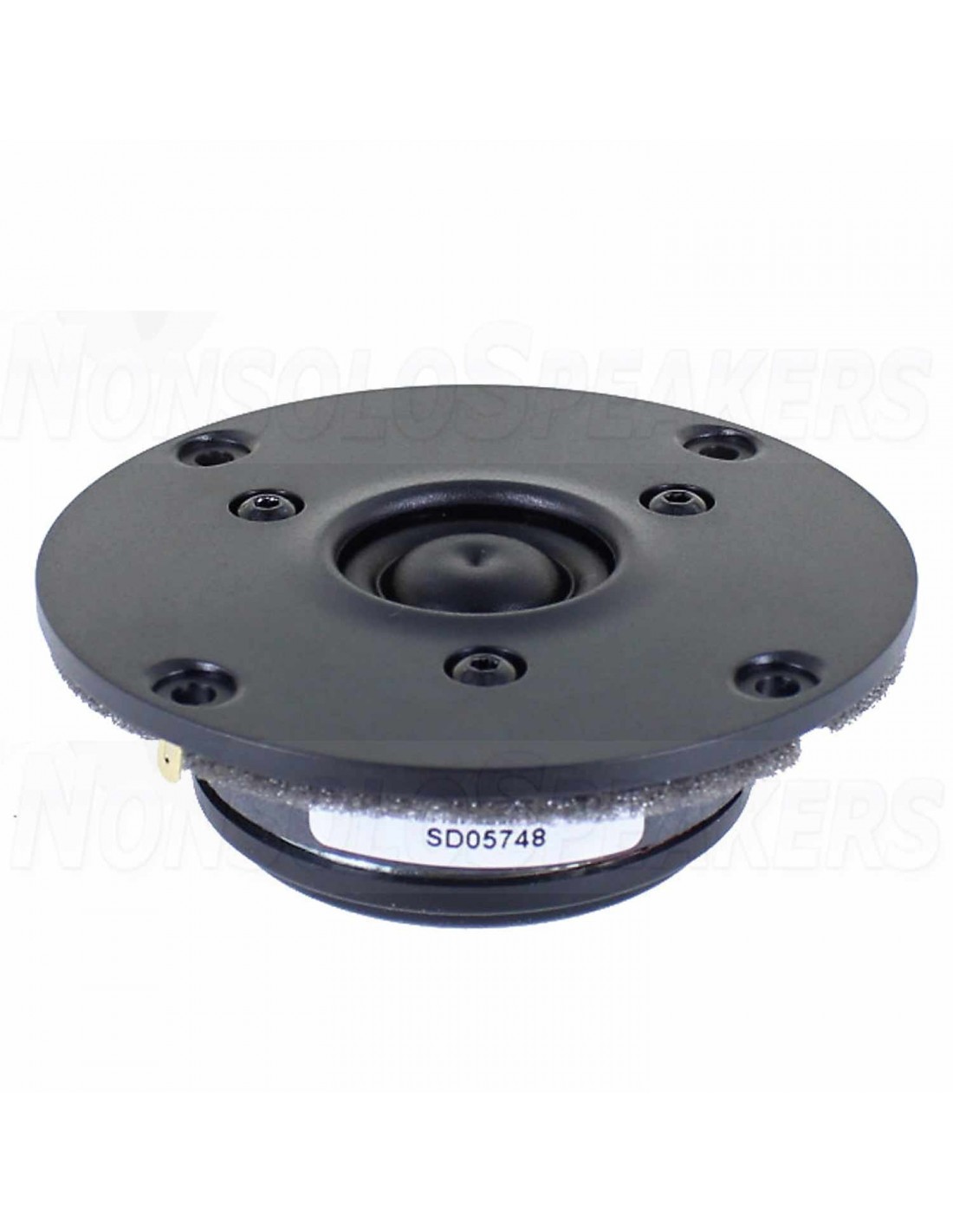

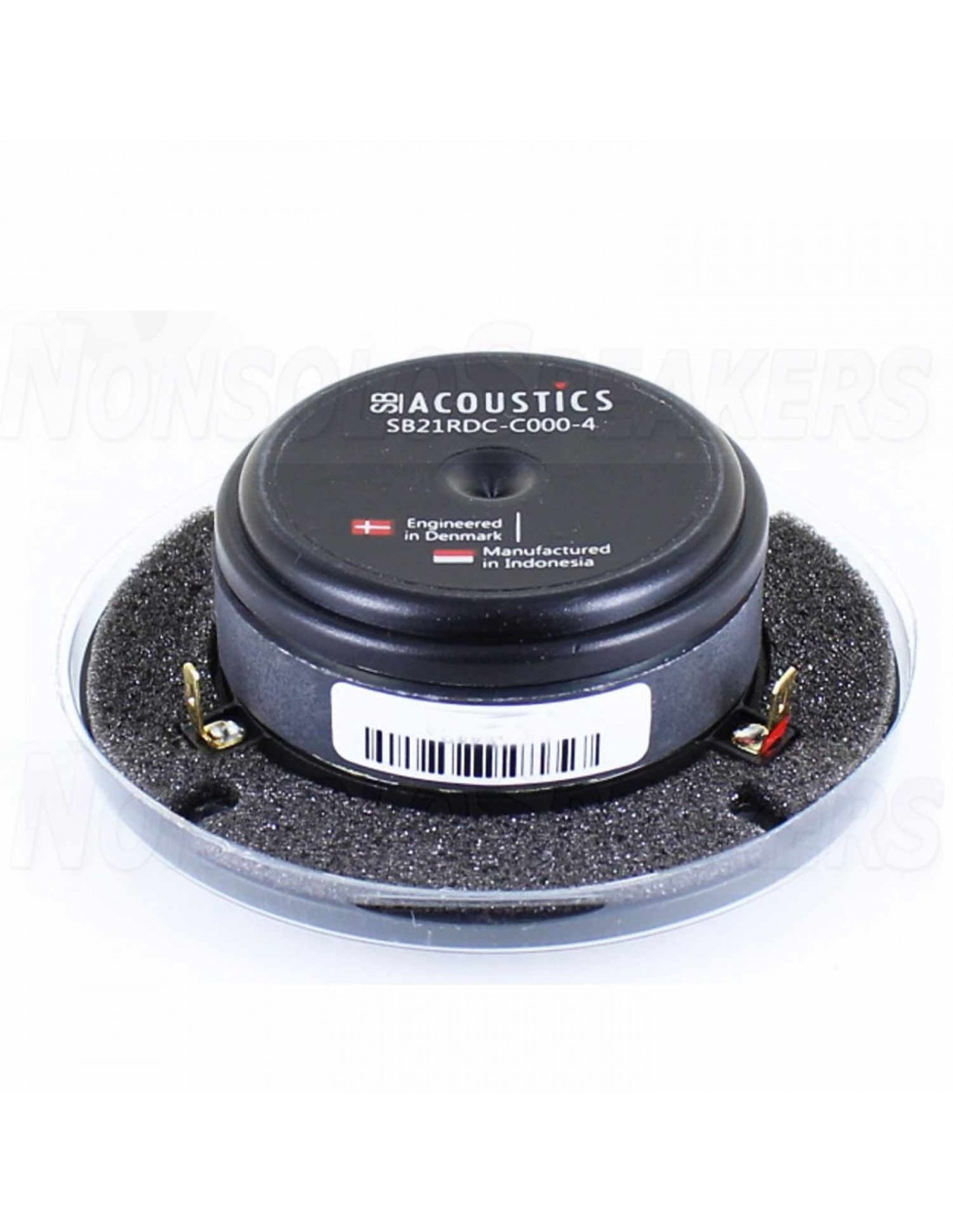

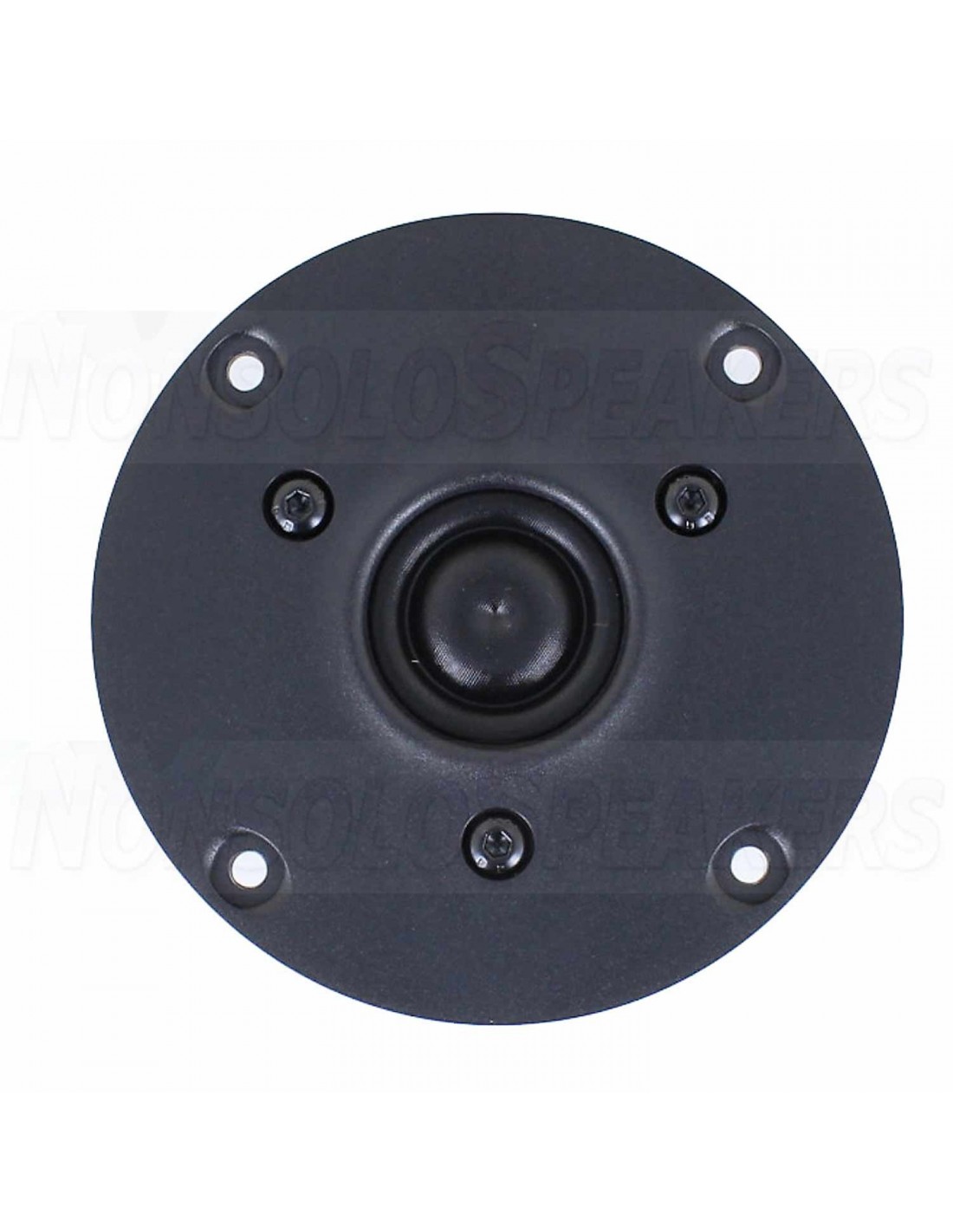

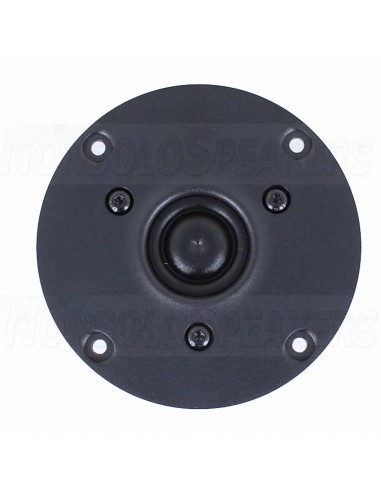

SB Acoustics SB21RDC-C000-4 Ring Dome Tweeter

SB Acoustics SB21RDC-C000-4 Ring Dome Tweeter

Non-resonant diaphragm design for minimum high frequency break-up and dual balanced compression chamber for improved dynamics.

SHIPMENT IN 7-10 WORKING DAYS
€50.76
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



SB Acoustics SB21RDC-C000-4 Ring Dome Tweeter

.

Product description

 Non-resonant diaphragm design for minimum high frequency break-up

 Dual balanced compression chamber for improved dynamics

 Copper cap for reduced voice coil inductance and minimum phase shift

 Saturation controlled motor system for low distortion

 Non-reflective rear chamber with optimized damping for improved dynamics

 Flow optimized vented pole piece for optimum coupling to rear chamber

 CCAW voice coil for low moving mass

 Long life silver lead wires

 Low resonance frequency

.

Product details

SB Acoustics SB21RDC-C000-4 3/4" Ring Tweeter

Non-resonant diaphragm design for minimum high frequency break-up and dual balanced compression chamber for improved dynamics. Copper cap for reduced voice coil inductance and minimum phase shift. Saturation controlled motor system for low distortion. Non-reflective rear chamber with optimized damping for improved dynamics. Flow optimized vented pole piece for optimum coupling to rear chamber. CCAW voice coil for low moving mass. Long life silver lead wires and low resonance frequency.

Specifications: BL Product (BL): 1.5 Tm N • Diaphragm Mass Inc. Airload (Mms): 0.25 g • Maximum Linear Excursion (Xmax): 0.5 mm • Surface Area of Cone (Sd): 4.6 cm2

.

Specifications

Article numberSB21RDC-C000-4
Tweeter TypeRing Radiator
Cone / Dome Diameter20 mm | 4/5"
Power Handling (RMS)40 Watts
Impedance (Z)4 Ω
Sensitivity (SPL at 1m / 2.83V)90 dB
Resonant Frequency (Fs)760 Hz
DC Resistance (Re)3.1 ohms
Voice Coil Inductance (Le)0.04 mH
Mechanical Q (Qms)2.54
Electromagnetic Q (Qes)1.64
Total Q (Qts)1.00

SB21RDC-C000-4
