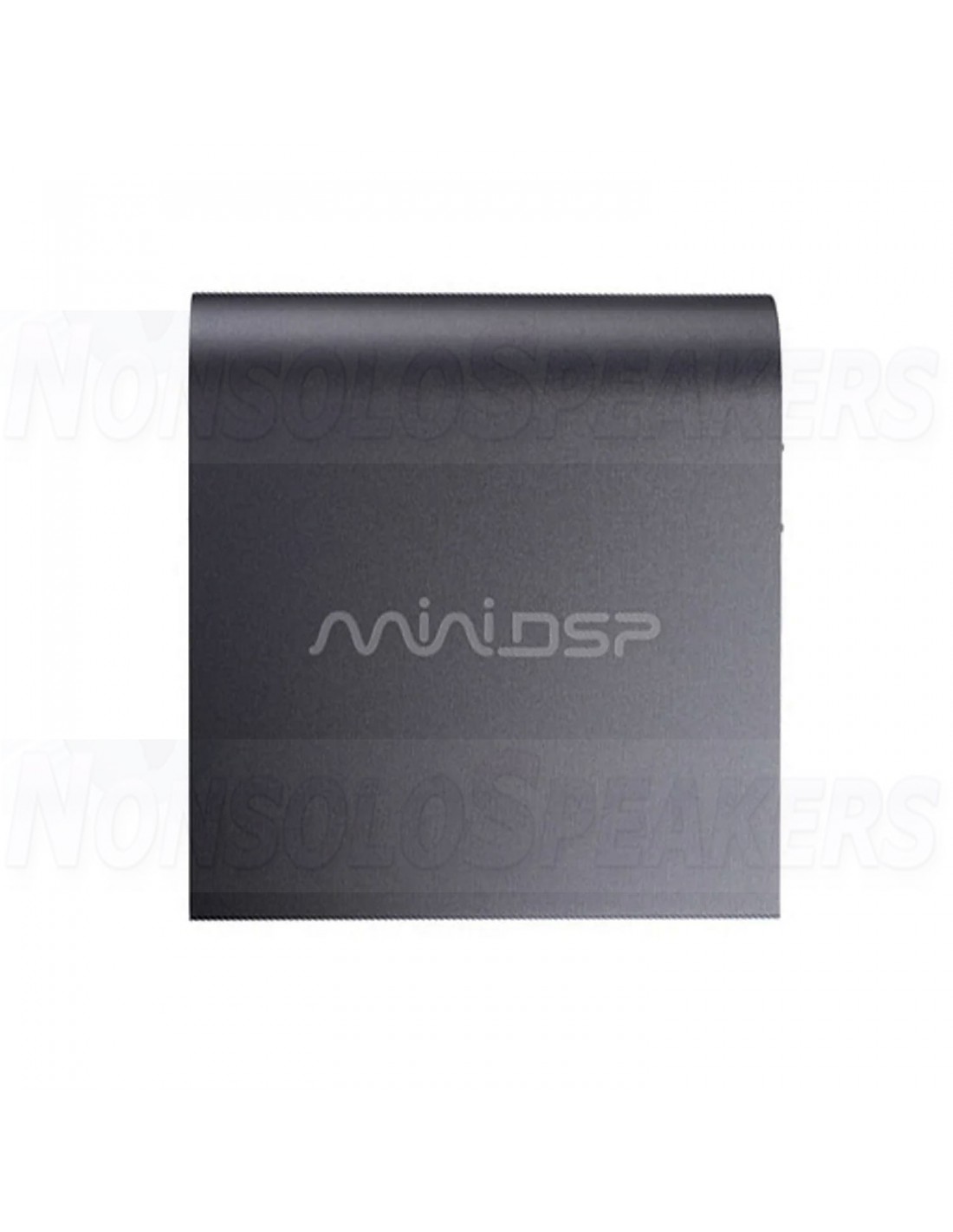

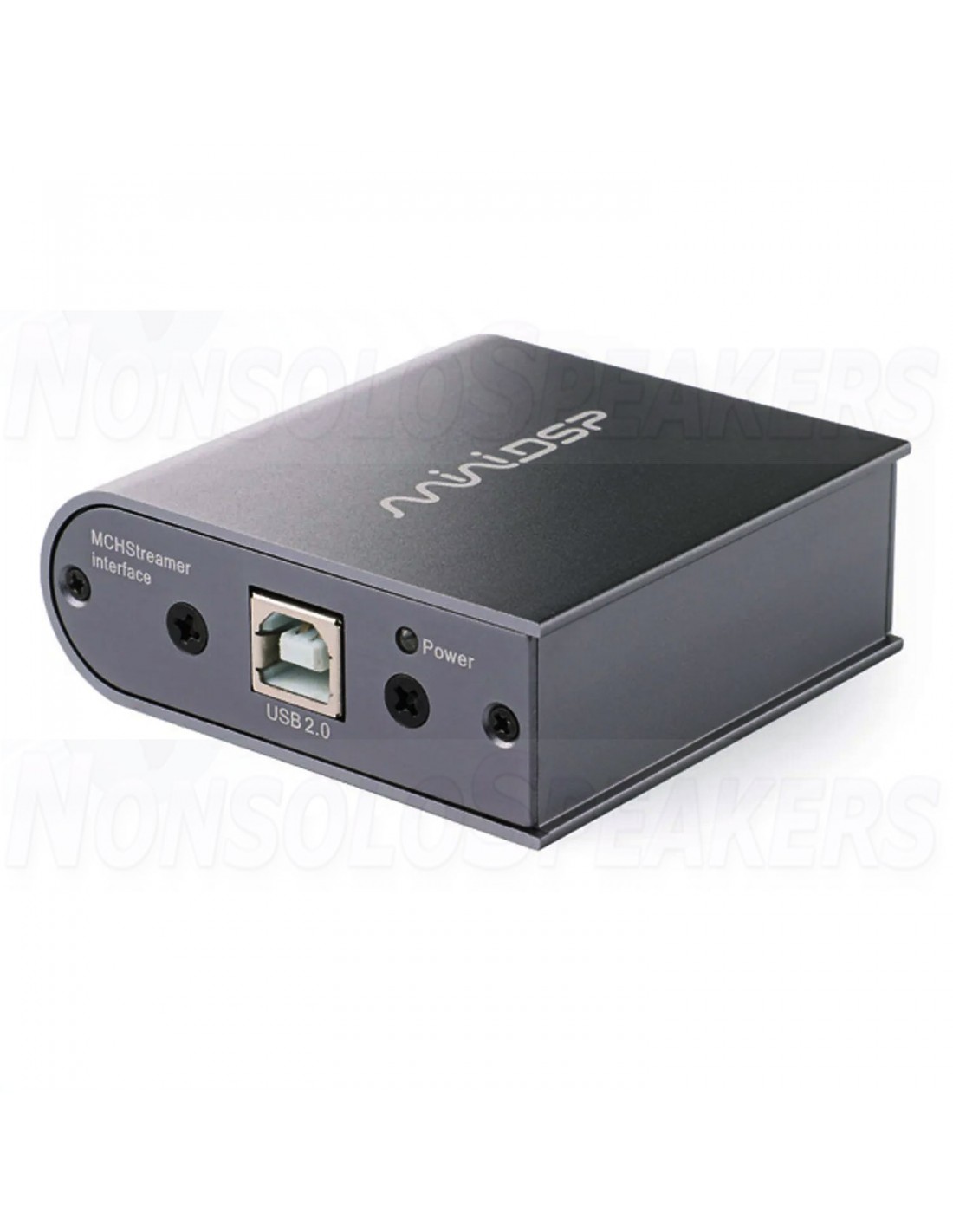

miniDSP MCHStreamer Box Multi-channel asynchronous USB interface for TOSLINK/ADAT

The miniDSP MCHStreamer Box is a miniature multi-channel USB to Toslink/ADAT audio interface. It is a versatile tool that can be used for a variety of audio applications, such as studio recording and playback, multichannel streaming, and more.

.

Highlights:

• Multi-channel USB audio interface (ADAT in/out + TOSLINK)
• USB 2.0 High speed and Audio class 2.0 device / Asynchronous USB synchronization
• OS compatible: Win/Mac/Linux 2.0/Android/Ios (with Camera kit dongle)
• USB powered

Product details:

miniDSP MCHStreamer Box

The MCHStreamer Box is a miniature multi-channel USB to Toslink/ADAT audio interface. Packaged in a pocket sized aluminum enclosure, it is the perfect fit for stereo (TOSLINK) or multichannel (ADAT) audio streaming over USB.The MCHStreamer Box utilizes high speed USB2.0 along with the Audio Class 2.0 implementation to simultaneously provide up to 8 channels of playback &recording. The asynchronous USB transfer provides high quality performance.

With an easy firmware upgrade, one can easily toggle the behavior of the optical transmitter from ADAT to TOSLINK. Finally, the device is plug-and-play thanks to native macOS and Linux drivers (ALSA). For Windows, an ASIO/WDM driver is available for download from our website.

.

Specifications:

• Article number MCHStreamer Box
• Processing resolution & sample rate Up to 96 kHz
• Input / ouput configuration Optical input & Output
• Audio input connectivity USB 2.0, USB Audio Class 2 compliant
• Windows / Mac compatible Driverless interface for Mac OS X v10.6.4 and up Free Windows ASIO driver (XP/Vista/7/8/Win10) Linux Alsa compliant driver
• Dimensions 13 x 40 x 62 mm
• Power USB powered OR 5Vdc external supply via header - 300mA requirement
