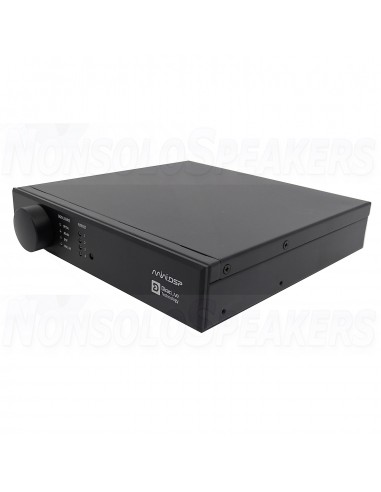

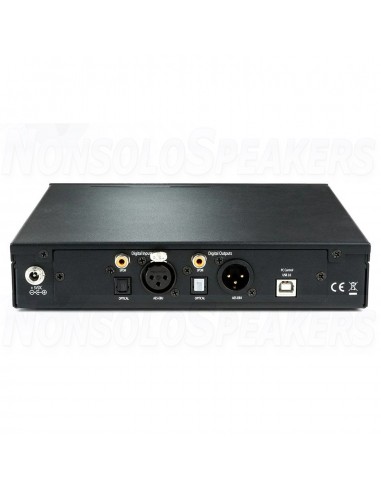

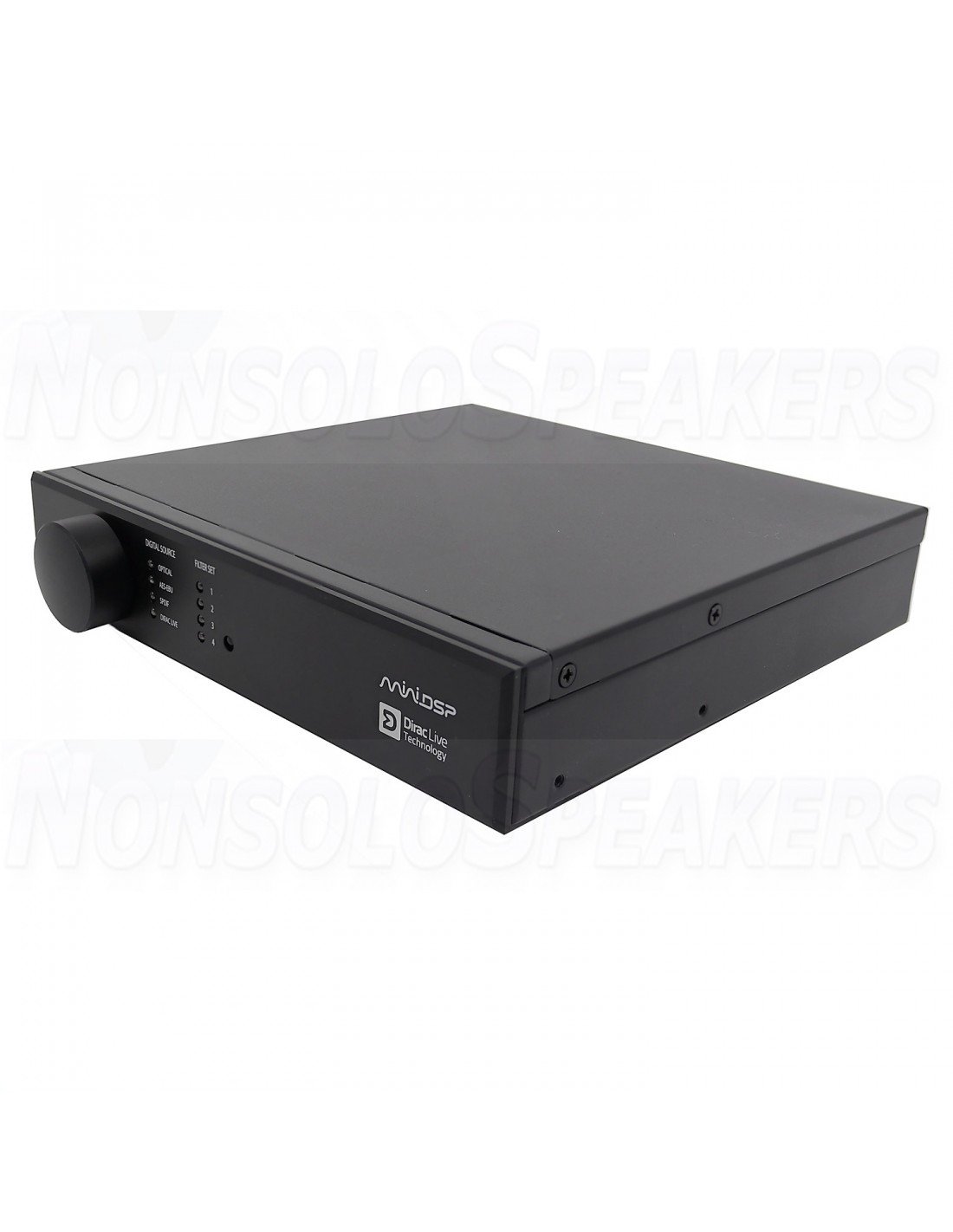

miniDSP DDRC-22D Stereo Digital I/O High-resolution Dirac Live Audio Processor

All digital Dirac Live® correction DSP with SPDIF/AES-EBU/Toslink interface. Boxed in sturdy metal enclosure.

.

Product Highlights

• Processor: 32-bit floating-point Analog Devices SHARC DSP
• Input/ouput resolution: 24 bits
• Maximum input sample rate: 216 kHz
• Internal operating sample rate: 96 kHz
• Output sample rate: 96 kHz

.

Product details

miniDSP DDRC-22D Stereo Digital I/O High-resolution Dirac Live Audio Processor

The Dirac Series of 24/96 high-resolution audio processors with Dirac Live® are designed to fit into an existing system with minimum disruption, yet with the flexibility to allow for new and more cost-effective system configurations.

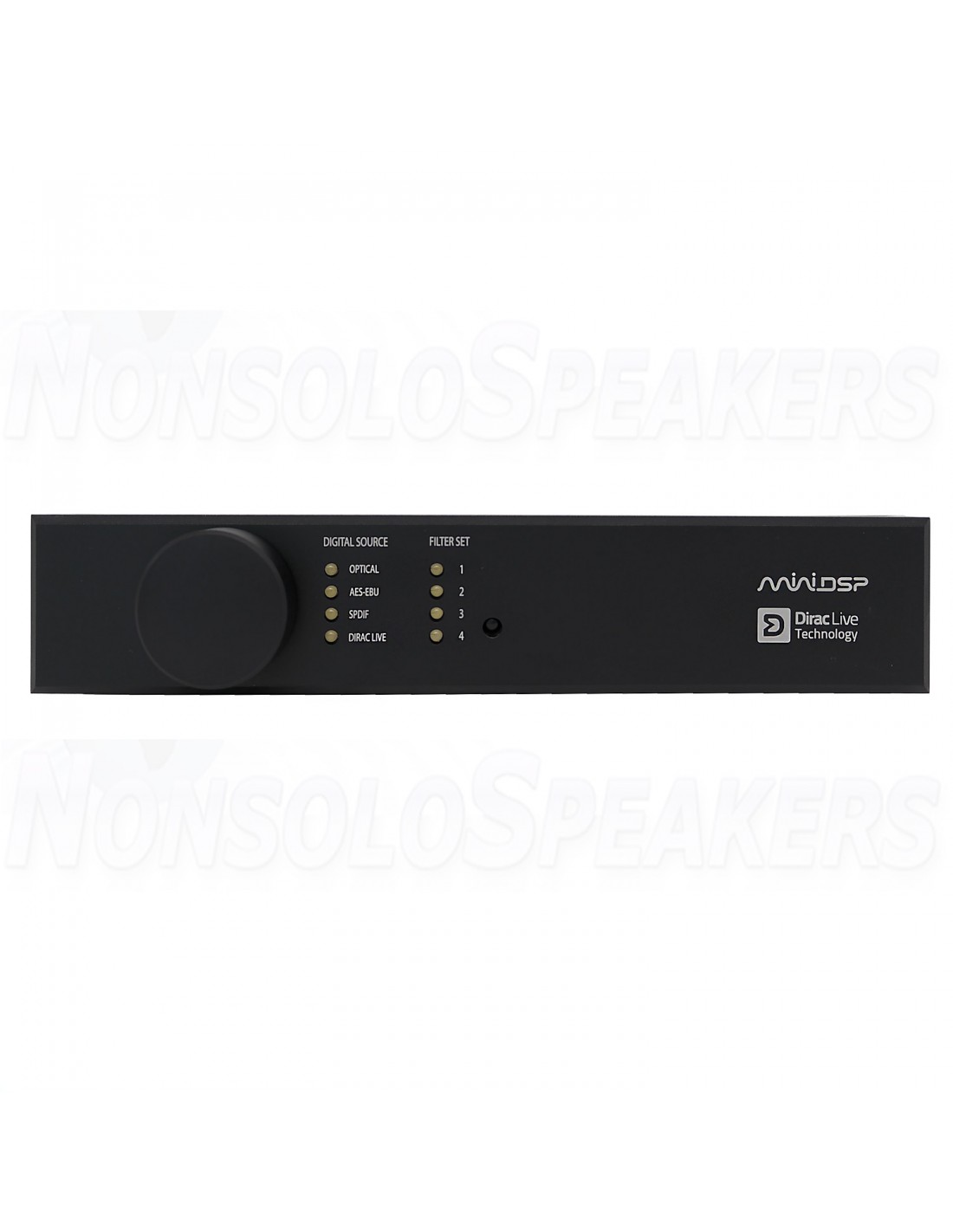

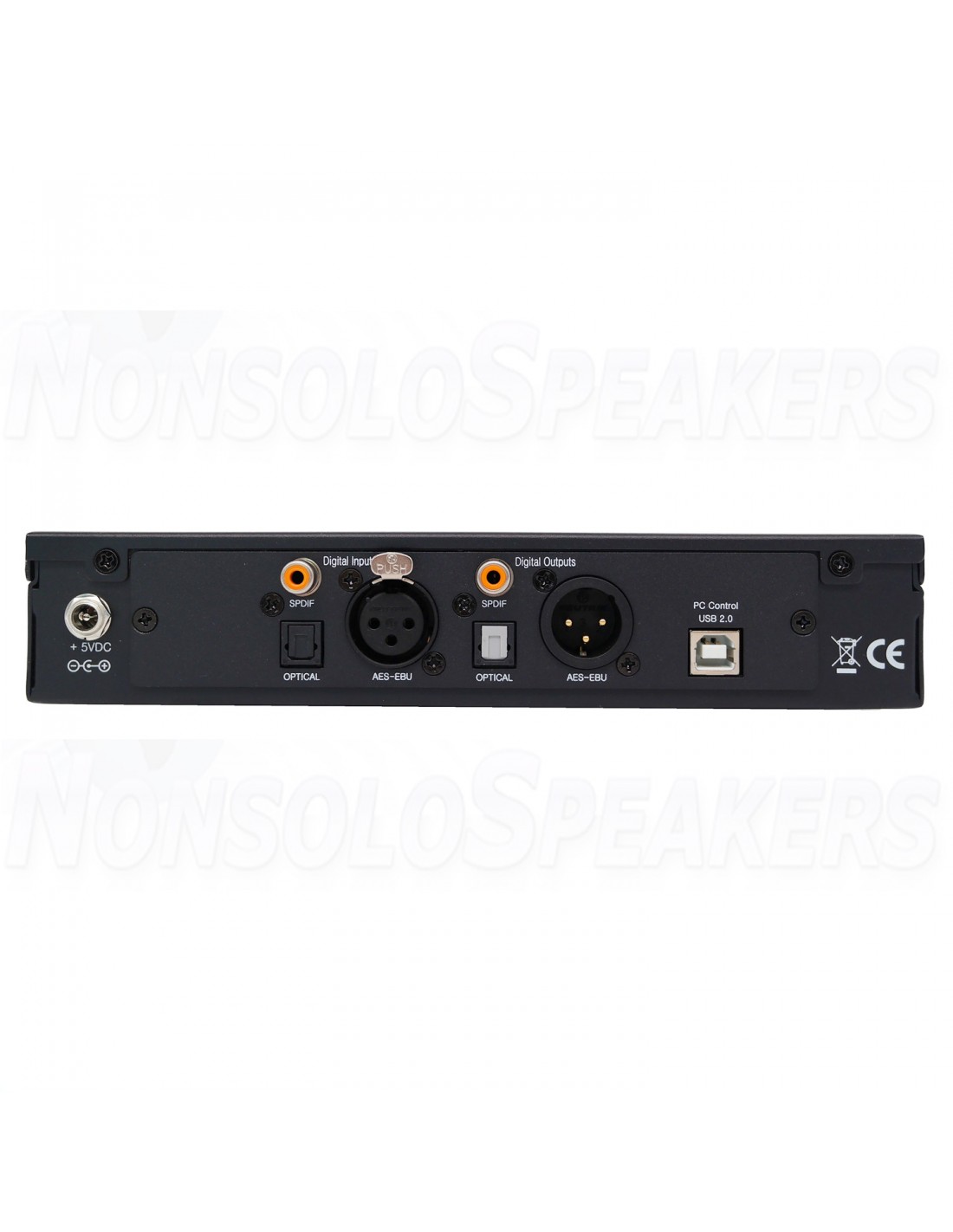

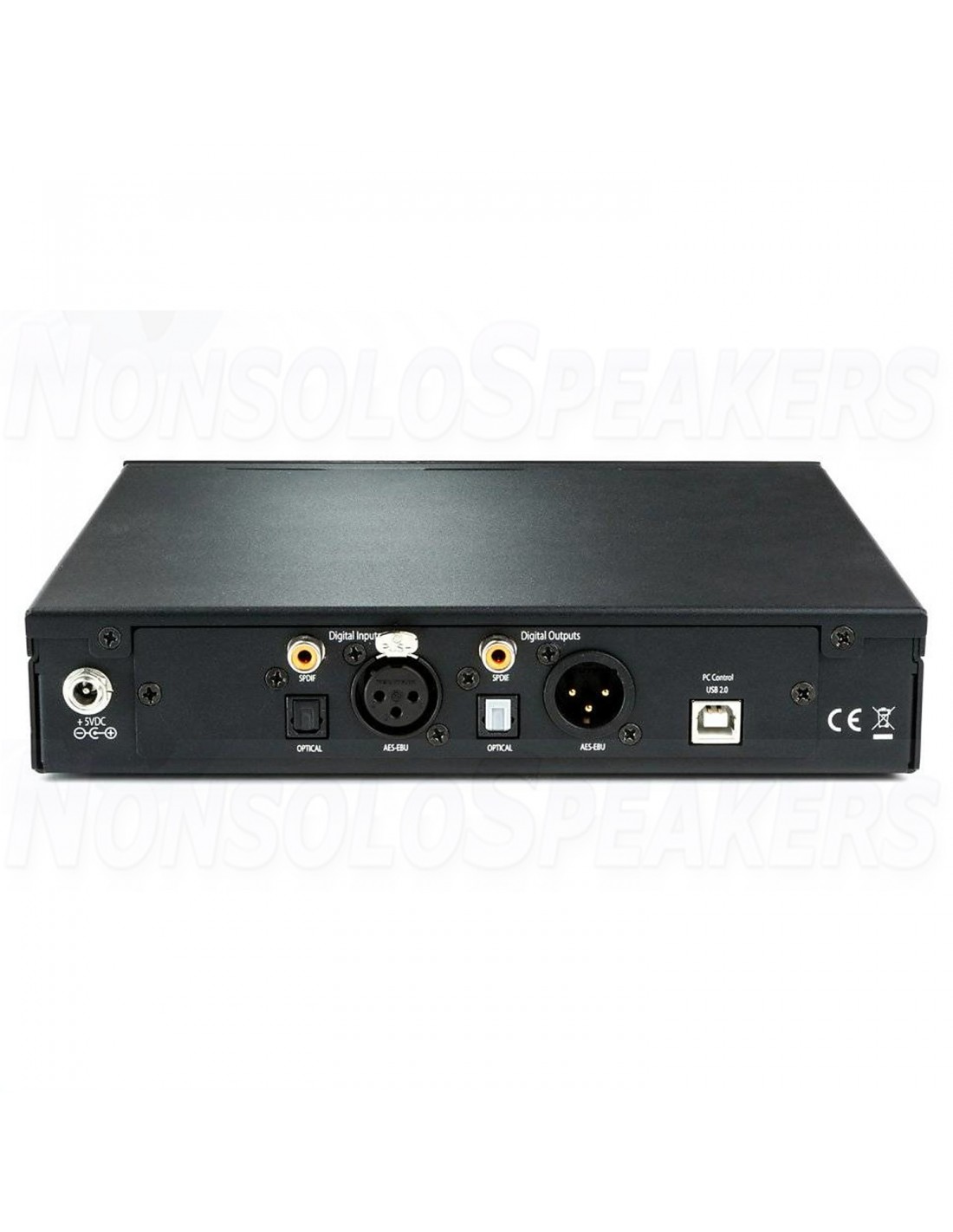

The DDRC-22D interfaces via digital signals — AES-EBU on balanced XLR; coax/SPDIF on RCA, and optical/TOSLINK. The digital input source can be selected via the front panel or remote control, and all digital outputs are simultaneously active.

The DDRC-22D can be simply inserted into the digital signal path of an existing system, or the on-board volume control used to simplify system configuration. Examples: Between one or more digital sources and a DAC Between one or more digital sources and active loudspeakers with digital input Anywhere in the digital signal chain

Specifications:

• Article number DDRC-22D
• Device type Boxed
• Device serie Dirac Live Series
• DSP chip Analog Devices ADSP21369
• Processing resolution & sample rate 32 bit / 96 kHz
• Input / ouput configuration 2 / 2
• Audio input connectivity AES-EBU, SPDIF, TOSLINK
• Audio output connectivity AES-EBU, SPDIF, TOSLINK
• Max input level -
• Max output level -
• Input impedance -
• Output impedance -
• Calibration software Dirac Live® for miniDSP
• IIR
• FIR
• Dirac Live®
• DSP presets 4
• Impulse response correction
• Infrared remote learning
• Windows / Mac compatible /
• UMIK-1 included No
• Room EQ wizard support -
• Dimensions 215 x 200 x 42 mm
• Power 5 VDC

.

What's included in the Box?

• Dirac Series 24/96 high-resolution audio processor — DDRC-22D
• Universal 5 VDC power supply with interchangeable plugs (UK/EU/US/AU)
• USB cables for Dirac Series audio processor
• Coupon code for miniDSP plugin download and Dirac Live Calibration Tool Stereo for miniDSP (Win/Mac)
