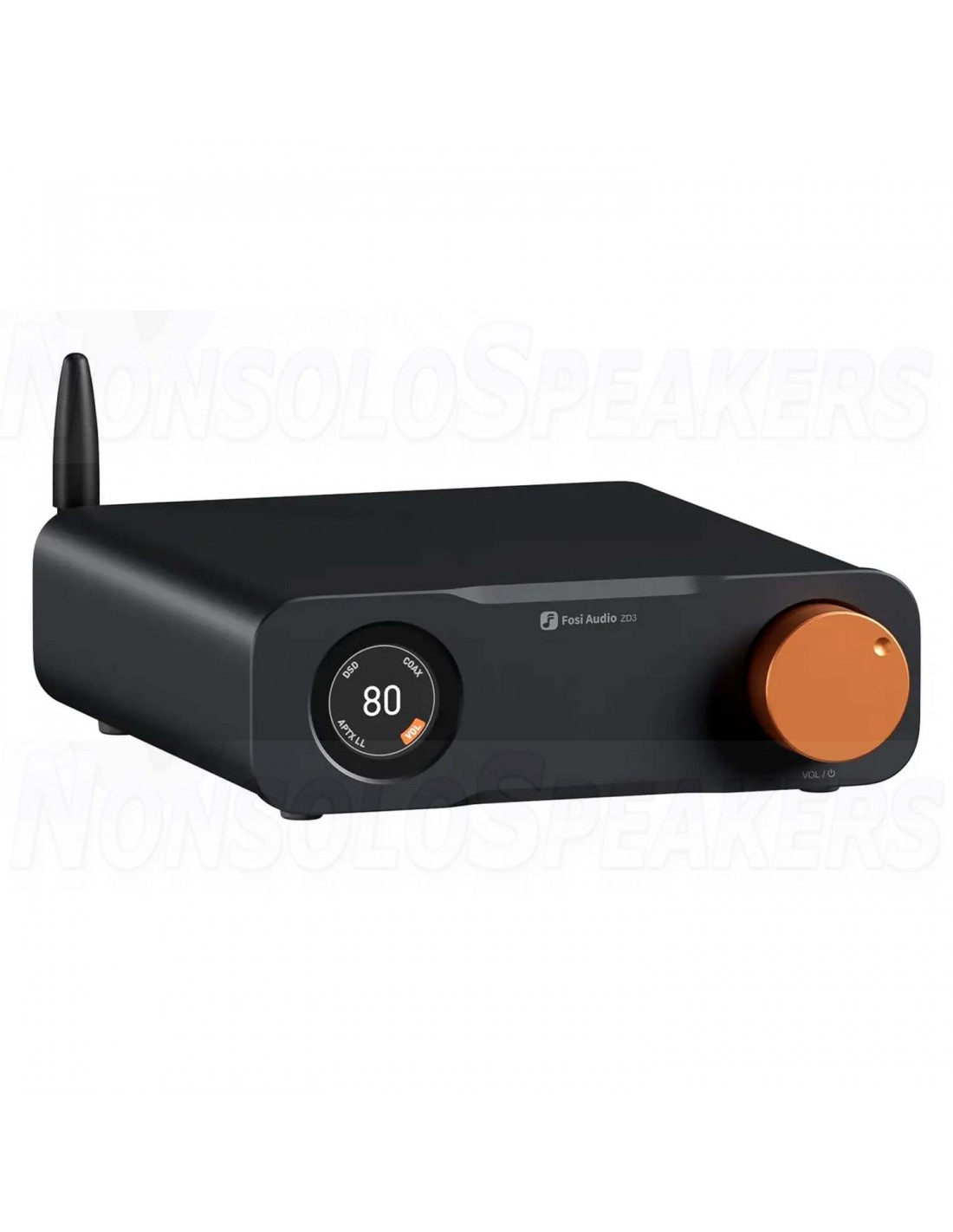

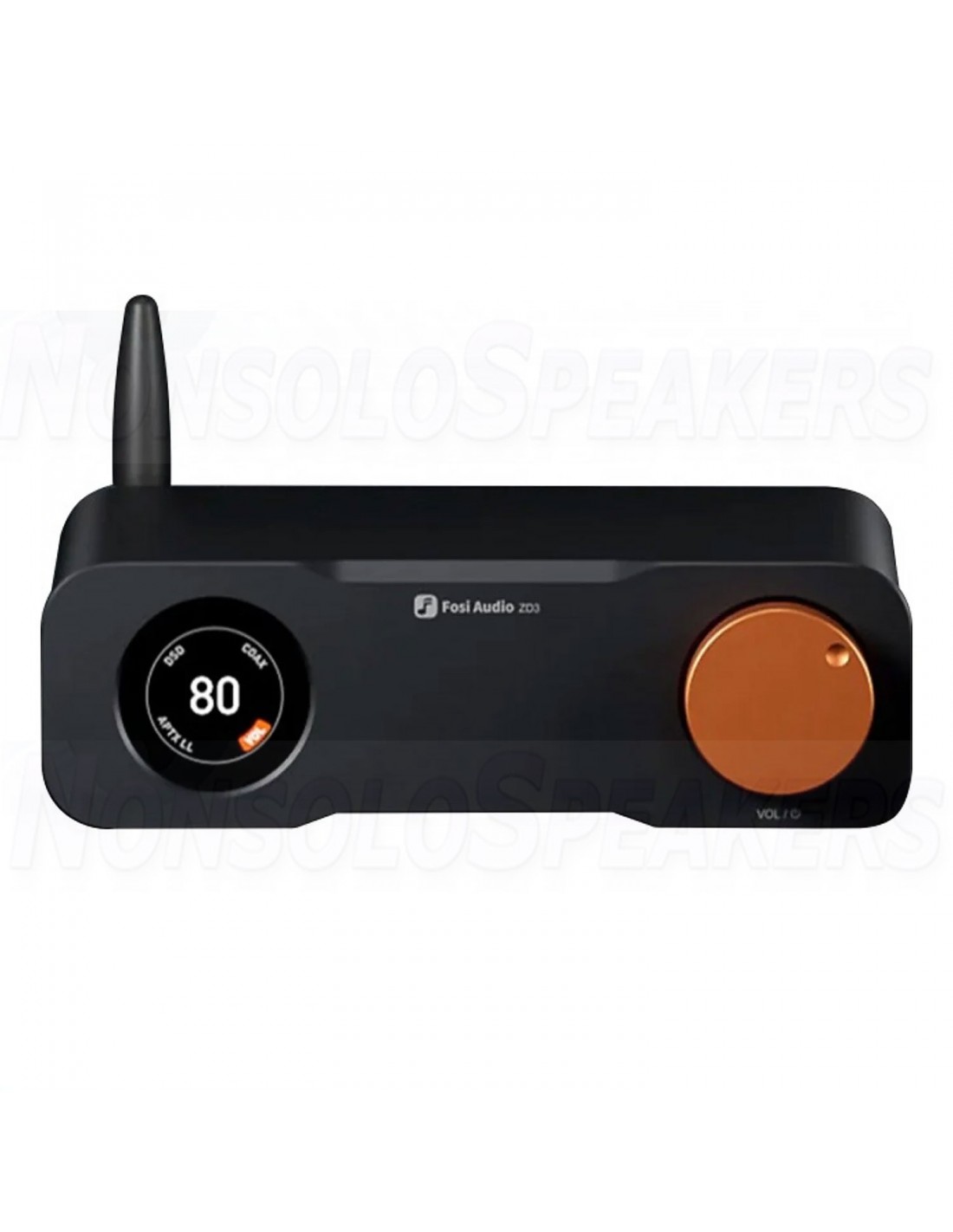

Fosi Audio ZD3 Audio DAC
.
The Fosi Audio ZD3 is a fully balanced desktop DAC that combines high-fidelity audio performance with versatile connectivity options. Designed around the ESS ES9039Q2M chip, it supports high-resolution audio playback, handling PCM up to 32bit/768kHz and DSD512. This DAC also offers Bluetooth 5.0 for wireless streaming, making it a great choice for audiophiles looking for high-quality sound in a compact form.
.
Highlights
- ESS ES9039Q2M DAC chip for superior sound quality
- Supports PCM 32bit/768kHz and DSD512 for high-resolution audio
- Bluetooth 5.0 connectivity for wireless streaming
- Fully balanced XLR and RCA outputs for versatile setup options
.
Product details
The Fosi Audio ZD3 is a high-performance digital-to-analog converter (DAC) featuring a balanced design.
It uses the ESS ES9039Q2M chip for crystal-clear audio, with support for both PCM up to 768kHz and DSD512 for audiophile-grade listening. The device includes Bluetooth 5.0 for wireless streaming, as well as multiple inputs such as USB and HDMI ARC, making it a versatile choice for a variety of audio setups.
The ZD3 also features user-replaceable op-amps, allowing for customization of the sound signature. For connection flexibility, it provides both balanced XLR outputs and single-ended RCA outputs, making it ideal for use in a wide range of home audio systems.
The compact design and sleek aesthetic make it a perfect addition to a desktop or home studio environment. Overall, the ZD3 offers impressive performance for its price point, delivering detailed and immersive sound.
.
Technical Specifications
- Article number ZD3
- Wireless Connectivity Bluetooth
- DAC Chipset ESS 9039Q2M
- Inputs USB, HDMI (ARC), Coaxial, Optical, Bluetooth

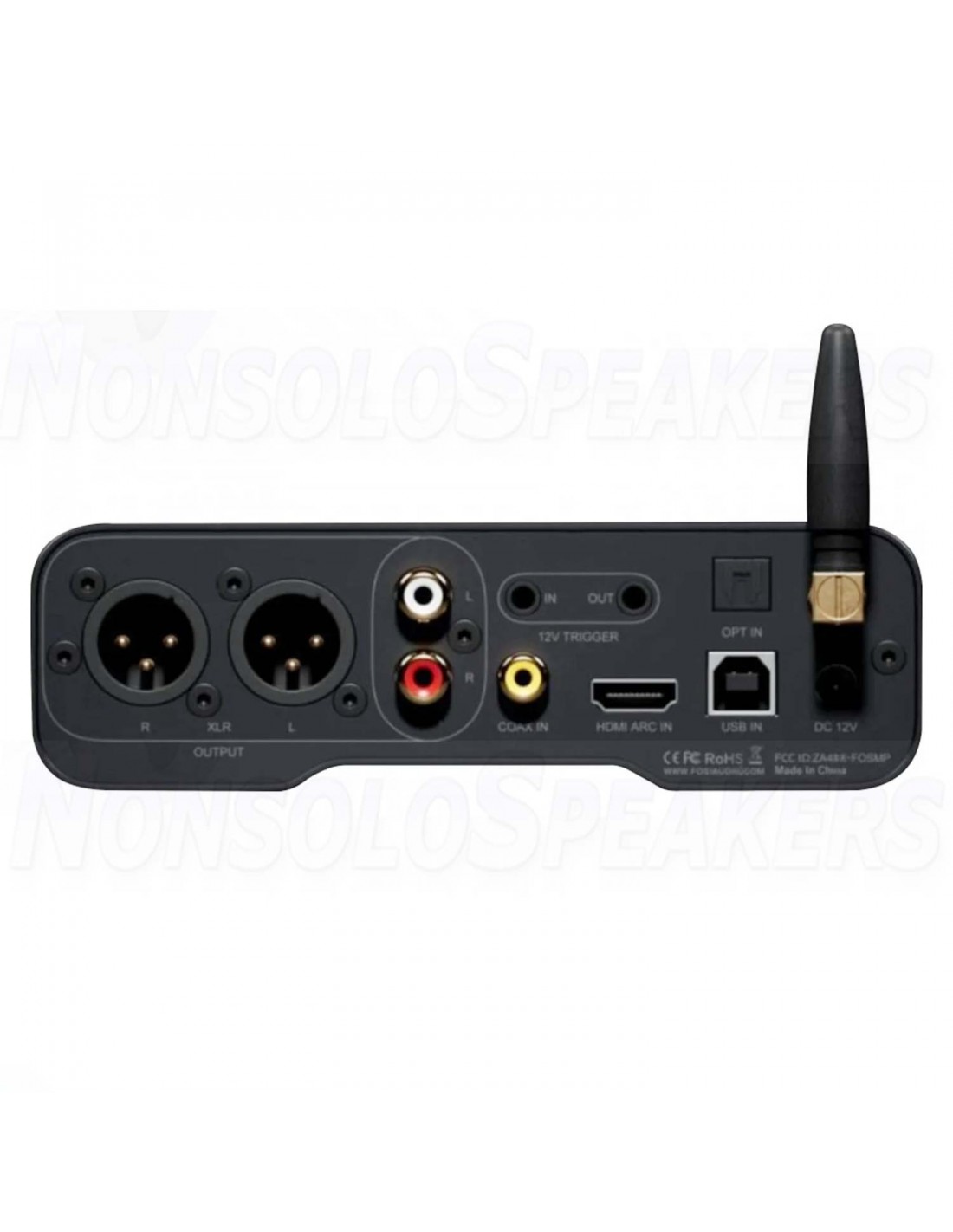

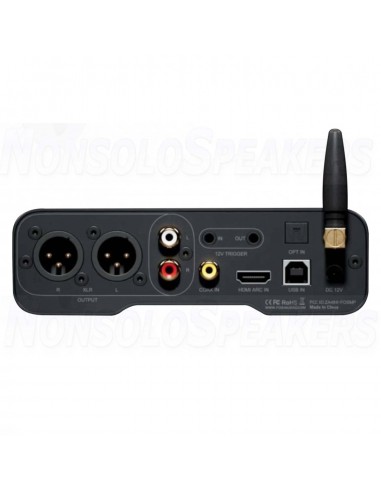

- Outputs XLR and RCA
- Dynamic Range ≥123dB
- SNR 126 dB
- Processing resolution & sample rate USB: PCM 32bit/768kHz; DSD512 n OPT/COAX: PCM 24bit/192kHz
- Bluetooth: PCM 24bit/48kHz
- Power requirements DC 12V 1.5A
.
