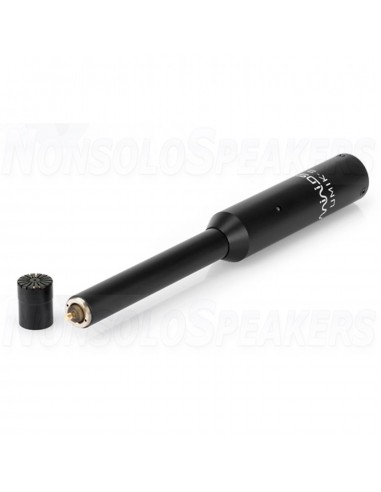

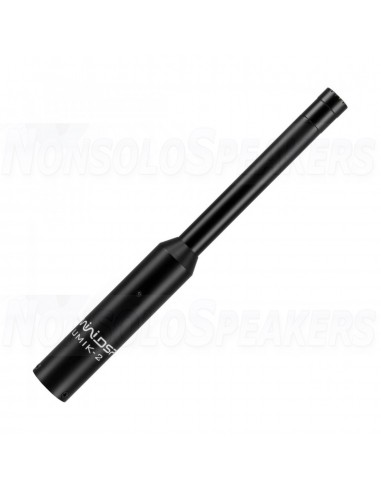

miniDSP UMIK-2 USB Reference Measurement Microphone

Reference measurement microphone with low noise floor, 32-bit ADC with selectable sample rate and unique calibration file.

.

Highlights:

• Suitable for reference applications
• Unique calibration file for each microphone
• 1/2" capsule detachable through 60 UNS thread
• ADC with 32-bit resolution and selectable sample rate between 44.1 and 192 kHz
• Custom Windows ASIO drivers and Plug&Play on Linux/Mac OS X
• Low noise floor preamps, 120DR ADC
• Plug&Play compatibility with REW & Dirac Live

.

Product details:

miniDSP UMIK-2 USB Reference Measurement Microphone

The miniDSP UMIK-2 is a high performance measurement microphone from our test and measurement category. The UMIK-2 is developed by miniDSP as improvement on the popular UMIK-1, one of SoundImports's best selling products.

The UMIK-2 is equipped with a large 13mm microphone capsule for a reduced noise floor and improved distortion performance.

The microphone is powered through USB-C and has driverless support on OS X and Linux. MiniDSP developed a custom ASIO driver for easy integration with Microsoft Windows.

The inbuilt ADC, with a 32-bit resolution, converts the measured signal while retaining high quality. The UMIK-2 is recommended by REW (Room Equalisation Wizard) and DiracLive (V3.x and later) for the highest measurement accuracy.

The selectable sample rate (44.1 to 192 kHz) allows for easy integration with most other measurement and recording software..

.

Specifications:

• Article number UMIK-2
• Measurement Domain Acoustic

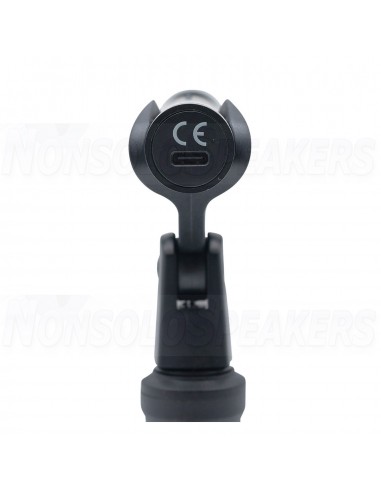

• Connector USB-C
• Resolution & Sample rate 32bit at 44.1~192kHz
• Calibration file Unique on-axis and 90-deg for: Frequency, Amplitude and Sensitivity drift
• Power USB-Powered
• Max SPL 125 dB
• Polar pattern Omnidirectional
• Capsule Type 13 mm Low noise Pre-polarized condenser
• SNR 120 dB USB-Audio
• USB 2.0 streaming
• Body Material Aluminum

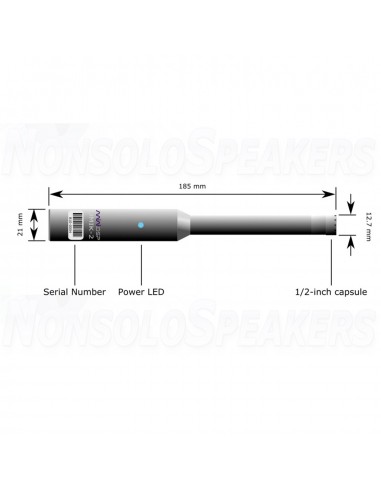

• Dimensions 21 x 185 mm

.

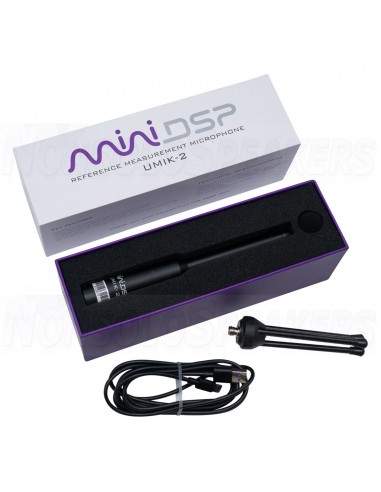

What's included in the box?

• 1 x UMIK-2 microphone
• 1 x shielded USB type C cable (2m)

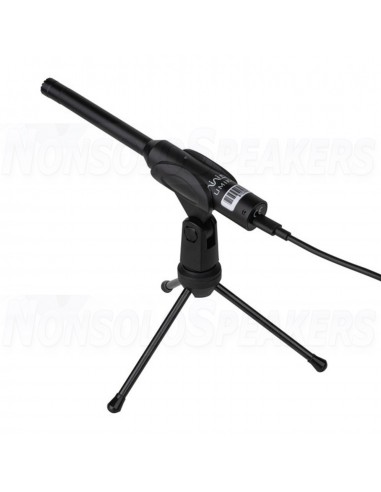

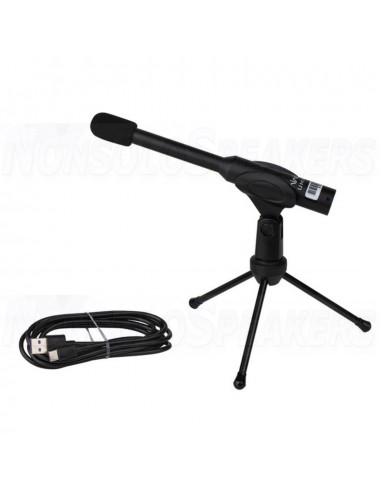

• 1 x Mini Tripod + Mic Clamp
• 1 x windscreen
