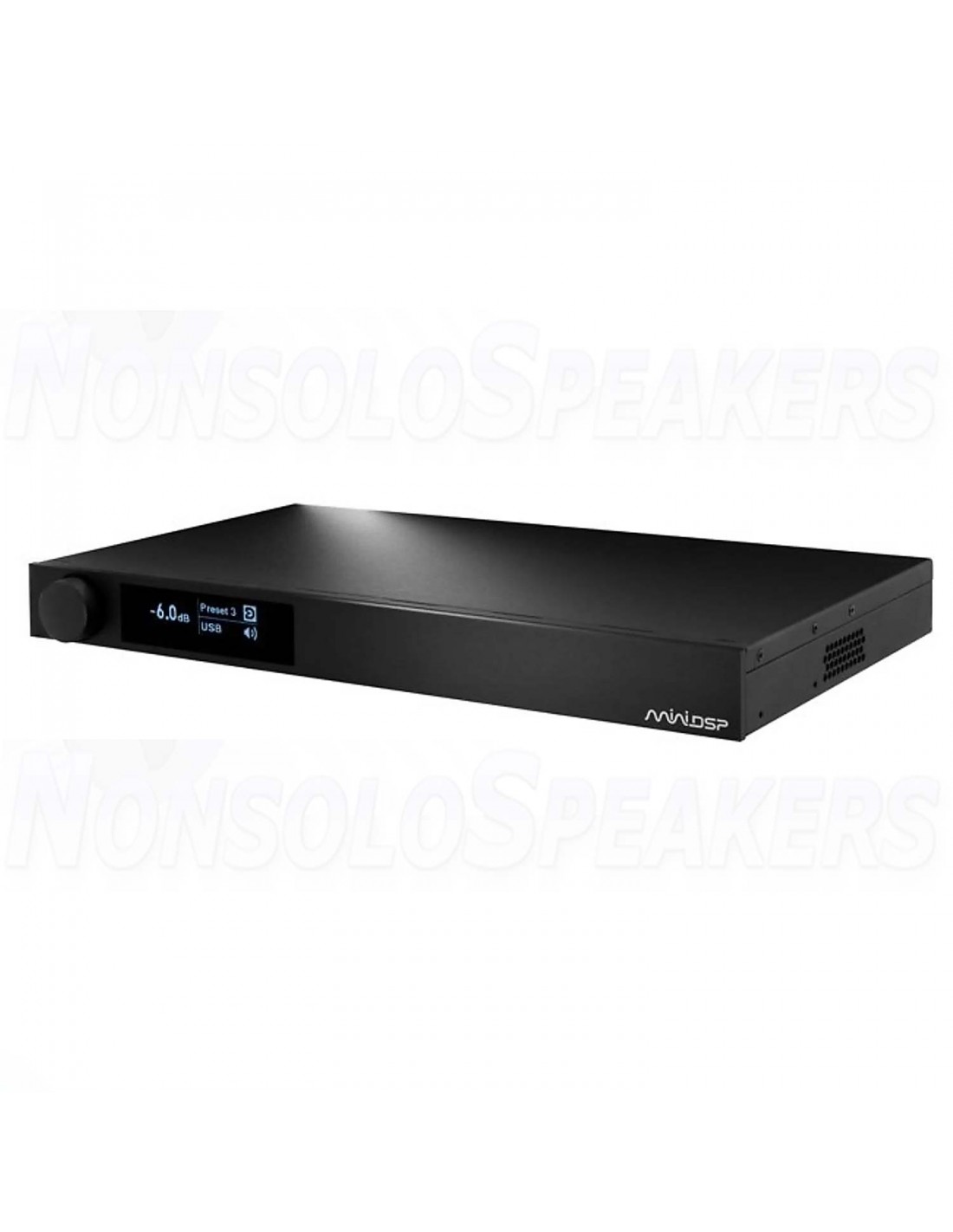

miniDSP SHD Dirac live Audiophile preamplifier (Analog, Digital, Streamer)

Introducing: the SHD (“Streaming High Definition”) digital audio processor incorporating Dirac Live®, the world’s premier room correction solution. A natural evolution and extension of our considerable experience with Dirac Live implementation, the miniDSP SHD heralds a new era in affordable yet powerful DSP-based network streamers. The miniDSP SHD has extensive connectivity options. Three digital inputs, two analog inputs and USB Audio enable the SHD to fit right into any modern audio system. The four-channel DSP-controlled outputs are available as single-ended (RCA) and balanced (XLR) analog as well as SPDIF digital. We supply the miniDSP SHD with a coupon (worth €9,50) for one free miniDSP plugin download.

.

Product Highlights

• 32-bit floating-point 400MHz Analog Devices SHARC DSP
• 32bit Audiophile converters: Measured 120dB Dynamic Range / 0.0003% THD+N
• Powered by Dirac Live® 3.x Digital Room Correction
• Powered by miniDSP's new Device Console for Over The Air upgrades, Live Real Time control of DSP settings
• Quad core ARM processor for network audio streaming

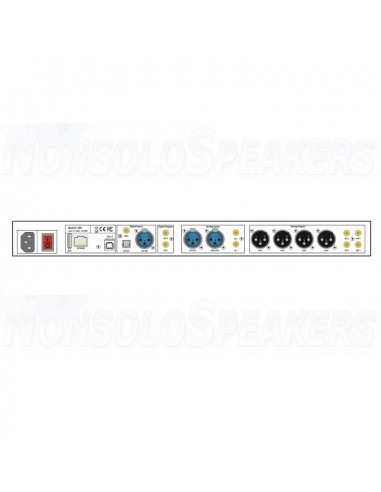

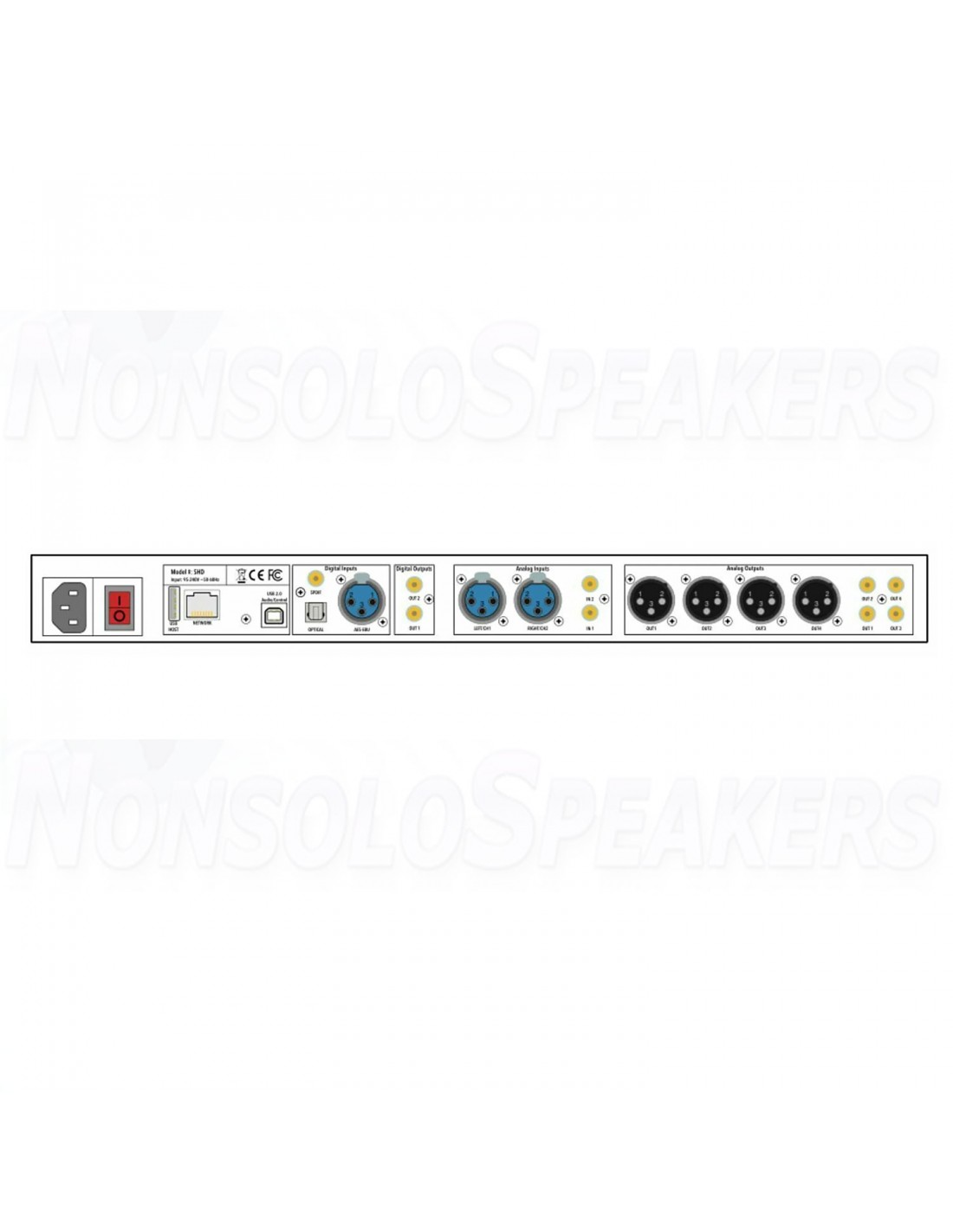

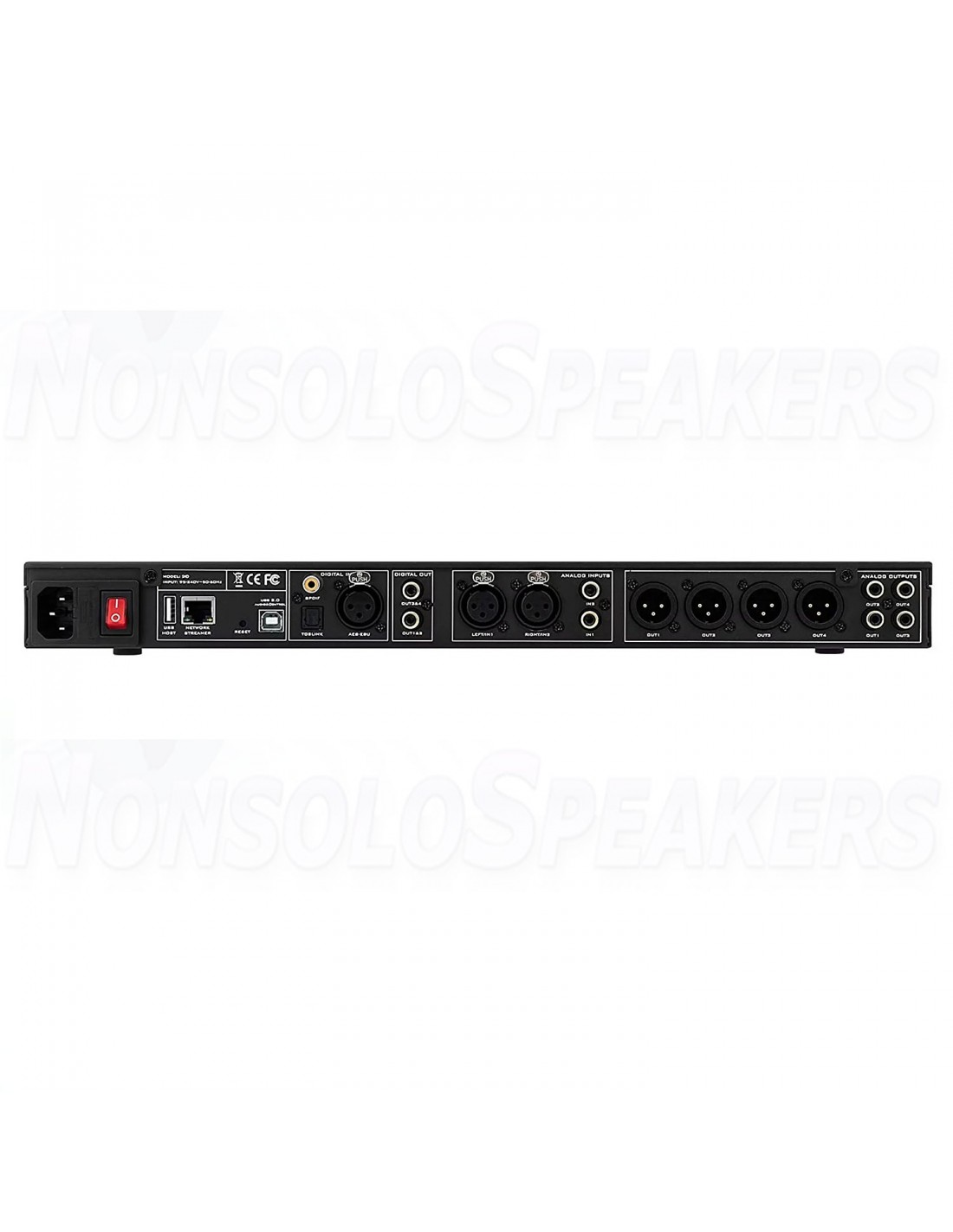

• Inputs: Stereo digital (USB Audio/AES-EBU/SPDIF/Optical), stereo analog (Balanced XLR, unbalanced RCA)
• Outputs: 4 x digital (SPDIF out), 4 x analog out (Balanced XLR, unbalanced RCA) USB audio recording feature (4xCH processed output via
• USB audio to record inputs, e.g. Vinyl)

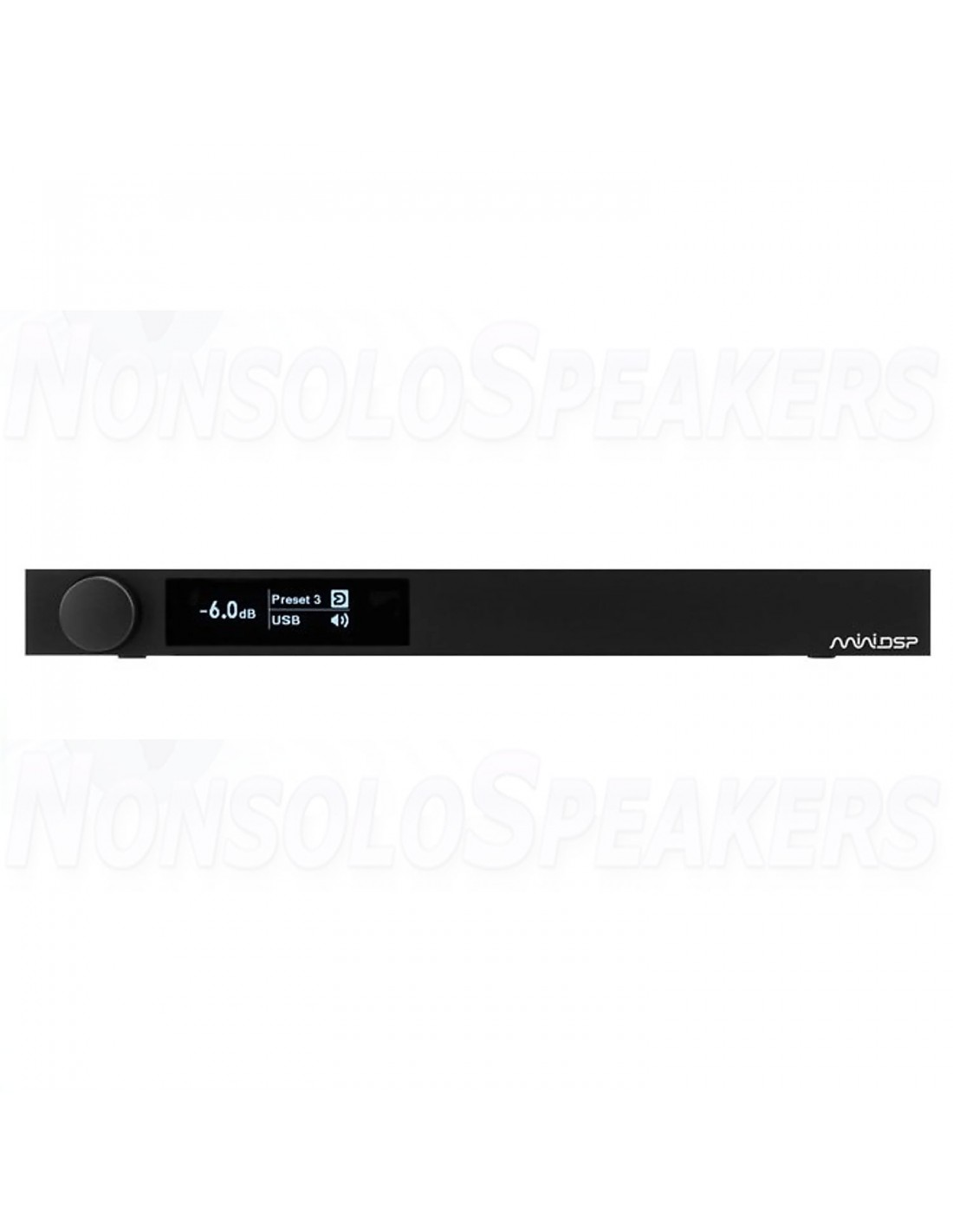

• White/Black OLED front panel controller

.

Product details

MiniDSP SHD with Roon streaming technology

The miniDSP SHD Series processors are certified Roon Ready players. This means that they are certified by Roon Labs to work seamlessly with the Roon software running on your PC, Mac, or Linux-based server! Roon streaming technology stands for an incredible user interface, simple setup, rock-solid daily reliability, and the highest levels of audio performance, without compromise. Note: To use Roon, you will need to have a paid account with Roon Labs. Your miniDSP SHD Series includes a free two-month trial.

MiniDSP SHD with full crossover / equalizer applications

Along with the room correction and streaming functionality, the SHD also has full DSP crossover / equalizer applications. The powerful SHARC processor features 10 PEQ bands per channel, a matrix mixer, compressor, limiter and crossovers with a roll-off up to 48 dB/octave. This full-featured digital signal processor enables you to build and tune applications ranging from subwoofer integration to a complete 2-way DSP controlled stereo speaker system.

Other miniDSP modules

Do you have the option to work without analog in- and outputs; check out the miniDSP SHD Studio. This features the same powerful processor and extended functionality, but has digital in- and outputs only. The miniDSP SHD Power is the SHD solution with an integrated, high-end stereo amplifier.

Specifications:

• Article number SHD
• Device type Boxed
• Device serie Streaming HD Series
• DSP chip Analog Devices ADSP21489
• Processing resolution & sample rate 32 bit / 96 kHz
• Input / ouput configuration 2 / 4

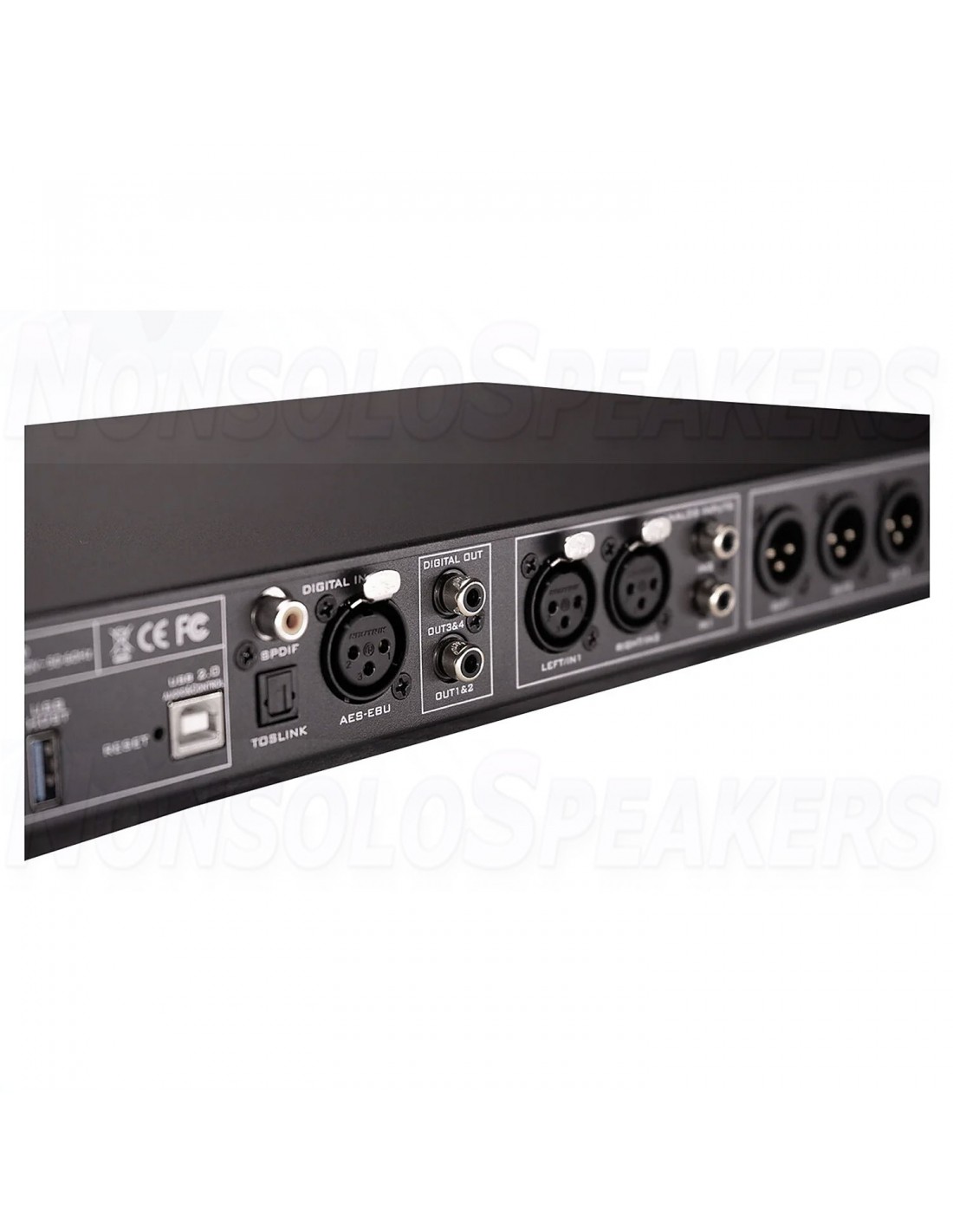

• Audio input connectivity Digital: AES/EBU, SPDIF, TOSLINK, USB audio, Gb Ethernet Analog: XLR, RCA
• Audio output connectivity Digital: AES/EBU, SPDIF Analog: XLR, RCA
• Max input level 2 Vrms (unbalanced) 4 Vrms (balanced)
• Max output level 2 Vrms (unbalanced) 4 Vrms (balanced)
• Input impedance 47 kOhms (RCA) 48 kOhms (XLR)
• Output impedance 100 Ohms (RCA) 200 Ohms (XLR)
• Calibration software Dirac Live Correction Suite for miniDSP
• IIR
• FIR
• Dirac Live® DSP presets
• Impulse response correction
• Infrared remote learning
• Windows / Mac compatible /
• UMIK-1 included No
• Room EQ wizard support
• Dimensions 429 x 236 x 42 mm
• Power 110 / 230 VAC

.

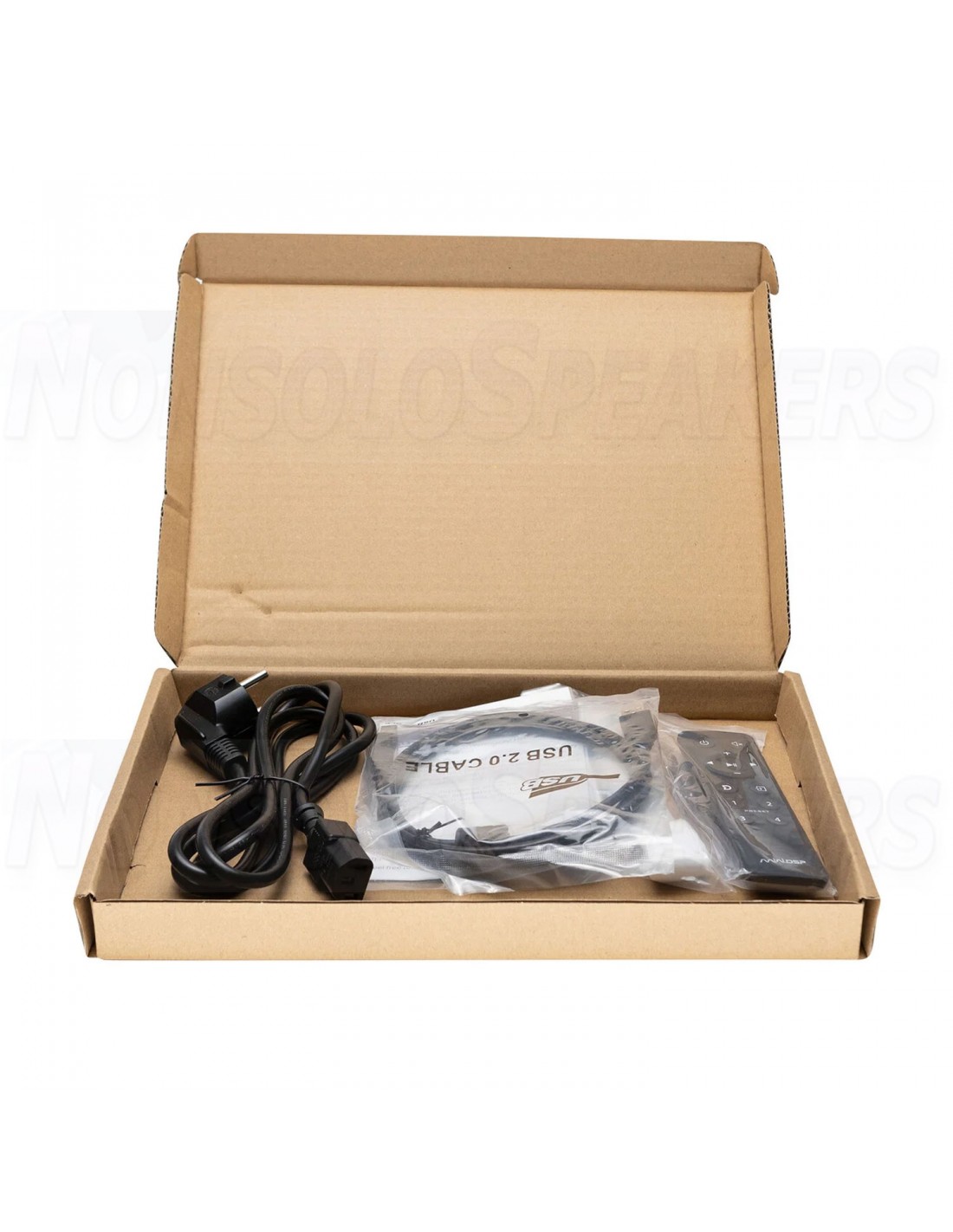

What's included in the Box?

• SHD audio processor and streamer
• miniDSP remote V2
• USB 2.4 Ghz WiFi adapter
• Dirac Live 3.x license (embedded in hardware)
• IEC C13 Power cable
• Rack mounting brackets
• miniDSP software coupon
