Dayton Audio DTA-PRO 100W Class D Bluetooth Amplifier with USB
Dayton Audio DTA-PRO 100W Class D Bluetooth Amplifier with USB
Dayton Audio DTA-PRO 100W Class D Bluetooth Amplifier with USB
Dayton Audio DTA-PRO 100W Class D Bluetooth Amplifier with USB
Dayton Audio DTA-PRO 100W Class D Bluetooth Amplifier with USB
Dayton Audio DTA-PRO 100W Class D Bluetooth Amplifier with USB
Dayton Audio DTA-PRO 100W Class D Bluetooth Amplifier with USB
Dayton Audio DTA-PRO 100W Class D Bluetooth Amplifier with USB
Dayton Audio DTA-PRO 100W Class D Bluetooth Amplifier with USB
Dayton Audio DTA-PRO 100W Class D Bluetooth Amplifier with USB

Dayton Audio DTA-PRO 100W Class D Bluetooth Amplifier with USB

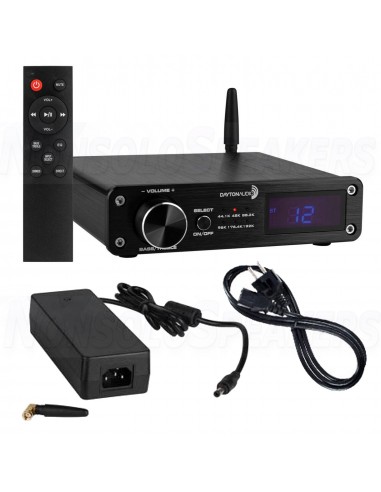

Dayton Audio DTA-PRO 100W Class D Bluetooth Amplifier with USB DAC IR Remote and Sub Output

The Dayton Audio DTA Pro provides a rich feature set including Bluetooth, USB DAC, and even a wireless remote control. With 50 watts per channel at 4 ohms, the DTA-Pro provides enough power to run even the most demanding speakers. High efficiency paired with low THD offers up an impeccably clean, uncolored audio experience.

Specifications:

• Power output: 2 x 50 watts @ 4 ohms

• Frequency response: -1.5 dB (20 Hz-20 kHz)

• THD+N: 0.09% at 100mV input

• Dynamic range: 129 dB at 1kHz





SHIPMENT IN 7-10 WORKING DAYS
€217.55 €229.00 -5%

Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?



Dayton Audio DTA-PRO 100W Class D Bluetooth Amplifier with USB DAC IR Remote and Sub Output

Product description

The Dayton Audio DTA Pro provides a rich feature set including Bluetooth, USB DAC, and even a wireless remote control. With 50 watts per channel at 4 ohms, the DTA-Pro provides enough power to run even the most demanding speakers. High efficiency paired with low THD offers up an impeccably clean, uncolored audio experience.

-

Highlights

Powerful remote controlled amplifier and DAC all in a small package

Several input options: Bluetooth, 3.5 mm, coaxial, optical, and USB

Wireless remote controls source input, EQ, and volume

High speed 192 kHz/24-bit DAC sampling rate

-

Product details

Dayton Audio DTA-PRO 100W Class D Bluetooth Amplifier with USB DAC IR Remote and Sub Output

Rediscover your favorite music with the DTA-PRO. This all-in-one amplifier starts with a refined, brushed aluminum case and fills it chock full of features. This powerful 50 watt per channel amplifier offers clean and precise sound with a number of convenient input options. For convenience and usability the DTA-PRO comes equipped with Bluetooth 4.2 with aptX. For the very best in audio quality the DTA-PRO offers an optical / coaxial input capable of 192 kHz/24-bit sampling rate. Other input methods also include USB and a 3.5mm stereo jack.

Included with the DTA-PRO is a full function wireless remote which allows for total control over the amplifiers number of presets and features including EQ presets, bass / treble adjustment, and even track control when utilizing the Bluetooth or DAC input.

The DTA-PRO also offers a powerful line level output for connecting a powered subwoofer. At nearly 3 VRMS the subwoofer output provides a powerful signal to give your powered subwoofer the signal it needs to really pound.

.

Specifications:

Power output: 2 x 50 watts @ 4 ohms • Frequency response: -1.5 dB (20 Hz-20 kHz) • THD+N: 0.09% at 100mV input • Dynamic range: 129 dB at 1 kHz • SNR: -107 dB at 1 kHz • Inputs: USB, digital optical, digital coaxial, stereo 3.5 mm, Bluetooth • Sub level: 2.7VRMS maximum • Sampling bit rate: 192 kHz/24-bit (coaxial and optical), 96 kHz/24-bit (USB) • Electrical requirement: 24V-32V • Minimum input sensitivity: 1.1V • Maximum input sensitivity: 2.5V • Channel separation: -60 dB • Efficiency: 88% • Chipset: SA9023+CS8416+TAS5342A+TAS5508C+DAC PCM1808+NE5532 •  Dimensions: 1.2" H x 5.2" W x 5" D.

.

Specifications

Article numberDTA-PRO
Rated power output (RMS)2 x 50 Watts at 4 ohms
Bridged power output (RMS)-
Minimum load4 ohms
Signal-to-noise ratio (SNR)-107dB (at 1KHz)
Distortion0.09% at 100 mV input THD+N
Distortion bridged-
Efficiency88%
Frequency response20 - 20,000 kHz (-1.5 dB)
Input impedance20 Kohms (AUX)
Input sensitivity1.1 - 2.5 V
Auto turn-on sensitivity-
DSP-
DAC
Maximum sampling rate

Coaxial/optical: 192 kHz / 24 bit
USB: 96 kHz / 24 bit

Circuit Topology

SA9023, CS8416, TAS5342A, TAS5508C
DAC PCM1808, NE5532

Amplifier classificationD
Speaker output channels2
Subwoofer output channel-
Analog in/out-/-
Optical S/PDIF in/out1/-
Coaxial in/out1/-
RCA in/out-/-
AUX in/out1/-
Bus in/out-/-
XLR in/out-/-
USB
Memory card slot-
Network connection-
Headphone jack-
Subwoofer pre-out
Bluetooth 4.2 aptX
NFC-
Wi-Fi-
Banana plug compatible
Remote control
App control-
Auto turn-on-
Accepted file formats-
Equalizer (EQ) adjustment
Equalizer (EQ) profiles
Multi zone/room-
Crossover frequency adjustment150 Hz fixed low pass
Bridge mode-
Power requirements24V - 32 VDC
Power inlet connectorDC jack
Power consumption-
Stand-by power consumption-
Dimensions (D x W x H)127 x 132 x 30.5 mm
Case materialBrushed aluminum
