miniDSP C-DSP 8x12 DL in-car digital audio processor

miniDSP is proud to introduce the new flagship C-DSP 8x12 DL in-car digital audio processor. Dirac Live® room correction, a 400 MHz SHARC floatingpoint processor and 32-bit AKM converters with –107 dB THD+N specification deliver pristine high-resolution audio in any cabin environment. Comprehensive I/O includes six differential low-level analog inputs for low noise pickup, high-level inputs for connection to head units with power amplification, and stereo SPDIF and TOSLINK digital inputs. On the output side, 12 RCA outputs combined with a full eight channels of Dirac Live processing make the C-DSP 8x12 DL adaptable for active crossover systems as well as multichannel/surround installations with subwoofer integration

.

Product Highlights

• 400MHz 32bit Sharc Floating point processor
• Dirac Live technology helps tune your cabin environment
• 32bit DAC/ADC chipsets
• THD+N 0.0007%, 115dB SNR
• Digital and analog inputs (Low/High levels), 12 analog outputs
• Flexible DSP processing blocks, Rear Fill processing (L-R, L+R..) thanks to internal matrix
• Fully differential balanced inputs
• Windows/Mac compatible GUI Remote control or preset/master & sub volume control

Product Details:

miniDSP C-DSP 8x12 DL in-car digital audio processor

miniDSP is proud to introduce the new flagship C-DSP 8x12 DL in-car digital audio processor.

Dirac Live® room correction, a 400 MHz SHARC floatingpoint processor and 32-bit AKM converters with –107 dB THD+N specification deliver pristine high-resolution audio in any cabin environment.

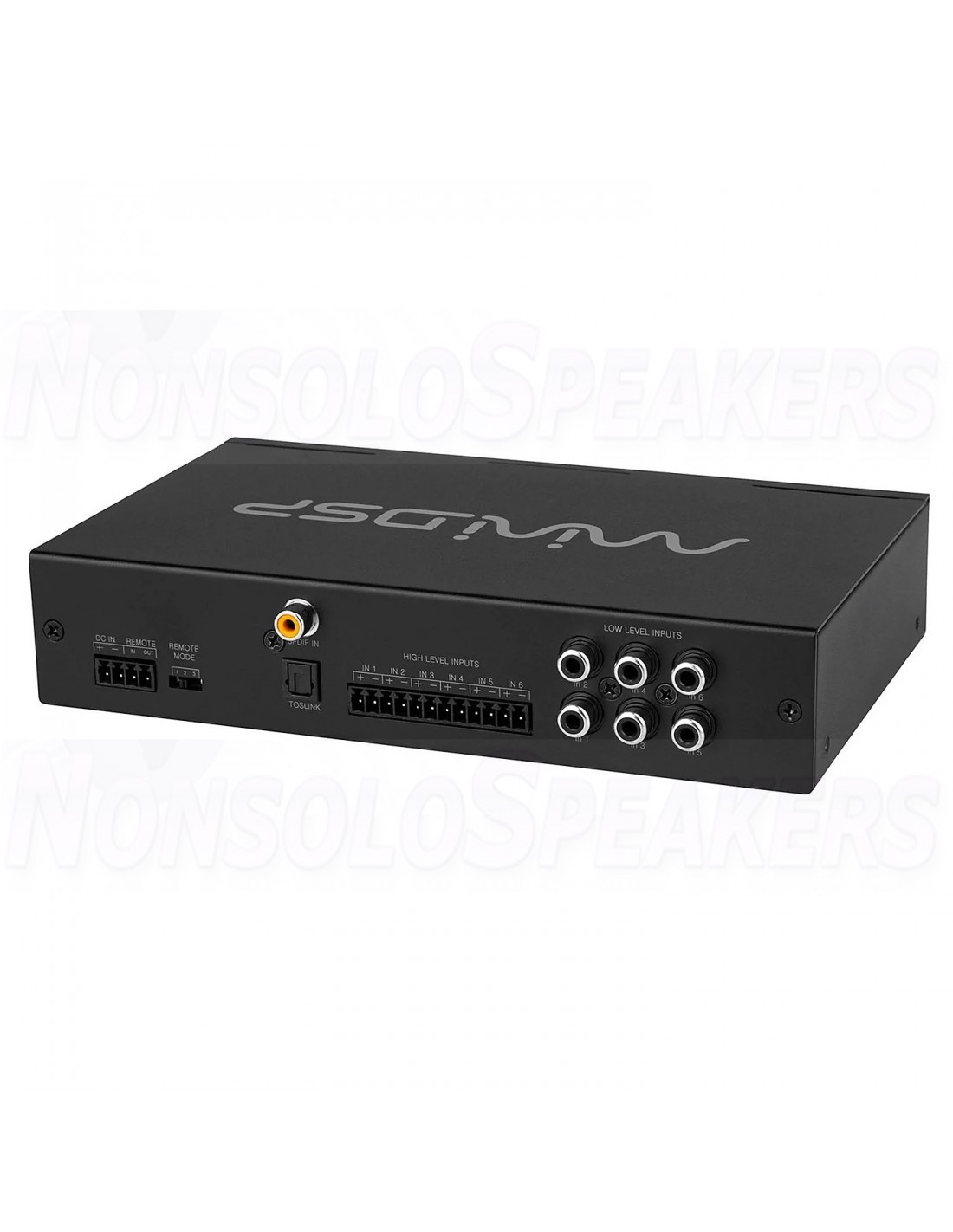

Comprehensive I/O includes six differential low-level analog inputs for low noise pickup, high-level inputs for connection to head units with power amplification, and stereo SPDIF and TOSLINK digital inputs.

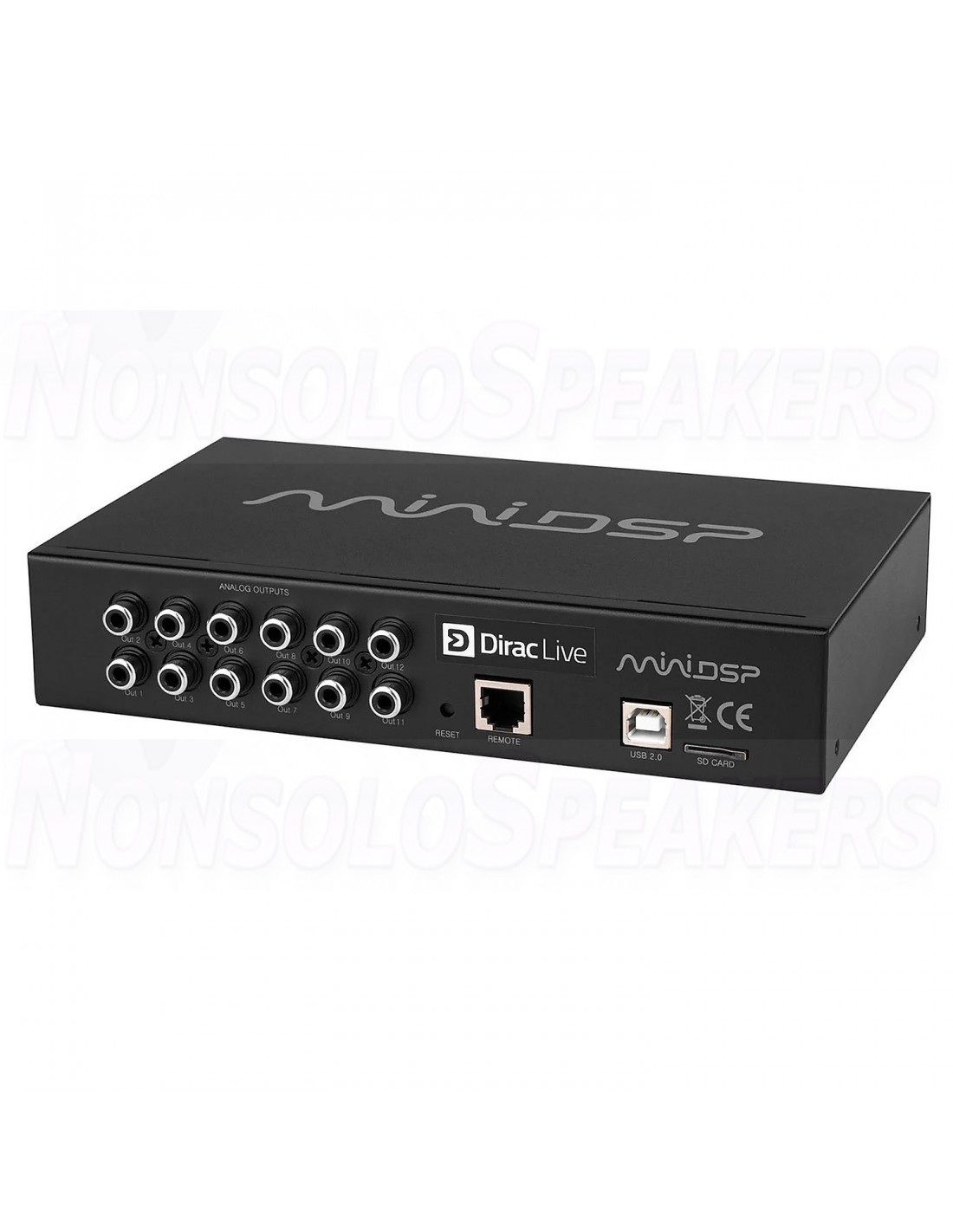

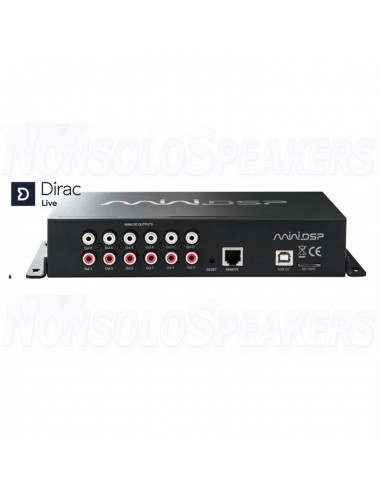

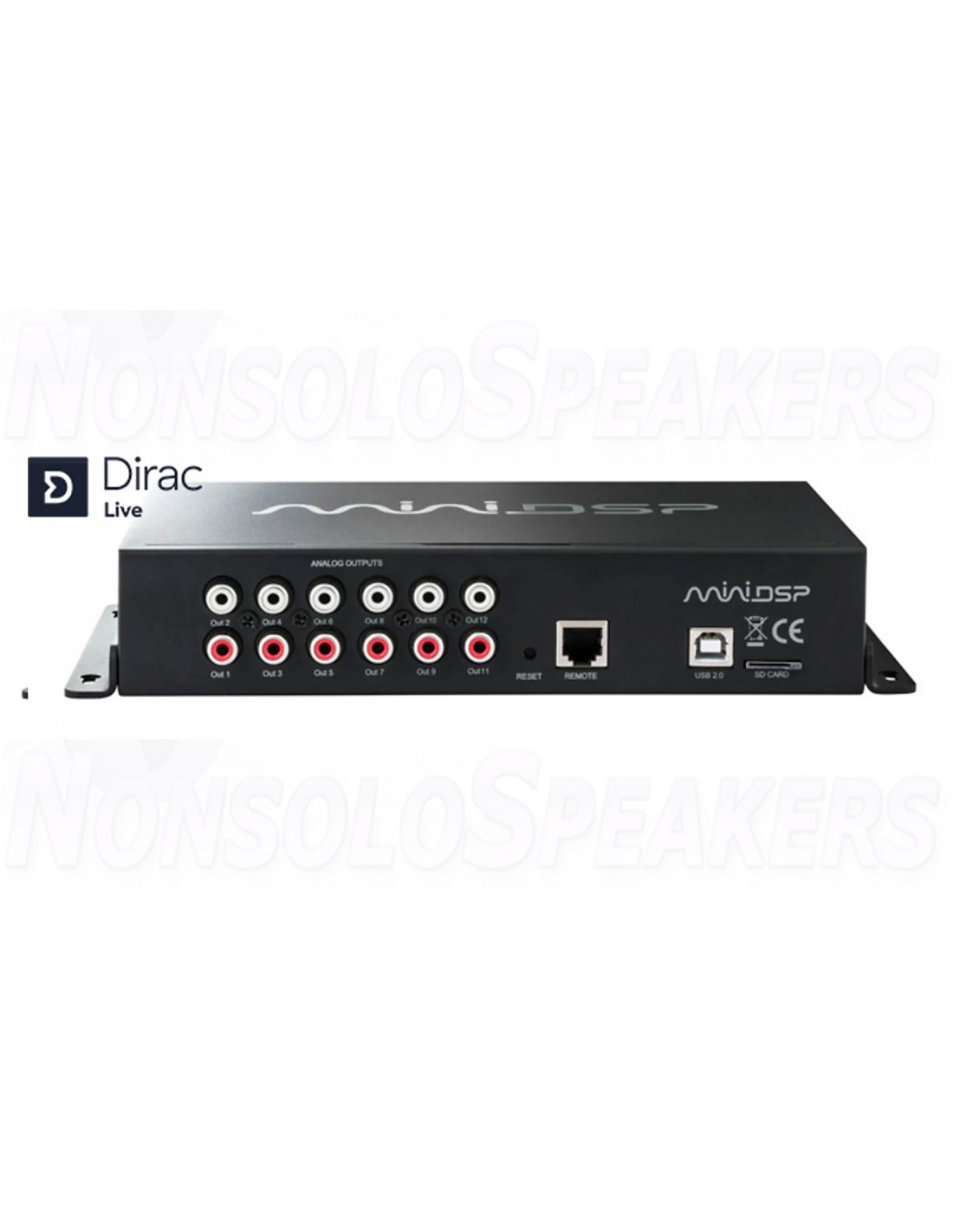

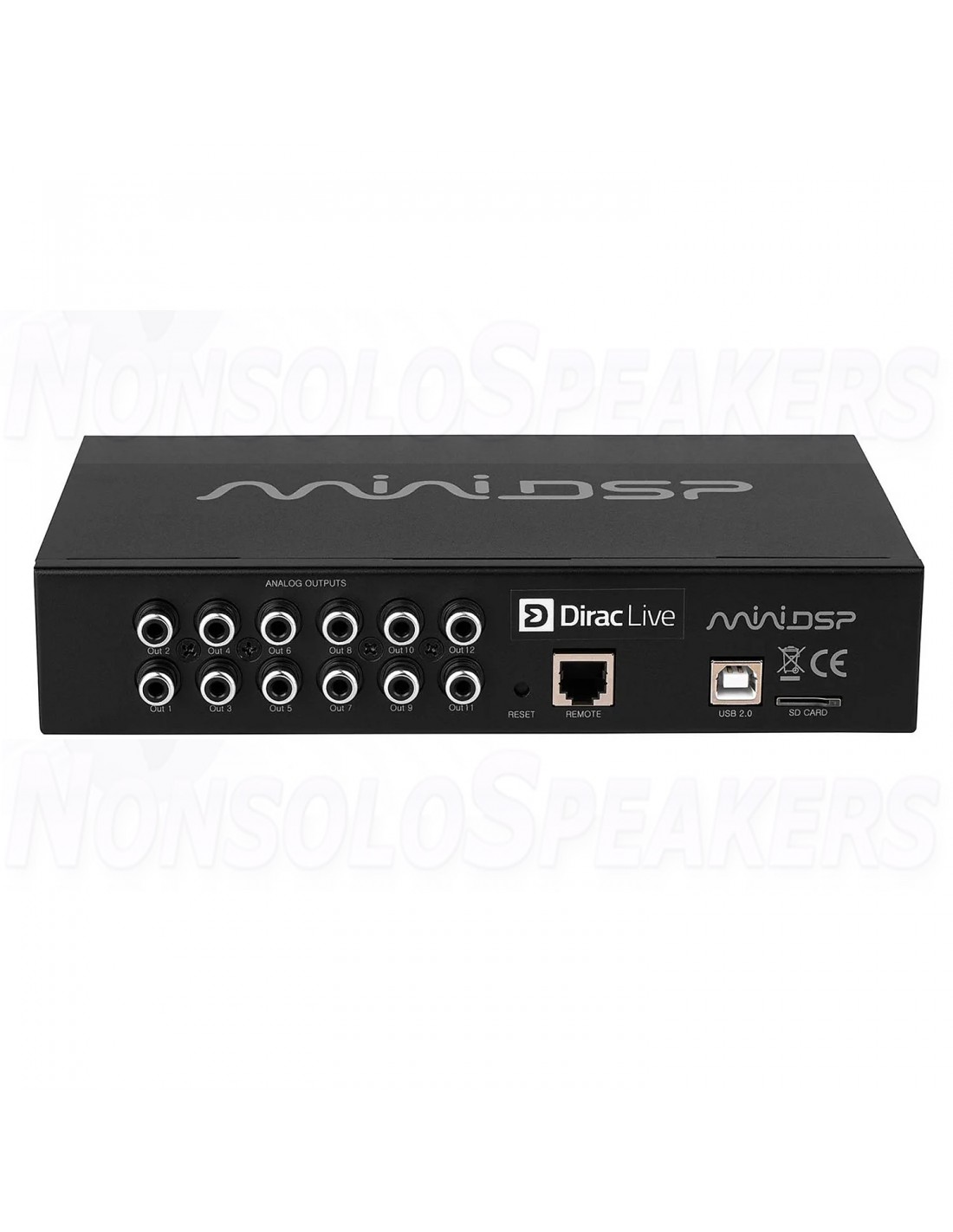

On the output side, 12 RCA outputs combined with a full eight channels of Dirac Live processing make the C-DSP 8x12 DL adaptable for active crossover systems as well as multichannel/surround installations with subwoofer integration.

Also included is miniDSP’s powerful, easy-to-use audio processing: parametric EQ, compressors, adjustable time delay, crossovers up to 48 dB/octave, and an advanced matrix mixer with rear/center capability.

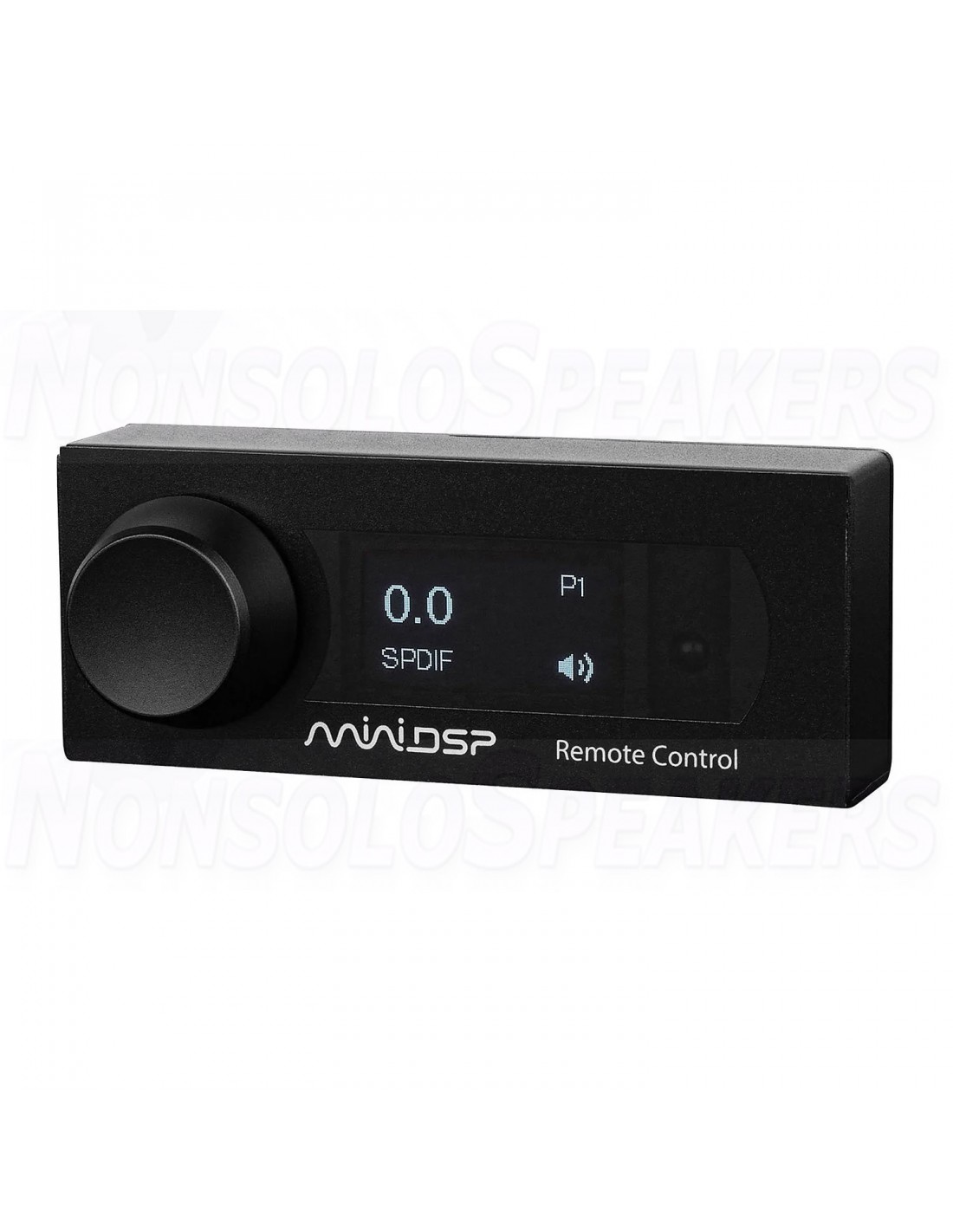

Four complete configurations are stored in flash memory for recall with a wired or infrared remote. Hardware features dedicated to the vehicle environment include an on-board isolated power supply, remote trigger input/output, a wired remote for dash or console mounting and a microSD card slot for offline configuration.

Specifications:

• Article number C-DSP 8x12 DL
• Device type Boxed
• Device serie Car AudioDSP
• DSP chip Analog Devices ADSP21489
• Processing resolution & sample rate 32 bit / 48 kHz
• Input / ouput configuration 8 / 12
• Audio input connectivity High level (terminal block), low level (RCA), Toslink, SPDIF (RCA)
• Audio output connectivity RCA
• Max input level 8 / 12 Vrms (high level) 2 /4 Vrms (low level)
• Max output level 6 Vrms
• Input impedance 68 ohms (high level / 10k ohms (low level)
• Output impedance 560 ohms
• Calibration software miniDSP C-DSP 8x12 plug-in
• IIR
• FIR
• Dirac Live®
• DSP presets 4
• Impulse response correction
• Infrared remote learning
• Windows / Mac compatible /
• UMIK-1 included -
• Room EQ wizard support
• Dimensions 205 x 122 x 41 mm
• Power Isolated DC-DC conversion for 12V Car Audio environment

What's included in the box?

• 1 x C-DSP 8x12 DL processor
• 1 x USB cable 1 x remote unit
• 1 x 5m long remote cable
• 1 x Coupon code for miniDSP plugin download and Dirac Live license harness for I2S In/Out interfacing
