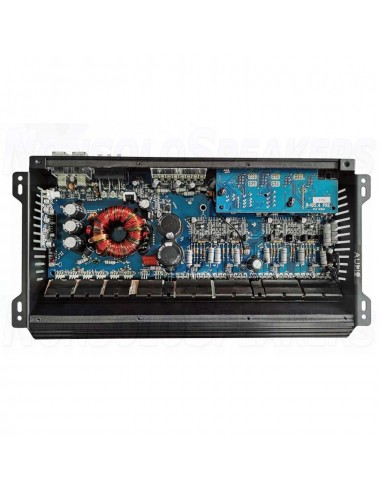

Audio System R-110.4 dsp-bt Amplifier 4 channel

.

4-channel DSP amplifier from the Radion series

.

Description:

- 4-channel amplifier with 8-channel DSP and Bluetooth

- APP-controlled 4-channel analog high-performance amplifier

- with 8-channel SIGMA DSP processor from ANALOG DEVICES SOFTWARE / APP

- adjustable via ANDROID Bluetooth (via iOS Bluetooth in preparation)

- automatic updates via WLAN

- 4x 110(200) WRMS at 4(2) Ohm

- 2x 400 WRMS mono at 4 Ohm

- fully active mode

- PUMPER limiter

- up to 86% efficiency

- 4x RCA inputs (low level 0.5 to 4 volts)

- 4 x Molex high-level inputs (5 to 20 volts)

- with automatic switch-on

- 4x DSP RCA outputs (5 volts)

- 1x AUX input

- 1x remote output

- SD card slot

- Intuitive GUI

- Dual-core chip with 250 MHz processing power

- Sampling rate 96 kHz (192 kHz optional)

- Frequency range: 10-44000 Hz

- Signal-to-noise ratio digital: 108 dB, analog: 102 dB

- Crosstalk attenuation greater than 92 dB

- Start/stop capable up to 6 volts/5sec

- Operating voltage 9.6-18 volts

- Operating temperature from -20C° to +80C°

- Dimensions:

- 325x50x185 mm
